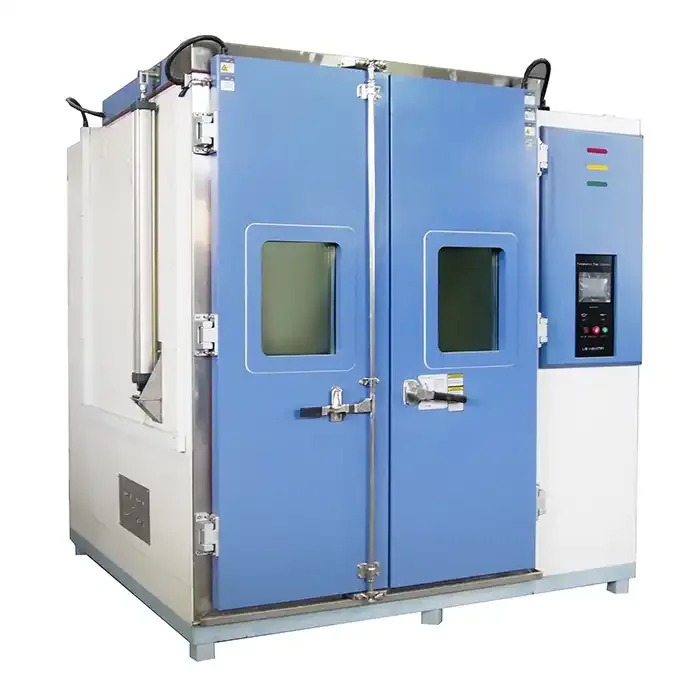

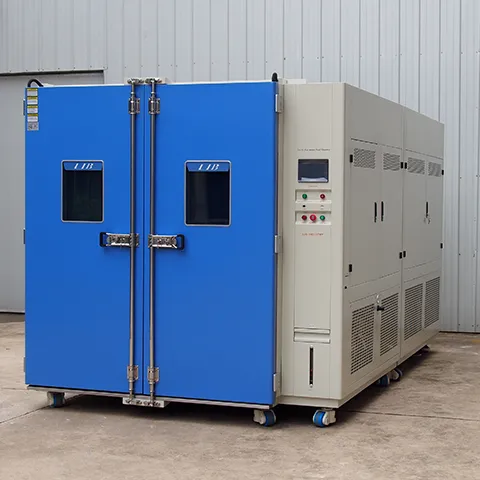

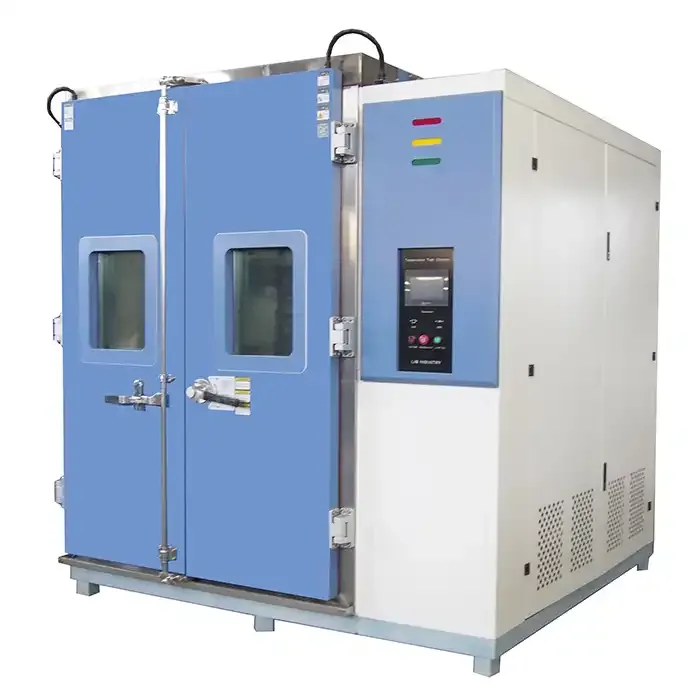

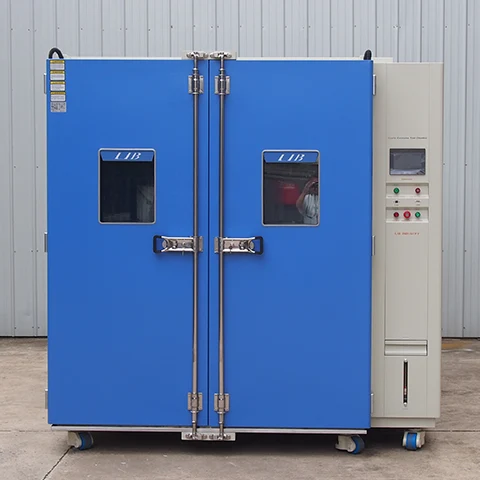

Walk In Climate Chamber

LIB Industry designs and manufactures walk in climate Chamber including integrated type and disassembling type, chambers can be configured as temperature chamber or a temperature humidity chamber.
Temperature Range (℃):-86℃ ～+150 ℃
Humidity Range (R.H):20% ~ 98% RH""
Temperature, climate, vibration, corrosion, altitude, pressure, or combined test
Comprehensive Line of Environmental Chambers
Touch-screen programmble controller, Ethernet access
Automated process control

Send Inquiry

Product Description

Walk In Climate Chamber Manufacturer & Supplier

At LIB, we specialize in the manufacturing and supply of advanced walk in climate chamber , it is essential tools for creating controlled climate environments to assess the impact of temperature and humidity on materials and products. These chambers are available in standard models as well as custom solutions to meet specific testing requirements.

Technical Specifications

Model	WTH-0015C
Internal dimension (mm)	250025002500 DWH
Overall dimension (mm)	400025502850 DWH
Temperature range	-60℃ ~ +150℃
Humidity range	20% ~ 95% RH
Temperature fluctuations	± 2.0℃
Humidity fluctuations	± 5.0% RH
Heating rate	3℃ / min
Cooling rate	1℃ / min
Controller	Programmable color LCD touch screen controller; Ethernet port
Cooling system	Mechanical compression refrigeration system
Safety device	Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection
Exterior material	Steel Plate with protective coating
Interior material	SUS304stainlesssteel

Product Details

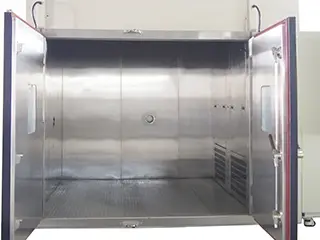

Workroom

The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion

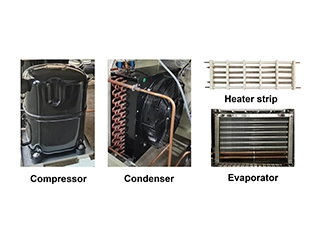

Cooling system

Mechanical compression refrigeration system, French TECUMSEH compressor

Environmentally friendly refrigerant

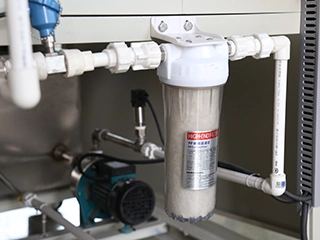

Water Re-circulation

Water purifier: mainly purification from water source to water tank.

Automatic water supply



Features

Our walk in chambers offer precise control of temperature and humidity, spacious interior layout for accommodating large test specimens, robust construction for long-term durability, user-friendly interface for easy operation and monitoring, compliance with international standards for reliable testing, and comprehensive testing capabilities for evaluating material performance under varying climate conditions.

Application

The walk in climate chamber finds applications across industries such as pharmaceuticals, electronics, automotive, aerospace, and materials science. They are used to conduct climate-related tests on a wide range of products, including electronic components, pharmaceuticals, automotive parts, and more, to ensure their reliability and performance under varying climate conditions.

FAQ

Q: Can the chambers be equipped with data logging and remote monitoring features?
A: Yes, our chambers can be integrated with data logging and remote monitoring systems for comprehensive test data collection and access.

Q: What is the lead time for ordering the chambers?
A: 3-4 weeks, we provide door to door service.
