Xenon Chamber
Irradiance Range:35~150 W/㎡
Bandwidth Measurement:300nm~400nm (340nm or 420nm)
Chamber Temperature Range:Ambient ～ 100 ℃ ±2℃
Black Panel Temperature:BPT 35 ～ 85 ℃ ±2℃
Humidity Range:50% ~ 98% RH
Humidity Deviation:± 5% RH

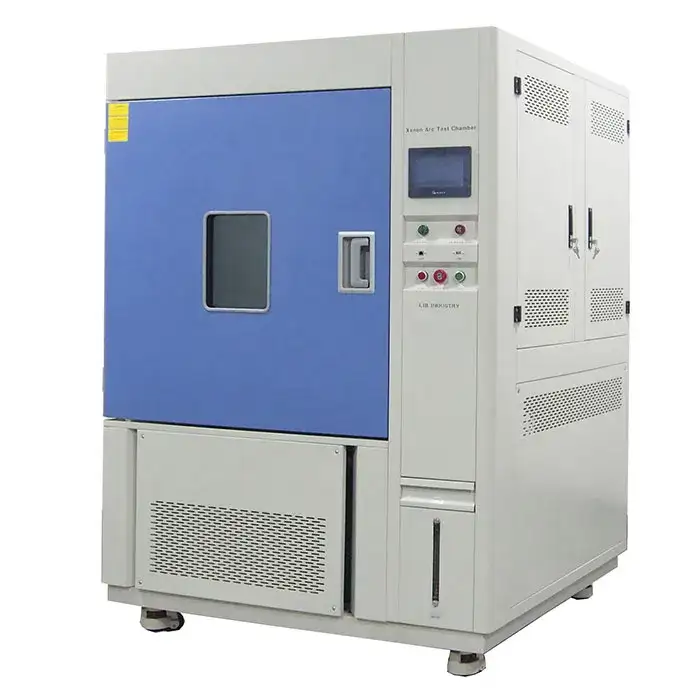

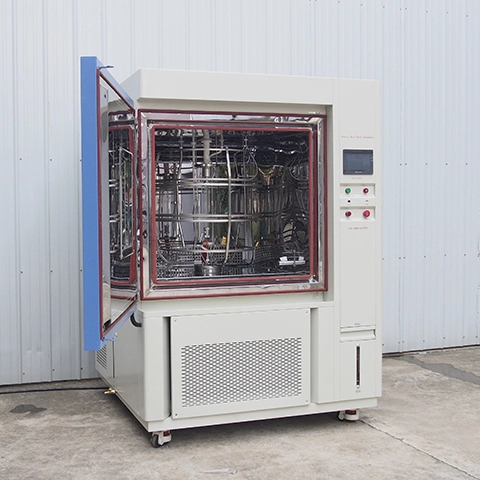

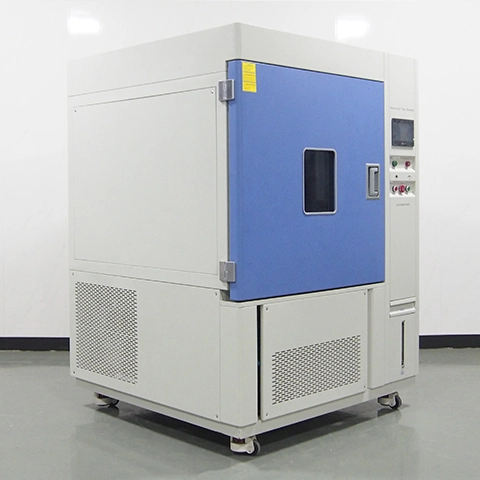

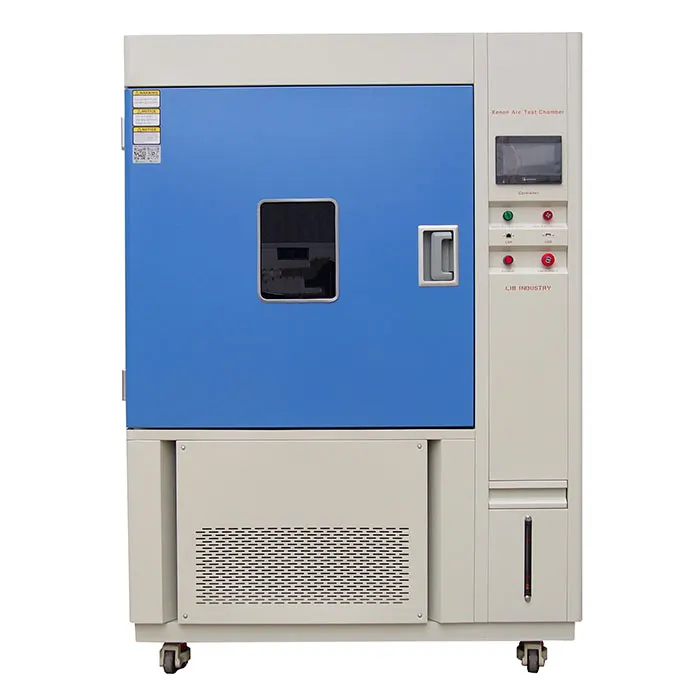

Xenon Chamber Manufacturer & Supplier
The Xenon Chamber by LIB industry, this chamber is simulating environmental conditions of temperature, humidity, water spray and irradiance, it replicates real-world scenarios effectively. Its advanced interface allows users to program and monitor test parameters, ensuring reproducibility and accuracy in testing.
The chamber is equipped with an intuitive interface and user-friendly controls, making it easy to operate and program test cycles.
Technical Specifications
Model | XL-S-750 |
Internal Dimension (mm) | 950*950*850 mm |
Overall Dimension (mm) | 1400*1400*1950 mm |
Specimen Holder Size(mm) | 95*200 |
Specimen Capacity | 42pcs |

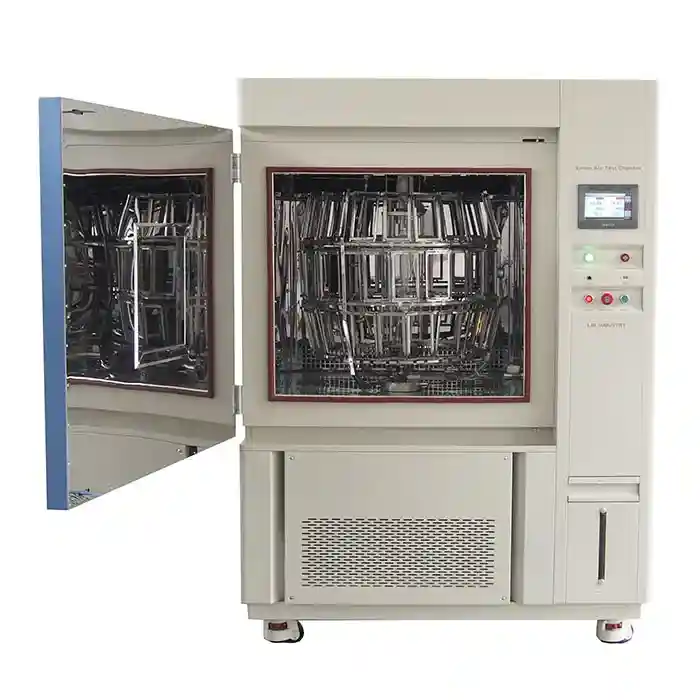

Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp |
Irradiance Range | 35~150 W/㎡ |
Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
Chamber Temperature Range | Ambient ～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 50% ~ 98% RH |
Humidity Deviation | ± 5% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Water supply system | Automatic water supply, Water purification system |
Radiometer | UV Radiometer, Tolerance: ±5% |
Cooling System | Mechanical compression refrigeration system |
Humidification System | External isolation, stainless steel surface evaporation humidifier |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Product Details
|
|
|

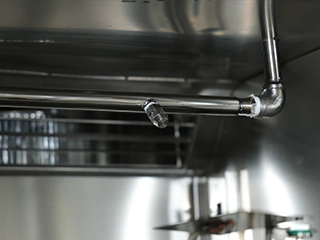

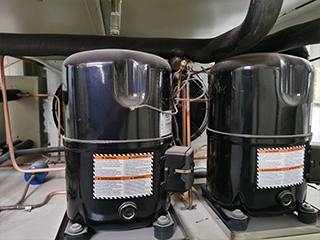

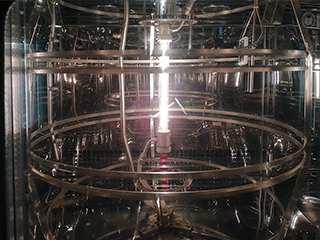

Water Spray Water spray pipe is equipped with nozzles Simulates the outdoor moisture to the material | Irradiation Source Irradiation Source with 1 piece of 4500 W water-cooled xenon lamp Various filters available for choose | Cooling system Mechanical compression refrigeration system French TECUMSEH compressor Environmentally friendly refrigerant |
|
|
Xenon Chamber Features
Customization: It can be customized to meet specific testing needs, including dimensions, control parameters, and additional features, providing flexibility for diverse applications and industry requirements.
1. Reliability: With its precise and consistent performance, it delivers accurate results and reproducible data, ensuring the reliability of weathering tests and supporting confident decision-making.
2. User-Friendly: The Xenon Chamber is equipped with an intuitive interface and user-friendly controls, making it easy to operate and program test cycles.
3. Durable Construction: It is built with high-quality materials and components, ensuring longevity and robustness even under demanding testing conditions.
4. Realistic Simulation: By replicating sunlight across the entire spectrum, it provides a realistic simulation of outdoor weathering conditions.
5. Versatility: It is suitable for a wide range of materials and products, including paints, coatings, plastics, textiles, and automotive components.
Application
It finds applications across industries, including automotive, aerospace, textiles, and coatings. It is pivotal in assessing material durability, weather resistance, and product performance under varying conditions.
FAQ
Q: What are the maintenance requirements for the product?
A: It requires regular maintenance, including lamp replacement, calibration checks, and cleaning of optical components. Detailed maintenance schedules and procedures are provided in the user manual to ensure optimal performance.
Q: Does the product support remote monitoring and control?
A: Yes, the chamber can be equipped with remote monitoring and control capabilities, allowing users to oversee testing processes and make adjustments from a remote location.
Q: How does the product ensure uniform exposure across all test samples?
A: The chamber is designed with advanced light distribution systems and rotating sample racks to ensure uniform exposure to simulated sunlight. This design minimizes variations in exposure levels and promotes consistent testing conditions for all samples.
Q: Can the product accommodate large or irregularly shaped test specimens?
A: Yes, the chamber can be customized to accommodate large or irregularly shaped test specimens through adjustable sample holders, interchangeable racks, and flexible positioning options.
Q: How does the product manage temperature and humidity control during testing?
A: The Xenon Chamber is equipped with precise temperature and humidity control systems, including heating, cooling, and dehumidification capabilities.
Q: Is technical support and training available for operating the product?
A: Yes, LIB provides comprehensive technical support, training, and user manuals to assist customers in operating and maintaining it effectively. Additionally, on-site training and troubleshooting services may be offered to ensure optimal utilization of the equipment.
