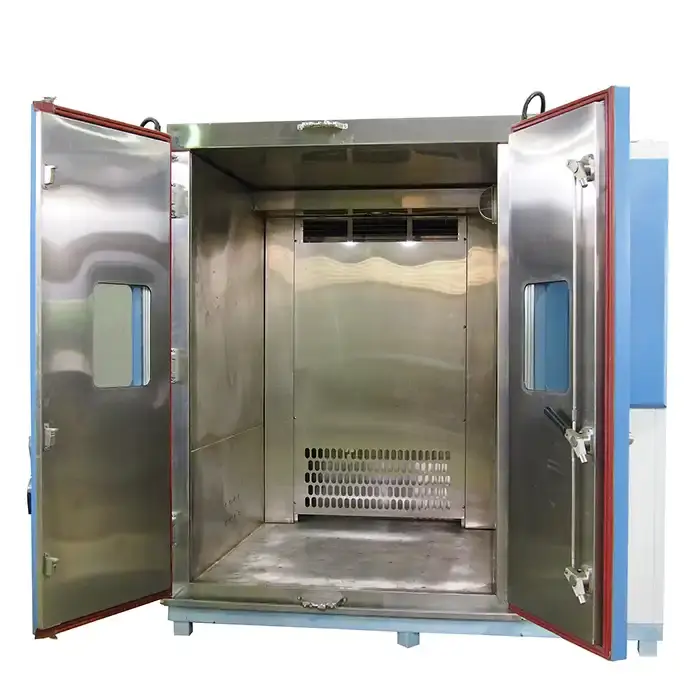

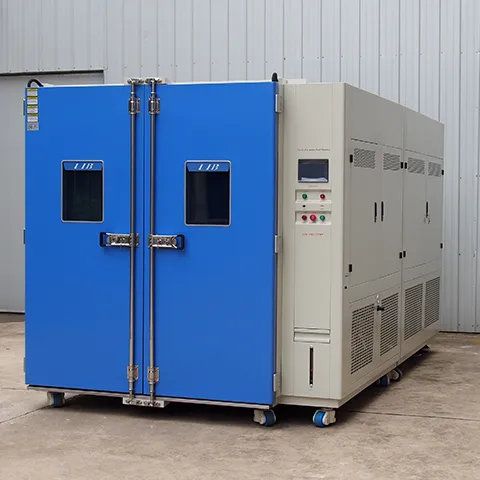

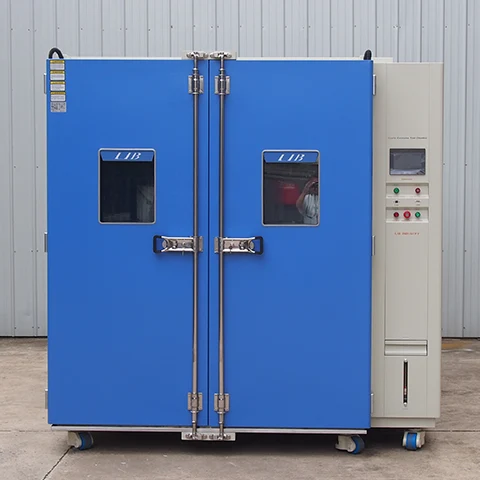

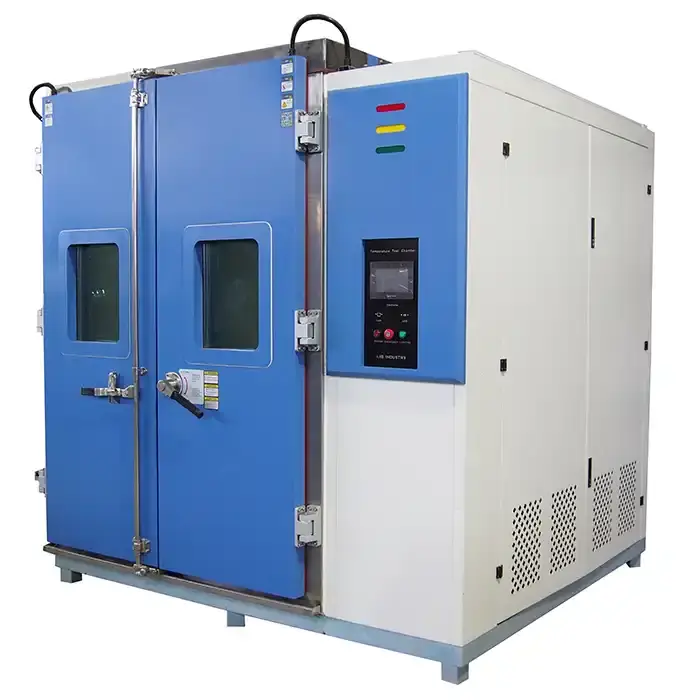

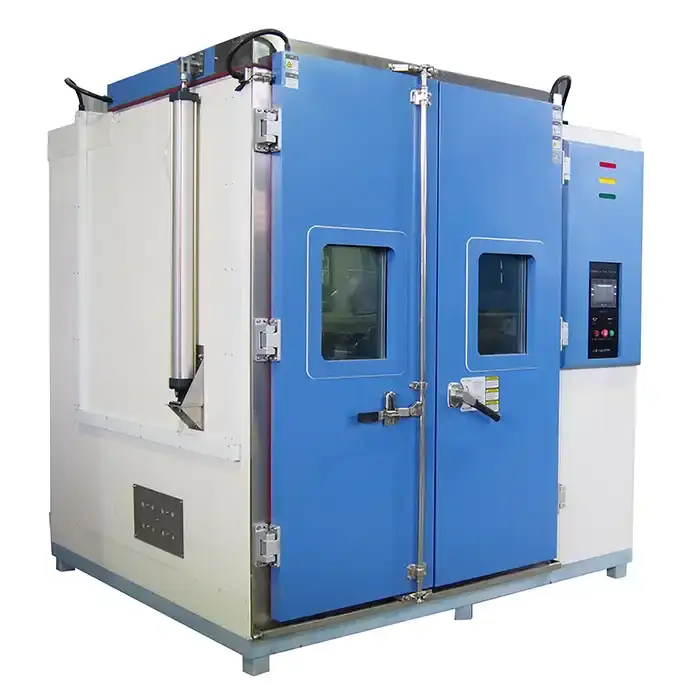

Walk In Test Chamber
Temperature Range (℃):-86℃ ～+150 ℃
Humidity Range (R.H):20% ~ 98% RH""
Comprehensive Line of Environmental Chambers
Touch-screen programmable controller, Ethernet access
Automated process control
Precisely records all test data.
Walk In Test Chamber Manufacturer & Supplier
At LIB industry, we specialize in the manufacturing and supply of walk in test chamber designed to meet the diverse testing needs of industries worldwide. It is engineered to provide precise and reliable environmental conditions for conducting a wide range of tests on various materials and products.
These chambers are available in standard models as well as custom solutions to meet specific testing requirements.
Technical Specifications
Model | WTH-0015C |
Internal dimension (mm) | 2500*2500*2500 D*W*H |
Overall dimension (mm) | 4000*2550*2850 D*W*H |
Temperature range | -60℃ ~ +150℃ |
Humidity range | 20% ~ 95% RH |
Temperature fluctuations | ± 2.0℃ |
Humidity fluctuations | ± 5.0% RH |
Heating rate | 3℃ / min |
Cooling rate | 1℃ / min |
Controller | Programmable color LCD touch screen controller; Ethernet port |
Cooling system | Mechanical compression refrigeration system |
Safety device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection |
Exterior material | Steel Plate with protective coating |
Interior material | SUS304stainlesssteel |
Product Details
|
|
|

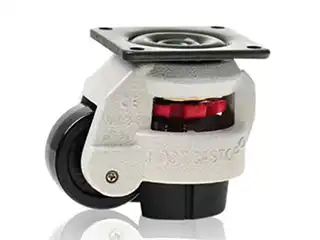

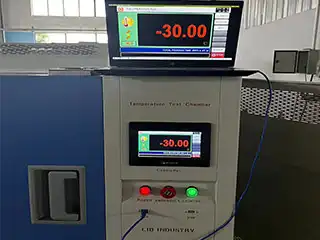

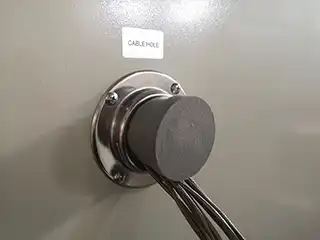

PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data | Cable hole A standard test hole with plugs The standard inner hole diameter is 50mm/100mm/200mm | Castors Install 4 castors for ease moving, and with brakes function. Caster height adjustable. |
|
|
Walk In Test Chamber Functions
1.Temperature Control:
The primary function is to precisely control and maintain a specific temperature range within the chamber. This is crucial for testing materials and products under different temperature conditions to assess their performance and reliability.
2.Humidity Control:
It is equipped with humidity control systems to simulate different humidity levels.
3.Simulation of Environmental Conditions:
Walk In Test Chamber can simulate various environmental conditions, including temperature extremes, humidity variations, and even altitude, to replicate real-world scenarios and assess how materials and products respond.
Application
The walk in test chamber find applications across industries such as pharmaceuticals, electronics, automotive, aerospace, and materials science. They are used to conduct a wide range of tests on products, including electronic components, pharmaceuticals, automotive parts, and more, to ensure their reliability and performance under varying environmental factors.
FAQ
Q: Can the chambers be equipped with data logging and remote monitoring features?
A: Yes, our chambers can be integrated with data logging and remote monitoring systems for comprehensive test data collection and access.
Q: What is the lead time for ordering the chambers?
A: The lead time depends on customization requirements and size options. We prioritize fast delivery to meet our clients' timelines.
