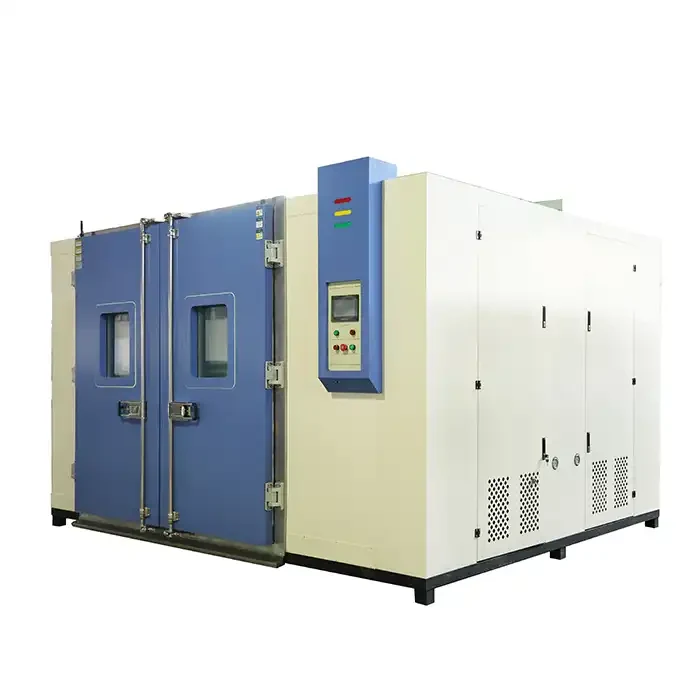

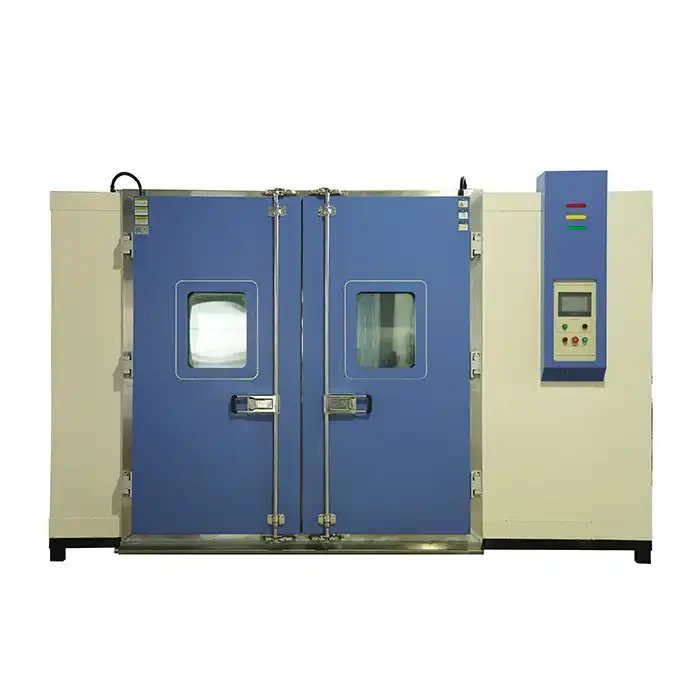

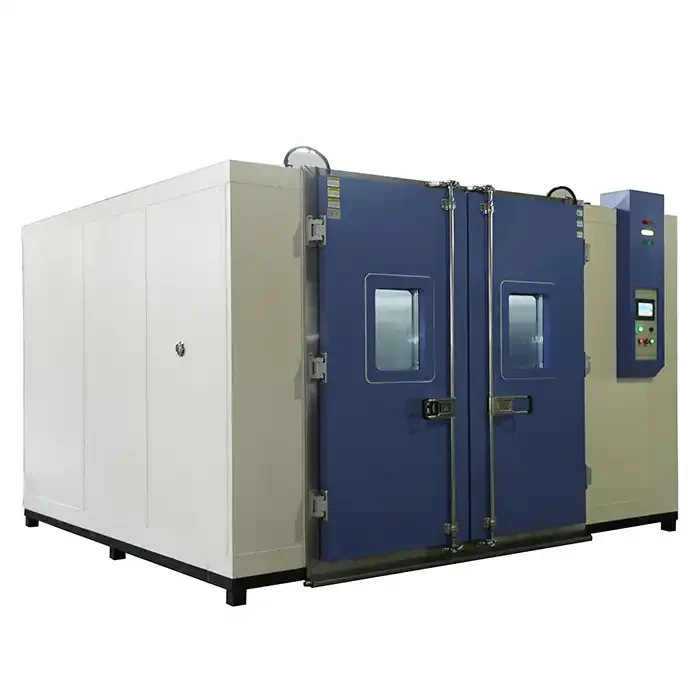

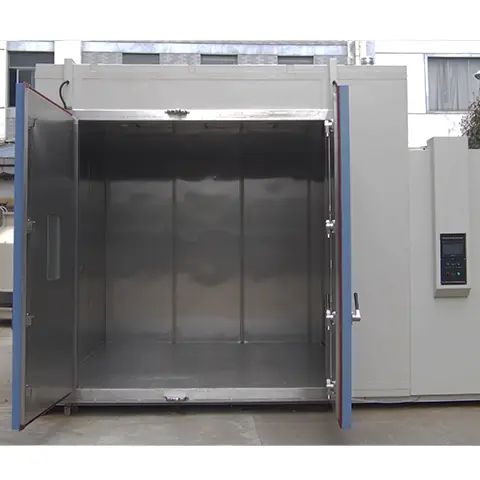

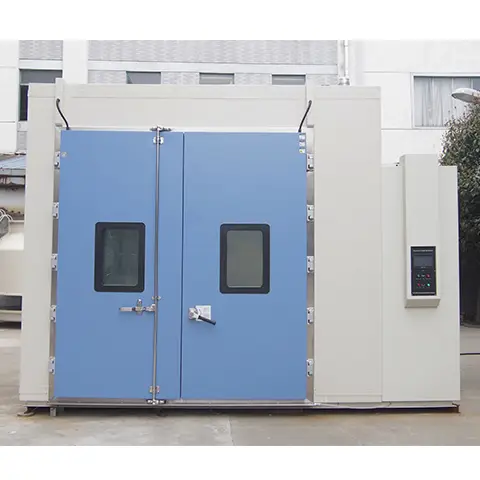

Walk In Temperature Chamber
Temperature Range (℃):-40℃ ～+150 ℃
Humidity Range (R.H):10% ~ 98% RH""
Comprehensive Line of Environmental Chambers
Touch-screen programmable controller, Ethernet access
Automated process control
Precisely records all test data.
Walk In Temperature Chamber Manufacturer & Supplier
LIB Industry presents walk in temperature chamber, It is large enough to accommodate sizable products or multiple specimens simultaneously. This is advantageous when testing large components or conducting batch testing to ensure consistency and reliability.
All temperature chamber come equipped with programmable controllers that allow users to set and control temperature cycles.
Technical Specifications
Model | WTH-0015C |
Internal dimension (mm) | 2500*2500*2500 D*W*H |
Overall dimension (mm) | 4000*2550*2850 D*W*H |
Temperature range | -60℃ ~ +150℃ |
Humidity range | 20% ~ 95% RH |
Temperature fluctuations | ± 2.0℃ |
Humidity fluctuations | ± 5.0% RH |
Heating rate | 3℃ / min |
Cooling rate | 1℃ / min |
Controller | Programmable color LCD touch screen controller; Ethernet port |
Cooling system | Mechanical compression refrigeration system |
Safety device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection |
Exterior material | Steel Plate with protective coating |
Interior material | SUS304stainlesssteel |
Product Details
|
|
|

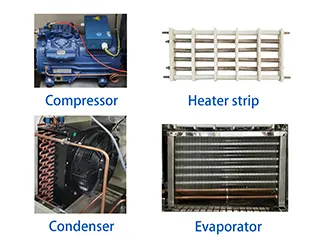

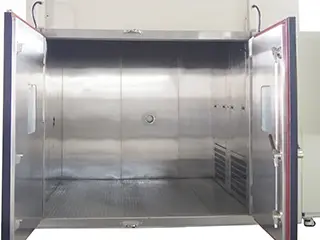

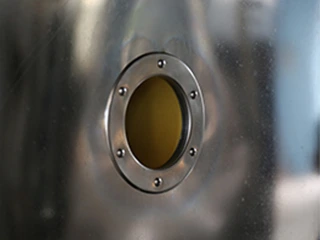

| Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion | Cooling system Mechanical compression refrigeration French TECUMSEH compressor Environmentally friendly refrigerant | Cable hole A standard test hole with plugs The standard inner hole diameter is 50mm/100mm/200mm |
|
|
Walk In Temperature Chamber Functions
1.Size and Capacity:
It is large enough to accommodate sizable products or multiple specimens simultaneously.
2.Uniformity:
These chambers are designed to provide uniform temperature distribution throughout the entire testing space.
3.Humidity Control:
In addition to temperature control, the walk in temperature test chamber also offer humidity control capabilities.
4.Programmable Control:
Many walk in temperature chamber come equipped with programmable controllers that allow users to set and control parameters.
Features
●Versatile Testing: Suitable for a wide range of products and specimens.
●More Models: Available in integrated and detachable versions.
●Customization: Tailored settings for specific testing requirements.
●Quality Assurance: On-site installation and training。
FAQ
Q: Can this Walk In Temperature Chamber maintain constant temperature and humidity?
A: Yes, it can maintain both constant temperature and humidity levels within the specified range for thorough testing.
Q: Are there options for remote monitoring and control?
A: Yes, remote monitoring and control options are available.
