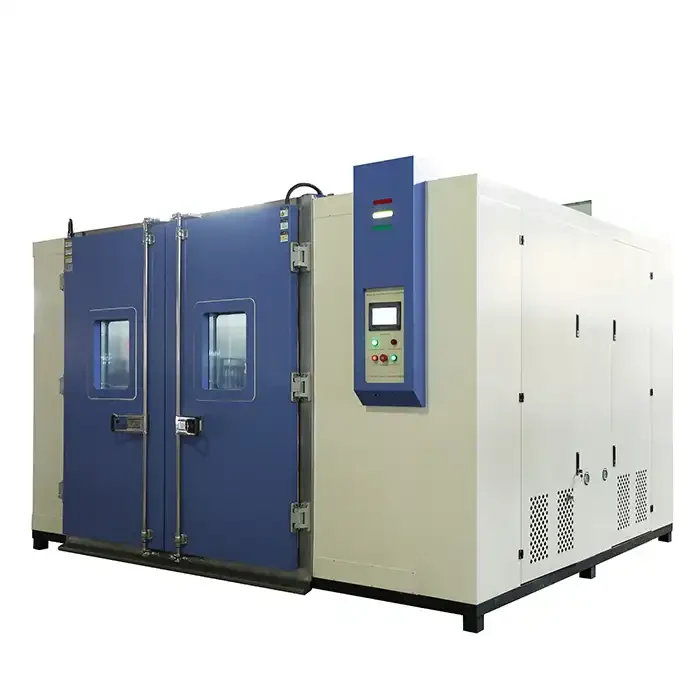

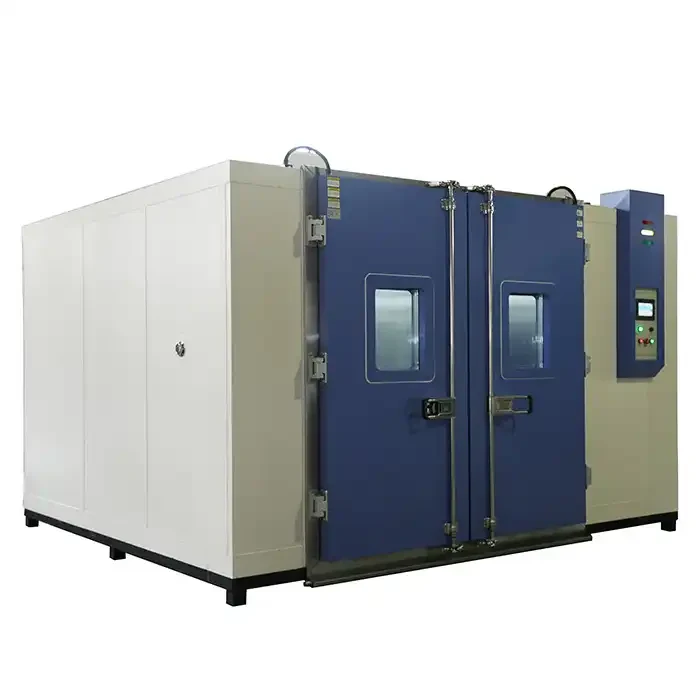

Walk In Thermal Chamber
Temperature Range (℃):-40℃ ～+150 ℃
Humidity Range (R.H):20% ~ 98% RH""
Temperature, climate, vibration, corrosion, altitude, pressure or combined test Comprehensive Line of Environmental Chambers
Touch-screen programmable controller, Ethernet access
Automated process control
Walk In Thermal Chamber Manufacturer & Supplier
LIB walk in thermal chamber is a testing chamber designed to simulate various temperature conditions for a wide range of products. It is a large chamber that allows people to walk inside and experience extreme temperatures, both hot and cold.
The purpose of a walk-in thermal chamber is to test how products or materials react to different temperature conditions. This can include testing the performance and durability of electronic devices, automotive parts, aerospace components.
Technical Specifications
Model | WTH-0015C |
Internal dimension (mm) | 2500*2500*2500 D*W*H |
Overall dimension (mm) | 4000*2550*2850 D*W*H |
Temperature range | -60℃ ~ +150℃ |
Humidity range | 20% ~ 95% RH |
Temperature fluctuations | ± 2.0℃ |
Humidity fluctuations | ± 5.0% RH |
Heating rate | 3℃ / min |
Cooling rate | 1℃ / min |
Controller | Programmable color LCD touch screen controller; Ethernet port |
Cooling system | Mechanical compression refrigeration system |
Safety device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection |
Exterior material | Steel Plate with protective coating |
Interior material | SUS304stainlesssteel |
Product Details
|
|
|

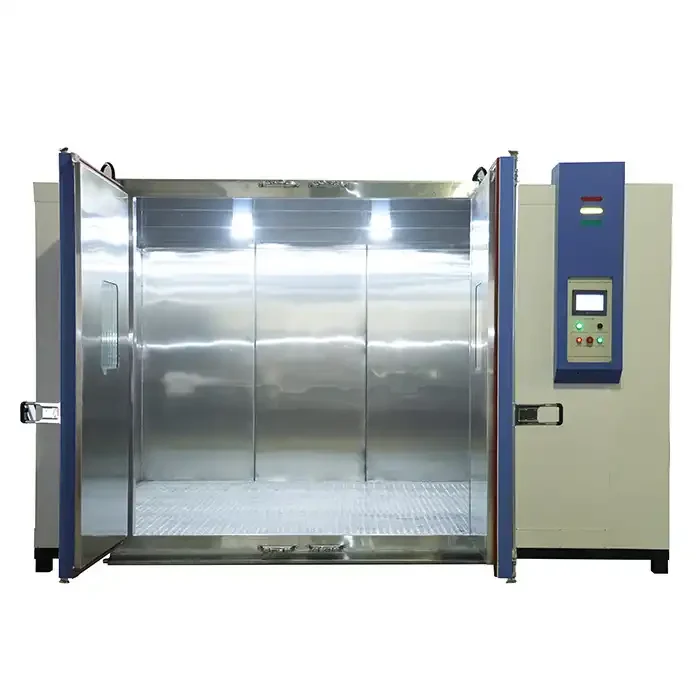

| Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion | Security Settings Emergency stop button Earth leakage protection, phase sequence protection and multiple security protection | Cable hole A standard test hole with plugs The standard inner hole diameter is 50mm/100mm/200mm |
|
|
Functions
1.Size and Capacity:
Walk in thermal test chamber is designed with larger dimensions to accommodate sizeable products or multiple specimens simultaneously.
2.Insulation:
The chamber is constructed with high-quality insulation materials to maintain precise temperature control and prevent heat exchange with the external environment.
3.Temperature Range:
Provides a wide temperature range to simulate both extreme cold and heat conditions, depending on the testing requirements.
4.Temperature Control:
Provides precise and controlled temperature conditions within the chamber, allowing for thermal cycling and steady-state testing.
5.Temperature Uniformity:
Ensures that the temperature is uniform throughout the chamber, preventing localized variations that could impact test results.
Application
●Environmental Simulation:
Simulating and testing products or materials under extreme temperature conditions to assess their performance in harsh environments.
●Textile Industry:
Assessing the thermal properties of textiles, fabrics, and garments for applications ranging from outdoor apparel to industrial textiles.
●Pharmaceutical Industry:
Testing the thermal stability of drugs, vaccines, and pharmaceutical products during storage and transportation.
●Food Industry:
Studying the thermal behavior of food products and packaging materials to ensure quality and safety during processing, storage, and transportation.
FAQ
Q: What is the lead time for custom-sized chambers?
A: Lead times for customized chambers vary depending on specifications. Contact us for detailed timelines.
Q: Can this chamber simulate extreme temperatures?
A: Yes, it can simulate extreme temperatures within the specified range for thorough testing.
