Water ingress is a leading cause of product failure outdoors and in automotive and industrial applications — rain, splashing, high-pressure jets, and submersion can cause short circuits, corrosion, and permanent damage if an enclosure isn't properly sealed.
LIB waterproof testing solutions help manufacturers verify IP (Ingress Protection) ratings against water, from light splashing to full submersion, for products ranging from consumer electronics and automotive components to outdoor lighting, connectors, and industrial enclosures — reproducing dripping, spraying, jetting, and immersion conditions with precision.
With accurate water delivery systems, customizable test parameters, and complete after-sales support, LIB helps manufacturers worldwide validate product reliability and meet international IP rating standards.
Start Selection →
3-Year Warranty 29 Global Agents 4 Overseas Service Centers Lifetime Maintenance · Engineering Consultation
Which Test Standard Does Your Industry Need?
Find the right standard and recommended equipment for your industry, or use the selector tool above.
|
Industry / Application |
Common Standards |
Recommended Test |
Recommended Equipment |
|
Consumer Electronics |
IEC 60529 (IPX1–IPX4) |
Dripping / spraying water |
|
|
Automotive Components (General) |
IEC 60529 (IPX5/IPX6) |
Water jet / rain |
|
|
Underwater / Sealed Products |
IEC 60529 (IPX7/IPX8) |
Immersion |
|
|
Heavy-Duty Automotive Washdown |
IEC 60529 / ISO 20653 (IPX9K) |
High-pressure hot water jet |
|
|
Japanese Automotive |
JIS D0203 |
Rain / splash / spray |
|
|
GM-Spec Automotive |
GMW16001 |
Combined water & dust |
|
|
Electrical Enclosures / Cabinets |
UL50E |
Enclosure type rating |
Different products require different water exposure tests depending on their IP rating target, application, and industry standard.LIB provides environmental simulation solutions for the following waterproof tests:
Dripping Water Test (IPX1 / IPX2)
Dripping water testing evaluates a product's resistance to vertically or slightly angled dripping water, simulating light condensation or dripping exposure.
Common standards:
· IEC 60529 (IPX1, IPX2)
Spraying Water Test (IPX3 / IPX4)
Spraying water testing evaluates a product's resistance to water sprayed at an angle or from any direction, simulating rain or splash exposure.
Common standards:
· IEC 60529 (IPX3, IPX4)

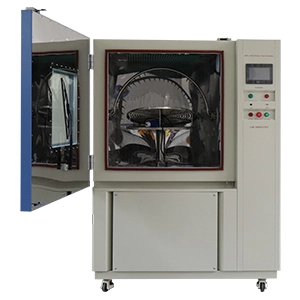

Recommended Equipment
|
What you're afraid of: a splash rating that hasn't actually been tested Consumer electronics and electrical enclosures marketed with a splash or drip rating that hasn't been verified risk short circuits the first time they meet real condensation or rain. This equipment covers all four IPX1–IPX4 conditions with adjustable water flow and spray angle in one system, validating the exact rating printed on the box. IPX1–IPX4 coverage · Adjustable flow & spray angle · IEC 60529 |
Water Jet Test (IPX5 / IPX6)
Water jet testing evaluates a product's resistance to low-pressure or powerful water jets directed from any angle, simulating hose-down or high-pressure washing conditions.
Common standards:
· IEC 60529 (IPX5, IPX6)

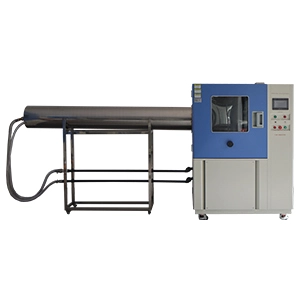

Recommended Equipment
|
|
What you're afraid of: an enclosure that survives rain but not the wash bay Outdoor and automotive products often face powerful directed water jets — from wash bays or pressure cleaning — and a rating validated against light exposure alone leaves that risk unverified. This chamber runs a high-flow jet system with adjustable pressure and flow rate, validating both IPX5 and IPX6 severity in one setup. High-flow jet system · Adjustable pressure & flow rate · IEC 60529 IPX5/IPX6 |
Immersion Test (IPX7 / IPX8)
Immersion testing evaluates a product's ability to withstand temporary or continuous submersion in water at specified depths and durations.
Common standards:
· IEC 60529 (IPX7, IPX8)

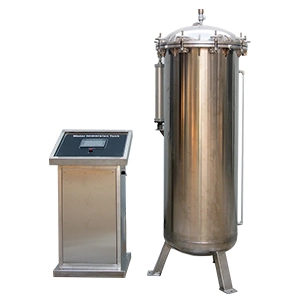

Recommended Equipment
|
|
What you're afraid of: a "waterproof" claim that fails the moment a product goes underwater A product labeled waterproof that has never actually been submerged is a liability the first time a customer drops it in a puddle or a pool. This system controls immersion depth and duration precisely, validating both temporary and continuous submersion resistance before that claim ever reaches a customer. Controlled immersion depth & time · Temporary + continuous submersion · IEC 60529 |
|
High-Pressure / High-Temperature Water Jet Test (IPX9K)
IPX9K testing evaluates a product's resistance to close-range, high-pressure, high-temperature water jets, commonly required for automotive and industrial washdown applications.
Common standards:
· IEC 60529
· ISO 20653

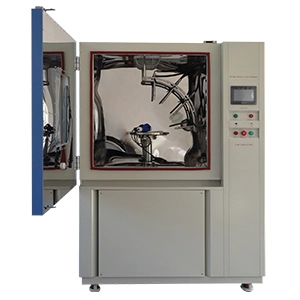

Recommended Equipment
|
|
What you're afraid of: a component that fails during its own washdown cycle Automotive and heavy-duty industrial components are routinely hosed down at close range with hot, high-pressure water — a condition standard IPX5/IPX6 testing doesn't fully replicate. This chamber delivers water up to 80℃ at pressures up to 8–10 MPa, validating survival under the exact washdown severity the product will actually face in service. Water temp up to 80℃ · Pressure up to 8–10 MPa · Configuration dependent |
|
Rain Test
Rain testing simulates natural rainfall conditions to evaluate the water resistance of larger products or outdoor equipment under realistic weather exposure.
Common standards:
· IEC 60068-2-18
· MIL-STD-810H Method 506
Recommended Equipment
|
What you're afraid of: equipment that fails in a real storm, not a lab spray Outdoor and field equipment doesn't just get sprayed — it gets rained on at an angle, with wind driving water into seams a static jet test never reaches. This chamber reproduces wind-driven rain conditions to MIL-STD-810H Method 506 and IEC 60068-2-18, validating realistic weather exposure rather than a directed lab jet. Wind-driven rain simulation · MIL-STD-810H Method 506 · IEC 60068-2-18 |
 |
Automotive Waterproof Test (JIS D0203)
JIS D0203 testing evaluates the water resistance of automotive electrical and electronic components under washing, splash, and spray conditions, and is widely required for automotive component approval in Japan.
Common standards:
· JIS D0203

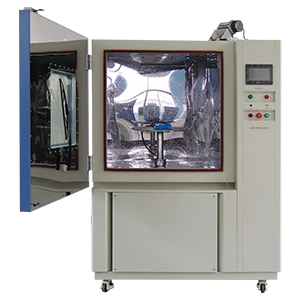

Recommended Equipment
|
|
What you're afraid of: a component rejected by a Japanese OEM for a missing standard Automotive components sold into the Japanese market are routinely rejected at approval stage when JIS D0203 compliance hasn't been demonstrated, regardless of how well a product performs under IEC 60529 alone. This equipment is purpose-built to simulate rain, spray, and washing conditions to JIS D0203 requirements for lamps, connectors, and sensors. Adjustable pressure, flow & spray conditions · Complies with JIS D0203 |
|
GM Worldwide Ingress Protection Test (GMW16001)
GMW16001 testing verifies the dust and water ingress protection performance of automotive electrical and electronic components in line with General Motors global engineering requirements.
Common standards:
· GMW16001

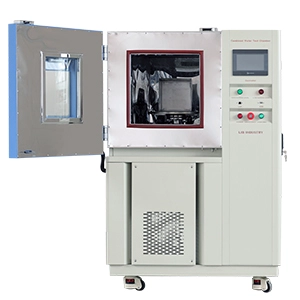

Recommended Equipment
|
|
What you're afraid of: a GM supplier audit flagging a missing GMW16001 report Suppliers to General Motors' global supply chain need ingress protection results validated specifically to GMW16001, not a generic IEC equivalent, or risk a failed supplier audit late in the program. This system supports combined water and dust ingress evaluation designed around GM's own environmental protection requirements. Water + dust ingress evaluation · Simulates automotive operating environments · Complies with GMW16001 |
|
Enclosure Type Rating Test (UL50E)
UL50E testing evaluates the environmental protection performance of electrical equipment enclosures, verifying Type ratings against rain, dust, splash, and water exposure for indoor and outdoor use.
Common standards:
· UL50E

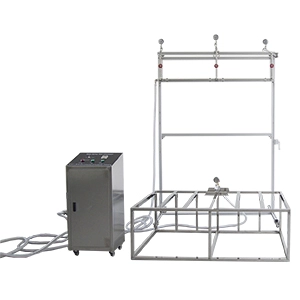

Recommended Equipment
|
What you're afraid of: an enclosure Type rating that doesn't hold up to a UL audit Electrical cabinets and control equipment sold with a UL Type rating that hasn't been independently verified put a manufacturer's UL listing itself at risk during audit. This equipment runs water spray and hose-directed water tests specifically to UL50E requirements, confirming sealing performance for both indoor and outdoor rated enclosures. Water spray + hose-directed tests · Enclosure sealing evaluation · Complies with UL50E |
Complete IP Waterproof Testing Laboratory Solution
|
Client South Korean testing agency Year 2019 Scope IPX1–IPX9K water, IP5X/IP6X dust Support Equipment configuration, installation, calibration |
In 2019, a South Korean testing agency required a complete IP testing solution to expand its product testing services. Instead of a single testing machine, LIB provided a customized IP laboratory solution covering IPX1–IPX9K waterproof testing and IP5X/IP6X dustproof testing in one integrated build. LIB supported the complete process, including equipment configuration, installation, and technical guidance — helping the agency establish a professional waterproof and dustproof testing capability to serve a wide range of customer requirements. LIB also provides long-term technical support and regular equipment calibration assistance to ensure accurate and reliable testing results year after year. |
 |
|
Choosing the Right Chamber
Selecting the correct waterproof chamber depends on required IP rating, water pressure and flow rate, sample size, immersion depth and duration, test standard, industry application, and test duration. Our engineers can recommend the most suitable equipment based on your product requirements and testing objectives.
Frequently Asked Questions
What equipment is used for waterproof testing?Waterproof testing is usually performed using dedicated IP-rating equipment matched to the specific rating required — from IPX1–IPX4 drip/spray equipment to IPX9K high-pressure jet chambers and full immersion systems — depending on the standard and IP rating target.
What is the difference between IPX ratings?IPX ratings increase in severity from IPX1 (vertical dripping) through IPX9K (high-pressure, high-temperature close-range jets). Lower ratings cover light exposure such as condensation, while higher ratings cover directed jets, full immersion, and washdown-level severity.
Do I need a specific automotive standard, or is IEC 60529 enough?It depends on your customer. General IP ratings under IEC 60529 are widely recognized, but OEM-specific standards such as JIS D0203 (Japan) or GMW16001 (General Motors) are often required separately for automotive component approval, regardless of IEC compliance.
Can dust and water ingress be tested together?Yes. Standards such as GMW16001 and ISO 20653 evaluate combined dust and water ingress protection within a single test program, reflecting the fact that products face both stresses simultaneously in real-world use.
What warranty and service does LIB industry provide?LIB industry provides a 3-year warranty, lifetime maintenance support, technical assistance, and engineering consultation — backed by 29 agents and 4 overseas service centers worldwide, so support is never far away.
Need a Waterproof Testing Solution?
Whether you need a waterproof test chamber, IPX test chamber, IPX5/IPX6 water jet test chamber, IPX7/IPX8 immersion test chamber, IPX9K high-pressure water test chamber, drip testing, spray testing, water jet testing, immersion testing, or a customized IP rating verification solution, LIB can provide the right equipment.
Our engineers can recommend the most suitable IP waterproof testing equipment based on your product requirements, IEC 60529, ISO 20653, industry standards, and testing objectives.
