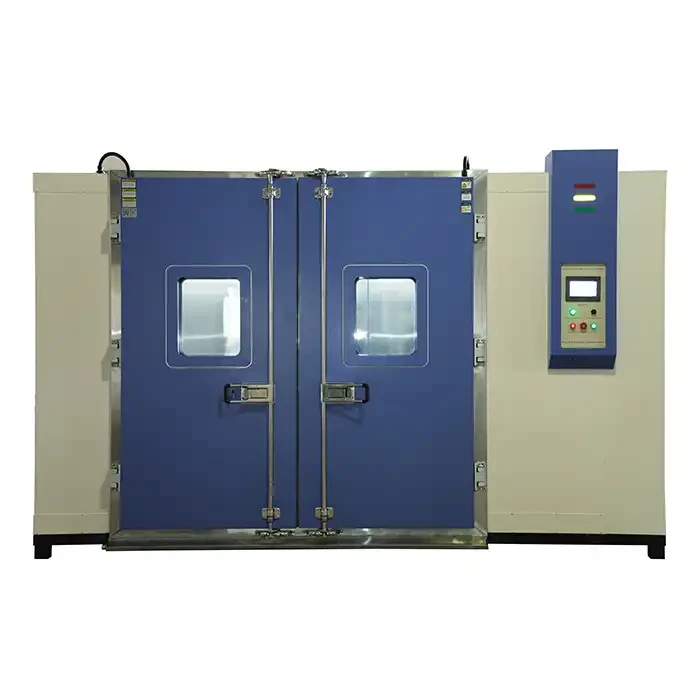

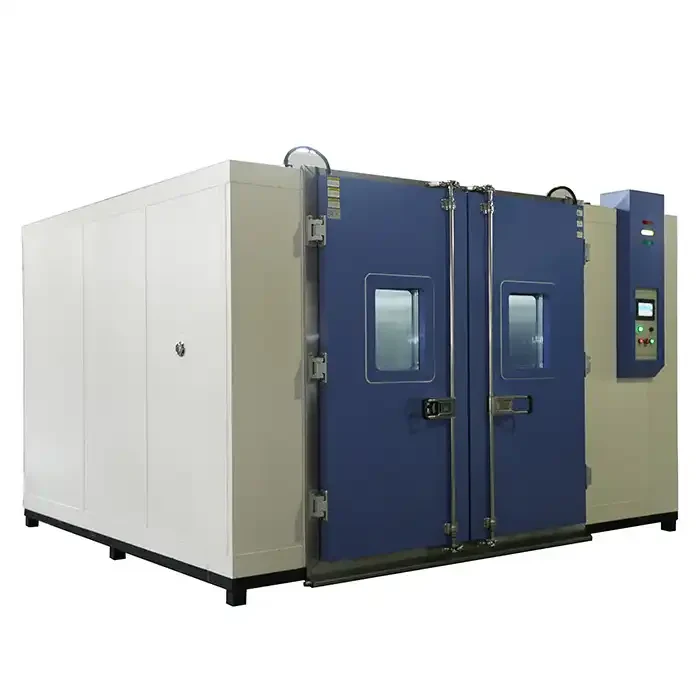

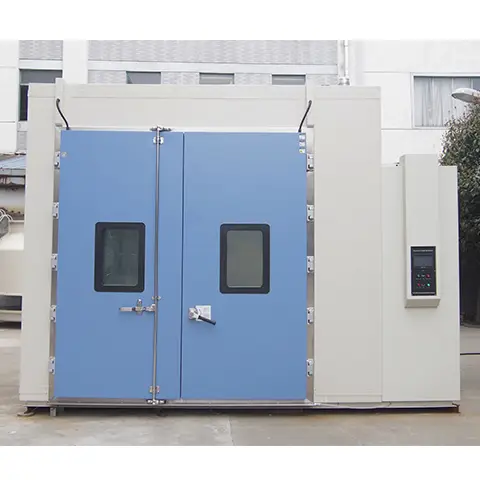

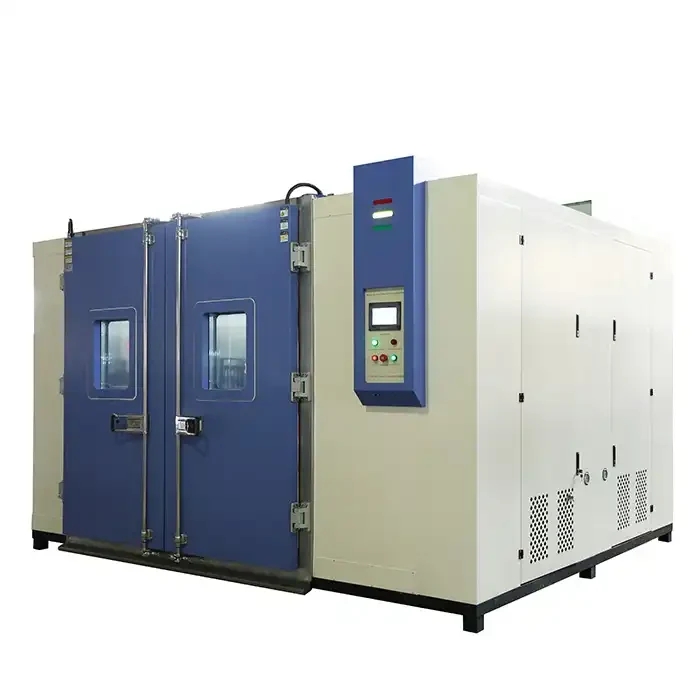

Walk In Humidity Chamber

This walk-in humidity chamber provides temperature and humidity testing for large components and equipment. Many standard and custom walk-in, drive-in chambers for your needs.
Temperature Range (℃):-70℃ ～+150 ℃
Humidity Range (R.H):10% ~ 98% RH""
Touch-screen program controller, Ethernet access Automated process control
Precisely records all test data.
Extended options of the size, performance, and configuration

Send Inquiry

Product Description

Walk In Humidity Chamber Manufacturer & Supplier

At LIB, we specialize in the manufacturing and supply of walk in humidity chamber designed to meet the diverse testing needs of industries. These walk in humidity chambers are designed to provide consistent and accurate testing conditions, enabling thorough evaluation of materials and products under varying humidity levels.

LIB Industry designs and manufactures walk in chambers including integrated type and disassembling type.

Technical Specifications

Model	WTH-0015C
Internal dimension (mm)	250025002500 DWH
Overall dimension (mm)	400025502850 DWH
Temperature range	-60℃ ~ +150℃
Humidity range	20% ~ 95% RH
Temperature fluctuations	± 2.0℃
Humidity fluctuations	± 5.0% RH
Heating rate	3℃ / min
Cooling rate	1℃ / min
Controller	Programmable color LCD touch screen controller; Ethernet port
Cooling system	Mechanical compression refrigeration system
Safety device	Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection
Exterior material	Steel Plate with protective coating
Interior material	SUS304stainlesssteel

Product Details

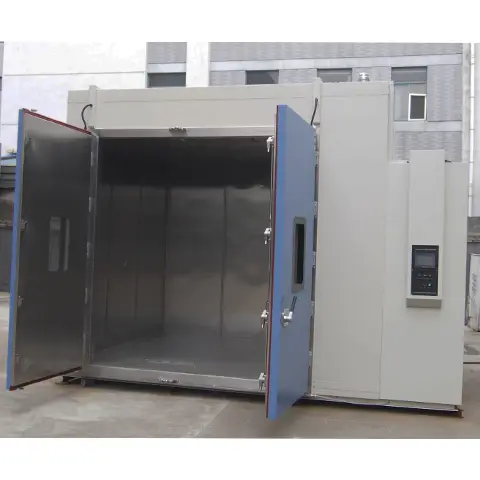

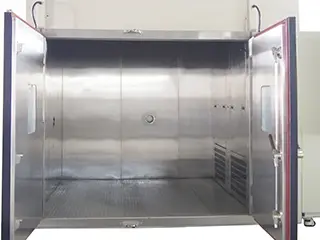

Workroom

The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion

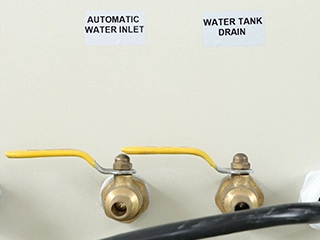

Automatic water inlet

Automatic control of the water intake of equipment

Achieve automated testing

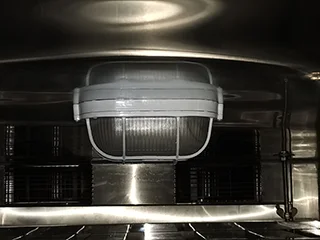

Build-in lighting

The built-in dustproof LED lighting inside the workroom

Makes it clear to observe the test specimen.



Features

The walk in humidity chamber offer precise control of temperature and humidity, spacious interior layout for accommodating large test specimens, robust construction for long-term durability, user-friendly interface for easy operation and monitoring, compliance with international standards for reliable testing, and comprehensive testing capabilities for evaluating material performance under varying humidity conditions.

Application

Our chambers find applications across industries such as pharmaceuticals, electronics, automotive, aerospace, and materials science. They are used to conduct humidity-related tests on a wide range of products, including electronic components, pharmaceuticals, automotive parts, and more, to ensure their reliability and performance under varying humidity levels.

FAQ

Q: Can the chambers be equipped with data logging and remote monitoring features?
A: Yes, our chambers can be integrated with data logging and remote monitoring systems for comprehensive test data collection and access.

Q: What is the lead time for ordering the chambers?
A: 2-4 weeks as standard. Tell us about your requirements, let us help you.
