Walk In Environmental Chamber
Temperature Range (℃):-86℃ ～+150 ℃
Humidity Range (R.H):20% ~ 98% RH""
Touch-screen programmble controller, Ethernet access
Automated process control
Precisely records all test data.
Extended options of the size, performance, and configuration

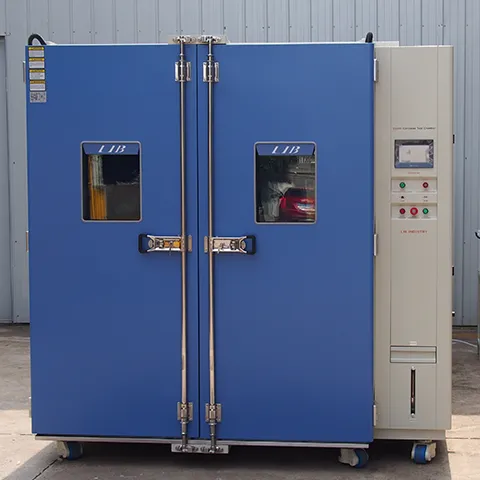

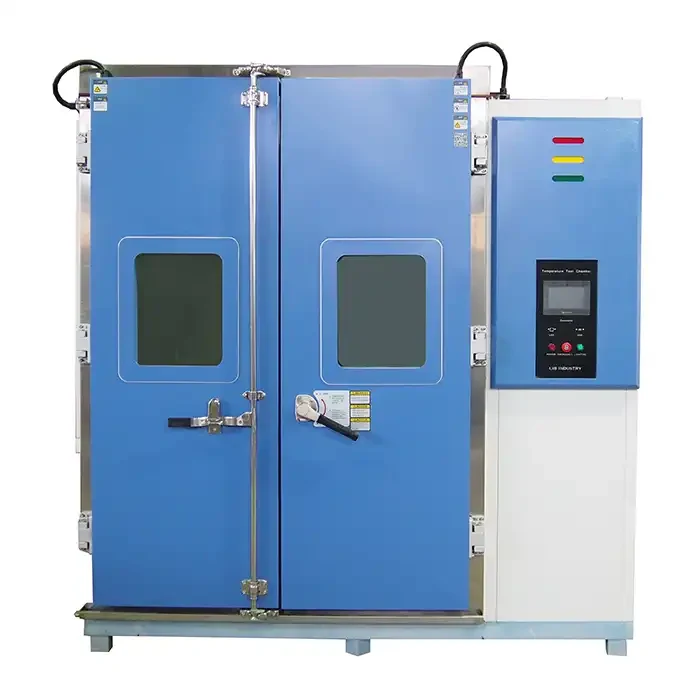

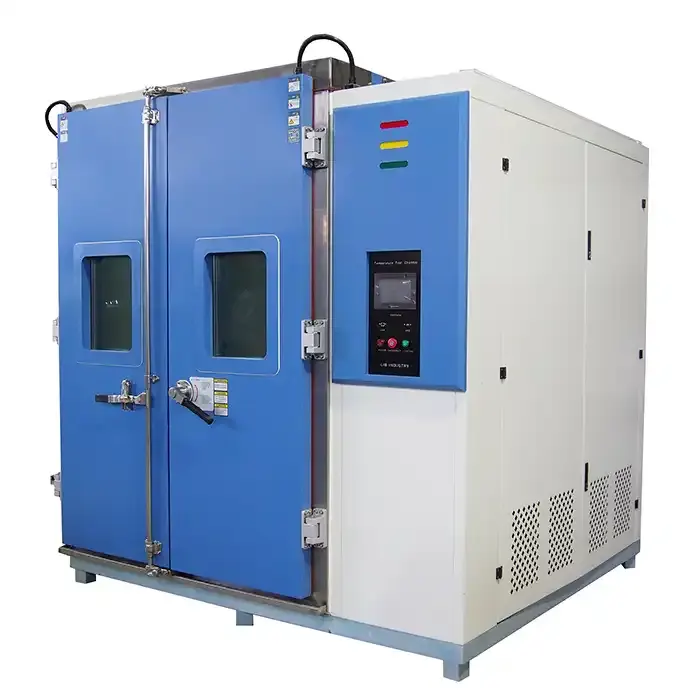

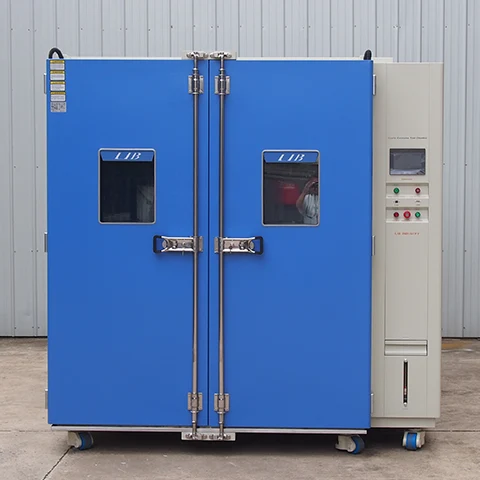

Walk In Environmental Chamber Manufacturer & Supplier
LIB industry's walk in environmental chamber is to subject products or materials to extreme temperatures, humidity levels, vibrations, and other environmental factors to assess their performance and reliability.
It is widely used in industries such as automotive, aerospace, electronics, and pharmaceuticals to evaluate the performance and durability of products under different environmental conditions.
Technical Specifications
Model | WTH-0015C |
Internal dimension (mm) | 2500*2500*2500 D*W*H |
Overall dimension (mm) | 4000*2550*2850 D*W*H |
Temperature range | -60℃ ~ +150℃ |
Humidity range | 20% ~ 95% RH |
Temperature fluctuations | ± 2.0℃ |
Humidity fluctuations | ± 5.0% RH |
Heating rate | 3℃ / min |
Cooling rate | 1℃ / min |
Controller | Programmable color LCD touch screen controller; Ethernet port |
Cooling system | Mechanical compression refrigeration system |
Safety device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection |
Exterior material | Steel Plate with protective coating |
Interior material | SUS304stainlesssteel |
Product Details
|
|
|

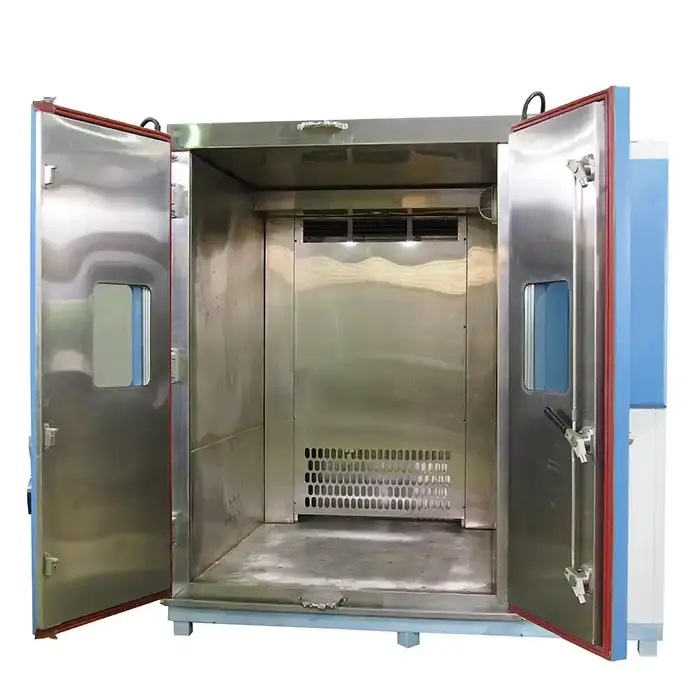

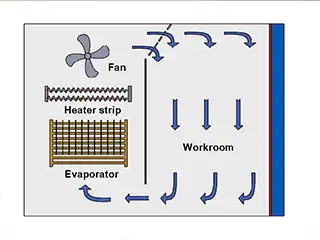

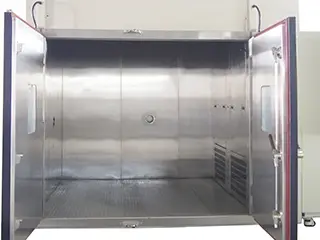

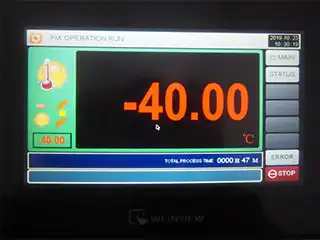

| Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion | Controller PID programmable color touch screen controller Network connection computer. | Air circulation The air is uniformly distributed through the air outlet. Air circulates evenly throughout the workroom |
|
|
Walk In Environmental Chamber Features
1.Precise Temperature Control:
The Walk In Environmental Chamber is equipped with a sophisticated temperature control system that allows precise regulation of temperature within a specified range.
2.Humidity Control:
For applications where humidity is a critical factor, the chamber includes a humidity control system.
3.Precision and Control:
Precise temperature and humidity control, along with advanced programmable controllers, allows for meticulous control over testing conditions.
4.Comprehensive Testing Capability:
The chamber offers a platform for conducting comprehensive environmental tests, encompassing temperature, humidity, and potentially other factors. This comprehensive testing capability is valuable for industries requiring thorough product evaluation.
Application
1.Temperature and Humidity Testing:
The walk in environmental test chamber is used to test electronic components, semiconductor devices, and integrated circuits under controlled temperature and humidity conditions to assess their performance and reliability.
2.Vehicle Component Testing:
These chambers simulate environmental conditions that automotive components may encounter during use, including temperature extremes and humidity variations. This is crucial for evaluating the durability and performance of components such as engines, sensors, and electronic systems.
FAQ
Q: Can this Walk In Environmental Chamber simulate extreme environmental conditions?
A: Yes, it can simulate extreme conditions within the specified range for thorough testing.
Q: Are there options for remote monitoring and control?
A: Yes, remote monitoring and control options are available.
