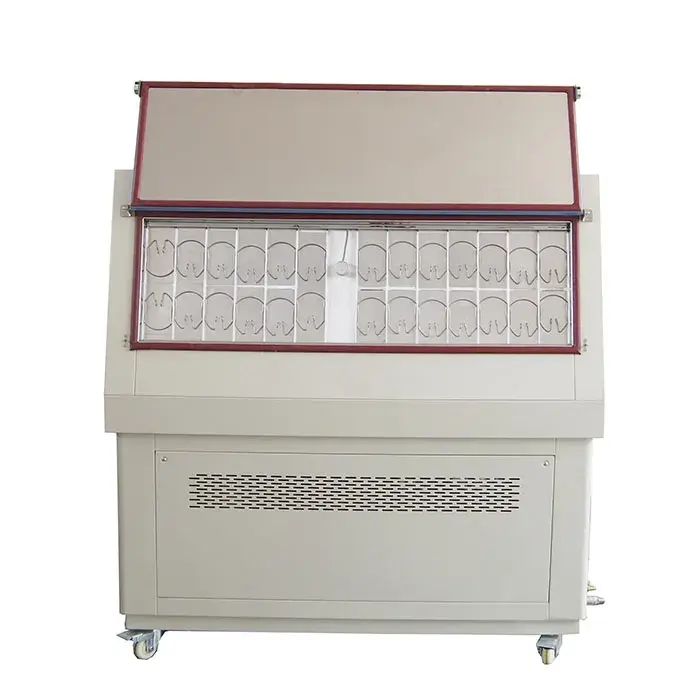

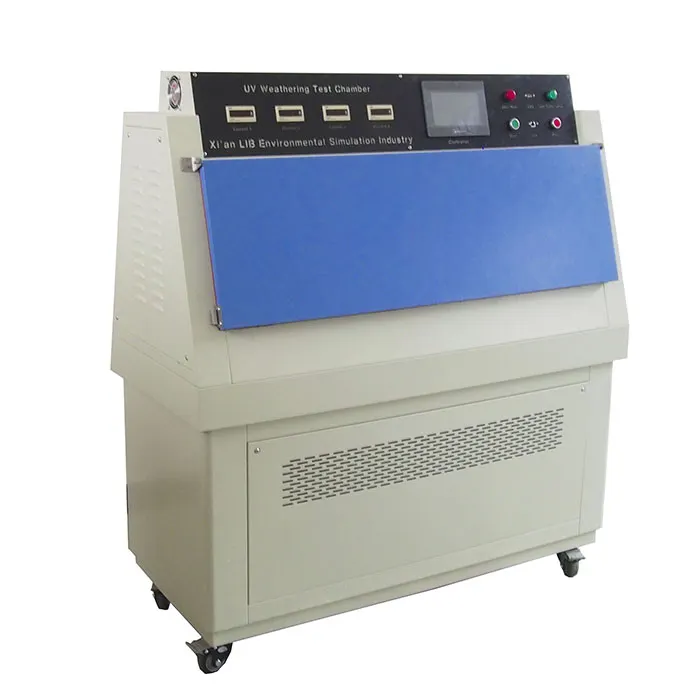

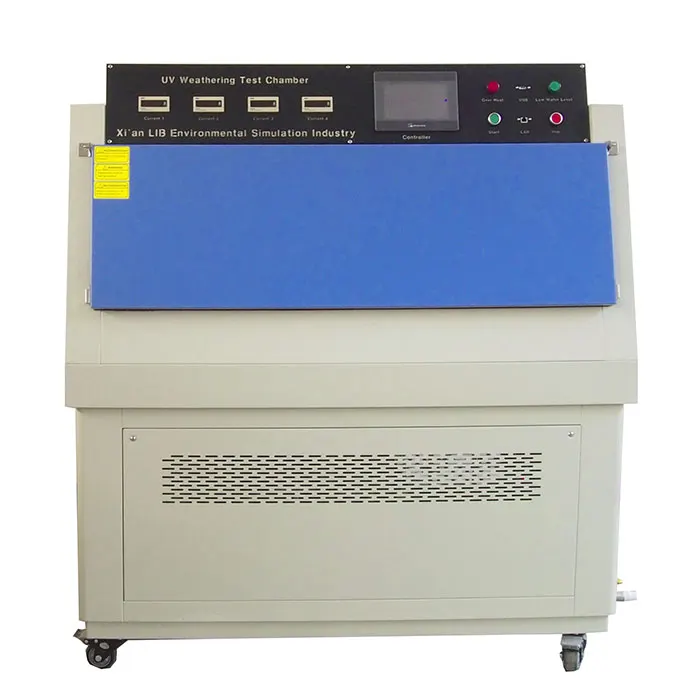

uv weather test chamber

LIB Industry’s UV Weather Test Chamber (Model UV-SI-260) exposes 56 flat specimens to UV light, condensation and water spray in one programmed cycle, so you can rank coatings, plastics and rubber by outdoor durability in days or weeks. Eight 40 W fluorescent UV lamps sit 50 mm from the samples.
Standards: ASTM G154, ASTM D4587, ISO 4892-3
Light Source: 8 × 40 W fluorescent UV lamps (UVA-340 or UVB-313), 290 ~ 400 nm
Irradiance Control: 0.3 ~ 20 W/m²
Temperature: Chamber ambient ~ 90 ℃ ±2 ℃, black panel 35 ~ 80 ℃
Humidity: ≥ 95% RH
Capacity: 56 panels (75×150 mm), flat holders
Product Description

UV Weather Test Chamber Manufacturer & Supplier: Rank Materials by Outdoor Durability

A new coating or plastic formula needs an answer before launch: will it chalk, yellow or crack outdoors? The UV-SI-260 answers it by repeating a day-and-night cycle, UV light by day and condensation like dew by night, with spray for rain, far faster than natural exposure.

For a UV weather test chamber price, send your test standard, panel size and quantity, and LIB Industry will quote the matching configuration.

Built for Side-by-Side Material Comparison

Equal Exposure for 56 Panels: 50 mm Lamp Distance
Eight lamps and flat holders give every panel the same light, so differences between samples come from the material.

Two Lamp Types: UVA-340 and UVB-313
UVA-340 is the closest match to sunlight for most weathering work. UVB-313 ages faster for quick screening. Lamps are easy to change.

Set Your Own Intensity: 0.3 ~ 20 W/m²
Match the irradiance your standard asks for across the 290 ~ 400 nm UV range.

Day and Night in One Program: UV, Condensation, Spray
Black panel temperature 35 ~ 80 ℃, humidity ≥ 95% RH, and a spray cycle of 1~9999H59M run in a single sequence.

Spray Nozzles for Rain Shock
Ten nozzles (0.5 mm) deliver 0.8 ~ 1.0 ml/80 cm²/h to imitate sudden rain.

Long Unattended Runs: Automatic Water Supply and Purification
Water refills itself, so multi-week tests run without refilling.

UV Weather Test Chamber Technical Specifications

ModelUV-SI-260
Internal / Overall Dimensions450×1170×500 mm / 610×1330×1470 mm
Specimen Holder / Capacity75×150 mm / 56 pcs (flat holders, aluminum panels with rings); special holders can be customized
Light Source8 × 40 W fluorescent UV lamps (UVA-340 / UVB-313), distance to specimen 50 mm
Wavelength / Irradiance290 ~ 400 nm / 0.3 ~ 20 W/m²
Chamber / Black Panel TemperatureAmbient ~ 90 ℃ ±2 ℃ / 35 ~ 80 ℃
Humidity≥ 95% RH
Water Spray Cycle1~9999H59M, adjustable
ControllerProgrammable color LCD touch screen, Ethernet connection
Water Supply SystemAutomatic water supply with water purification
Safety ProtectionOver-temperature, over-current, water shortage, earth leakage, phase sequence
MaterialsInterior SUS304 stainless steel; exterior steel plate with protective coating

UV Weather Test Chamber Details




Workroom

The internal material is 304 stainless steel

Flat specimen holders, aluminum panels with rings.

Irradiation Source

UVA 340 nm and UVB 313 nm fluorescent UV lamps are available

Easy to change UV lamps

Sample Shelf

Each specimen size is 75mm * 150mm, can hold 56 pieces.

Special sample holder can be customized



Standards and Typical Cycles

StandardTypical use
ASTM G154Fluorescent UV exposure of nonmetallic materials
ASTM D4587Fluorescent UV and condensation exposure of paints and coatings
ISO 4892-3Plastics: fluorescent UV lamps

A common cycle alternates UV exposure at a higher temperature with condensation at a lower one, for example 8 hours UV at 60 ℃ then 4 hours condensation at 50 ℃. Send LIB Industry your standard and sample type, and LIB Industry engineers will set up the matching program.

Ready to Rank Your Materials?

Send LIB Industry your standard, panel size and quantity. LIB Industry engineers will recommend the right setup and send a detailed quotation.
