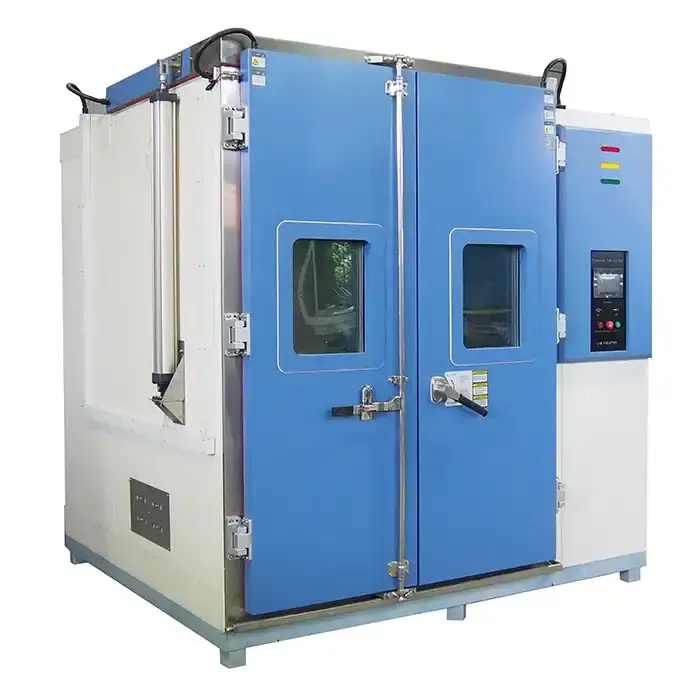

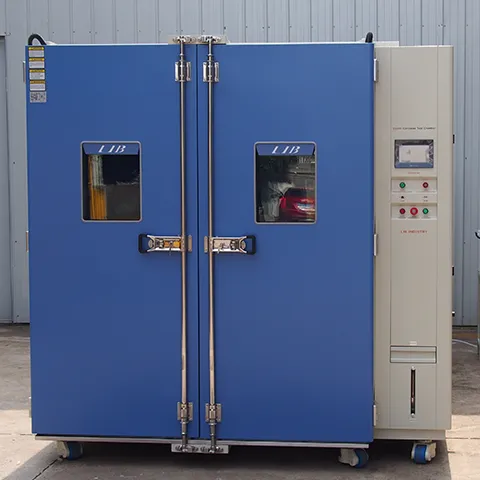

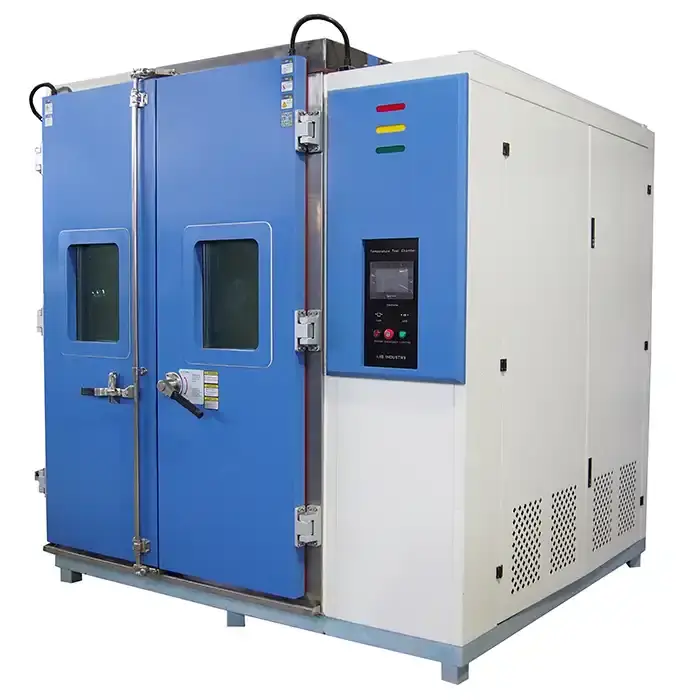

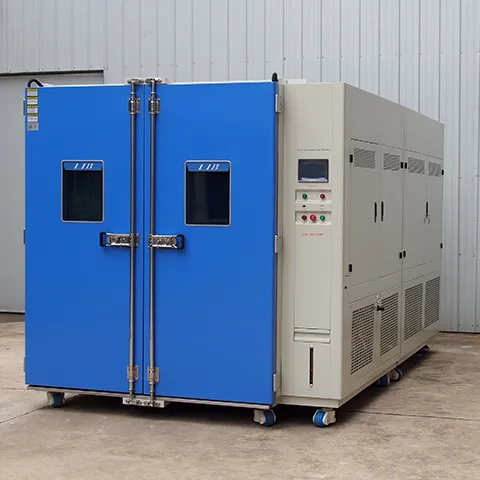

Drive In Test Chamber
Temperature Range (℃):-70℃ ～+150 ℃
Humidity Range (R.H):10% ~ 98% RH""
Touch-screen programmable controller, Ethernet access
Automated process control
Precisely records all test data.
Extended options of the size, performance, and configuration
Drive In Test Chamber Manufacturer & Supplier
LIB industry's drive-in test chamber is a facility or structure designed for testing vehicles or equipment in controlled environmental conditions. It is typically a large enclosure or building that allows vehicles to be driven into it for testing purposes.
The drive-in test chamber is equipped with various features to simulate different environmental conditions such as extreme temperatures, humidity, wind, rain, dust, and other factors.
Technical Specifications
Model | WTH-0015C |
Internal dimension (mm) | 2500*2500*2500 D*W*H |
Overall dimension (mm) | 4000*2550*2850 D*W*H |
Temperature range | -60℃ ~ +150℃ |
Humidity range | 20% ~ 95% RH |
Temperature fluctuations | ± 2.0℃ |
Humidity fluctuations | ± 5.0% RH |
Heating rate | 3℃ / min |
Cooling rate | 1℃ / min |
Controller | Programmable color LCD touch screen controller; Ethernet port |
Cooling system | Mechanical compression refrigeration system |
Safety device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection |
Exterior material | Steel Plate with protective coating |
Interior material | SUS304stainlesssteel |
Product Details
|
|
|

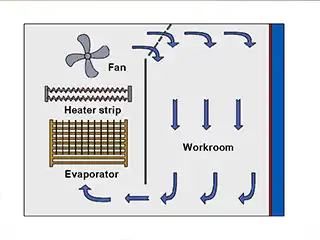

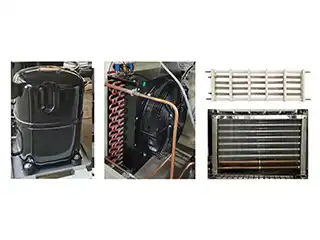

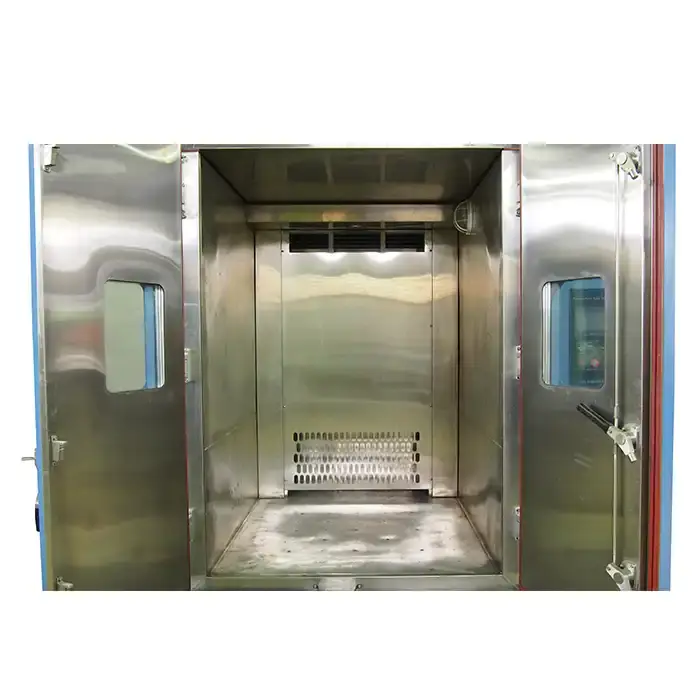

| Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion | Cooling system Mechanical compression refrigeration system, French TECUMSEH compressor Environmentally friendly refrigerant | Air circulation The air is uniformly distributed through the air outlet. Air circulates evenly throughout the workroom |
|
|
Drive In Test Chamber Features
●Ample Space: Drive In Test Chamber is ideal for testing larger products or multiple specimens at once.
●Consistency: Ensures reliable and repeatable test results.
●Customization: Tailored settings for specific testing requirements.
●More Models: Standard and custom models
Quality Assurance: Validates product performance under controlled conditions.
Application
1.Vehicle Testing:
The drive-in test chamber is utilized for testing entire vehicles or large automotive components under controlled temperature and humidity conditions. This includes assessing the performance of vehicles in extreme weather conditions, such as high temperatures or cold climates.
2.Large Electronic Systems Testing:
The chambers are used for testing large electronic systems, server racks, or industrial control panels to evaluate their performance under varying environmental conditions, including temperature and humidity fluctuations.
FAQ
Q: Can this Drive In Test Chamber simulate extreme environmental conditions?
A: Yes, it can simulate extreme conditions within the specified range for thorough testing.
Q: Are there options for remote monitoring and control?
A: Yes, remote monitoring and control options are available.
