Large Climatic Chamber
Temperature Range (℃):-70℃ ～+150 ℃
Humidity Range (R.H):20% ~ 98% RH""
Comprehensive Line of Environmental Chambers
Touch-screen programmble controller,Ethernet access
Automated process control
Precisely records all test data.

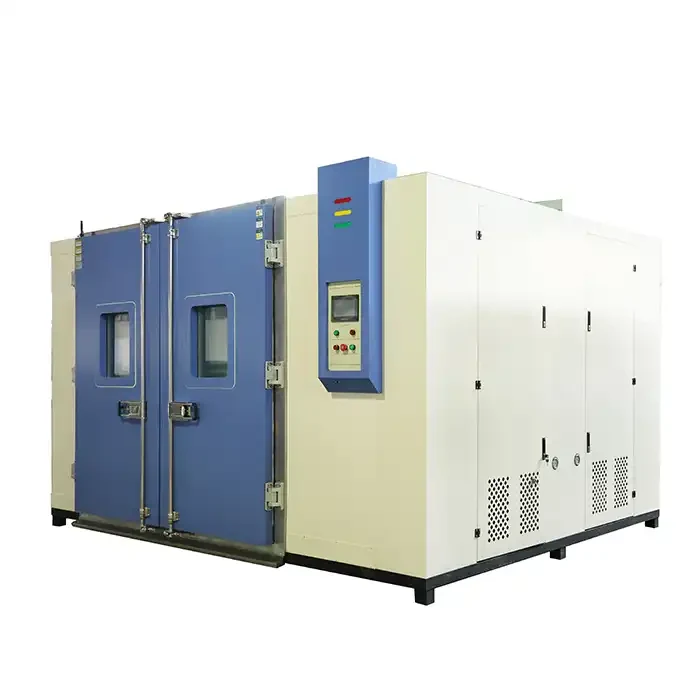

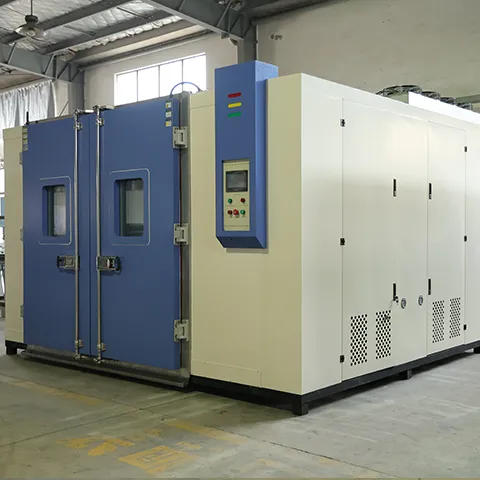

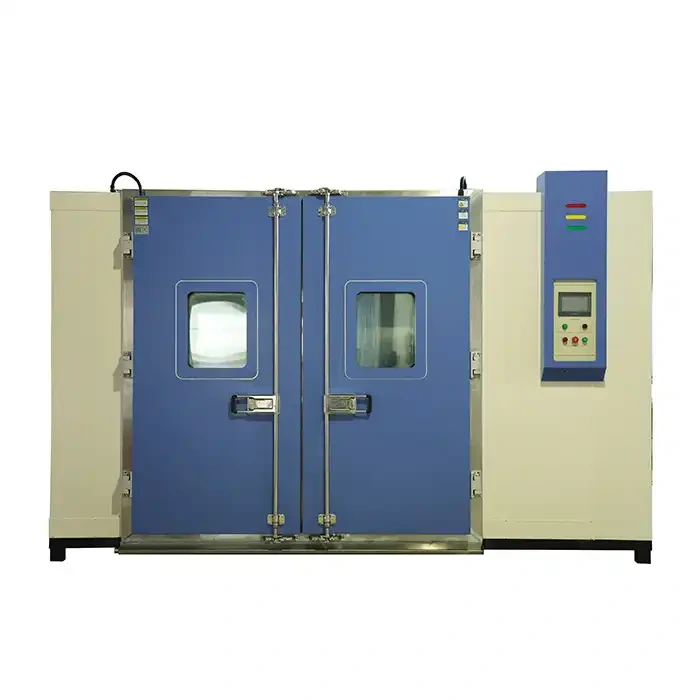

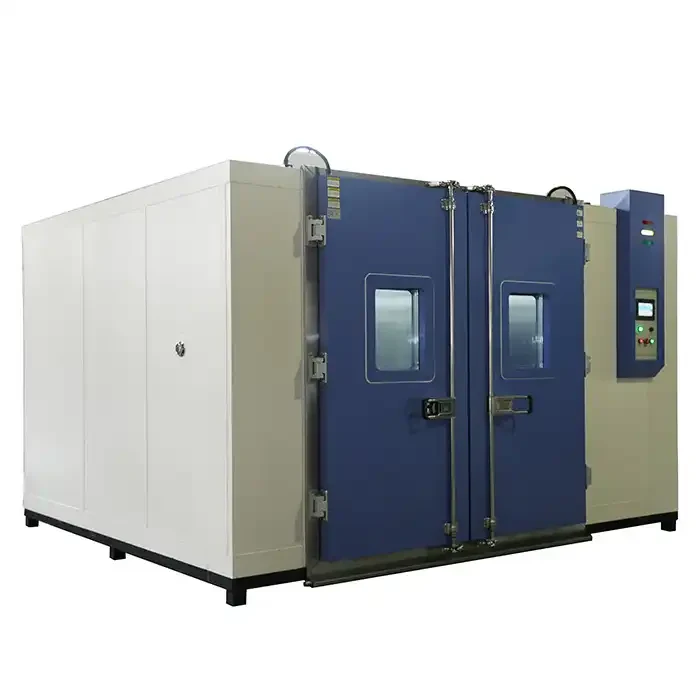

Large Climatic Chamber Manufacturer & Supplier
LIB large climatic chamber is a controlled environment chamber that is used to simulate various climate conditions for testing purposes. It is typically a large enclosure that can accommodate a wide range of testing equipment and specimens.
Technical Specifications
Model | WTH-0015C |
Internal dimension (mm) | 2500*2500*2500 D*W*H |
Overall dimension (mm) | 4000*2550*2850 D*W*H |
Temperature range | -60℃ ~ +150℃ |
Humidity range | 20% ~ 95% RH |
Temperature fluctuations | ± 2.0℃ |
Humidity fluctuations | ± 5.0% RH |
Heating rate | 3℃ / min |
Cooling rate | 1℃ / min |
Controller | Programmable color LCD touch screen controller; Ethernet port |
Cooling system | Mechanical compression refrigeration system |
Safety device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection |
Exterior material | Steel Plate with protective coating |
Interior material | SUS304stainlesssteel |
Product Details
|
|
|

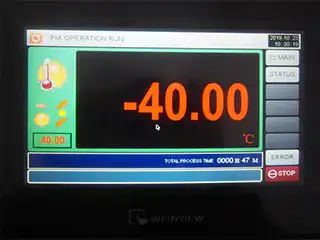

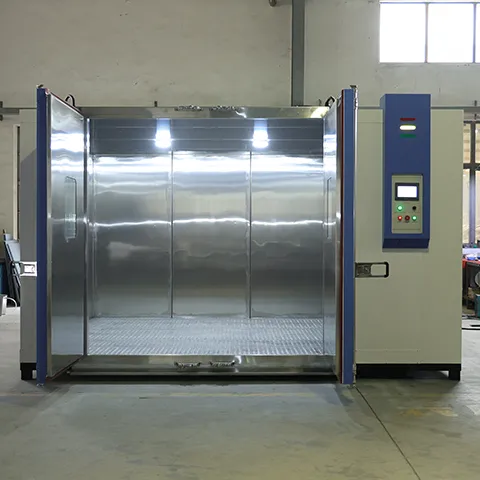

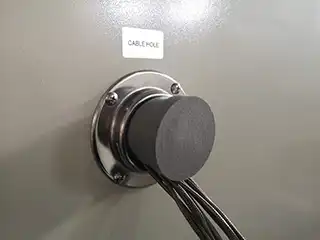

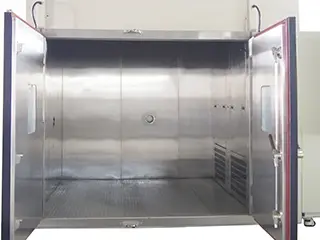

| Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion | Cable hole A standard test hole with plugs The standard inner hole diameter is 50mm/100mm/200mm | Controller PID programmable color touch screen controller Network connection computer. |
|
|
Features
●Adaptable Testing: Capable of simulating various climatic conditions.
●Reliability: Ensures consistent and reproducible test results.
●Customization: Tailored settings for specific testing requirements.
●Installation:On-site installation and training
●Quality Assurance: Validates product performance under diverse climate conditions.
Application
1.Temperature and Humidity Testing:
It is utilized for testing electronic components, semiconductor devices, and integrated circuits under controlled temperature and humidity conditions.
2.Vehicle Component Testing:
These chambers play a crucial role in simulating climatic conditions that automotive components may encounter during use. This includes extreme temperatures, humidity variations, and other environmental factors to evaluate the durability and performance of components such as sensors, electronics, and materials.
3.Drug Stability Testing:
Pharmaceutical companies use drive in climatic chamber for stability testing of drugs and biological products. Controlled temperature and humidity conditions help evaluate the stability and shelf life of pharmaceuticals.
4.Biological Sample Storage:
The chambers are used for storing biological samples, vaccines, and other temperature-sensitive materials.
FAQ
Q: Can this chamber simulate extreme climate conditions?
A: Yes, it can simulate extreme climate conditions within the specified range for thorough testing.
Q: Are there options for remote monitoring and control?
A: Yes, remote monitoring and control options are available.
