Large Environmental Chamber
Temperature Range (℃):-70℃ ～+150 ℃
Humidity Range (R.H):10% ~ 98% RH""
Temperature, climate,vibration, corrosion,altitude, pressure or combined test
Comprehensive Line of Environmental Chambers
Touch-screen programmable controller, Ethernet access
Automated process control

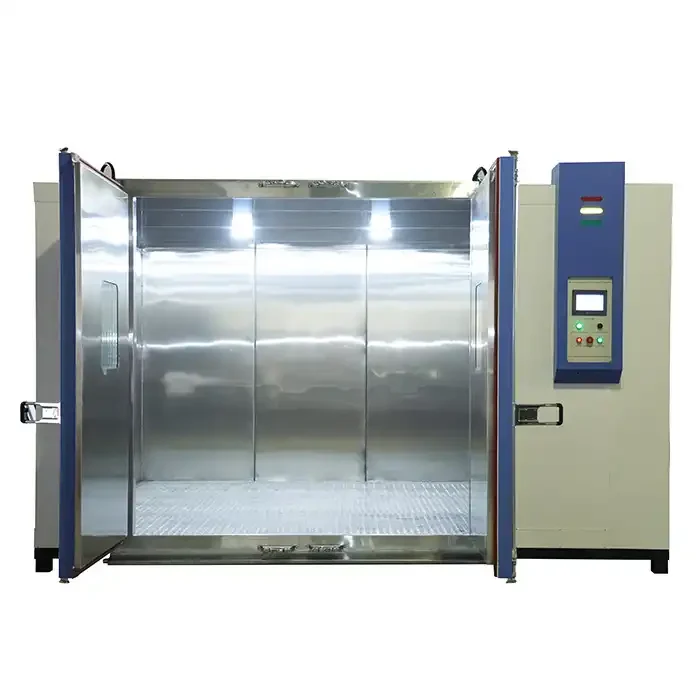

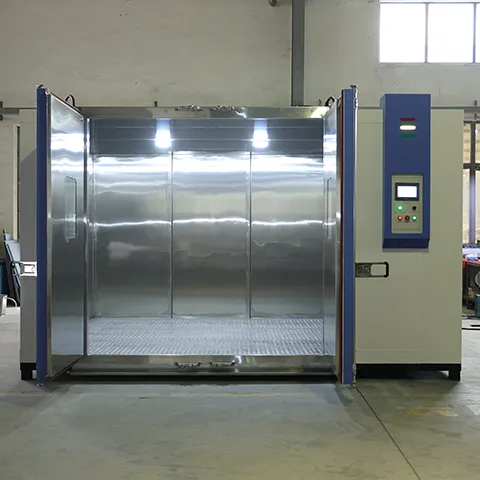

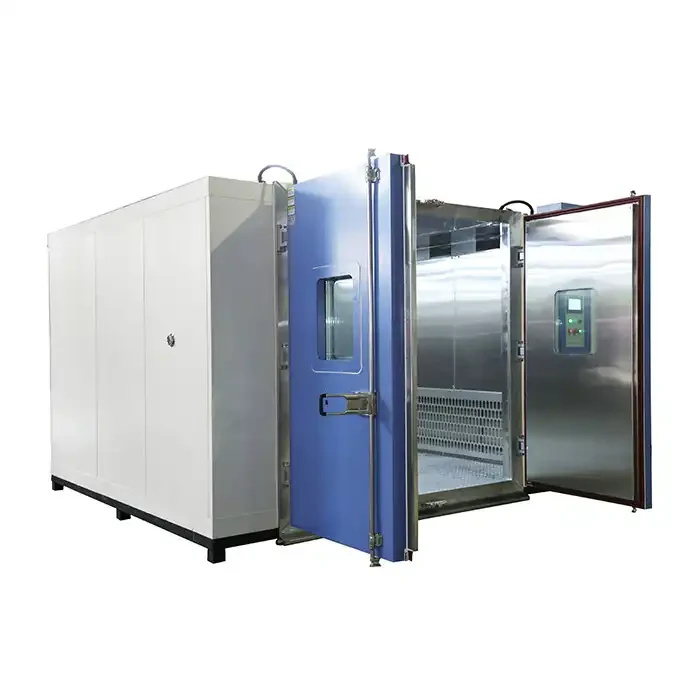

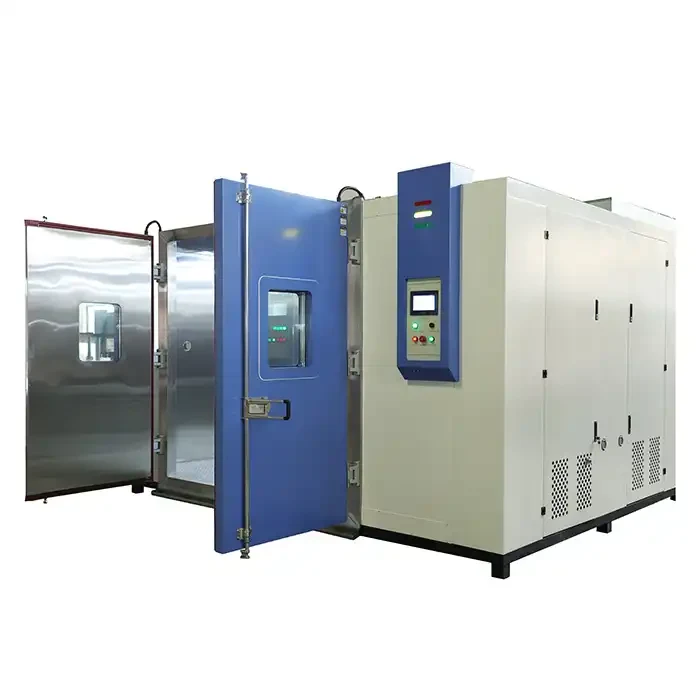

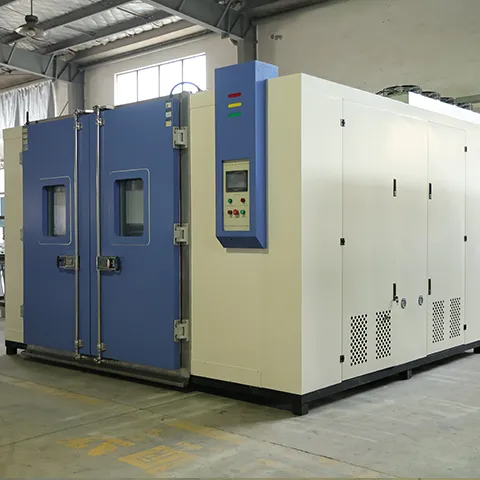

Large Environmental Chamber Manufacturer & Supplier
LIB industry presents large environmental chamber, designed to facilitate extensive testing of products or specimens in controlled environmental conditions. This chamber, crafted to adhere to industry standards, offers a spacious and versatile platform for conducting comprehensive environmental tests.
Technical Specifications
Model | WTH-0015C |
Internal dimension (mm) | 2500*2500*2500 D*W*H |
Overall dimension (mm) | 4000*2550*2850 D*W*H |
Temperature range | -60℃ ~ +150℃ |
Humidity range | 20% ~ 95% RH |
Temperature fluctuations | ± 2.0℃ |
Humidity fluctuations | ± 5.0% RH |
Heating rate | 3℃ / min |
Cooling rate | 1℃ / min |
Controller | Programmable color LCD touch screen controller; Ethernet port |
Cooling system | Mechanical compression refrigeration system |
Safety device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection |
Exterior material | Steel Plate with protective coating |
Interior material | SUS304stainlesssteel |
Product Details
|
|
|

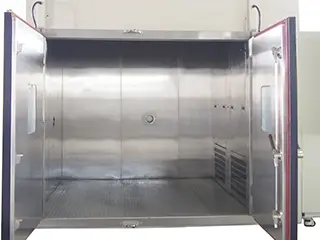

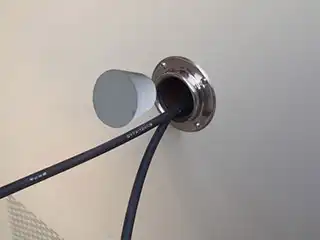

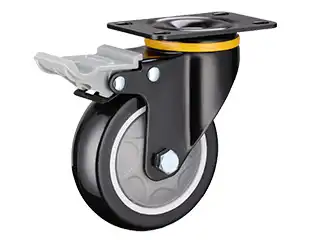

| Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion | Cable hole A standard test hole with plugs The standard inner hole diameter is 50mm/100mm/200mm | Castors Install 4 castors for ease moving, and with brakes function. Caster height adjustable |
|
|
Features
●Ample Space: Ideal for testing larger products or multiple specimens at once.
●Consistency: Ensures reliable and repeatable test results.
●Customization: Tailored settings for specific testing requirements.
●Efficiency: Large-scale testing for quicker product assessment.
●Quality Assurance: Validates product performance under various environmental factors.
Large Environmental Chamber Application
1.Temperature and Humidity Testing:
Large environmental chamber is used for testing electronic components, semiconductor devices, and integrated circuits under controlled temperature and humidity conditions to assess their performance and reliability.
2.Vehicle Component Testing:
These chambers are employed to simulate environmental conditions that automotive components may encounter during use, including temperature extremes and humidity variations. This is crucial for evaluating the durability and performance of components such as engines, sensors, and electronic systems.
3.Polymer and Composite Testing:
Chambers are used to test the mechanical and thermal properties of polymers and composite materials under controlled environmental conditions.
4.Metals and Alloys Testing: The chambers assess the impact of temperature and humidity on the properties of metals and alloys for various applications.
FAQ
Q: Can Large Environmental Chamber simulate extreme environmental conditions?
A: Yes, it can simulate extreme conditions within the specified range for thorough testing.
Q: Are there options for remote monitoring and control?
A: Yes, remote monitoring and control options are available.
