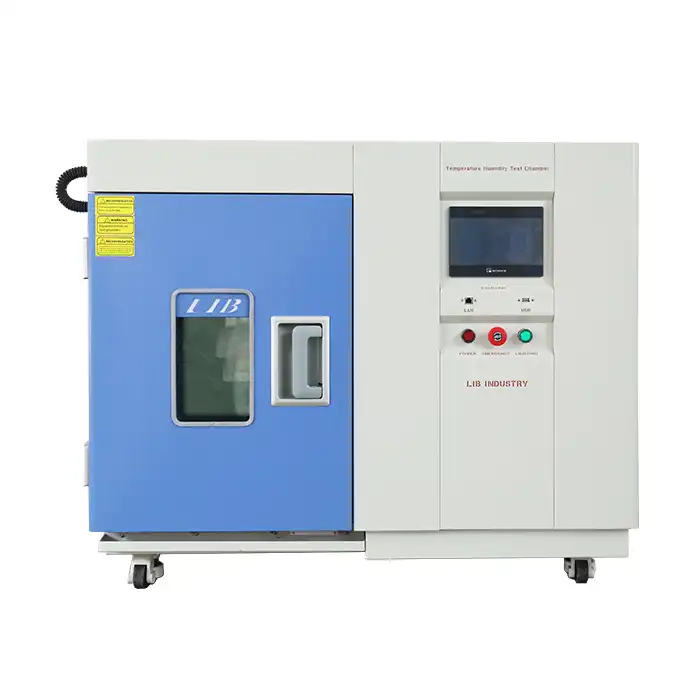

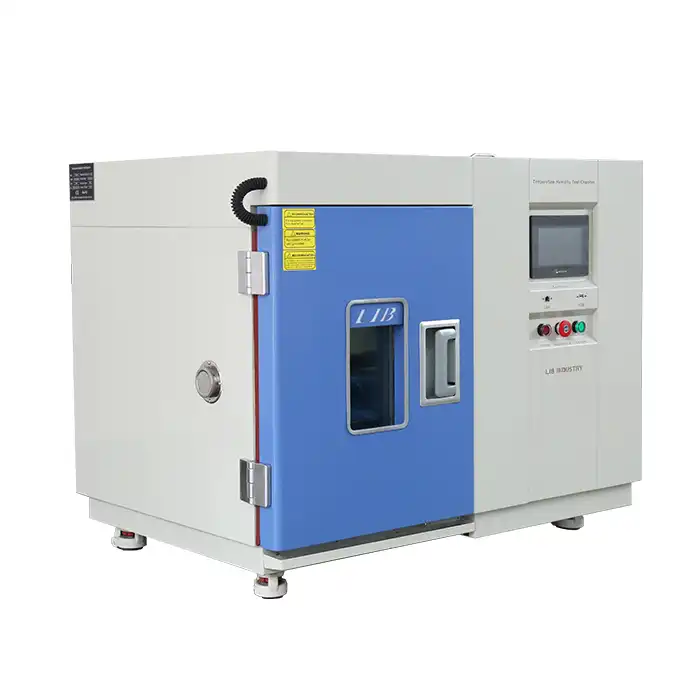

Benchtop Humidity Test Chamber
Lowest Temperature:-20℃/-40℃/-60℃/-120℃;
Temperature Range:-40℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Access port to power the sample
Small footprint and maximize workspace
Ideal for testing smaller products
The benchtop humidity test chamber is a compact and versatile environmental testing chamber specifically designed to control and regulate humidity levels within a confined space. These chambers are utilized across various industries for conducting humidity-related tests on materials, products, components, and devices.
The purpose of small humidity chamber is to simulate and maintain specific humidity conditions, allowing researchers and manufacturers to evaluate how different materials or products respond to varying moisture levels.
Technical Specifications:
Model | TH-50 | TH-80 |
Internal Dimension (mm) | 320*350*450 | 400*400*500 |
Overall Dimension (mm) | 820*1160*950 | 900*1210*1000 |
Interior Volume | 50L | 80L |
Heat load | 1000W | |
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | |
Temperature Fluctuation | ± 0.5 ℃ | |
Temperature Deviation | ± 2.0 ℃ | |
Humidity Range | 20% ~ 98% RH | |
Humidity Deviation | ± 2.5% RH | |
Cooling Rate | 1 ℃ / min | |
Heating Rate | 3 ℃ / min | |
Cooling system | Mechanical compression refrigeration system | |
Controller | Programmable color LCD touch screen controller Ethernet connection | |
Safety Device | Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Thermal Insulation | Polyurethane foam and insulation cotton | |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | |
Product Details:
|
|
|

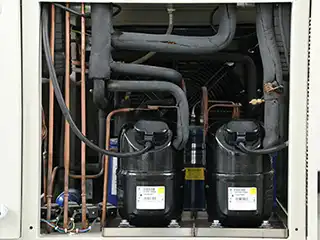

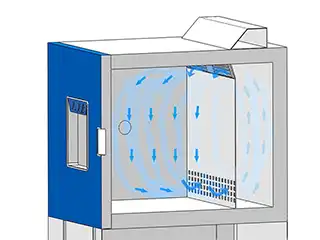

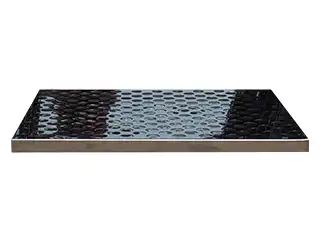

| Cooling system Mechanical compression refrigeration system French TECUMSEH compressor Environmentally friendly refrigerant | Sample shelf SUS304 stainless steel punching sample shelf 2pcs; The height of the shelf is adjustable Conducive to the air circulation | Air circulation The air is uniformly distributed through the air outlet Air circulates evenly throughout the workroom |
|
|
Features:
Precise Humidity Control: Benchtop temperature humidity chamber offer precise control over humidity levels, often within a predetermined range, enabling accurate simulation of different environmental conditions.
Temperature Control: Many chambers also provide temperature regulation alongside humidity control for comprehensive testing of materials under varying conditions.
Observation Windows: They typically come with observation windows or ports, allowing visual monitoring of the test specimens.
Programming Capabilities: All models offer programmable settings for creating customized humidity profiles for specific test requirements.
Applications:
In addition to product testing, benchtop temperature humidity chamber is ideal for:
Accelerated shelf life studies
Package testing
Stability testing of chemicals
Aging testing
Microbial growth studies
Solar cell research
Wood testing
Furniture testing
Ship industry
Energy
EV Battery
Maintenance and Calibration:
Regular maintenance, cleaning, and calibration are essential to maintain accuracy and reliability. Calibration may involve using reference instruments to verify and adjust the chamber's humidity and temperature settings as per LIB guidelines.
