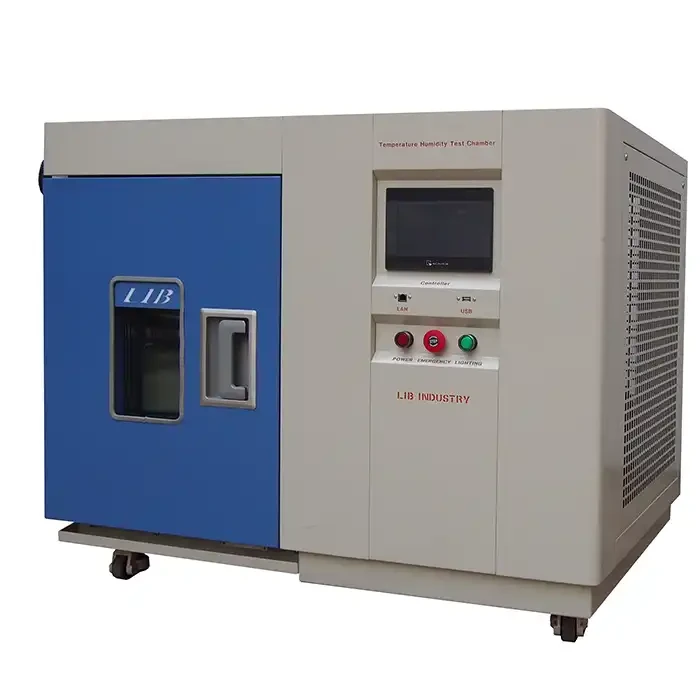

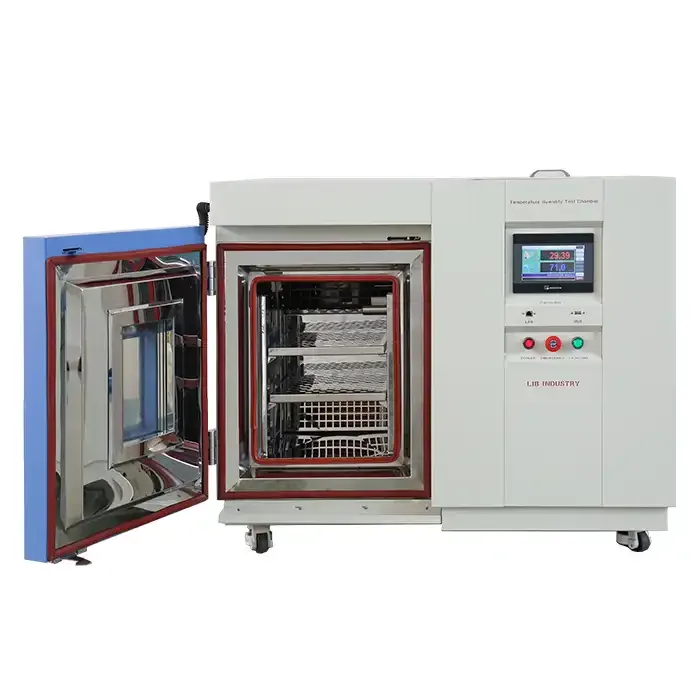

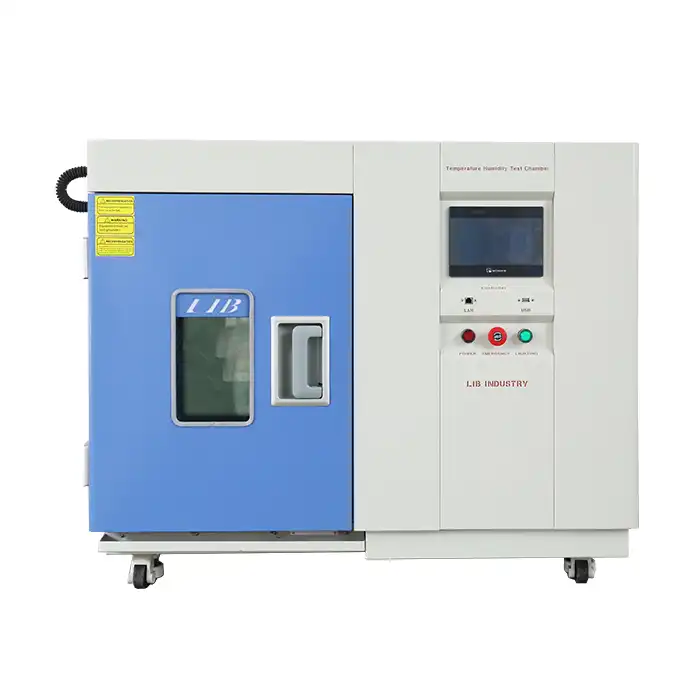

Small Temperature Test Chamber
Lowest Temperature:-20℃/-40℃/-60℃/-120℃;
Temperature Range:-40℃～+150 ℃;
Humidity Range:20% ~ 98% RH;

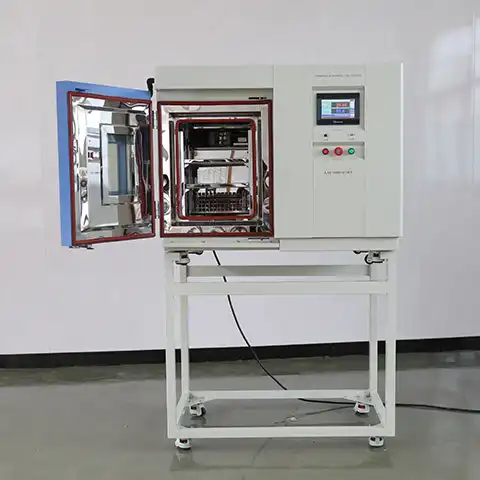

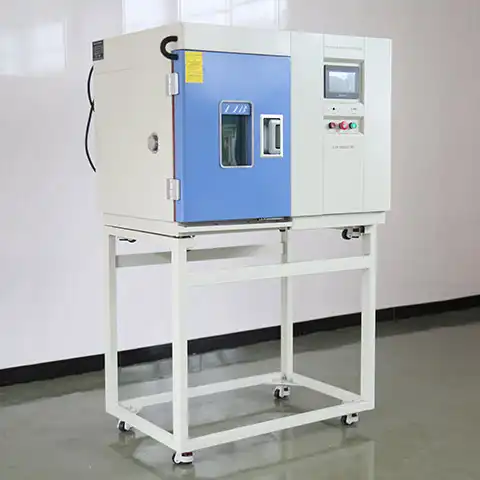

Stand as option
Temperature and Humidity System
Touch-screen programmble controller,Ethernet access
Small Temperature Test Chamber Introduction
LIB industry's small temperature test chamber simulates environmental conditions—temperature and humidity to evaluate product or material performance, reliability, and durability. Benchtops, reach-in models and walk-in chambers for your choose.
Small temperature chambers include temperature cycling chambers, rapid rate temperature change chambers, constant temperature controlled chambers and stabiliity chambers. Volume ranging from 50L to 2000L capacity. The low temperature can cool down to -70℃.
Technical Specifications:
Model | TH-50 | TH-80 |
Internal Dimension (mm) | 320*350*450 | 400*400*500 |
Overall Dimension (mm) | 820*1160*950 | 900*1210*1000 |
Interior Volume | 50L | 80L |
Heat load | 1000W | |
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | |
Temperature Fluctuation | ± 0.5 ℃ | |
Temperature Deviation | ± 2.0 ℃ | |
Humidity Range | 20% ~ 98% RH | |
Humidity Deviation | ± 2.5% RH | |
Cooling Rate | 1 ℃ / min | |
Heating Rate | 3 ℃ / min | |
Cooling system | Mechanical compression refrigeration system | |
Controller | Programmable color LCD touch screen controller Ethernet connection | |
Safety Device | Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Thermal Insulation | Polyurethane foam and insulation cotton | |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | |
Product Details:
|
|
|

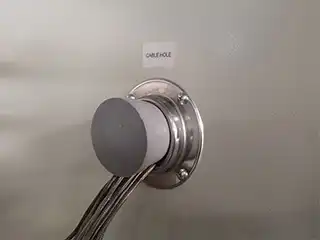

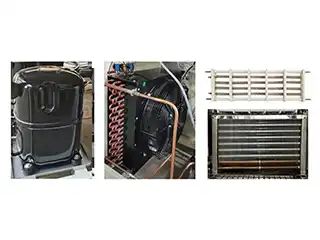

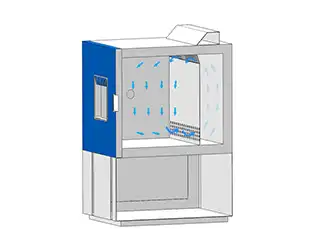

Cooling system Mechanical compression refrigeration system French TECUMSEH compressor Environmentally friendly refrigerant | Air circulation The air is uniformly distributed through the air outlet Air circulates evenly throughout the workroom | Cable hole The standard inner hole diameter is 50mm/100mm/200mm Soft silicone plug seal; Metal enclosure closed |
|
|
Portable Temperature Test Chamber Advantages:
● Compact and portable, fitting into limited spaces and allowing easy mobility.
● Cost-effective and energy-efficient, conserving resources while providing optimal testing.
● Flexible and versatile, accommodating various test samples.
● User-friendly interface and simple setup, ensuring ease of use.
● Small volume, and affordable price.
Application Fields:
Electronics: Small Temperature Test Chamber ensures the quality and safety of electronic components under varying temperatures.
Automotive: Evaluates the performance and reliability of automotive components in diverse temperature conditions.
Medical: Tests medical devices' performance, reliability, and durability under different temperature scenarios.
Aerospace: Evaluates aerospace component performance in extreme temperature conditions.
FAQ:
Q: Choosing a Suitable Chamber
A: Consider factors like sample size, required temperature range, humidity range, volume, lab space, test standard and budget.
Q: Setting Up and Operating
A: Follow LIB User Manual and consult technical support for guidance.
Q: Maintenance and Cleaning
A: Adhere to LIB Small Temperature Test Chamber maintenance procedures, regularly replace wearing parts.
