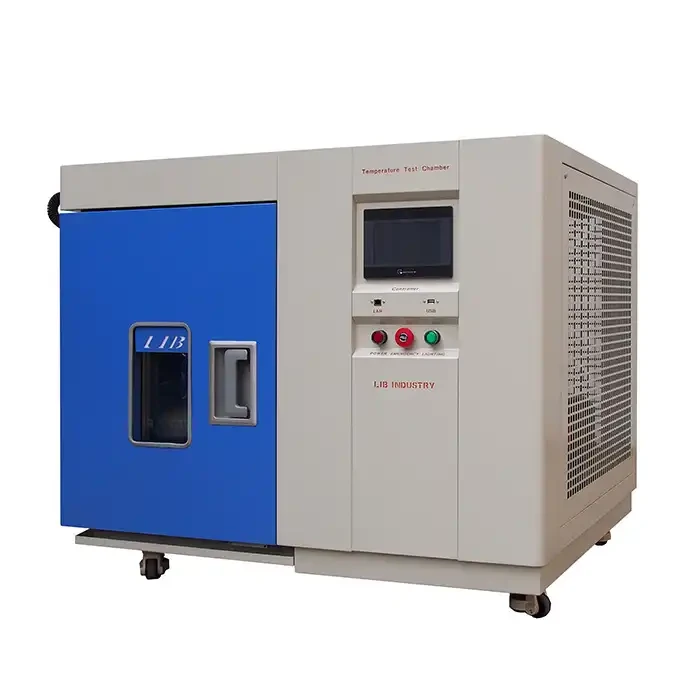

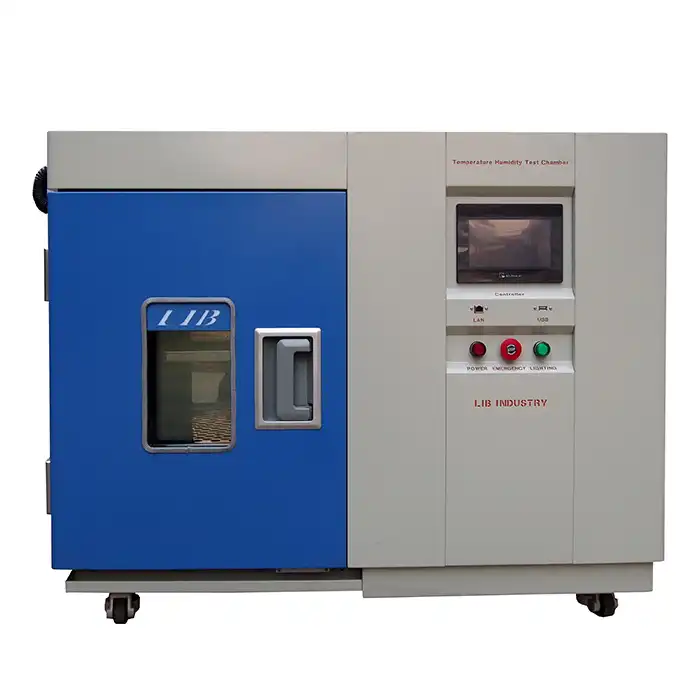

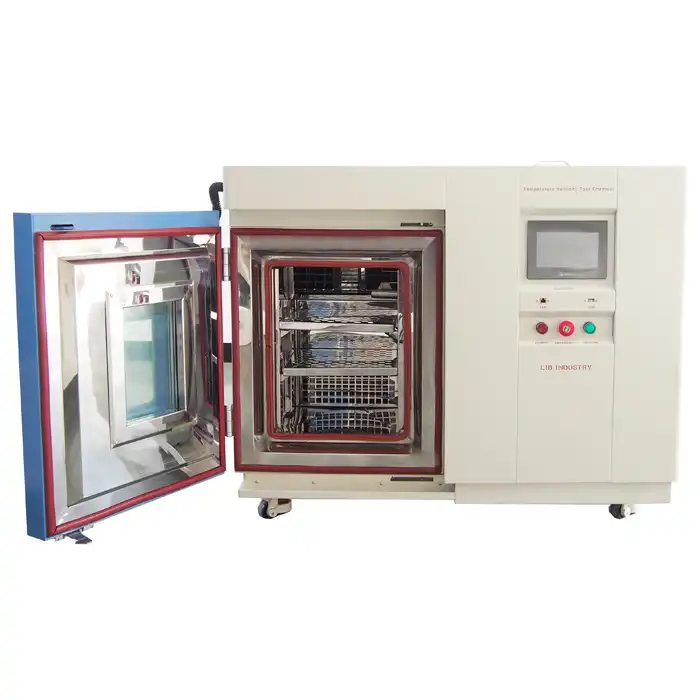

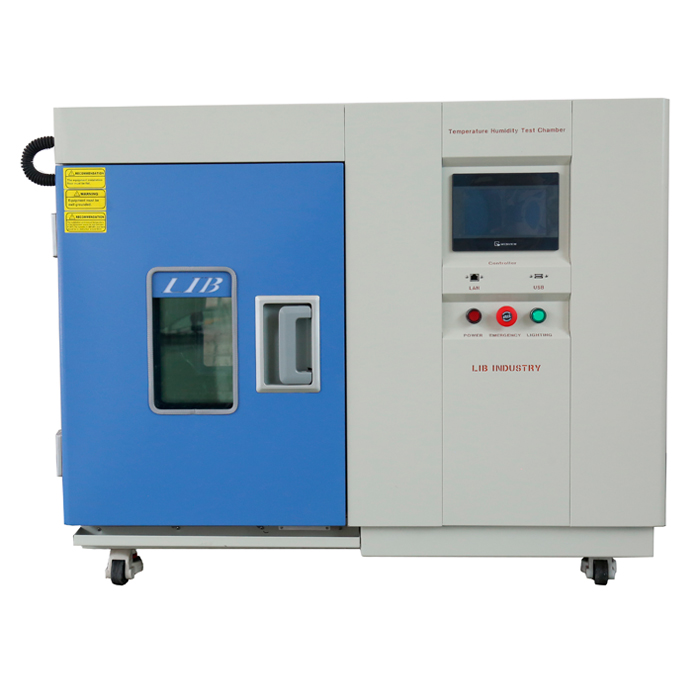

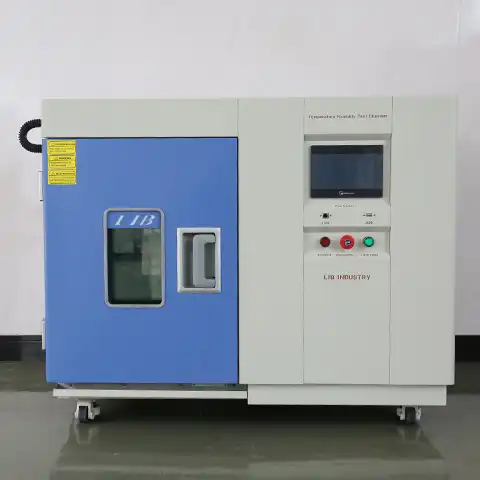

Benchtop Test Chamber
Model: TH-50
Temperature Range:-40℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Small footprint and maximize workspace
Ideal for testing smaller products
Compact design maximizes interior laboratory workspace
Benchtop Test Chamber Manucturers
LIB industry's benchtop test chamber is a compact environmental testing device designed for the simulation and control of specific environmental conditions such as temperature and humidity. These test chambers are placed on laboratory benches or tabletops, providing a controlled environment for testing and evaluating the performance of various materials, components, and products.
We're professional Benchtop Test Chamber manufacturers and suppliers in China, to buy or wholesale from our factory. For quotation, contact us now.
Technical Specifications:
Model | TH-50 | TH-80 |
Internal Dimension (mm) | 320*350*450 | 400*400*500 |
Overall Dimension (mm) | 820*1160*950 | 900*1210*1000 |
Interior Volume | 50L | 80L |
Heat load | 1000W | |
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | |
Temperature Fluctuation | ± 0.5 ℃ | |
Temperature Deviation | ± 2.0 ℃ | |
Humidity Range | 20% ~ 98% RH | |
Humidity Deviation | ± 2.5% RH | |
Cooling Rate | 1 ℃ / min | |
Heating Rate | 3 ℃ / min | |
Cooling system | Mechanical compression refrigeration system | |
Controller | Programmable color LCD touch screen controller Ethernet connection | |
Safety Device | Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Thermal Insulation | Polyurethane foam and insulation cotton | |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | |
Product Details:
|
|
|

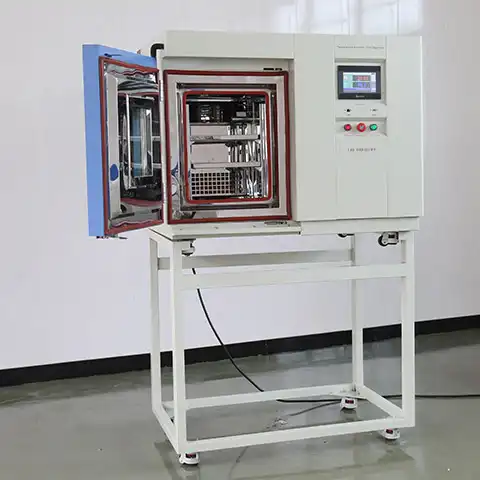

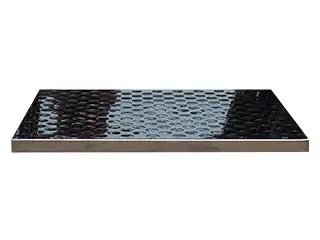

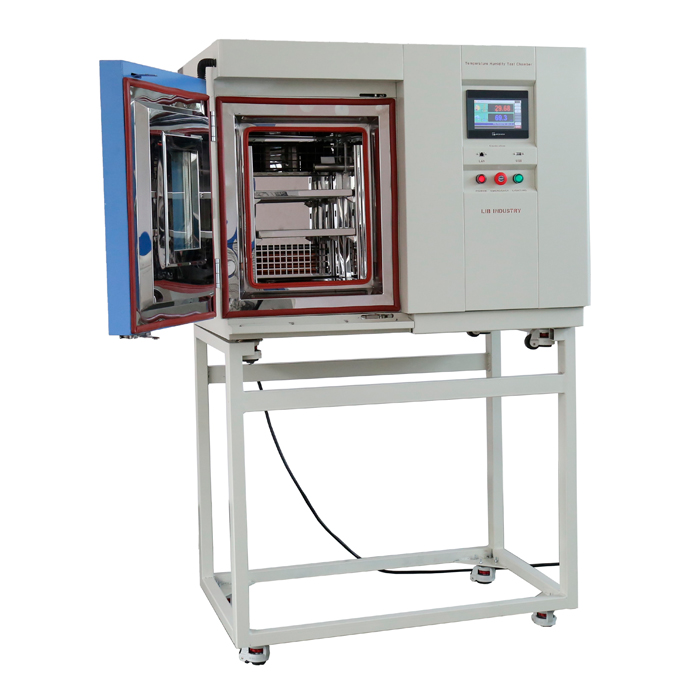

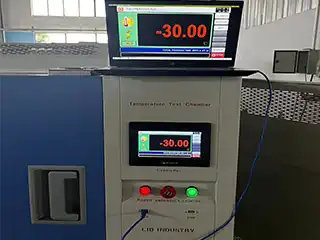

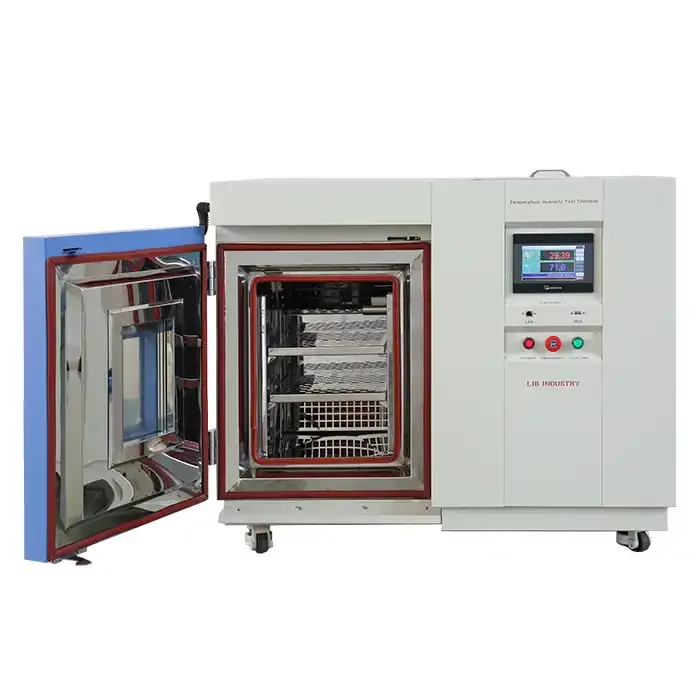

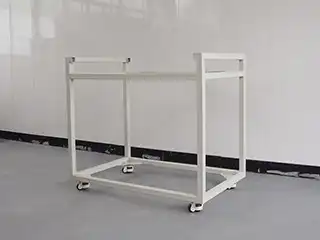

Sample shelf SUS304 stainless steel punching sample shelf 2pcs; Standard load of 50KGS for each layer Conducive to the air circulation | PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data | Stand A stand for benchtop chamber Sturdy and removable, very practical Stands can be stacked to save space |
|
|
Benchtop Test Chamber Advantages:
◇Temperature Control: Most benchtop test chamber includes precise temperature control capabilities, allowing users to simulate a range of temperatures.
◇Humidity Control: Equipped with humidity control systems, enabling the simulation of varying humidity levels for comprehensive testing.
◇Compact Size: Designed to be space-efficient and fit on laboratory benches, making them suitable for facilities with limited space.
◇Observation Windows: Observation windows or ports for visual monitoring of the test specimens without disrupting the controlled environment.
◇User-Friendly Interface: Typically equipped with user-friendly interfaces for easy programming and monitoring of test parameters.
Applications:
In addition to product testing, the chamber is ideal for:
Shelf life and stability studies
Incubation of cell cultures
Accelerated aging tests
Freezing/thawing tests
Wine and food research
Semiconductor material
Photovoltaic panel
Battery
Medicine
Daily necessities
Cosmetic testing
Jewelry and accessories
Chemicals
FAQ:
What is a benchtop test chamber?
Benchtop test chambers are controlled environment used for testing various products or materials under specific conditions like temperature, and humidity. These chambers come in small sizes, suitable for small samples and limited space.
What are the typical applications of it?
These chambers are utilized in various industries such as electronics, pharmaceuticals, automotive, aerospace, and more. Common applications include reliability testing, accelerated aging studies, product development, quality control, and environmental simulation.
What features should I consider when choosing a Benchtop Test Chamber?
Factors like temperature range, humidity control, size, uniformity of conditions, control system accuracy, safety features, and data logging capabilities are crucial. The right chamber will depend on the specific testing requirements of your application.
