Compact Environmental Chamber
Lowest Temperature:-20℃/-40℃/-60℃/-120℃;
Temperature Range:-40℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Water Purification and Recirculation System
Access port to power the sample
Small footprint and maximize workspace
Compact Environmental Chamber Manufactuer
LIB industry is professional compact environmental chamber manufacturers and suppliers in China, to buy or wholesale from our factory. For quotation, contact us now.
Compact environmental chamber provides precise control of temperature and humidity in a space-saving compact design. With a small footprint, it fits easily into limited lab spaces while delivering uniformity and stability across wide humidity ranges.
It features a temperature range from 0°C to +85°C along with 20% to 98% RH humidity control. An advanced PID control system drives the integrated refrigeration, humidification, dehumidification, and heating systems to achieve setpoint conditions.
Technical Specifications
Model | TH-50 | TH-80 |
Internal Dimension (mm) | 320*350*450 | 400*400*500 |
Overall Dimension (mm) | 820*1160*950 | 900*1210*1000 |
Interior Volume | 50L | 80L |
Heat load | 1000W | |
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | |
Temperature Fluctuation | ± 0.5 ℃ | |
Temperature Deviation | ± 2.0 ℃ | |
Humidity Range | 20% ~ 98% RH | |
Humidity Deviation | ± 2.5% RH | |
Cooling Rate | 1 ℃ / min | |
Heating Rate | 3 ℃ / min | |
Cooling system | Mechanical compression refrigeration system | |
Controller | Programmable color LCD touch screen controller Ethernet connection | |
Safety Device | Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Thermal Insulation | Polyurethane foam and insulation cotton | |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | |
Product Details
|
|
|

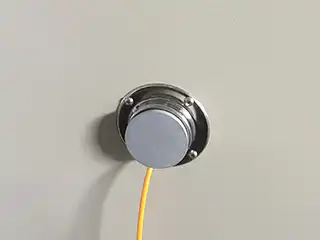

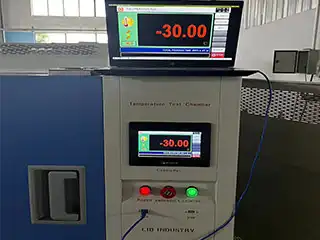

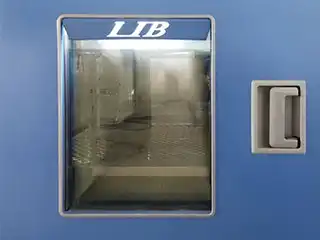

Viewing Window The conductive film is located on the interior glass to prevent window frosting built-in LED light for the work room lighting | PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data | Cable hole A standard test hole with plugs The standard inner hole diameter is 50mm/100mm/200mm |
|
|
Compact Environmental Chamber Advantages
⒈Portability: Compact Environmental Chamber are smaller and more mobile, allowing for easier relocation within a lab or even transportation to different locations, enabling on-site testing.
⒉Space Efficiency: Ideal for facilities with limited space, they require less room compared to larger chambers, making them suitable for smaller laboratories or research spaces.
⒊Cost-Effectiveness: Often more affordable, they provide a cost-effective solution for organizations with budget constraints.
⒋Quick Shipping: Ready to ship makes allows this chamber to solve customer testing requirements in a timely manner.
⒌Energy Efficiency: Due to their smaller size, they often consume less energy.
Applications
In addition to product testing, the environmental chamber is ideal for:
Shelf life and stability studies
Package testing
Solar cell research
Corrosion testing
Microbiology research
Pharmaceutical studies
Electronics testing
Building materials
Cement testing
Glass testing
The Importance of Compact Environmental Chamber:
These compact environmental chambers are used in a wide range of applications, including testing the performance and reliability of electronic components, evaluating the effects of temperature and humidity on materials, conducting accelerated aging tests, and studying the impact of environmental conditions on products and materials.
Compact environmental chamber is typically smaller in size compared to larger, walk-in chambers, making them more suitable for smaller test specimens or limited laboratory space.
