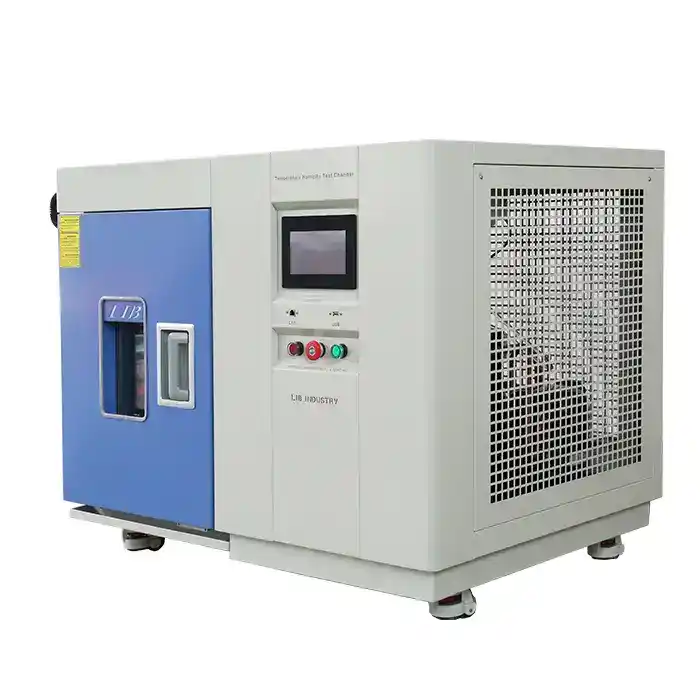

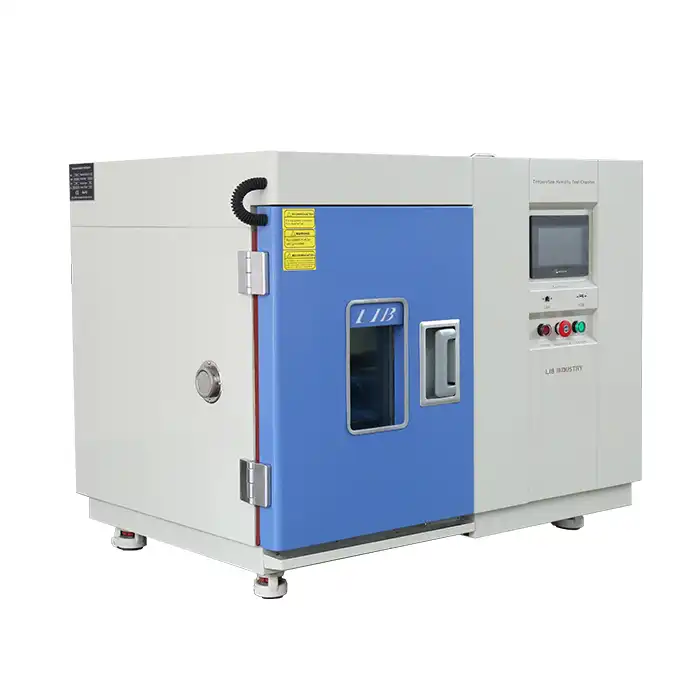

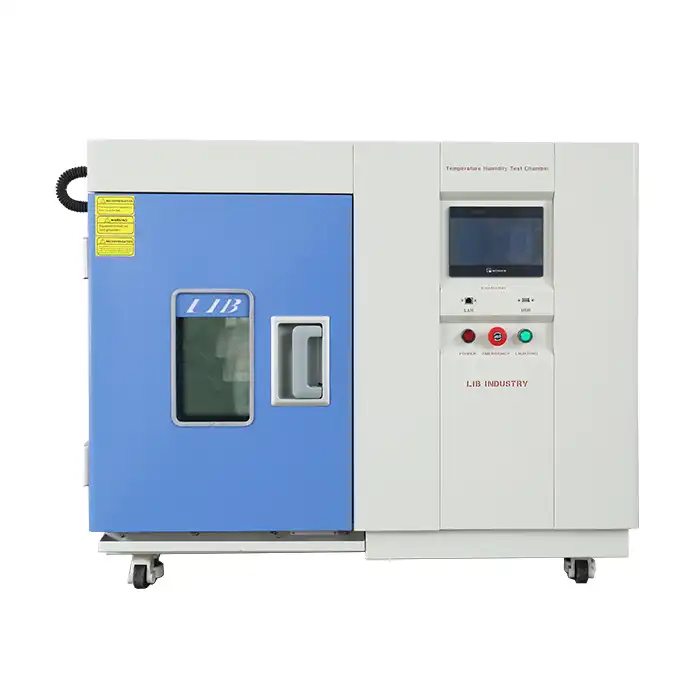

Small Thermal Chamber
Model: TH-80
Temperature Range:-70℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Safety options for testing lithium-ion batteries
Built-in lighting for observing the test
Water Purification and Recirculation System
Small Thermal Chamber Manufacturer & Supplier
The small thermal chamber by LIB represents a pinnacle in environmental testing equipment, designed meticulously to cater to the needs of various industries requiring precise temperature control in a confined space. Compact yet powerful, this chamber allows for controlled testing environments within a small footprint, offering reliability and versatility for a wide array of applications.
When it comes to precision environmental testing, LIB stands at the forefront, offering an extensive lineup of over 170 specialized chambers, including our hot selling portable thermal chamber.
Technical Specifications:
Model | TH-50 | TH-80 |
Internal Dimension (mm) | 320*350*450 | 400*400*500 |
Overall Dimension (mm) | 820*1160*950 | 900*1210*1000 |
Interior Volume | 50L | 80L |
Heat load | 1000W | |
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | |
Temperature Fluctuation | ± 0.5 ℃ | |
Temperature Deviation | ± 2.0 ℃ | |
Humidity Range | 20% ~ 98% RH | |
Humidity Deviation | ± 2.5% RH | |
Cooling Rate | 1 ℃ / min | |
Heating Rate | 3 ℃ / min | |
Cooling system | Mechanical compression refrigeration system | |
Controller | Programmable color LCD touch screen controller Ethernet connection | |
Safety Device | Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Thermal Insulation | Polyurethane foam and insulation cotton | |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | |
Product Details:
|
|
|

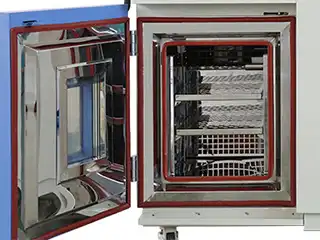

| Workroom The internal material is 304 stainless steel, mirror surface Standard configuration: 2 sample racks | Cable hole The standard inner hole diameter is 50mm/100mm/200mm Soft silicone plug seal; Metal enclosure closed | PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data |
|
|
Product Advantages:
Precision Control: The chamber maintains unparalleled temperature and humidity control, ensuring consistent and accurate testing conditions.
Space-Efficient Design: Despite its compact size, it offers ample interior space for various test samples.
Rapid Temperature Change: Swift heating and cooling rates enable quick transitions between temperature settings.
Reliability: Rigorous quality checks and adherence to international standards guarantee reliability and durability.
User-Friendly Interface: Intuitive controls and a user-friendly interface facilitate easy operation.
Applications:
Besides its primary function, this chamber can also be utilized for accelerated aging tests, stability analysis, and thermal cycling evaluations for various products and materials.
Electronics: Tests components and devices under various thermal conditions.
Material Testing: Evaluates thermal properties of materials in aerospace, automotive, and construction.
Product Development: Assesses reliability in extreme temperature environments pre-market.
Quality Control: Verifies consistency in controlled thermal conditions.
Comprehensive Support and Certifications:
LIB offerS comprehensive support services, including OEM options for customization, quick delivery, and meticulous packaging to ensure product integrity upon arrival. Moreover, our chambers come with CE certifications and test reports, providing assurance of compliance with international standards.
