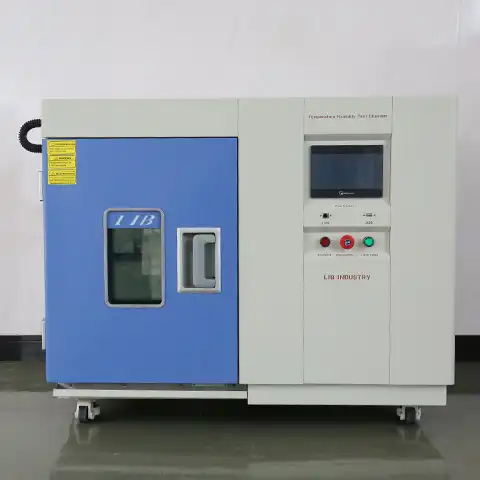

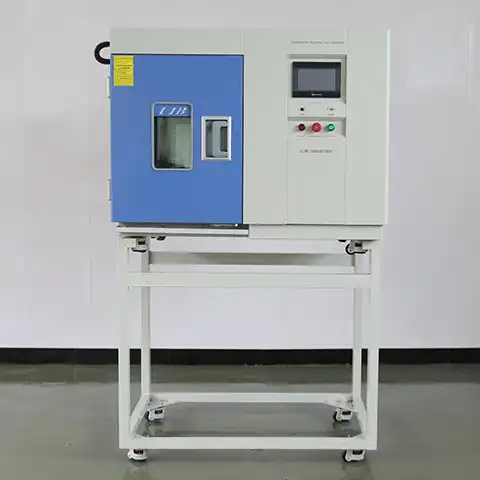

Small Climatic Chamber
Name:small climatic chamber
Model:TH-50
Lowest Temperature:-20℃/-40℃/-60℃/-70℃;
Temperature Range:-20℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Small and Affordable
Small Climatic Chamber Manufacturer & Supplier
LIB industry is professional small climatic chamber manufacturers and suppliers in China, to buy or wholesale from our factory. For quotation, contact us now.
The small climatic chambers are mainly used in electronics, electrical appliances, furniture, food, paper products, plastics, cosmetics, medical instruments, and other industries, used to test and evaluate heat resistance, cold resistance, moisture resistance, dry resistance and other properties of products, as well as the performance and life of products under different ambient temperature and humidity.
Portable climatic chambers typically range in volume from 50L in volume to 80L.They can fulfill a number of purposes including temperature-only, temperature and humidity conditioning;
Technical Specifications：
Model | TH-50 | TH-80 |
Internal Dimension (mm) | 320*350*450 | 400*400*500 |
Overall Dimension (mm) | 820*1160*950 | 900*1210*1000 |
Interior Volume | 50L | 80L |
Heat load | 1000W | |
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | |
Temperature Fluctuation | ± 0.5 ℃ | |
Temperature Deviation | ± 2.0 ℃ | |
Humidity Range | 20% ~ 98% RH | |
Humidity Deviation | ± 2.5% RH | |
Cooling Rate | 1 ℃ / min | |
Heating Rate | 3 ℃ / min | |
Cooling system | Mechanical compression refrigeration system | |
Controller | Programmable color LCD touch screen controller Ethernet connection | |
Safety Device | Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Thermal Insulation | Polyurethane foam and insulation cotton | |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | |
Product Structures：
|
|
|

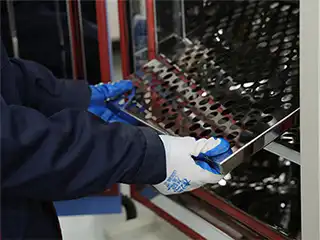

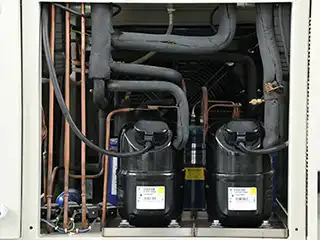

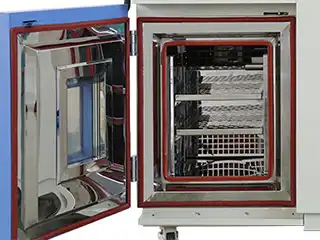

Workroom 3 mm mirror stainless steel, anti-corrosion The capacity and size can be customized The viewing window is double plexiglass | Sample Rack The load of each layer of sample rack is 50kg The spacing and height can be adjusted Special sizes and shapes can be customized | Super Refrigeration Mechanical refrigeration Environment-friendly refrigerant was filled A stable cooling effect and rapid cooling rate |
|
|
|
|
Small Climatic Chamber Key Features
●High performance heating and cooling from -40°C to +150°C
●Humidity ranging from 20% to 98%RH
●Rapid heating and cooling rates up to 1°C/min(3°C/min or 5°C/min)
●Programmable controller for automated testing
●Touchscreen interface and data logging functions
●Stainless steel interior for durability and easy cleaning
●Compact footprint with large 50 liter capacity
Applications
In addition to material and product testing, the LIB's Small Climatic Chamber is ideal for:
Stability and shelf life testing
Microbial incubation studies
Freezing and thawing tests
Force thermal testing of electronics
Simulation of storage environments
Pro-conditioning processes
Temperature cycling testing
Optical measurements under controlled temperatures
How Small Climatic Chamber to Test electronics?:
A small climatic chamber, also known as a temperature chamber or environmental chamber, is a controlled environment system used to test electronics under various temperature and humidity conditions. These climate chambers simulate real-world environmental conditions to evaluate the performance, reliability, and durability of electronic components and systems.
