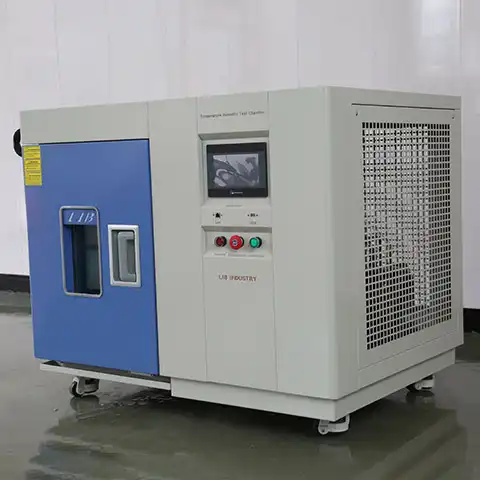

Small Temperature Chamber
Lowest Temperature:-20℃/-40℃/-60℃/-120℃;
Temperature Range:-40℃～+150 ℃;
Humidity Range:10% ~ 98% RH;
Refrigerant:Environmental refrigerant;
Stand as option
Temperature and Humidity System
Small Temperature Chamber: Desktop Footprint, Floor-Standing Performance
Laboratory space and budget still limit research facilities, quality control departments and start-up companies around the world. The Small Temperature Chamber solves these problems by providing industry quality thermal testing in a small space efficient package. Unlike traditional desktop equipment that sacrifices performance for size, sophisticated micro temperature chambers provide the same accuracy and temperature range as their floor-standing equivalents, but take up less room.
Modern tiny temperature chambers are used in high-value testing applications for electronics, automotive components, medicines, and material research. The devices simulate severe environmental conditions from -70°C to +150°C for accelerated ageing testing, thermal cycling procedures and quality assurance verification in areas where standard large-format chambers cannot fit.
Technical Specifications
Parameter | Specification |
Models | TH-50 / TH-80 |
Internal Dimensions (mm) | 320×350×450 / 400×400×500 |
Volume | 50L / 80L |
Temperature Range | -20℃~+150℃ / -40℃~+150℃ / -70℃~+150℃ |
Temperature Accuracy | Fluctuation ±0.5℃ / Deviation ±2.0℃ |
Humidity Range | 20%~98% RH |
Humidity Accuracy | ±2.5% RH |
Heating Rate | 3℃/min |
Cooling Rate | 1℃/min |
Refrigeration System | Mechanical Compression Refrigeration |
Controller | Programmable LCD Touch Screen Controller with Ethernet Connection |
Safety Protection | Over-temperature, Over-current, High-pressure, Water Shortage & Leakage Protection |
Interior Material | SUS304 Stainless Steel |
Exterior Material | Coated Steel Plate |
Product Details
|
|
|

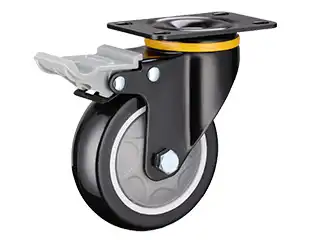

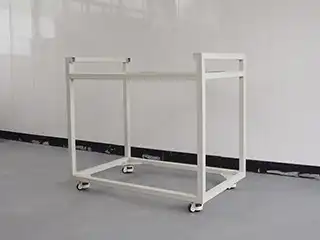

Stand A stand for benchtop chamber Sturdy and removable, very practical Stands can be stacked to save space | PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data | Castors Install 4 castors for ease moving, and with brakes function. Caster height adjustable |
|
|
Product Features
Compact Design with Efficient Space Utilization
Designed for laboratories and limited-space environments, the compact square structure provides 80L effective testing volume within a small footprint of 500×600×850mm.

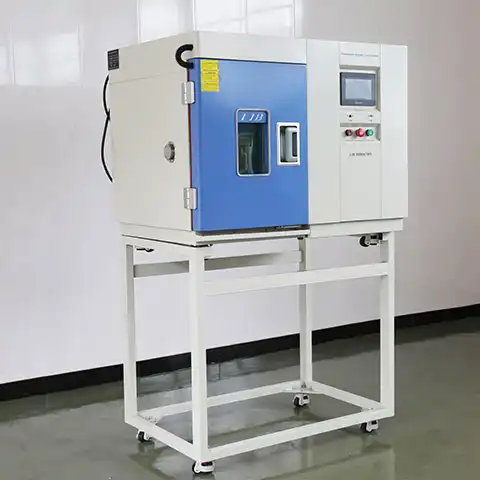

The optimized chamber design improves space utilization, while optional stacking frames allow two units to be installed vertically for up to 160L total capacity without additional floor space.
Easy Installation & Quiet Operation
The benchtop temperature chamber supports standard laboratory power supply without requiring additional infrastructure. The built-in air-cooled refrigeration system eliminates external water connections.
With universal casters, adjustable leveling feet, and a low-noise operation level of ≤55dB(A), the chamber is easy to install and suitable for active laboratory environments.
Stable Temperature Performance
Although compact in size, the chamber provides reliable environmental testing performance with temperature fluctuation controlled within ±0.5℃.
It supports standard testing procedures including IEC 60068-2-1 cold test and IEC 60068-2-2 dry heat test, ensuring repeatable and accurate results.

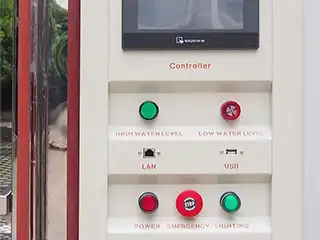

Intelligent Control & Data Management
The programmable LCD touch screen controller supports:
Programmable temperature cycling
Automatic test data recording
Ethernet communication
Optional Wi-Fi remote monitoring
Why Choose Us
Global Experience & Quality
Since 2009, LIB Industry has provided temperature chamber solutions to customers in 60+ countries. Our ISO 9001-certified production and SGS/TÜV verification ensure reliable quality.
3-Year Warranty & Lifetime Support
3-year warranty
Lifetime technical service
24/7 global support
Replacement guarantee during warranty period if repair is impossible
Standards Compliance
Our chambers comply with major standards including:
IEC 60068-2-1 Cold Test
IEC 60068-2-2 Dry Heat Test
CE & RoHS requirements
Custom Solutions
Customized chamber designs, temperature profiles, and testing configurations are available for special applications.
FAQ
Q: Can small chambers achieve the same temperature range as large units?
A: Yes. Our miniature temperature chamber reaches -70°C to +150°C with identical precision.
Q: What power supply is required?
A: Standard 220V single-phase outlet. No industrial electrical infrastructure needed.
Q: How quickly can temperature cycling occur?
A: Heating/cooling rates depend on target temperatures. Typical cycles complete within 15-30 minutes.
Q: Is installation complicated?
A: No. Plug in power, level the unit, and begin operation. No water lines or ventilation modifications required.
