Benchtop Humidity Chamber

The benchtop humidity chamber offers flexible and accurate testing of products.
Lowest Temperature:-20℃/-40℃/-60℃/-86℃;
Temperature Range:-40℃~+150 ℃;
Humidity Range:20% ~ 98% RH;
Touch-screen programmble controller,Ethernet access
Safety options for testing lithium-ion batteries
  Built-in lighting for observing the test
Send Inquiry
  • Product Description

Benchtop Humidity Chamber Manufacturer & Supplier


The LIB industry's benchtop humidity chamber provides precise humidity and temperature control in a compact, desktop design. With RH uniformity and stability, it is ideal for material testing, electronic component testing, shelf life studies.

Humidity is controlled from 10% to 98% RH through an steam humidification system. The programmable controller enables automated test sequencing with customized temperature and humidity profiles. A color touchscreen shows temperature and humidity graphs along with test status. USB and Ethernet interfaces allow data logging and remote monitoring.

Technical Specifications

Model

TH-50

TH-80

Internal Dimension (mm)

320*350*450

400*400*500

Overall Dimension (mm)

820*1160*950

900*1210*1000

Interior Volume

50L

80L

Heat load

1000W

Temperature Range

A : -20℃ ~ +150 ℃   B : -40℃ ~ +150 ℃   C: -70℃ ~ +150 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Humidity Range

20% ~ 98% RH

Humidity Deviation

± 2.5% RH

Cooling Rate

1 ℃ / min

Heating Rate

3 ℃ / min

Cooling system

Mechanical compression refrigeration system

Controller

Programmable color LCD touch screen controller

Ethernet connection

Safety Device

Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection;

Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection

Exterior Material

Steel Plate with protective coating

Interior Material

SUS304 stainless steel

Thermal Insulation

Polyurethane foam and insulation cotton

Observation Window

Interior lighting, double-layer thermo stability silicone rubber sealing

Standard Configuration

1 Cable hole (Φ 50,) with plug; 2 shelves

Product Details

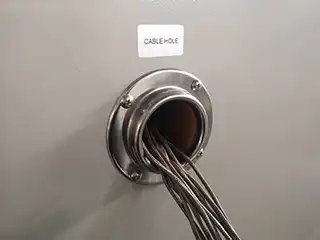

Cable hole

The standard inner hole diameter is 50mm/100mm/200mm

Soft silicone plug seal; Metal enclosure closed

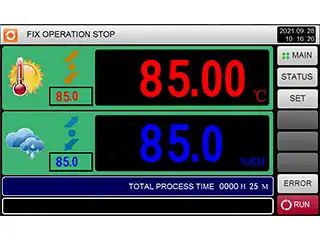

Controller

PID programmable color touch screen controller

Language can be selected, English/French/Spanish/German/Russian

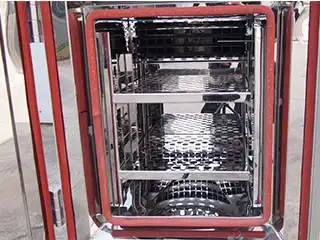

Workroom

The internal material is 304 stainless steel

Mirror, rust resistant

Standard configuration: 2 sample racks



Product Advantages

  1. Precise Environmental Control: Benchtop Humidity Chamber allows for the creation of specific and controlled humidity levels along with temperature, replicating real-world conditions accurately.

  2. Versatile Testing: Enables testing of materials, products, and components under varying humidity and temperature conditions, mimicking diverse environments.

  3. Aging Testing: Facilitates accelerated aging tests by subjecting specimens to controlled humidity and temperature, simulating years of environmental stress in a shorter time.

  4. Quality Assurance: Ensures product reliability by assessing how materials respond to humidity changes, vital for industries sensitive to moisture exposure.

  5. Customization: Provides flexibility in adjusting humidity and temperature settings to suit the unique requirements of different applications and industries.

Benchtop Humidity Chamber Applications

Electronics Industry: Assessing electronic devices' resilience to humidity variations and temperature changes, crucial for electronic components' reliability.

Pharmaceuticals: Testing drug stability and shelf life under controlled humidity and temperature conditions for regulatory compliance.

Materials Science: Studying material properties, including corrosion, degradation, and durability, under varying humidity and temperature scenarios.

Food & Beverage: Evaluating food quality, packaging, and storage conditions in different humidity and temperature settings to maintain freshness and prevent spoilage.

Automotive Sector: Assessing the impact of humidity on automotive components, especially those susceptible to moisture-related issues.

Research & Development: Conducting accelerated aging and environmental simulation tests to analyze the effects of humidity and temperature on materials and products.

FAQ

Q: What humidity uniformity does the chamber provide?

A: Humidity uniformity is ±2.5% RH or better throughout the workspace.

Q: What accessories do you offer?

A: We offer a range of accessories like shelving, cable ports and spare parts.

Q: What industries use your humidity chambers?

A: Electronics, food, pharmaceuticals, medical, packaging, and many other fields.
