Small Humidity Chamber
Lowest Temperature:-20℃/-40℃/-60℃/-120℃;
Temperature Range:-40℃～+150 ℃;
Humidity Range:10% ~ 98% RH;
Cooling Type:Air cooled
Refrigerant:Environmental refrigerant;

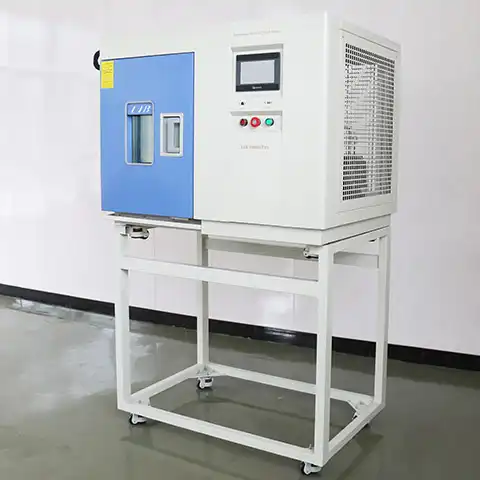

Stand as option
LIB Industry's Small Humidity Chamber:
LIB industry is professional small humidity chamber manufacturers and suppliers in China, to buy or wholesale from our factory. For quotation, contact us now.
The LIB Industry small humidity chamber is an advanced humidity and temperature control chamber ideal for material testing, quality control, and production applications. With a compact footprint, it provides excellent humidity uniformity and stability with a wide temperature range.
A large color touchscreen shows temperature and humidity, portable humidity chamber, PID control of humidification and dehumidification components allows precise RH control from 10% to 98% at temperatures up to +85°C. The programmable controller allows automated test with ramping and dwell times.
Technical Specifications
Model | TH-50 | TH-80 |
Internal Dimension (mm) | 320*350*450 | 400*400*500 |
Overall Dimension (mm) | 820*1160*950 | 900*1210*1000 |
Interior Volume | 50L | 80L |
Heat load | 1000W | |
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | |
Temperature Fluctuation | ± 0.5 ℃ | |
Temperature Deviation | ± 2.0 ℃ | |
Humidity Range | 20% ~ 98% RH | |
Humidity Deviation | ± 2.5% RH | |
Cooling Rate | 1 ℃ / min | |
Heating Rate | 3 ℃ / min | |
Cooling system | Mechanical compression refrigeration system | |
Controller | Programmable color LCD touch screen controller Ethernet connection | |
Safety Device | Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Thermal Insulation | Polyurethane foam and insulation cotton | |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | |
Product Details
|
|
|

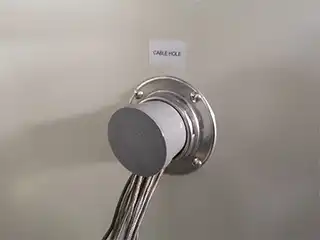

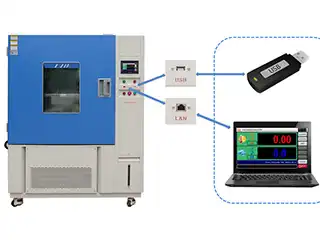

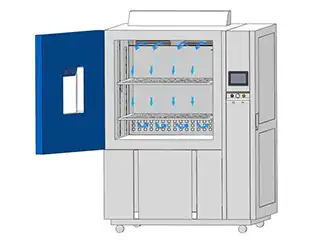

PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data | Air circulation The air is uniformly distributed through the air outlet Air circulates evenly throughout the workroom | Cable hole A standard test hole with plugs The standard inner hole diameter is 50mm/100mm/200mm |
|
|
Product Advantages
●Wide humidity range from 10% to 98% RH
●Temperature stability as low as ±1.0% RH
●Excellent humidity uniformity ±5% RH
●Rapid humidification and dehumidification rates
●Programmable temperature and RH profiles
●Touchscreen interface for easy operation
●Data logging and remote monitoring capability
●Stainless steel interior for durability
●Smooth surfaces and removable parts for thorough cleaning
Applications
In addition to material and product testing, the LIB Industry Small Humidity Chamber is well-suited to:
Microbial testing
Shelf life studies
Package testing
Stability testing of chemicals, foods, pharmaceuticals
Environmental conditioning
Temperature humidity aging testing
Humidity resistance testing
FAQ:
Q: What humidity measurement accuracy does the chamber provide?
A: Humidity is controlled to ±1.0% RH with uniformity of ±5% RH for test precision.
Q: Can I program automatic test profiles and segments?
A: Yes, the chamber allows programming temperature, humidity, and time settings for complete test automation.
Q: What kind of humidity sensors are used?
A: Dry and wet bulb sensor.
Q: Can I order accessories or custom options?
A: Certainly, we offer various accessories and can custom the chamber to suit your special requirements.
