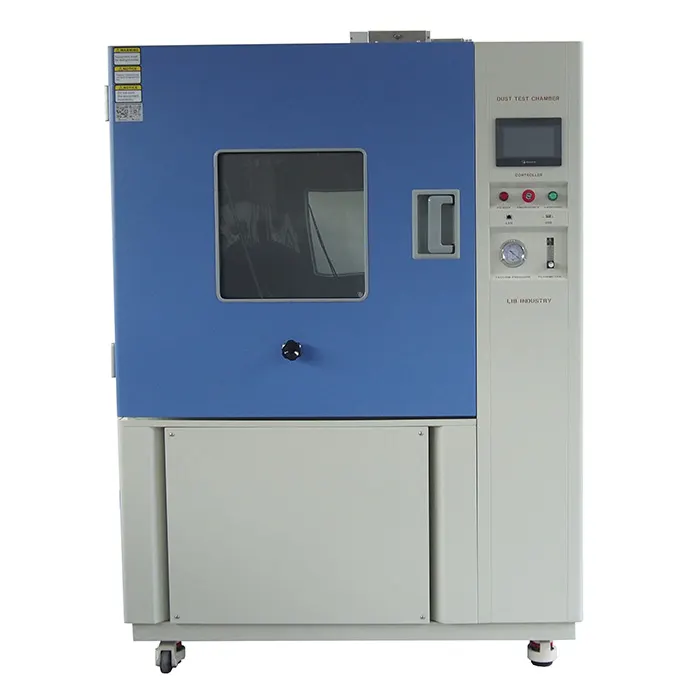

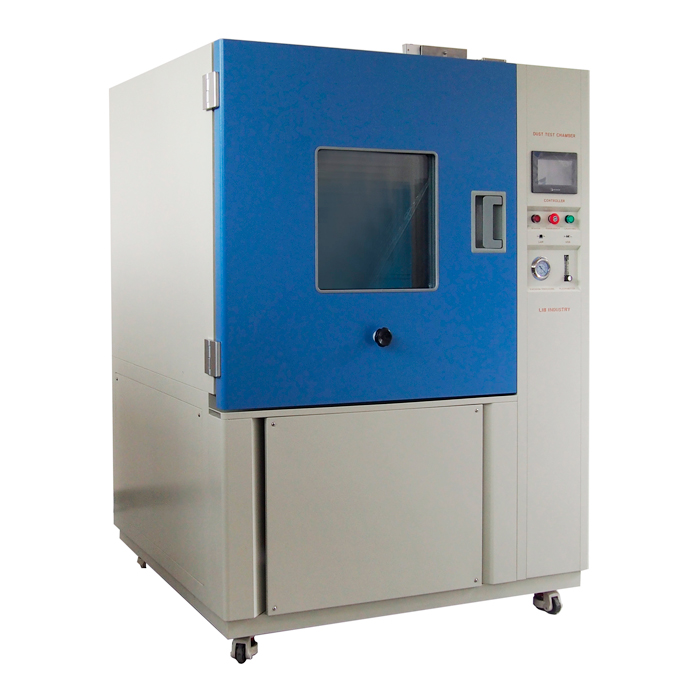

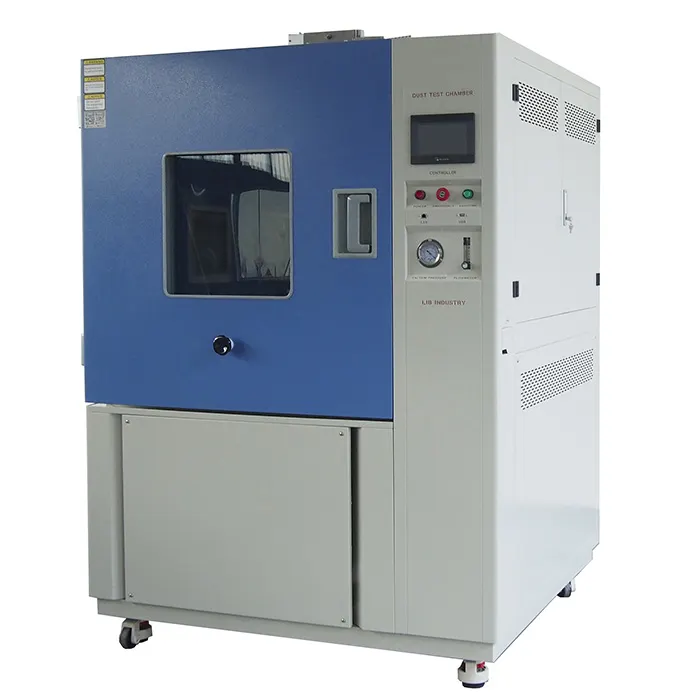

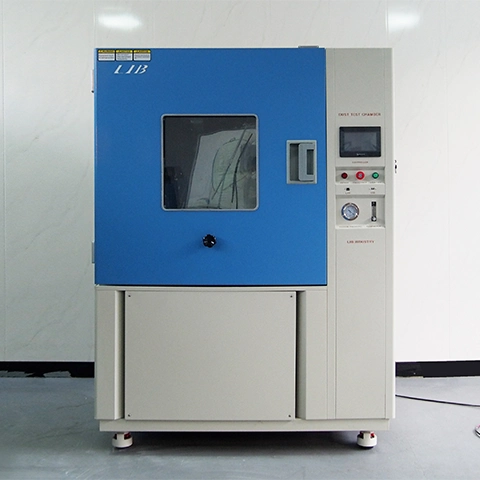

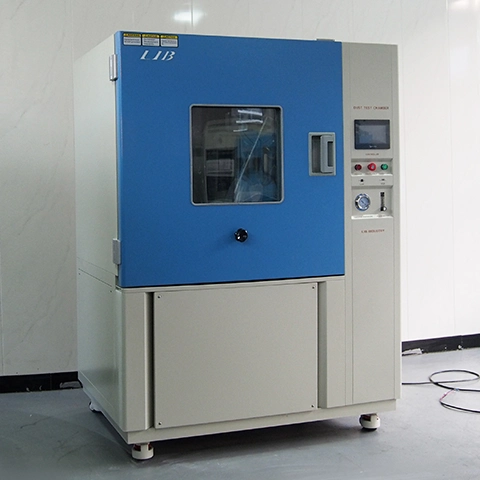

Sand Test Chamber
Temperature Range:Ambient ~ +50℃
Humidity Range:< 30% RH
Specimen Power Outlet:Dust-proof socket 16A
Vacuum System:pressure gauge, air filter, pressure regulator, connecting tube
Door Lock:Electromagnetic lock
Standard:IEC 60529, ISO20653
Sand Test Chamber Manufacturer & Supplier

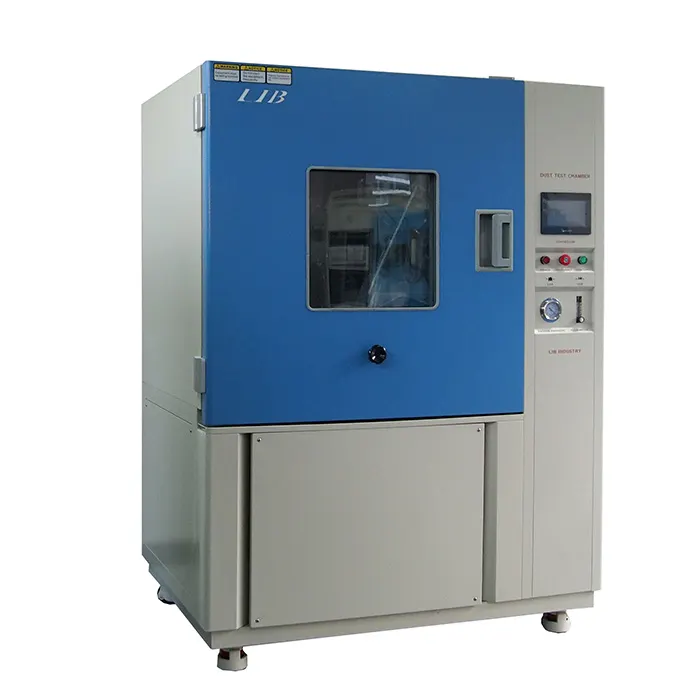

The LIB industry's Sand Test Chamber provides realistic sand ingress testing for verifying enclosure protection and component reliability. Customized test conditions ensure products meet specifications for harsh sandy environments.
It features a compact stainless steel construction resistant to abrasion from repeated sand testing. The standard chamber provides a 1 cubic meter test volume to accommodate various product sizes.Temperature is controllable from ambient to +80°C . The touchscreen PLC interface enables fully automated test sequences.
Technical Parameter
Model | DI-800 | DI-1000 | DI-1500 | DI-2000 |
Internal Dimension (mm) | 800*1000*1000 | 1000*1000*1000 | 1000*1500*1000 | 1000*2000*1000 |
Overall Dimension (mm) | 1040*1450*1960 | 1330*1450*1960 | 1330*1950*1990 | 1330*2450*1990 |
Useful Volume (L) | 800 | 1000 | 1500 | 2000 |
Temperature Range | Ambient ~ +50℃ | |||
Humidity Range | < 30% RH | |||
Normal Wire Diameter | 50um | |||
Nominal Width of a Gap Between wires | 75um | |||
Fight Time | 0 ~ 99H59M | |||
Blowing Time | 0 ~ 99H59M | |||
Specimen Power Outlet | Dust-proof socket 16A | |||
Vacuum System | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube | |||
Controller | Programmable color LCD touch screen controller, Ethernet connection | |||
Door Lock | Electromagnetic lock | |||
Safety Device | Over-temperature Protection; Over-current Protection; Earth Leakage Protection；Phase Sequence Protection | |||
Exterior Material | A3 Steel Plate with protective coating | |||
Interior Material | SUS304 stainless steel | |||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||
Standard Configuration | Sample shelf, dust wiper, talcum powder(5kgs) | |||
Product Details
|
|
|

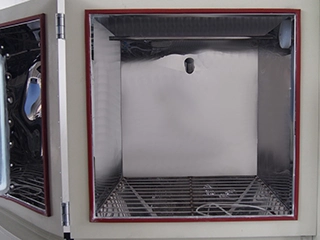

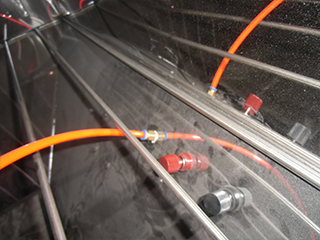

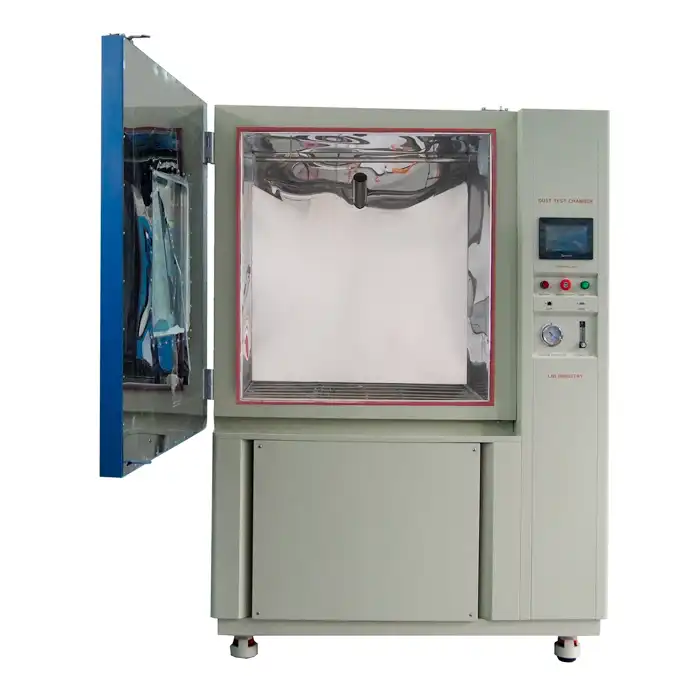

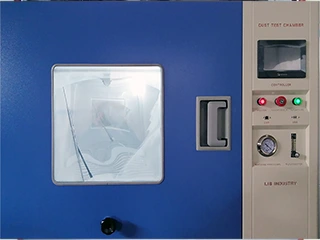

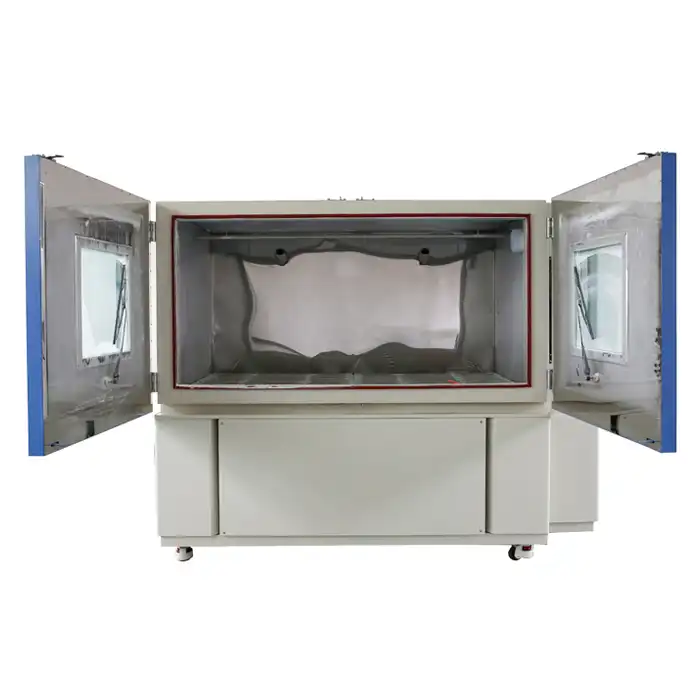

| Viewing Window Double-layer tempered glass, specially designed seal, with good impact resistance and prevention of sand and dust leakage. | Internal Power Supply The workroom is equipped with a single-phase 16A internal power interface. The power-on time and cycle can be controlled by the controller | Workroom The internal material is 304 stainless steel, mirror surface, rust-proof Standard configuration: sample rack |
|
|
Compliance with Standards
The LIB Sand Test Chamber meets test methods in the following standards:
● IEC 60068-2-68 Environmental Testing - Dust and Sand
● IEC 60529 Degrees of Protection Provided by Enclosures (IP Code)
The chamber evaluates IP ratings up to IP6X for sand ingress protection.
Key Product Features:
1. Realistic Sand Testing: Matches field conditions
2. Fully Automated Operation: Programmable test profiles
3. Rugged Construction: Durable stainless steel chamber
4. Compact Footprint: Provides 1m3 test volume
5. Reusable Sand: Integrated dust collection system
6. Temperature Cycling: Ambient to +80°C
7. Safety Features: Emergency stop button & interlocks
8. Cost Effective: Affordable solution for production testing
9. IP Rating Determination: Evaluates sand ingress protection
FAQ
1. What is the standard Sand Test Chamber size?
The standard chamber provides a 1 cubic meter test volume. Larger sizes are available.
2. What is the normal lead time?
Standard lead time is 2 weeks. Some models are in ready to ship.
3. What after-sales support is included?
36 month warranty and long life service.
