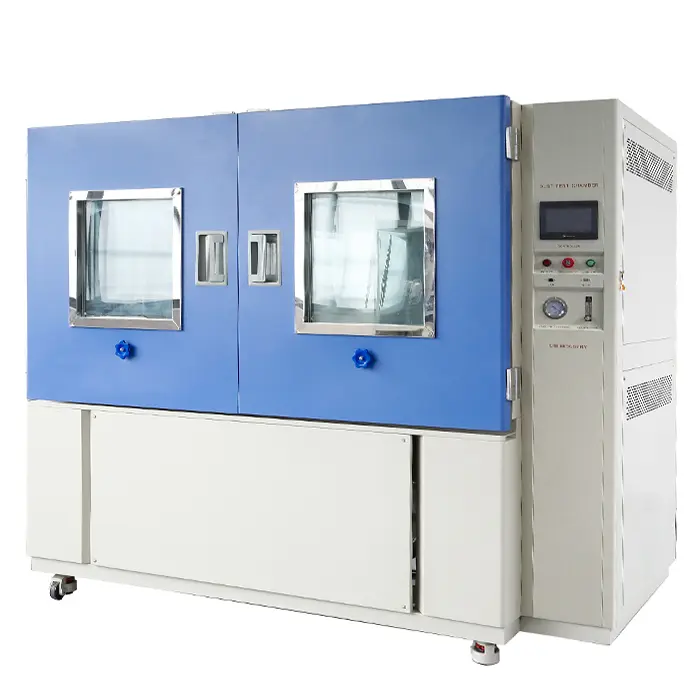

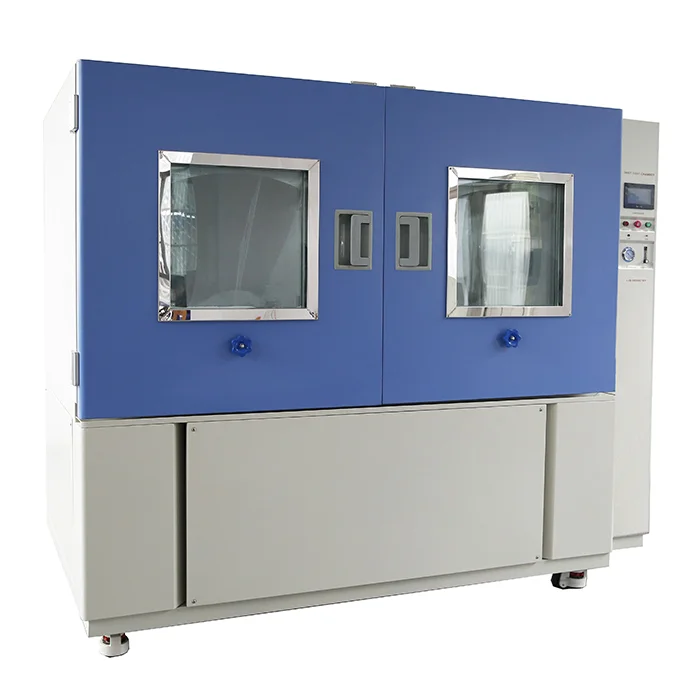

Dust Chamber

LIB designed and produced different size and configuration of dust chamber, which is suited for dust environmental testing.
Capacity:800L/1000L/1500L/2000L and more
Temperature Range:Ambient ~ +50℃
Humidity Range:< 30% RH
Normal Wire Diameter: 50um
Nominal Width of a Gap Between wires:75um
Blowing Time:0 ~ 99H59M
Product Description

Dust Chamber Manufacturer & Supplier

LIB Industrial (LIB) is a professional manufacturer and supplier of dust chamber, providing various standard and customized environmental testing chambers for different industries. It simulates real-world conditions where dust and particles can accumulate and potentially affect the performance or durability of the tested items.

Technical Parameters:

Model

DI-800

DI-1000

DI-1500

DI-2000

Internal Dimension (mm)

800*1000*1000

1000*1000*1000

1000*1500*1000

1000*2000*1000

Overall Dimension (mm)

1040*1450*1960

1330*1450*1960

1330*1950*1990

1330*2450*1990

Useful Volume (L)

800

1000

1500

2000

Temperature Range

Ambient ~ +50℃

Humidity Range

< 30% RH

Normal Wire Diameter

50um

Nominal Width of a Gap Between wires

75um

Fight Time

0 ~ 99H59M

Blowing Time

0 ~ 99H59M

Specimen Power Outlet

Dust-proof socket 16A

Vacuum System

Equipped with a pressure gauge, air filter, pressure regulator, connecting tube

Controller

Programmable color LCD touch screen controller, Ethernet connection

Door Lock

Electromagnetic lock

Safety Device

Over-temperature Protection; Over-current Protection;

Earth Leakage Protection;Phase Sequence Protection

Exterior Material

A3 Steel Plate with protective coating

Interior Material

SUS304 stainless steel

Observation Window

Interior lighting, double-layer thermo stability silicone rubber sealing

Standard Configuration

Sample shelf, dust wiper, talcum powder(5kgs)

Product Details:




Internal Power Supply

A single-phase 16A internal power interface

Supply electricity to test specimen inside of the workroom

Build-in lighting

The built-in dustproof LED lighting inside the workroom

Makes it clear to observe the test specimen.

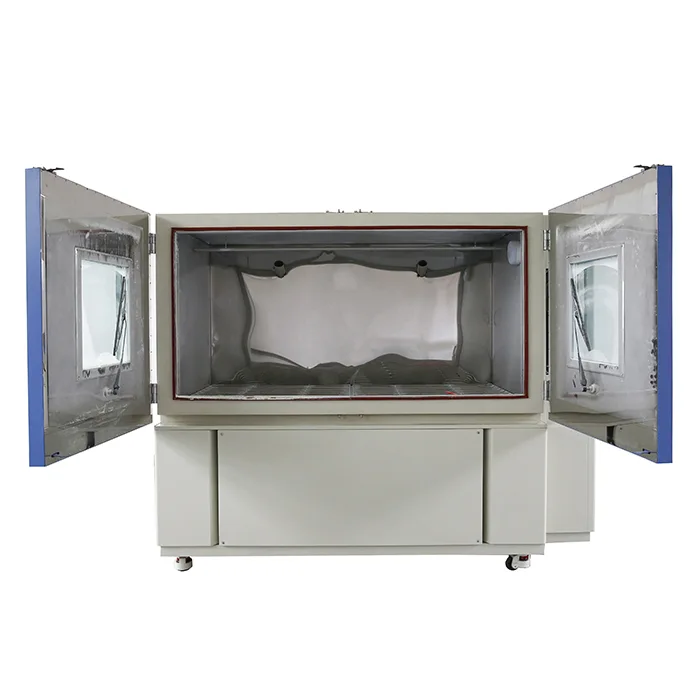

Workroom

The internal material is 304 stainless steel, mirror surface, rust-proof

Standard configuration: sample rack



More Details:

Brand: LIB Industrial

Type: Dust Environmental Testing Chamber

Material: Stainless Steel

Size: Standard and Customizable (800L to 2000L)

Temperature Range: RT+10°C to +80°C

Standard: IEC60529

Applications:

●Electronics: Dust Chamber is extensively used to test electronic components such as circuit boards, sensors, and connectors for resilience to dust, ensuring optimal performance in diverse conditions.

●Automotive: Automotive parts and systems, including control units and sensors, undergo testing to guarantee functionality and longevity in dusty environments encountered on roads.

●Consumer Electronics: Products like smartphones, cameras, and wearables are subjected to dust testing to meet industry standards and enhance user satisfaction by ensuring prolonged durability.

●Industrial Machinery: it plays a crucial role in evaluating the dust resistance of machinery components, preventing potential malfunctions and prolonging equipment lifespan.

FAQ

1. What is it used for?

It is used to test the resistance of products to dust and particulate ingress. It assesses how well products can withstand exposure to dusty environments, ensuring their reliability and durability.

2. How does it work?

It operates by creating controlled dust environments. Products are placed inside the Dust Chamber, and dust is introduced in varying concentrations and particle sizes.

3. What capacity are provided?

Standard and custom models, 800L/100L/1500L and more.
