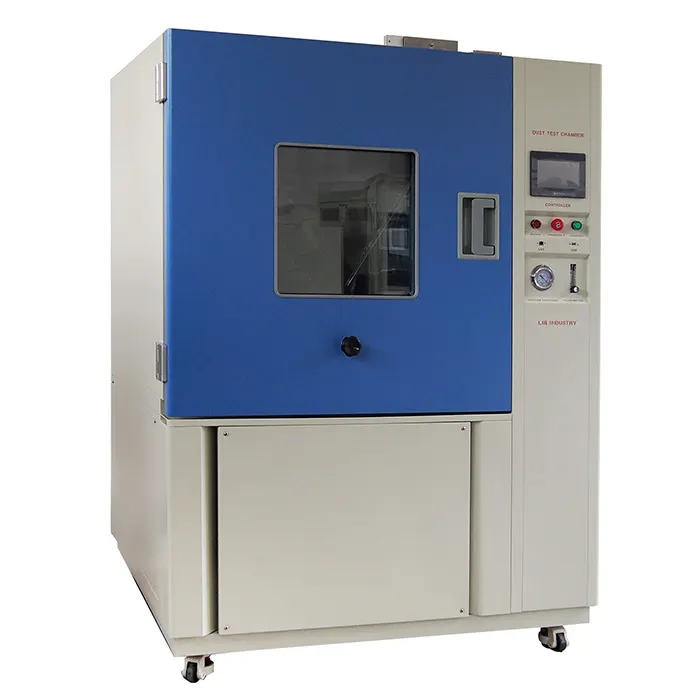

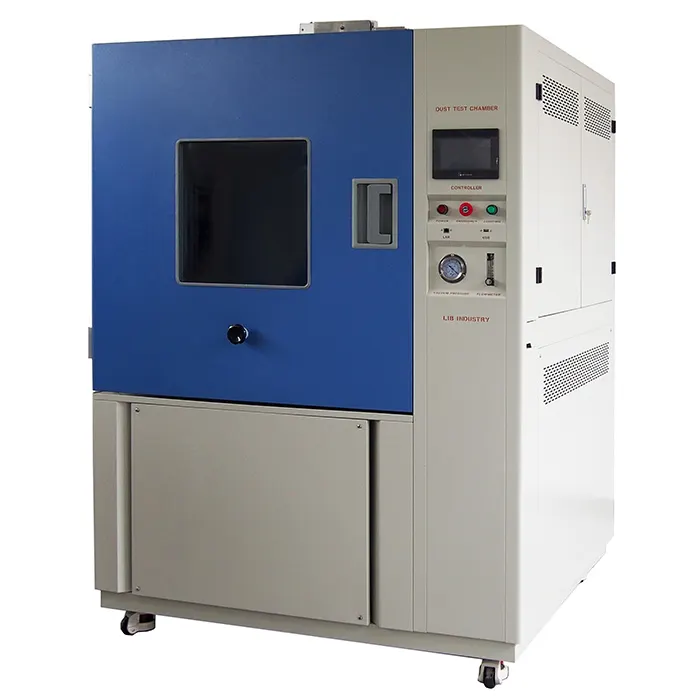

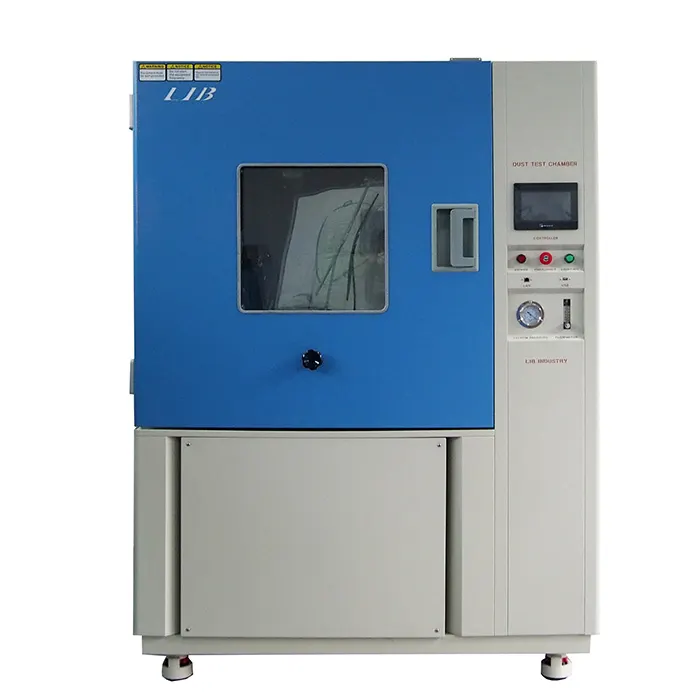

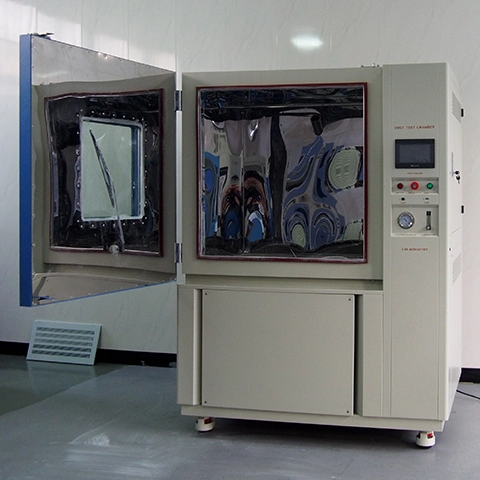

Sand Dust Test Chamber
Temperature Range:Ambient ~ +50℃
Humidity Range:< 30% RH
Specimen Power Outlet:Dust-proof socket 16A
Vacuum System:pressure gauge, air filter, pressure regulator, connecting tube
Door Lock:Electromagnetic lock
Standard: IEC 60529, ISO20653
Sand Dust Test Chamber Manufacturer & Supplier
We're professional sand dust test chamber manufacturers and suppliers in China, to buy or wholesale from our factory. For quotation, contact us now.
The LIB Industry Sand Dust Test Chamber provides a reliable solution for evaluating the sand and dust resistance of electrical enclosures and components. Realistic test conditions ensure products meet protection standards for dust environments.

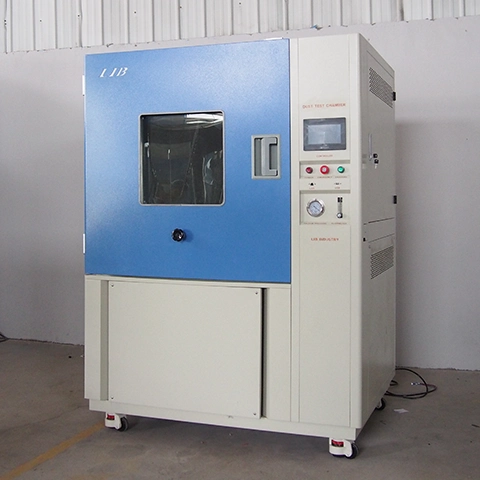

The LIB Industry sand and dust test chamber features a compact stainless steel construction resistant to corrosion. The test enclosure provides 1 cubic meter volume to accommodate various product sizes. Testing can determine IP ratings for dust ingress protection from IP5X to IP6X EN 60529.
Technical Parameters
Model | DI-800 | DI-1000 | DI-1500 | DI-2000 |
Internal Dimension (mm) | 800*1000*1000 | 1000*1000*1000 | 1000*1500*1000 | 1000*2000*1000 |
Overall Dimension (mm) | 1040*1450*1960 | 1330*1450*1960 | 1330*1950*1990 | 1330*2450*1990 |
Useful Volume (L) | 800 | 1000 | 1500 | 2000 |
Temperature Range | Ambient ~ +50℃ | |||
Humidity Range | < 30% RH | |||
Normal Wire Diameter | 50um | |||
Nominal Width of a Gap Between wires | 75um | |||
Fight Time | 0 ~ 99H59M | |||
Blowing Time | 0 ~ 99H59M | |||
Specimen Power Outlet | Dust-proof socket 16A | |||
Vacuum System | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube | |||
Controller | Programmable color LCD touch screen controller, Ethernet connection | |||
Door Lock | Electromagnetic lock | |||
Safety Device | Over-temperature Protection; Over-current Protection; Earth Leakage Protection；Phase Sequence Protection | |||
Exterior Material | A3 Steel Plate with protective coating | |||
Interior Material | SUS304 stainless steel | |||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||
Standard Configuration | Sample shelf, dust wiper, talcum powder(5kgs) | |||
Product Details
|
|
|

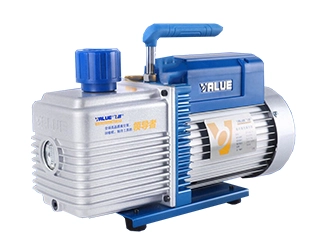

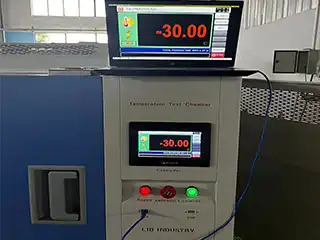

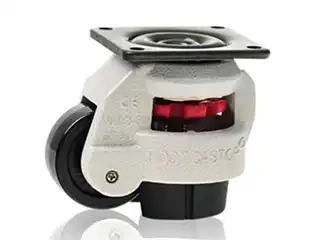

| PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data | Vacuum Pump Vacuum pump is used to evacuate the test sample. There is a vacuum interface in the workroom, which can be directly connected to the sample. | Castors Install 4 castors for ease moving, and with brakes function. Caster height adjustable. |
|
|
Features and Benefits
1. Realistic Sand Simulation: Matches field conditions
2. Fully Programmable: Automated test profiles and data logging
3. Rugged Construction: Durable stainless steel chamber

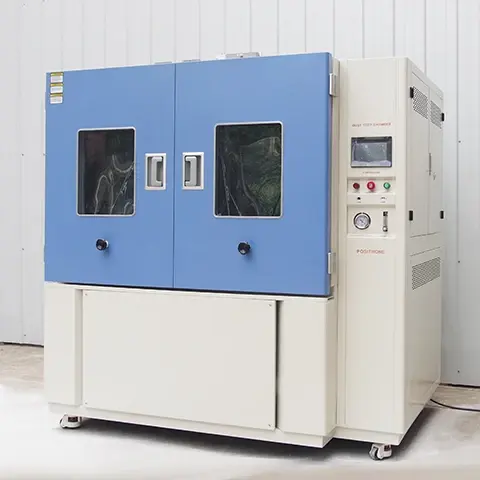

4. Various Size: Stanard 1m3 test volume, and more models of different size for choose.
5. Test Customization: Wide range of dust types and densities
6. Safety Features: Emergency stop and safety interlocks
7. IP Rating Determination: Tests ingress protection against dust
Applications
The LIB Industry Sand Dust Chamber is ideal for testing products such as:
●Outdoor enclosures and cabinets
●Construction equipment
●Agricultural electronics
●Mining equipment
●Military electronics
●Automotive components
●Aerospace avionics
●Instrumentation for oil and gas
How to Maitain Sand Dust Test Chamber?
To maintain a sand dust test chamber, you should follow these steps:
1. Regular Cleaning: Clean the chamber regularly to remove any dust or sand particles that may have accumulated on the walls, floor, or equipment.
2. Inspect Seals: Inspect the seals on the chamber door and windows to ensure they are intact and not damaged.
3. Calibrate Equipment: Calibrate the dust chamber annually to ensure accurate testing results.
4. Follow Manufacturer's Guidelines: Follow the manufacturer's guidelines for usage, maintenance, and safety precautions specific to your sand dust test chambers model.
5. Train Staff: Train the staff responsible for operating and maintaining the chamber on proper procedures and safety protocols to ensure efficient and safe operation.
