IP Dust Chamber

IP Dust Chamber Manufacturer & Supplier

LIB industry is professional IP Dust Chamber manufacturers and suppliers in China, to buy or wholesale from our factory. For quotation, contact us now.

The LIB IP Dust Chamber is designed to perform dust intrusion and particle ingress testing on electrical enclosures and components according to IEC 60529 and related IP standards. With programmable dust circulation cycles and heating air temeprature, this chamber provides reliable IP testing capabilities.

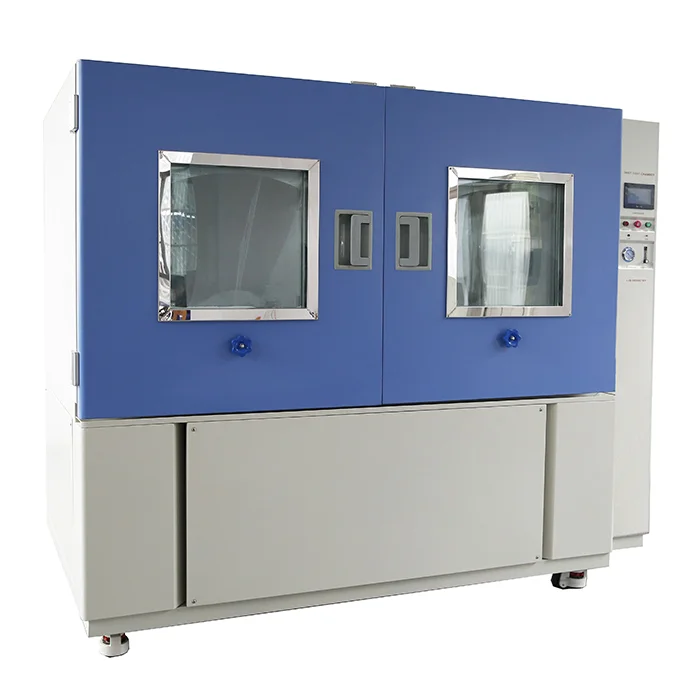

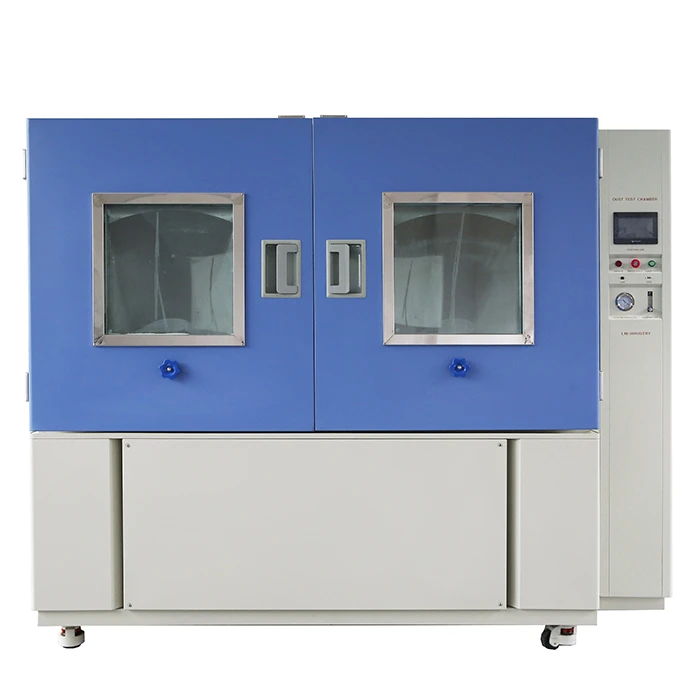

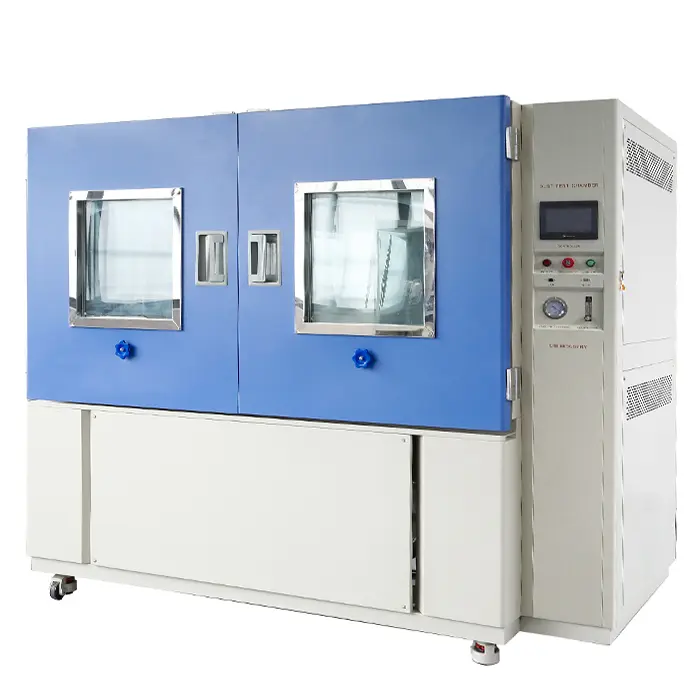

The IP dust test chamber has a stainless steel interior and clear observation windows. It uses an electric dust circulating fan to maintain uniform dust distribution inside test room. The programmable PLC allows custom test profile creation.

Specifications

Product Details

IP Dust Chamber Key Features

●Simulates real-world dust environments

●Allows IP rating qualification testing

●Customizable test parameters via PLC

●800L/1000L/1500L/2000L and more

●Built-in power supply supplies power to the test specimen

Why choose LIB's IP69K dust chamber?

(1)LIB's IP Dust Chamber provides a reliable testing instrument that meets key requirements of IEC 60529 and related standards for evaluating ingress protection levels. With over 14 different models ranging from 800L to 2000L capacity, LIB offers chambers suited for small to large enclosures and housings.

(2)The temperature range of ambient to +80°C allows testing across both room and elevated temperatures. The powerful circulation fan generates wind with uniform distribution to simulate real-world dust conditions.

(3)The dust injection quantity can be programmed from 0-10 kg allowing incremental exposure as needed per test specifications. LIB also provides custom dust particle sizes such as 50 microns and gap widths of 75 microns between dust injection tubes to meet standard stipulations.

(4)By providing a broad range of test space volumes, programmable dust parameters, and the ability to conform to IEC 60529 procedures, LIB’s product is an excellent choice for laboratories and manufacturers needing to qualify ingress protection ratings for their electrical and electronic products.

Applications

It is a device designed for assessing the level of protection of equipment, electronic devices, and automotive parts. Conforming to the international standard IEC 60529, which simulates dust intrusion in different environments to evaluate the sealing performance of the equipment. Its main application fields include but are not limited to, electronic products, communication equipment, automotive components, lighting equipment, and industrial control devices.

(1)In the electronic products industry, it is utilized to test the performance of devices in various dusty environments, assisting manufacturers to ensure the reliability and durability of their products. For communication equipment manufacturers, it can assess the performance of equipment in dry or dust-ridden environments.

(2)In the automotive components industry, the IP Dust helps test the sealing performance of onboard electronic devices and components, thereby ensuring their reliability and stability in actual use. At the same time, lighting equipment manufacturers also employ the IP Dust Chamber to assess the performance of luminaires after their exposure to dusty environments.
