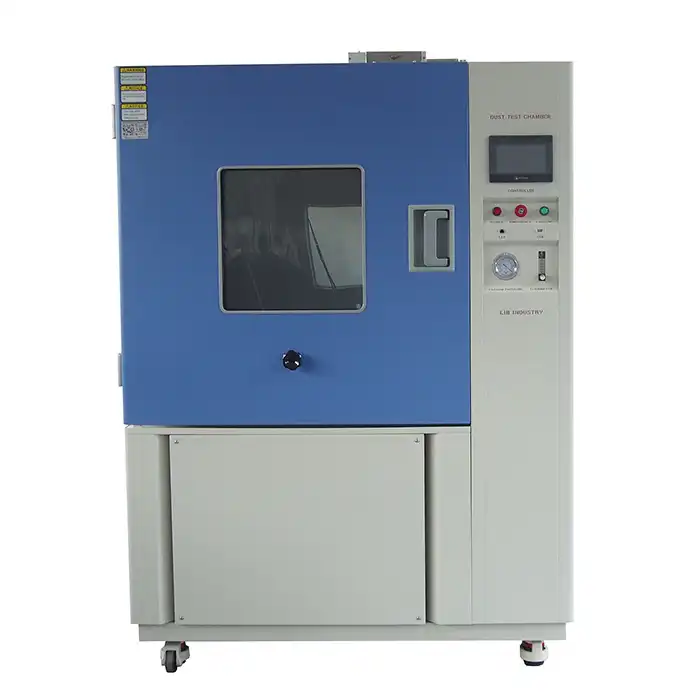

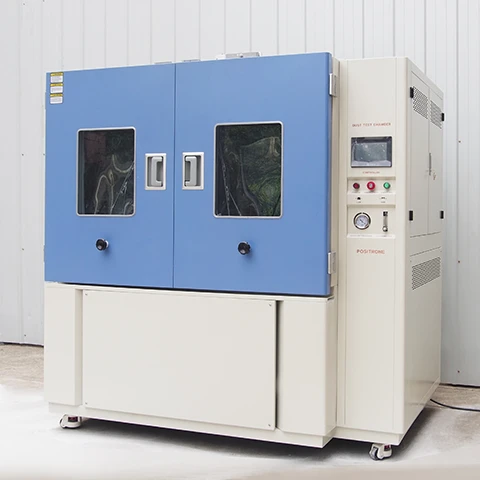

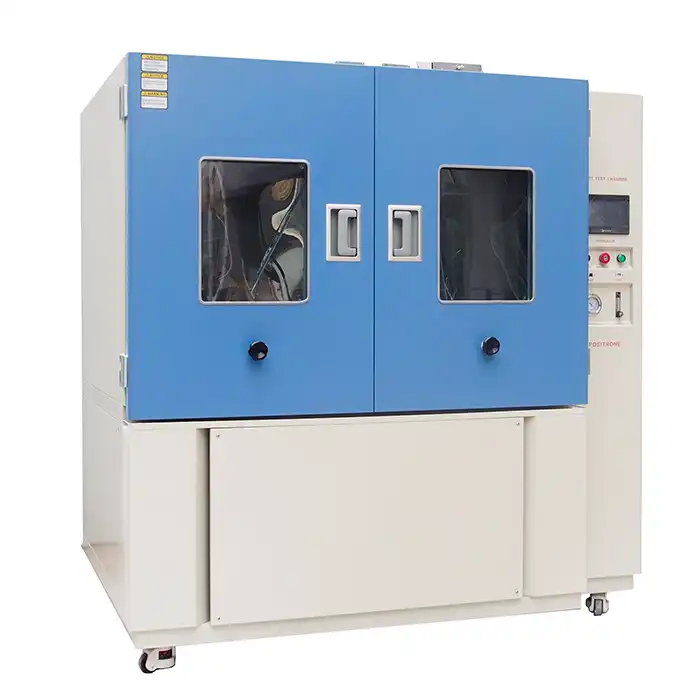

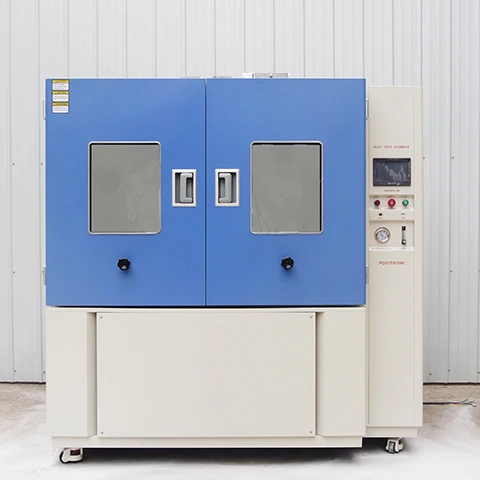

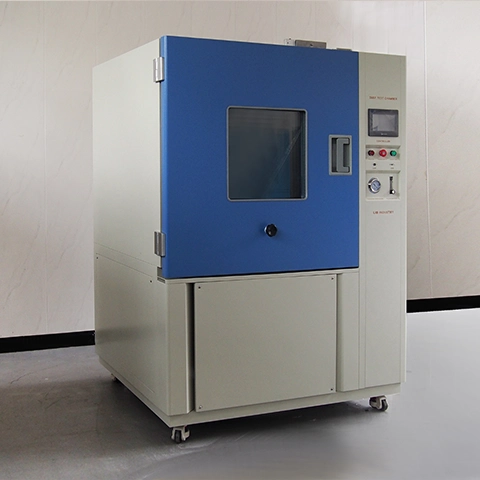

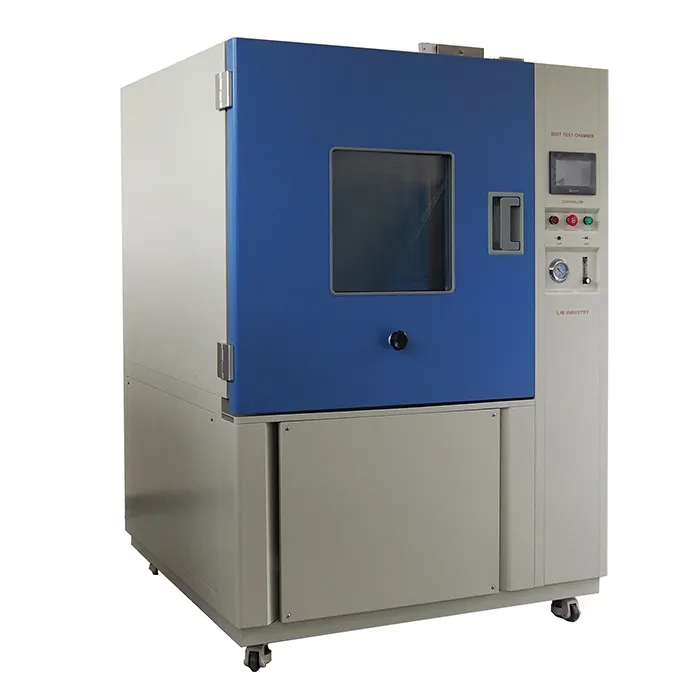

Ingress Protection Test Equipment

LIB Industry dust test equipment can be used to perform ingress protection tests in accordance with the test standards IEC60529. More than 14 models for choose.
Temperature Range:Ambient ~ +50℃
Humidity Range:< 30% RH
Blowing Time:0 ~ 99H59M
Specimen Power Outlet:Dust-proof socket 16A
Vacuum System:pressure gauge, air filter, pressure regulator, connecting tube
Door Lock:Electromagnetic lock
Product Description

Ingress Protection Test Equipment Manufacturer & Supplier

The LIB Industry line of Ingress Protection Test Equipment provides complete solutions for verifying IP ratings against dust and water ingress per IEC standards. Our integrated systems allow testing of lighting, electronics, junction boxes, valves, and more to validate IPX1 to IPX9K ratings.

Key products include:

- IP Dust Test Chambers with programmable dust generators

- IP Water Test Chambers with spray nozzles and condition control

- IP Rotating Turntables for multi-angle water testing

- Automation controllers and sample holders

Technical Parameters

Model

DI-800

DI-1000

DI-1500

DI-2000

Internal Dimension (mm)

800*1000*1000

1000*1000*1000

1000*1500*1000

1000*2000*1000

Overall Dimension (mm)

1040*1450*1960

1330*1450*1960

1330*1950*1990

1330*2450*1990

Useful Volume (L)

800

1000

1500

2000

Temperature Range

Ambient ~ +50℃

Humidity Range

< 30% RH

Normal Wire Diameter

50um

Nominal Width of a Gap Between wires

75um

Fight Time

0 ~ 99H59M

Blowing Time

0 ~ 99H59M

Specimen Power Outlet

Dust-proof socket 16A

Vacuum System

Equipped with a pressure gauge, air filter, pressure regulator, connecting tube

Controller

Programmable color LCD touch screen controller, Ethernet connection

Door Lock

Electromagnetic lock

Safety Device

Over-temperature Protection; Over-current Protection;

Earth Leakage Protection;Phase Sequence Protection

Exterior Material

A3 Steel Plate with protective coating

Interior Material

SUS304 stainless steel

Observation Window

Interior lighting, double-layer thermo stability silicone rubber sealing

Standard Configuration

Sample shelf, dust wiper, talcum powder(5kgs)

Product Details

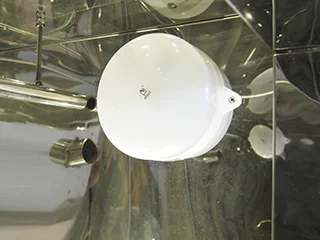

Build-in lighting

The built-in dustproof LED lighting inside the workroom

Makes it clear to observe the test specimen.

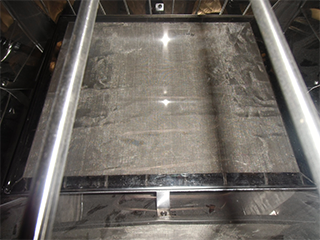

Mesh Sieve

The mesh sieve is used to filter the dust that has formed quickly or has a large diameter.

The diameter of the mesh is 75 microns

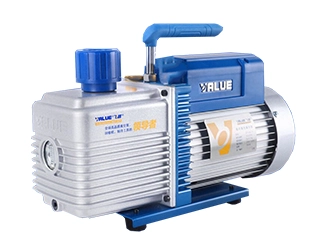

Vacuum Pump

Vacuum pump is used to evacuate the test sample.

There is a vacuum interface in the workroom, which can be directly connected to the sample.

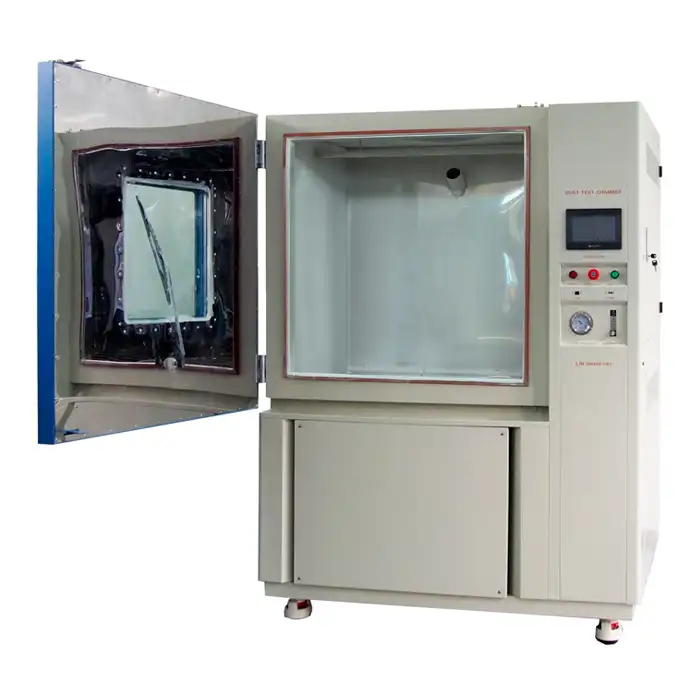

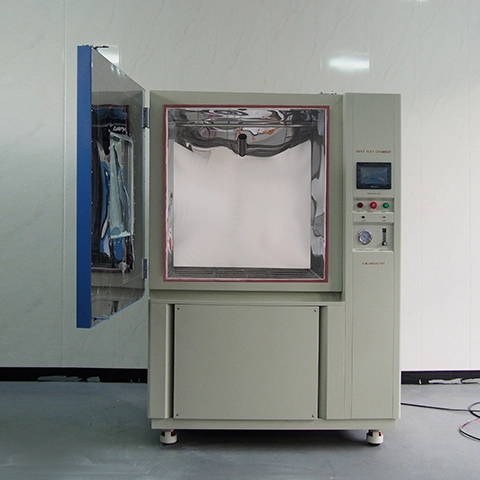

IP Dust Test Chambers

To validate IP5X to IP6X dust resistance ratings, LIB Industry Ingress Protection Test Equipment provides advanced IP Dust Test Chambers.

―Programmable dust concentration from 100 mg/m3 to 4000 mg/m3

―Integrated dust generators with ISO test dust

―Temperature control to 80°C

―Real-time monitoring of conditions

―Vertical airflow for uniform dust distribution

―Automated programmed test sequencing

―Clear observation windows

Automation Control Systems

To program and monitor IP testing, LIB Industry Ingress Protection Test Equipment offers several automation controller options including:

Touchscreen HMI for stand-alone control

Industrial programmable automation controllers (PACs)

Integration with customer data logging and control software

Alarm outputs, voltage options

Multi-language displays

Applications include IP testing of:

- Electronics enclosures, junction boxes

- Lighting and luminaires

- Solar PV inverters

- HVAC equipment

- Industrial valves and actuators

- Medical devices and packaging

- Outdoor power equipment

- Telecom equipment

- Robotics and machinery
