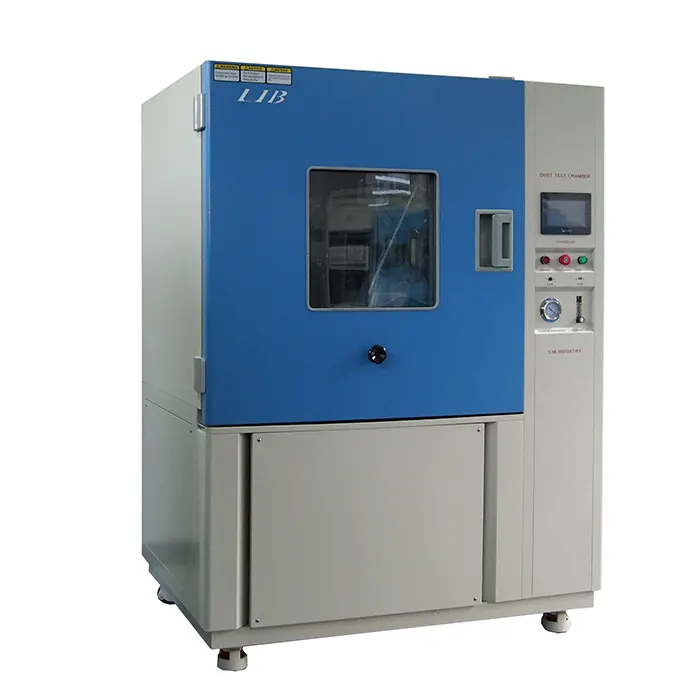

Dust Enviromental Chamber
Name: dust enviromental chamber
Model:DI-800
Capacity:800L/1000L/1500L/2000L and more
Temperature Range:Ambient ~ +50℃
Humidity Range:< 30% RH
Vacuum System:pressure gauge, air filter, pressure regulator, connecting tube
Dust Enviromental Chamber Manufacturer & Supplier
The LIB Dust Enviromental Chamber delivers versatile dust testing capabilities for manufacturers seeking to evaluate product protection and reliability. Fully automated operation and data logging ensure efficient testing to industry dust standards.
The LIB Dust Chamber provides a 1 cubic meter stainless steel enclosure for continuous dusty conditions. The rugged construction prevents corrosion and allows for easy cleaning between tests.
Product Parameters
Model | DI-800 | DI-1000 | DI-1500 | DI-2000 |
Internal Dimension (mm) | 800*1000*1000 | 1000*1000*1000 | 1000*1500*1000 | 1000*2000*1000 |
Overall Dimension (mm) | 1040*1450*1960 | 1330*1450*1960 | 1330*1950*1990 | 1330*2450*1990 |
Useful Volume (L) | 800 | 1000 | 1500 | 2000 |
Temperature Range | Ambient ~ +50℃ | |||
Humidity Range | < 30% RH | |||
Normal Wire Diameter | 50um | |||
Nominal Width of a Gap Between wires | 75um | |||
Fight Time | 0 ~ 99H59M | |||
Blowing Time | 0 ~ 99H59M | |||
Specimen Power Outlet | Dust-proof socket 16A | |||
Vacuum System | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube | |||
Controller | Programmable color LCD touch screen controller, Ethernet connection | |||
Door Lock | Electromagnetic lock | |||
Safety Device | Over-temperature Protection; Over-current Protection; Earth Leakage Protection；Phase Sequence Protection | |||
Exterior Material | A3 Steel Plate with protective coating | |||
Interior Material | SUS304 stainless steel | |||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||

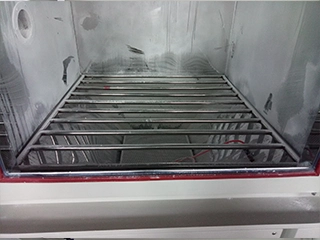

Standard Configuration | Sample shelf, dust wiper, talcum powder(5kgs) | |||
Product Details
|
|
|

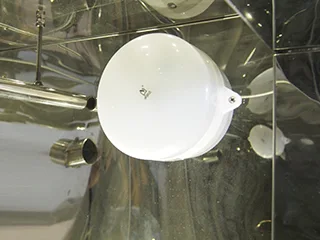

| Build-in lighting Makes it clear to observe the test specimen. The light can be turned on and off at the control panel button | Electromagnetic Lock Electromagnetic lock to strong lock the door Unlocking is operated on the controller for safety and prevent malfunction | Dust Circulation System Test chamber with vertical circulating airflow vertical dust circulation system. Airflow can smoothly blow dust into the working room |
|
|
Features and Benefits
1. Realistic Dust Simulation: Matches field conditions
2. Fully Programmable: Automates test profiles and data logging
3. Wide Temperature Range: From RT+10°C to +80°C
4. Rugged Construction: Durable stainless steel chamber
5. Compact Footprint: Provides 1m3 test volume and more
6. Test Customization: Wide range of dust types and densities
7. Enclosure Protection Testing: Determines IP ratings for dust
Custom Services
LIB Engineering can customize the Dust Chamber for integration with your laboratory or production operations:
● Develop custom test software and sequences
● Integrate product handling systems
● Interface data outputs to your system
● Modify chamber size and specifications
● Build a IP laboratory for you
FAQ
1. What is the standard warranty on the chamber?
36 month long warranty and long life service.
2. What is the typical lead time?
Standard lead time is 2 weeks. Some dust chambers are in ready to ship.
4. Can custom dusts be used?
Yes, the chamber can use customer-provided dust compositions.
5. Does the dust chamber have safety protection??
Yes, has safety protection incuding circuit protection, voltage protection, emergency button.
