Dust Test Equipment
Temperature Range:Ambient ~ +50℃
Humidity Range:< 30% RH
Blowing Time:0 ~ 99H59M
Specimen Power Outlet:Dust-proof socket 16A
Vacuum System:pressure gauge, air filter, pressure regulator, connecting tube
Door Lock:Electromagnetic lock
Dust Test Equipment Manufacturer & Supplier
LIB industry's Dust Test Equipment line provides a complete dust test system to evaluate product durability. Our chambers, dust generators, and accessories work together to simulate real-world environments under controlled laboratory conditions.
With programmable settings for dust concentration, temperature and more, our integrated solutions deliver repeatable, reliable testing to internatinal standards.
As a leading manufacturer, LIB can provide completely customized systems purpose-built for your application. Contact our experts today to discuss your dust testing needs.
Product Parameter
Model | DI-800 | DI-1000 | DI-1500 | DI-2000 |
Internal Dimension (mm) | 800*1000*1000 | 1000*1000*1000 | 1000*1500*1000 | 1000*2000*1000 |
Overall Dimension (mm) | 1040*1450*1960 | 1330*1450*1960 | 1330*1950*1990 | 1330*2450*1990 |
Useful Volume (L) | 800 | 1000 | 1500 | 2000 |
Temperature Range | Ambient ~ +50℃ | |||
Humidity Range | < 30% RH | |||
Normal Wire Diameter | 50um | |||
Nominal Width of a Gap Between wires | 75um | |||
Fight Time | 0 ~ 99H59M | |||
Blowing Time | 0 ~ 99H59M | |||
Specimen Power Outlet | Dust-proof socket 16A | |||
Vacuum System | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube | |||
Controller | Programmable color LCD touch screen controller, Ethernet connection | |||
Door Lock | Electromagnetic lock | |||
Safety Device | Over-temperature Protection; Over-current Protection; Earth Leakage Protection；Phase Sequence Protection | |||
Exterior Material | A3 Steel Plate with protective coating | |||
Interior Material | SUS304 stainless steel | |||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||
Standard Configuration | Sample shelf, dust wiper, talcum powder(5kgs) | |||
Product Details
|
|
|

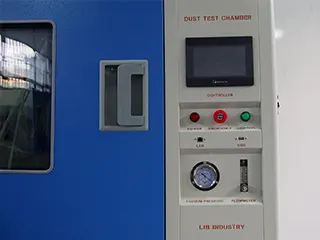

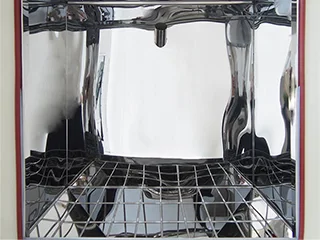

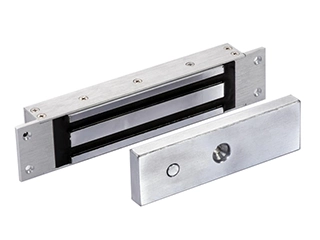

| Electromagnetic Lock Electromagnetic lock to strong lock the door Unlocking is operated on the controller for safety and prevent malfunction | Controller PID programmable color touch screen controller Network connection computer. | Workroom The internal material is 304 stainless steel, mirror surface, rust-proof Standard configuration: sample rack |
|
|
Dust Test Chambers
The centerpiece of our dust test equipment line is the LIB Dust Test Chamber. Available in sizes from 1 cubic meter to 100 cubic meters, each chamber provides:
●Programmable Temperature: to 80°C, accuracy of ±0.5°C
●Real-time Monitoring: HMI touchscreen controller
●Test Space Visibility: Clear observation windows
●Lighting System: Integrated LED lighting with timed on/off
●Built-in power supply to supply power to the test piece
Dust Test Accessories
LIB offers a full range of compatible accessories and consumables:
Standard Test IEC60529, IPX5 X6 IP rate
Programmable Lighting System: With timed on/off
Interior Surveillance Camera: For monitoring samples (option)
Data Logging System: Records temperature, dust readings
Customization
LIB engineering can fully customize dust test equipment for unique applications:
1.Custom chamber dimensions and capacities
2.Integrate your control system
3. Specific test standard compliance
4. Data logging and analysis integration
5. Custom sample holders
6. Alarm outputs and instrumentation
7. Camera systems and lighting
As leading specialists, LIB can build the ideal dust test solution for your technical specifications and requirements.
