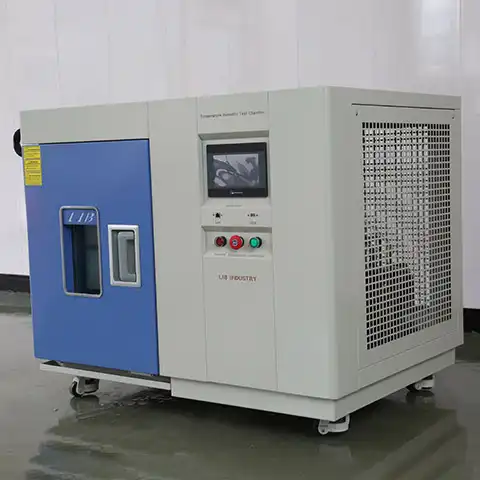

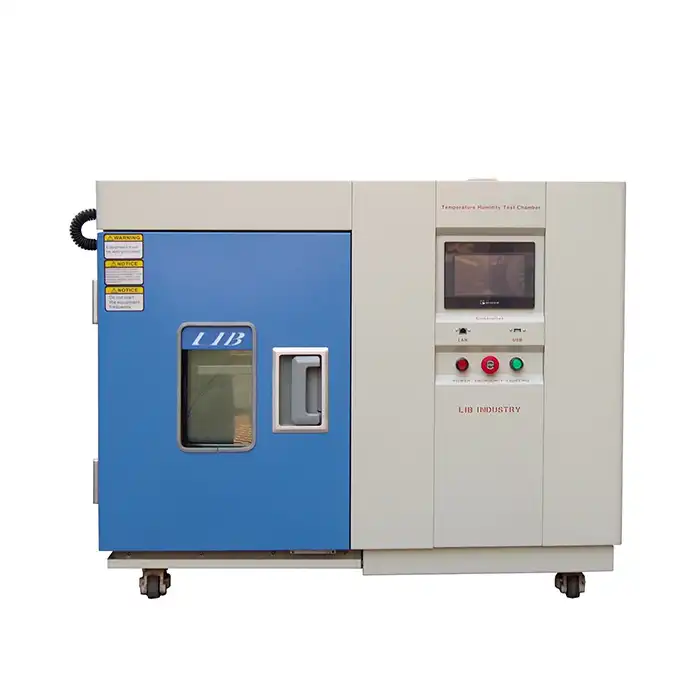

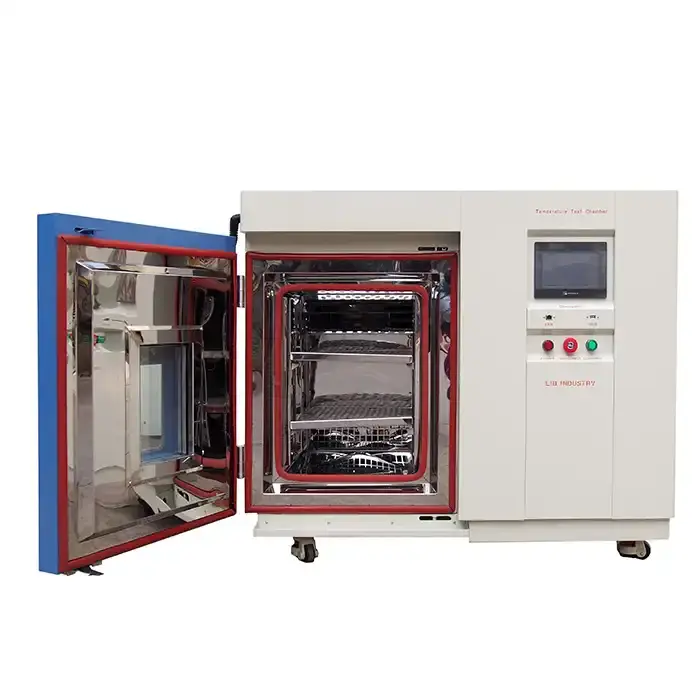

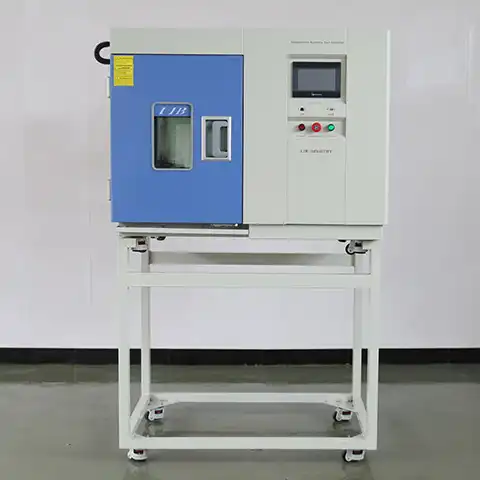

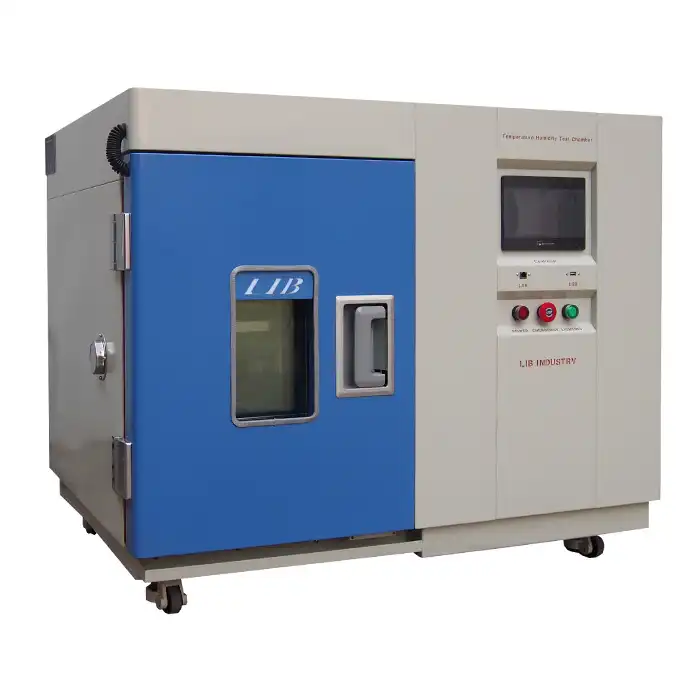

Benchtop Environmental Test Chamber
Lowest Temperature:-20℃/-40℃/-60℃/-120℃;
Temperature Range:-40℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Built-in lighting for observing the test
Water Purification and Recirculation System
Access port to power the sample
The LIB's benchtop environmental test chamber provides precise control of temperature and humidity in a compact desktop design. With a small footprint of just 50L, it delivers exceptional thermal and humidity performance for a wide range of testing applications.
The system with integrated refrigeration, humidification, dehumidification, control and heating systems maintains setpoint conditions.USB and Ethernet allow data logging, monitoring, and networking capabilities. With precision construction and control, the benchtop environmental test chamber delivers reliable, repeatable test results.
Technical Specifications:
Model | TH-50 | TH-80 |
Internal Dimension (mm) | 320*350*450 | 400*400*500 |
Overall Dimension (mm) | 820*1160*950 | 900*1210*1000 |
Interior Volume | 50L | 80L |
Heat load | 1000W | |
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | |
Temperature Fluctuation | ± 0.5 ℃ | |
Temperature Deviation | ± 2.0 ℃ | |
Humidity Range | 20% ~ 98% RH | |
Humidity Deviation | ± 2.5% RH | |
Cooling Rate | 1 ℃ / min | |
Heating Rate | 3 ℃ / min | |
Cooling system | Mechanical compression refrigeration system | |
Controller | Programmable color LCD touch screen controller Ethernet connection | |
Safety Device | Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Thermal Insulation | Polyurethane foam and insulation cotton | |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | |
Product Details:
|
|
|

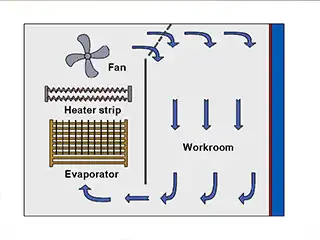

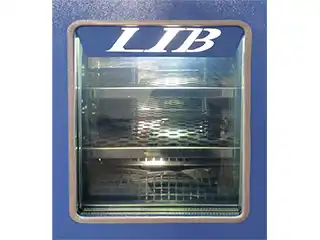

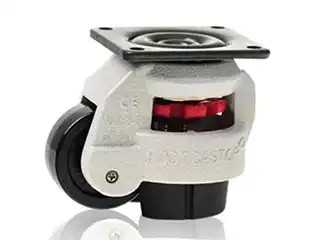

| Air circulation The air is uniformly distributed through the air outlet Air circulates evenly throughout the workroom | Viewing Window Double layer insulating glass 8cm thick Built-in LED light for the work room lighting Can clearly observe samples in testing | Castors Install 4 castors for ease moving, and with brakes function. Caster height adjustable. |
|
|
Product Advantages:
Compact desktop footprint
Simultaneous control of temperature and humidity
Excellent stability and uniformity
Wide operating range from -20°C to +150°C
Humidity range from 10% RH to 98% RH
Automated and programmable control
Touchscreen interface and graphing
Connectivity for monitoring and data logging.
Applications:
In addition to product testing, mini environmental test chamber is ideal for:
Stability and shelf life testing
Package testing
Corrosion testing
Solar cell research
Microbiology research
Pharmaceutical studies
Electronics testing
Chemicals testing
Metal parts
Telecommunications
Electronic products
Cosmetic testing
FAQ:
Q: What temperature and humidity ranges can the chamber achieve?
A: -40°C to +150°C temperature range and 20% to 98% RH humidity range.
Q: What accessories or options are available?
A: Shelving kits, chart recorders, additional probes, ports, and other accessories can be supplied.
Q: What industries use your environmental test chambers?
A: Food, pharmaceuticals, medical, electronics, automotive, aerospace, coatings/adhesives, packaging, and other fields.
