Small Environmental Chamber
Model:TH-80
Lowest Temperature:-20℃/-40℃/-60℃/-86℃;
Temperature Range:-86℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Small and Affordable
Cooling Type:Air cooled

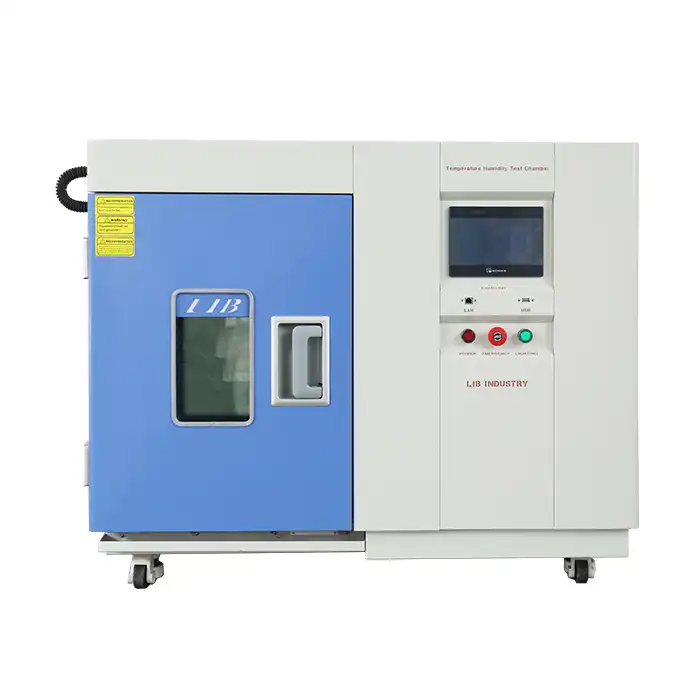

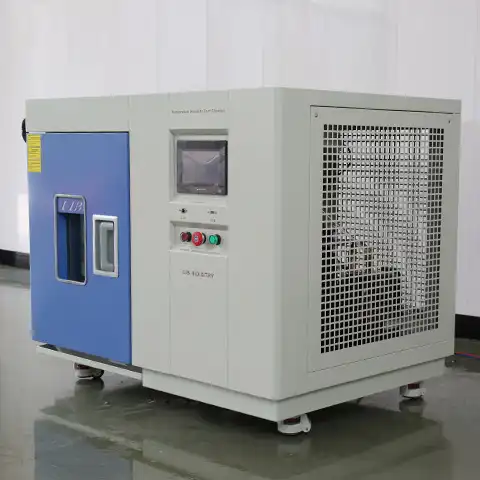

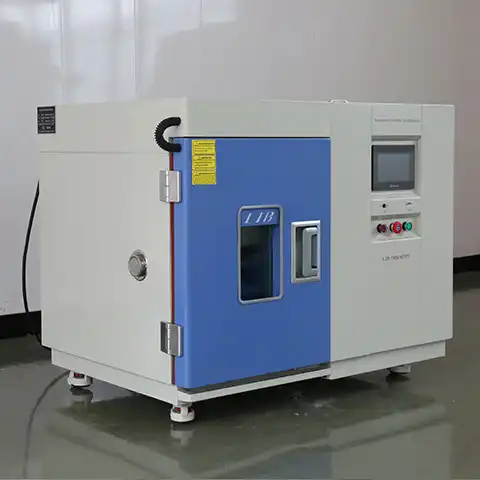

LIB'S Small Environmental Chamber
The LIB industry's small environmental chamber is an innovative testing instrument designed to simulate a wide range of environmental conditions for research, quality control, and production applications. With a chamber volume of 50L, it provides a compact footprint while maintaining excellent thermal performance and uniformity.
The portable environmental chamber can simulate almost any climate for safe product testing. The refrigeration system can produce temperature ranges from -40°C to +180°C, with humidity control from 10% to 98% RH.
Technical Specifications
Model | TH-50 | TH-80 |
Internal Dimension (mm) | 320*350*450 | 400*400*500 |
Overall Dimension (mm) | 820*1160*950 | 900*1210*1000 |
Interior Volume | 50L | 80L |
Heat load | 1000W | |
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | |
Temperature Fluctuation | ± 0.5 ℃ | |
Temperature Deviation | ± 2.0 ℃ | |
Humidity Range | 20% ~ 98% RH | |
Humidity Deviation | ± 2.5% RH | |
Cooling Rate | 1 ℃ / min | |
Heating Rate | 3 ℃ / min | |
Cooling system | Mechanical compression refrigeration system | |
Controller | Programmable color LCD touch screen controller Ethernet connection | |
Safety Device | Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Thermal Insulation | Polyurethane foam and insulation cotton | |

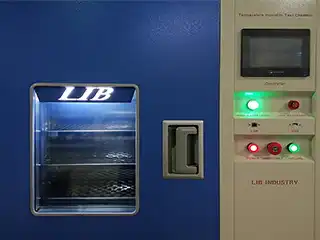

Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | |
Product Details
|
|
|

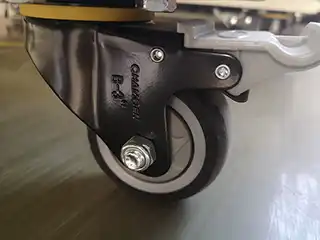

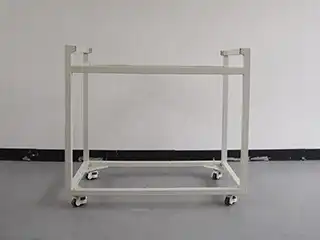

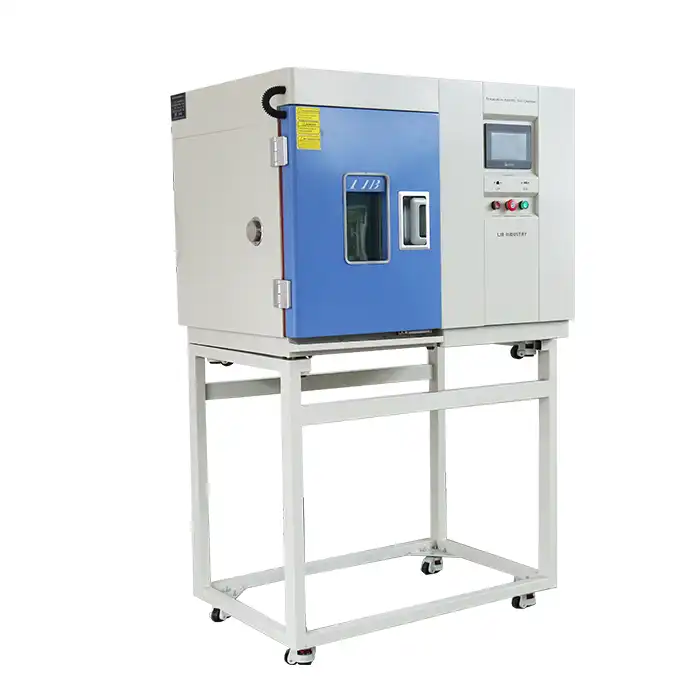

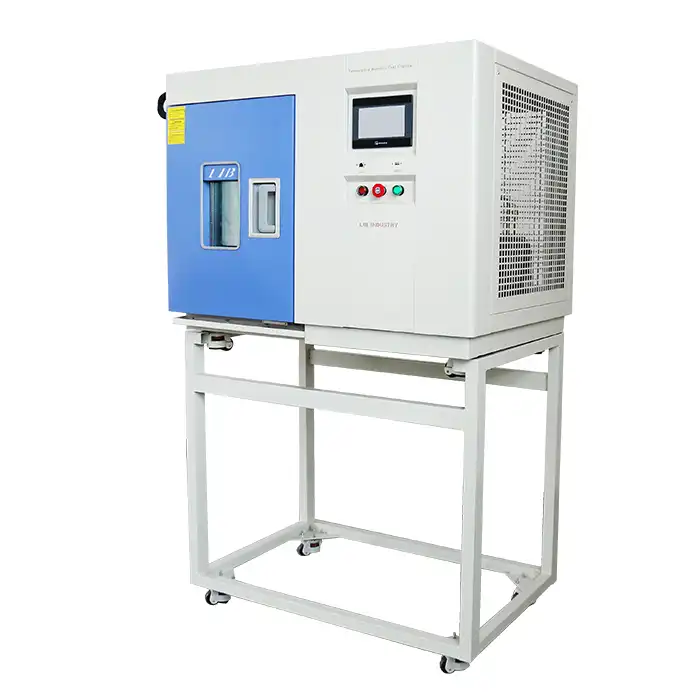

Stand A stand for benchtop chamber Sturdy and removable, very practical Stands can be stacked to save space | Controller PID programmable color touch screen controller network connection computer. Can create120 programs 100 segment. | Castors Install 4 castors for ease moving, and with brakes function. Caster height adjustable. |
|
|
The Benefits of Small Environmental Chambers
● Wide temperature and humidity range
● Excellent stability and uniformity
● Compact footprint saves lab space
● Programmable control allows automated testing
● Remote monitoring and data logging
● Dense insulation provides temperature stability
● The anti-fog viewing window allows easy obversing samples
Small Environmental Chamber Applications
In addition to testing products and materials, the LIB Small Environmental Chamber can be used for:
Stability testing of pharmaceuticals, chemicals, and food products
Shelf life studies
Microbial growth studies
Preconditioning of test samples
Force thermal testing of electronics and devices
Optical testing under controlled conditions
Simulating transportation and storage environments
Quality control of manufactured components
The Importance of Small Environmental Chambers
Small Environmental Chamber is used for testing the performance and durability of various products and materials. They can simulate extreme temperature and humidity conditions to assess the impact on electronic devices, automotive components, or building materials. This helps ensure product quality and reliability before they are introduced to the market.
