Temperature Environmental Chamber
Lowest Temperature: -20℃/-40℃/-60℃/-70℃;
Temperature Range:-70℃~+150 ℃;
Humidity Range:10% ~ 98% RH;
Safety options for testing lithium-ion batteries
Built-in lighting for observing the test
Water purification and recirculation system
LIB Chamber - Temperature Environmental Chamber Manufacturer Supplier

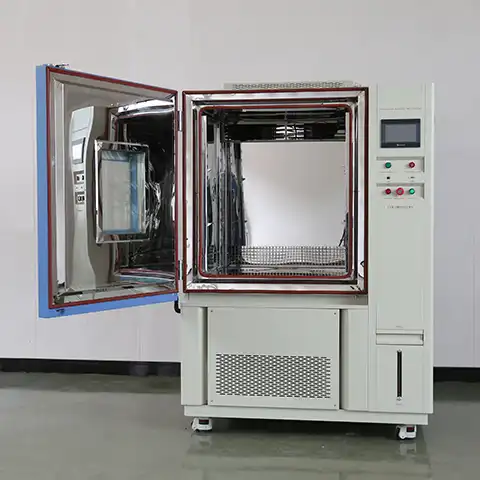

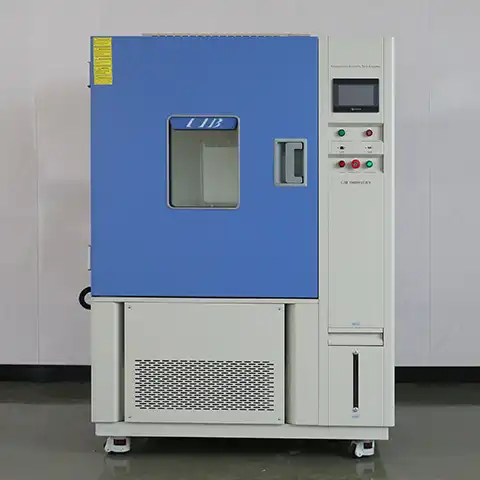

The temperature environmental chamber is a test system designed to simulate a wide range of temperature conditions for evaluating product reliability and performance. It consists of an insulated chamber, refrigeration system, heating system, humidity control, airflow circulation, and program controller.
Technical Specifications
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ~ +150 ℃ B : -40℃ ~ +150 ℃ C: -70℃ ~ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves |
Product Details

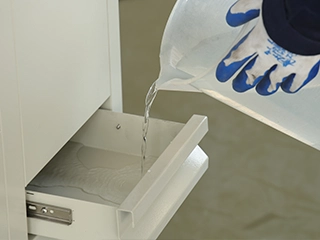

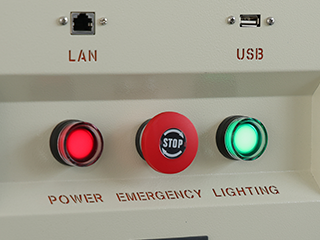

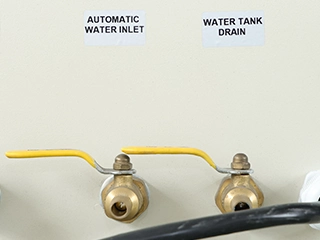

Automatic water inlet Automatic control of the water intake of equipment Achieve automated testing | Add water Fill water manually through the tank Access automatic water intake Water shortage alarm | Security Settings Emergency stop button Earth leakage protection, phase sequence protection and multiple security protection |
Key Features
●Temperature range from -70°C to +180°C
●Excellent temperature stability and uniformity
●Programmable temperature ramp rates and dwell times
●Humidification and dehumidification system
●Adjustable shelves, viewing window and lighting
●Touchscreen controller for setup and monitoring
●Data acquisition interfaces for recording test data
●Compact footprint suitable for small spaces
Applications
Temperature environmental test chambers are used across industries for testing:
Aerospace: The chambers are used to test aircraft electronics and components for their performance and reliability under extreme temperature conditions.
Automotive: These chambers play a crucial role in testing mechanical and electrical auto parts for their response and functionality under different temperature scenarios.
Pharmaceuticals: Temperature environmental chambers are utilized in the pharmaceutical industry to assess the stability of drugs as per guidelines set by the International Council for Harmonisation of Technical Requirements for Pharmaceuticals for Human Use (ICH).
Electronics: These chambers are employed to evaluate the thermal endurance and thermal shock resistance of printed circuit boards (PCBs) and electronic components. By subjecting PCBs to varying temperatures.
Food: These chambers enable food manufacturers to simulate and evaluate the effects of temperature on product quality, shelf life, and safety.
Packaging: High and low-temperature testing is essential for assessing the performance and integrity of packaging materials and containers. Temperature environmental test chambers allow manufacturers to subject packaging solutions to extreme temperatures, replicating real-world conditions such as transportation and storage.
Quality and Safety
Our manufacturing facility is ISO 9001 certified for quality and environmental management. The chambers comply with international safety standards such as CE, RoHs. Third party such as TUV, ISO17025, CSA are invited to inspect our test chambers.
