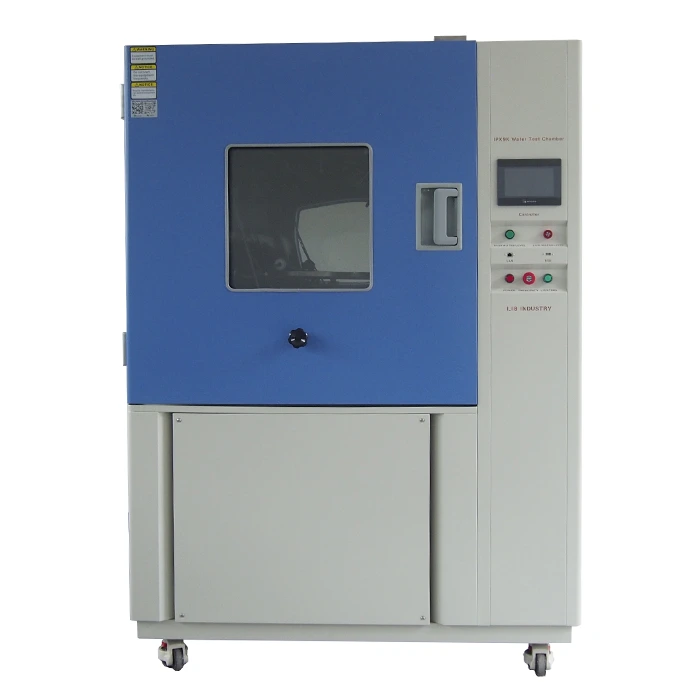

IPX9K Test Equipment
Model: IPx9k test equipment R9K-1200
Interior Volume (L): 1200
Water Spray Angle:0°, 30°, 60°, 90°
Water Spray Temperature: Ambient ~ +88℃ (Adjustable)
Spray Nozzle: Four, 30 Seconds each position""
Distance from Water Spraying to Specimens: 10~15cm
Water Pressure: 8000-10000 Kpa (Adjustable)
Water Flow Rate: 14L-16L/min
Testing Platform Speed: 5±1 r.p.m
Testing Platform Height: 200-400 nm (Adjustable)
Testing Platform Diameters: 600mm
IPX9K Test Equipment Manufacturer & Supplier
The IPX9K test equipment is designed to assess the protection of enclosures against high-pressure and high-temperature water jets. This type of testing is particularly relevant for products that are exposed to harsh environmental conditions, such as automotive components, outdoor electrical enclosures, and industrial equipment.
LIB industry is a professional manufacturer and supplier of IP rating testing machines, offering a wide range of standard and customized laboratory certification and testing reports. Our ipx9k test machine is designed to assess the degree of protection provided by enclosures against high-pressure and high-temperature water ingress, in accordance with international standards such as IEC 60529 (IP code)
Technical Specifications
Model | R9K-1200 |
Internal Dimensions (mm) | 1000*1000*1000 |
Overall Dimensions (mm) | 1300*1500*2030 |
Interior Volume (L) | 1000 |
Water Spray Angle | 0°, 30°, 60°, 90° |
Water Spray Temperature | Ambient ~ +88℃ (Adjustable) |
Spray Nozzle | Four, 30 Seconds each position |
Distance from Water Spraying to Specimens | 10~15cm |
Water Pressure | 8000-10000 Kpa (Adjustable) |
Water Flow Rate | 14L-16L/min |
Testing Platform Speed | 5±1 r.p.m |
Testing Platform Height | 200-400 nm (Adjustable) |
Testing Platform Diameters | 600mm |
Heater Elements | Nichrome heater |
Controller | Programmable color LCD touch screen controller, Ethernet connection |
Door Lock | Electromagnetic lock |
Water supply system | Storage water tank; Booster pump; Automatic water supply; Water purification system; |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Observation Window | Double layer insulating glass with wiper |
Product Details
|
|
|
| Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion; | Automatic water inlet Automatic control of the water intake of equipment Achieve automated testing | Electromagnetic Lock Electromagnetic lock to strong lock the door Unlocking is operated on the controller for safety and prevent malfunction |
|
|
Key Features
Precise and reliable testing results
Flexible and customizable testing options
Friendly user interface for easy operation
Robust construction for long-term durability
Water re-cycle system, save water
Application
Our IPX9K test equipment finds applications in various industries, including automotive, aerospace, marine, and outdoor equipment manufacturing. It is essential for assessing the suitability of products for use in harsh environments where high-pressure water jets are encountered.
FAQ
Q: Can it be customized for different IPX9K Test Equipment capacities?
A: Yes, we offer customization options to accommodate different chamber capacities based on our clients' specific requirements.
Q: What is the lead time for ordering an test equipment?
A: 2 weeks, we provide door to door service.
