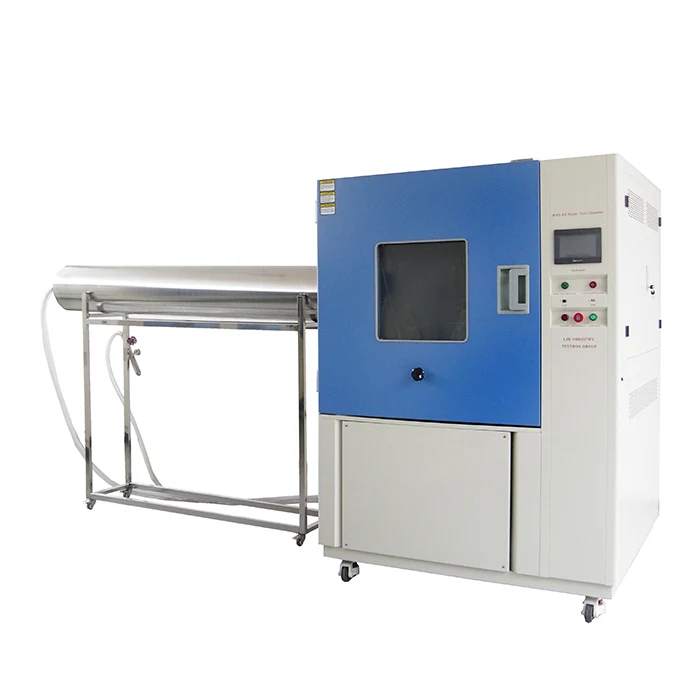

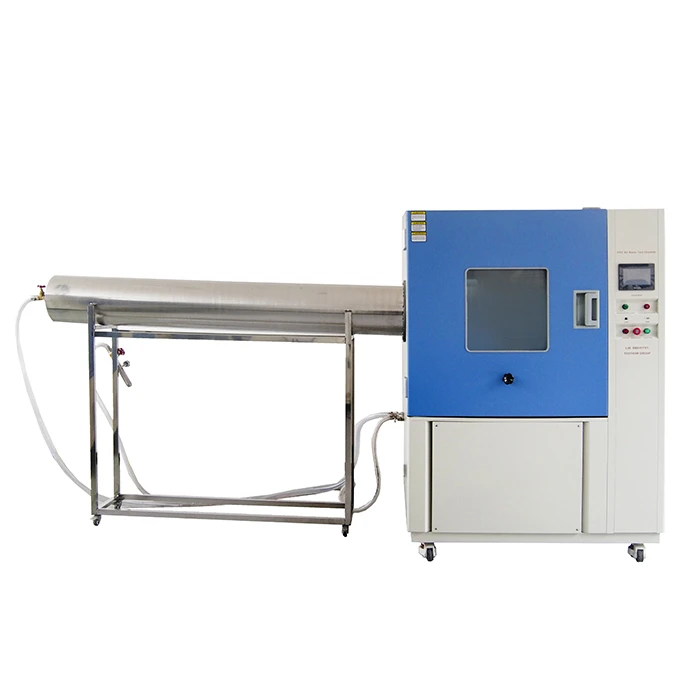

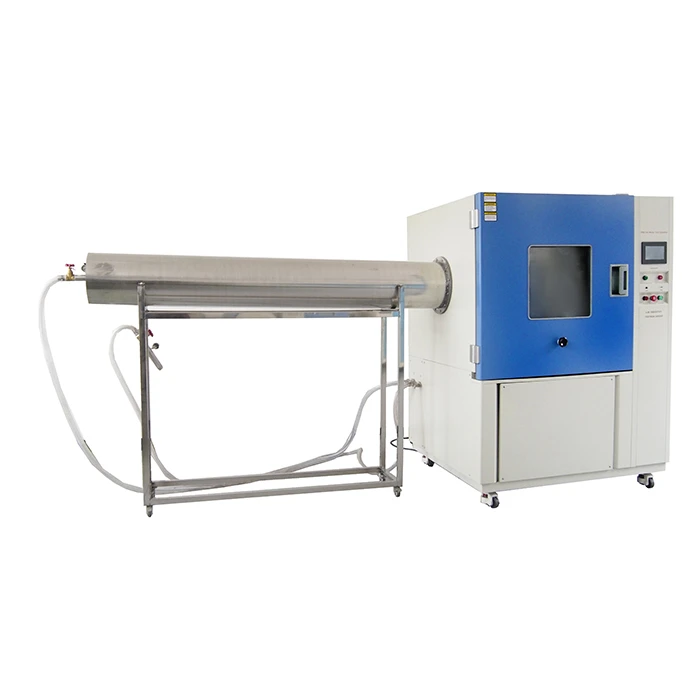

Water Spray Jetting Chamber
Model: RD-1200C
Capacity: 800L/1000L/1500L/2000L and more
Jet nozzles: IPX5: Dia6.3mm, IPX6: Dia12.5mm
Jet distance: 2.5~3meter
Door Lock: Electromagnetic lock;
Application: Lamps, Electric cabinets;
Standard: IEC 60529, ISO20653;
Water Spray Jetting Chamber Manufacturer & Supplier
At LIB, we specialize in the manufacturing and supply water spray jetting chamber that are essential for evaluating the ingress protection of enclosures against water. Our extensive range of standard and customized chambers is designed to meet the diverse needs of laboratories and industrial applications.
It complies with international standards such as IEC 60529 (IP code), ISO 20653, and MIL-STD-810. These standards define the requirements for testing the degree of protection against water ingress for various electrical and mechanical enclosures, ensuring that our chambers meet the water ingerss protection test.
Technical Specifications
Model | R56-800 |
| workroom dimension (mm) | 800*800*800 |
External dimension (mm) | 950*3150*1800 |
Interior Volume (L) | 510 |
Diameter of Turntable (mm) | 600 |
Turntable loads | 20kgs Max |
Turntable Rotation Speed | 0~7r/min (Adjustable) |
Internal Diameter of IPX5 Nozzle | 6.3mm |
Internal Diameter of IPX6 Nozzle | 12.5mm |
Water Flow Rate IPX5/ IPX6 | 12.5L/min ±5% / 100L/min ±5% |
Controller | Programmable color LCD touch screen controller |
Ethernet connection, PC Link, USB | |
Build-in Water Tank(mm) | 370*375*950 |
View Window Size(mm) | 475*475 |
Water Supply System | Water tank, booster pump, Automatic water supply, Water purification system |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Observation Window | Double layer insulating glass with wiper |
Product Details
 |  |  |
Spray Nozzle The test device consists of pressurized water pump, flow meter, water pipe, shunt device, spray bracket and spray nozzles. | Turntable The turntable is made of 304 stainless steel Speed and angle can be adjusted Sample should be firmly fixed. | PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data |
|  |
Key Features
●Our chambers offer precise control of water pressure and temperature for accurate testing, an adjustable spray angle to simulate different water spray conditions.
●Customizable test parameters to meet specific testing requirements.
●a user-friendly interface for easy operation and monitoring, and compliance with international standards for reliable testing.
APPLICATION
The water jetting test chamber finds applications in industries such as electronics, lighting, and automotive, ensuring products meet specific IP rating standards for water ingress protection.
FAQ
Q: Can the rain spray jetting chamber accommodate specific water spray simulation requirements?
A: Yes, our chambers can be customized to simulate specific water spray conditions, including intensity, angle, and duration, to meet specific testing standards.
Q: What is the lead time for ordering chambers?
A: Standard delivery time is 2 weeks, and some models are in ready to ship.
