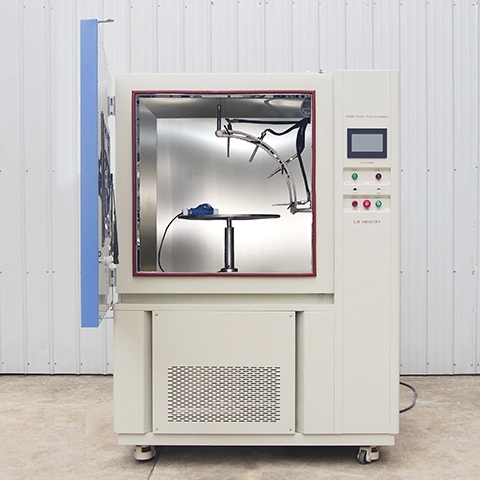

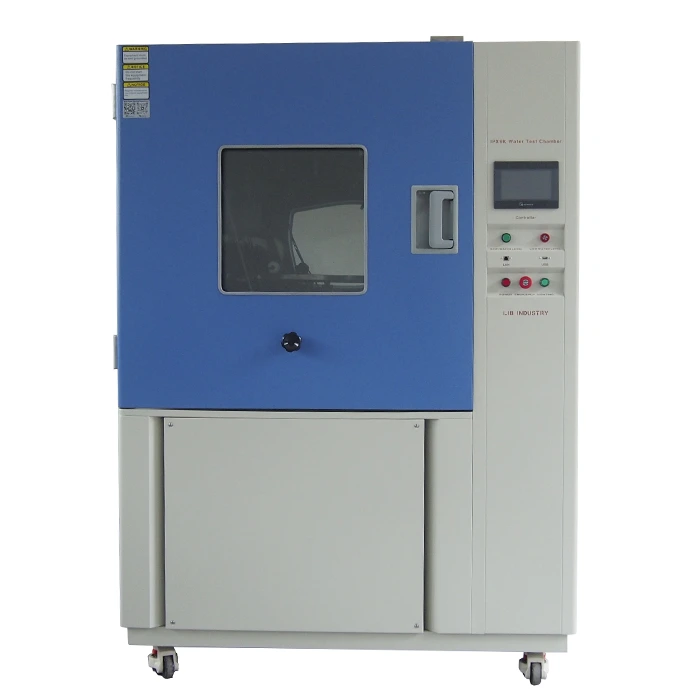

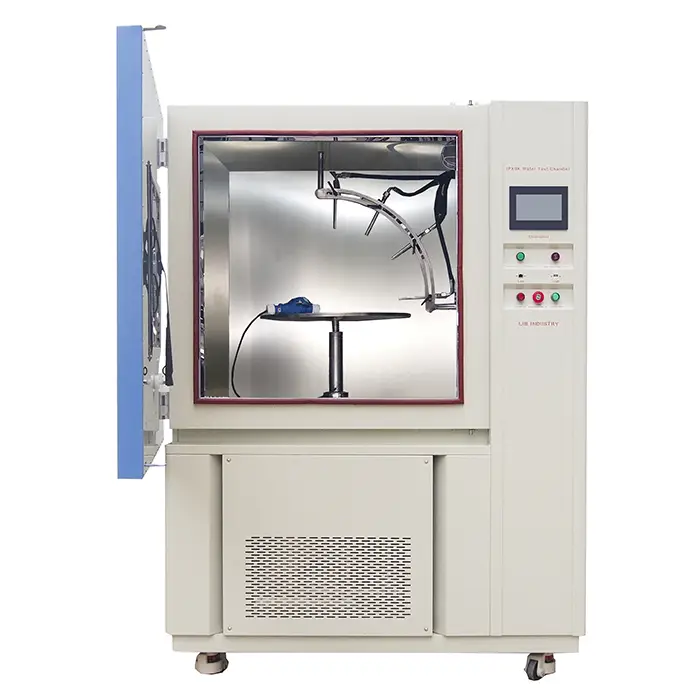

IPX9K Test Chamber
Model: IPx9k test chamber R9K-1000
Interior Volume (L): 1000
Water Spray Angle:0°, 30°, 60°, 90°
Water Spray Temperature: Ambient ~ +88℃ (Adjustable)
Spray Nozzle: Four, 30 Seconds each position
Distance from Water Spraying to Specimens: 10~15cm
Water Pressure: 8000-10000 Kpa (Adjustable)
Water Flow Rate: 14L-16L/min
Testing Platform Speed: 5±1 r.p.m
Testing Platform Height: 200-400 nm (Adjustable)
Testing Platform Diameters: 600mm
Door Lock: Electromagnetic lock
IPX9K Test Chamber Manufacturer & Supplier
The IPX9K test chamber is a specialized testing apparatus designed to simulate high-pressure and high-temperature water ingress conditions as specified by the IPX9K standard. This standard is commonly used in the automotive industry to evaluate the water resistance and durability of vehicle components or systems subjected to harsh cleaning processes and extreme environmental conditions.
Our ipx9k tester comply with international standards, including IEC 60529 and DIN 40050-9. These standards define the requirements for testing the resistance of enclosures to high-pressure and high-temperature water jets.
Technical Specifications
Model | R9K-1200 |
Internal Dimensions (mm) | 1000*1000*1000 |
Overall Dimensions (mm) | 1300*1500*2030 |
Interior Volume (L) | 1000 |
Water Spray Angle | 0°, 30°, 60°, 90° |
Water Spray Temperature | Ambient ~ +88℃ (Adjustable) |
Spray Nozzle | Four, 30 Seconds each position |
Distance from Water Spraying to Specimens | 10~15cm |
Water Pressure | 8000-10000 Kpa (Adjustable) |
Water Flow Rate | 14L-16L/min |
Testing Platform Speed | 5±1 r.p.m |
Testing Platform Height | 200-400 nm (Adjustable) |
Testing Platform Diameters | 600mm |
Heater Elements | Nichrome heater |
Controller | Programmable color LCD touch screen controller, Ethernet connection |
Door Lock | Electromagnetic lock |
Water supply system | Storage water tank; Booster pump; Automatic water supply; Water purification system; |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Observation Window | Double layer insulating glass with wiper |
Product Details：
|
|
|

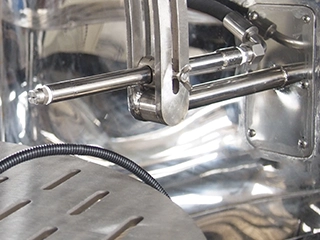

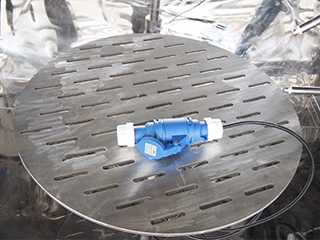

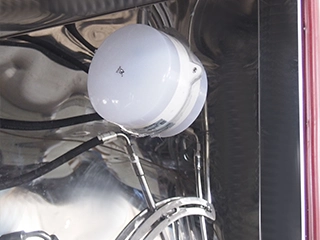

| Turntable The turntable is made of 304 stainless steel Sample should be firmly fixed on the turntable. | Spray Nozzles There are four nozzles with four angles (0 °, 30 °, 60 °, 90 °) for high temperature and high pressure water jetting test. | Build-in lighting The built-in dustproof LED lighting inside the workroom Makes it clear to observe the test specimen. |
|
|
IPX9K Test Chamber Key Features :
●Precise and reliable testing
●Flexible and customizable testing options
●Friendly user interface for easy operation
●Robust construction for long-term durability
●Water re-cycle system
●Automatic water inlet system
Application:
LIB industry's IPX9K Test Chamber find applications in various industries, including automotive, aerospace, marine, and outdoor equipment manufacturing. They are essential for assessing the suitability of products for use in harsh environments where high-pressure water jets are encountered.
FAQ:
Q: Can it be customized for different IPX9K Test Chamber capacities?
A: Yes, we offer customization options to accommodate different chamber capacities based on customers' specific requirements.
Q: What is the lead time for ordering an test chamber?
A: 2 weeks, and provide door to door service. Contact us to get details.
