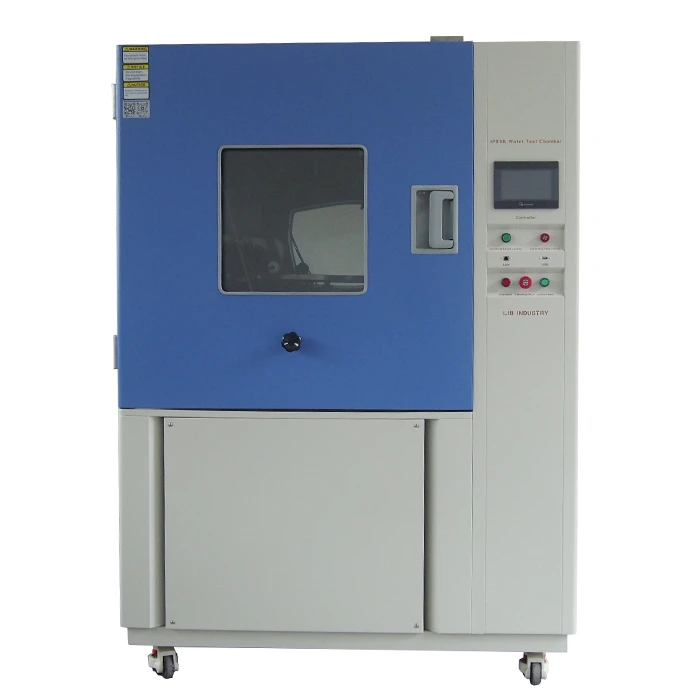

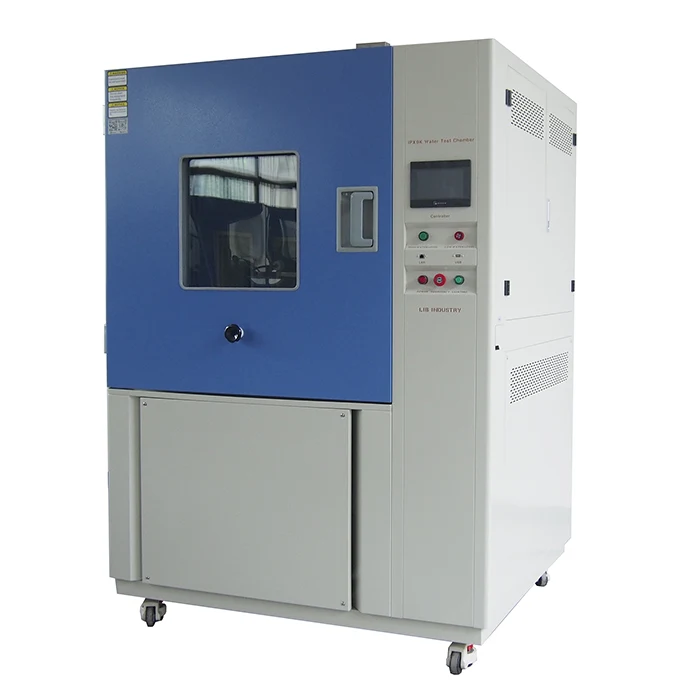

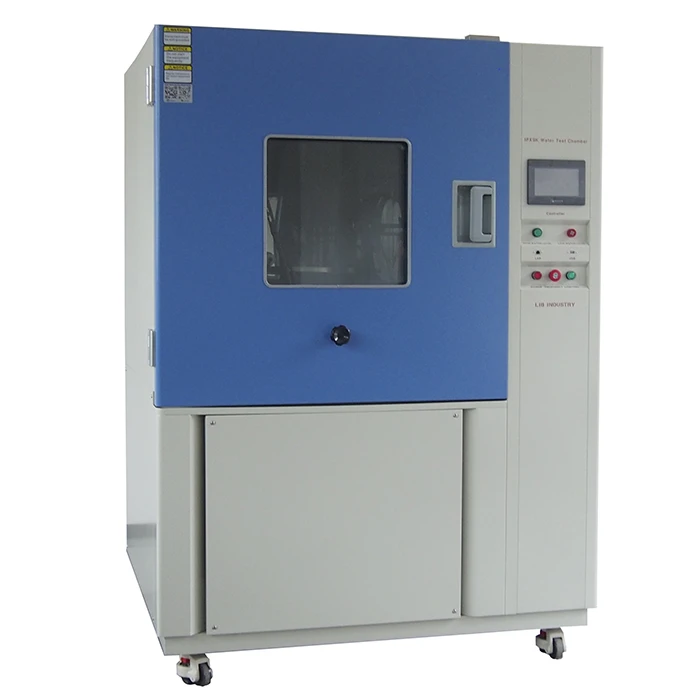

Rain Test Chamber
Name: rain test chamber
Model: RD-1200C
Capacity: 800L/1000L/1500L/2000L and more
Standard: IEC 60529, ISO20653
Drip Tray Size: 800*800
Water System: Water Circulation System;
Rain Test Chamber Manufacturer & Supplier
LIB industry is professional rain test chamber manufacturers and suppliers in China, to buy or wholesale from our factory. For quotation, contact us now.
The LIB Rain Test Chamber delivers realistic rain simulation testing to evaluate enclosure protection and component reliability. Customizable rain profiles combined with automated operation ensure efficient testing to major industry standards.
The LIB Rain Chamber provides a 1 cubic meter stainless steel enclosure resistant to corrosion from continuous water exposure. Large access doors allow convenient loading and unloading of test items.
Product Parameter
Model | R-800C | R-1200C |
Internal Dimensions (mm) | 900*950*950 | 1300*1350*1370 |
Overall Dimensions (mm) | 1180*1420*1920 | 1540*1820*2200 |
Useful Volume (L) | 810 | 2400 |
Oscillating Tube Radius | 400mm | 600mm |
Drip Tray Size | 600*600 | 1000*1000 |
Spraying Hole Diameter | φ0.4mm | |
Hole Spacing | 50 mm | |
Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable） | |
Turntable Rotation Speed | 1r/min (Adjustable speed) | |
Water Pressure Control | Flow meter | |
Controller | Programmable color LCD touch screen controller, Ethernet connection | |
Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Observation Window | Double layer insulating glass with wiper | |
Product Details
|
|
|
Drip Tray The drip tray is made of stainless steel Drip holes are evenly distributed | PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data | Oscillating Tube Oscillating tube is made of stainless steel. Oscillating tube range can be reached to ±45°, ±60°, ±90°, ±180° |
|
|
Key Features
1. Realistic Rain Simulation: Precision water streams
2. Powerful Water Jets: water Pressures
3. Articulating Nozzles: Vary rain angles 0 to 1800°
4. Heated Water: Temperature cycling up to 90°C
5. Fully Automated: Programmable spray profiles and logging
6. Rugged Construction: Durable stainless steel
7. Enclosure Protection Testing: Verifies resistance to rain ingress
Applications
◇The LIB Rain Test Chamber is ideal for testing products including:
◇Consumer electronics: Smartphones, tablets, wearables, appliances
◇Power and hand tools: Drills, saws, yard equipment
◇Industrial equipment: HMIs, PLCs, drives, power supplies
◇Outdoor kiosks and enclosures
◇Automotive parts: Lighting, cameras, antennae
◇Aerospace and avionics components
◇Telecom/Datacom: Routers, switches, servers
FAQ
1. What is the standard chamber size?
The standard chamber provides a 1 cubic meter test volume. Larger sizes are available.
2. What spray nozzles are used?
Standard nozzles are high-flow designs.
3. What after-sales services are offered?
36-moths long warranty, and long life service.
4. Is it water-recycled?
Yes, the automatic water inlet system realizes automatic water inlet into the equipment water tank. The water circulation system realizes water recycling, which saves water resources and facilitates testing.
