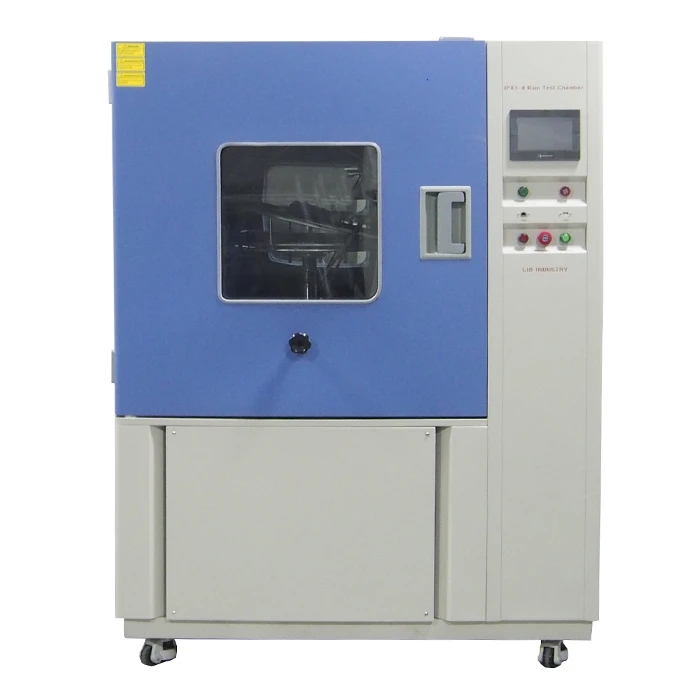

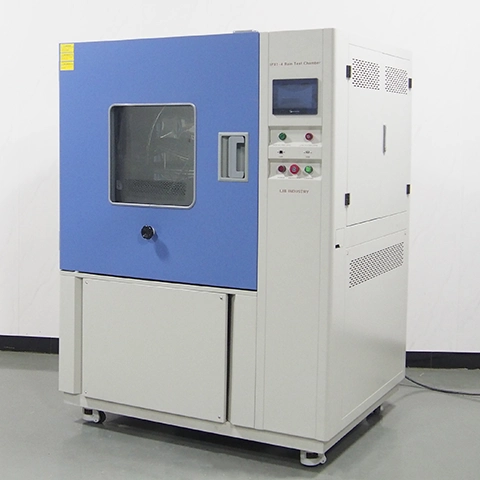

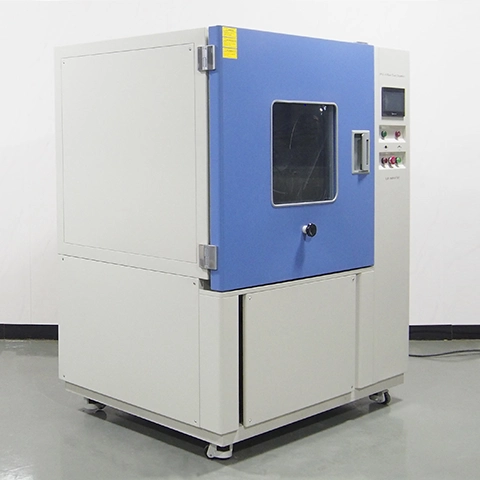

rain chamber
Name: rain test equipment
Model: RD-1200C
Swing Angle of Oscillating Tube: 0 ~ ±180°
Standard: IEC 60529, ISO20653
Drip Tray Size: 800*800
Oscillating Tube Radius 800mm
Rain chamber Manufacturer & Supplier
LIB industry is a leading manufacturer and supplier of rain chamber, offering a diverse range of standard and customized solutions with comprehensive certification and testing reports for laboratory and industrial applications. Our product is designed to simulate various rain conditions and assess the degree of protection provided by enclosures against water ingress, ensuring the reliability and durability of products in outdoor environments.
Our rain test equipment complies with international standards such as IEC 60529 (IP code), ISO 20653, and MIL-STD-810. These standards define the requirements for testing the degree of protection against water ingress for various electrical and mechanical enclosures, including vehicles and outdoor equipment.
Technical Specifications
Model | R-800C | R-1200C |
Internal Dimensions (mm) | 900*950*950 | 1300*1350*1370 |
Overall Dimensions (mm) | 1180*1420*1920 | 1540*1820*2200 |
Useful Volume (L) | 810 | 2400 |
Oscillating Tube Radius | 400mm | 600mm |
Drip Tray Size | 600*600 | 1000*1000 |
Spraying Hole Diameter | φ0.4mm | |
Hole Spacing | 50 mm | |
Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable） | |
Turntable Rotation Speed | 1r/min (Adjustable speed) | |
Water Pressure Control | Flow meter | |
Controller | Programmable color LCD touch screen controller, Ethernet connection | |
Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Observation Window | Double layer insulating glass with wiper | |
Product Details
|
|
|

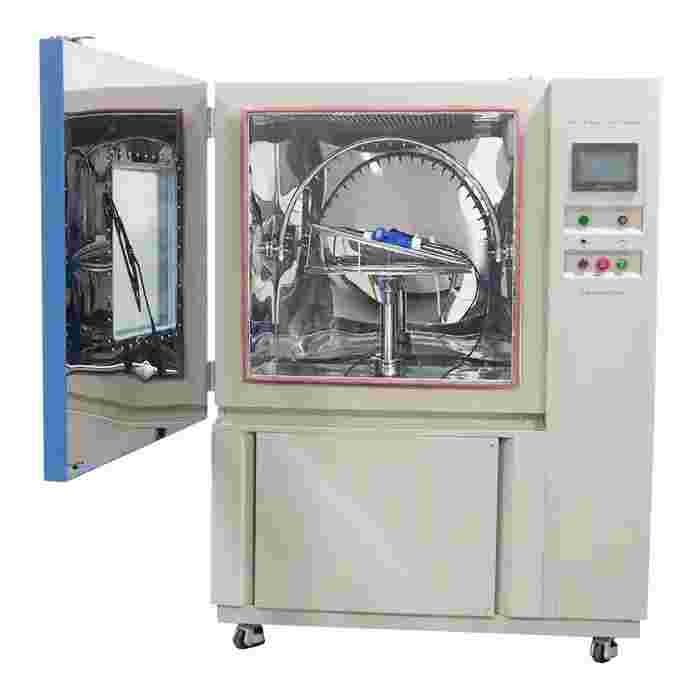

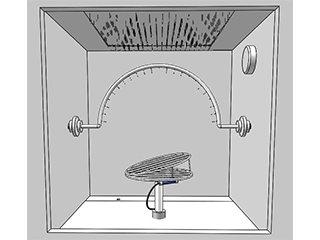

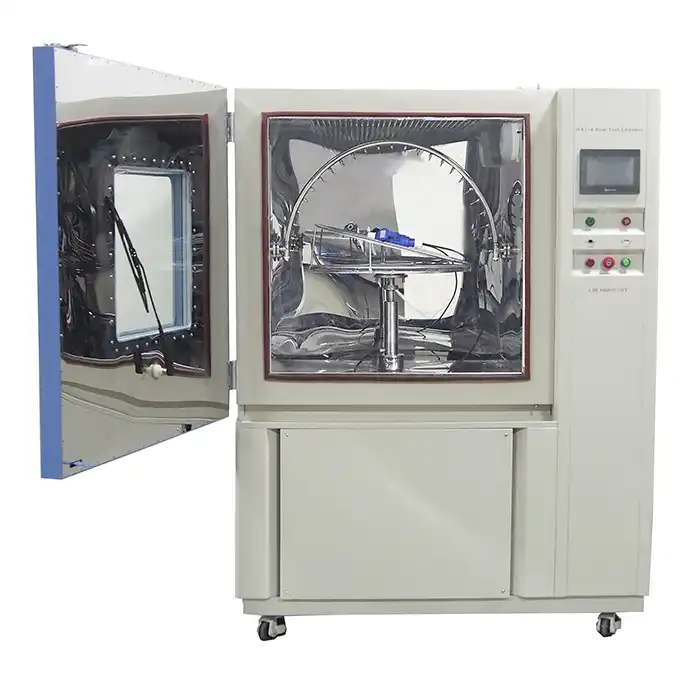

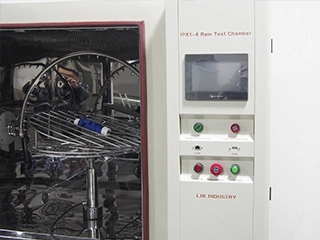

Controller PID programmable color touch screen controller Can create120 programs 100 segment. | Build-in lighting The built-in dustproof LED lighting inside the workroom Waterproof, dustproof. | Oscillating Tube Oscillating tube is made of stainless steel. Oscillating tube range can be reached to ±45°, ±60°, ±90°, ±180° |
|
|
Rain Chamber Key Features
Precise control of water pressure for accurate testing
Adjustable swing pipe angle to simulate different rain angles
Customizable test parameters to meet specific testing requirements
User-friendly interface for easy operation and monitoring
Compliance with international standards for reliable testing
Application Areas
Our rain chamber finds applications across industries such as automotive, aerospace, outdoor electronics, and lighting. It is used to test a wide range of products, including vehicle components, outdoor electronic devices, LED fixtures, and outdoor enclosures.
FAQ
Q: Can they accommodate specific rain simulation requirements?
A: Yes, rain chamber can be customized to simulate specific rain conditions, including intensity, angle, and duration, to meet specific testing standards.
Q: Does it have Water re-cycle system?
A: Yes, The automatic water inlet system realizes automatic water inlet into the equipment water tank. The water circulation system realizes water recycling, which saves water resources and facilitates testing.
