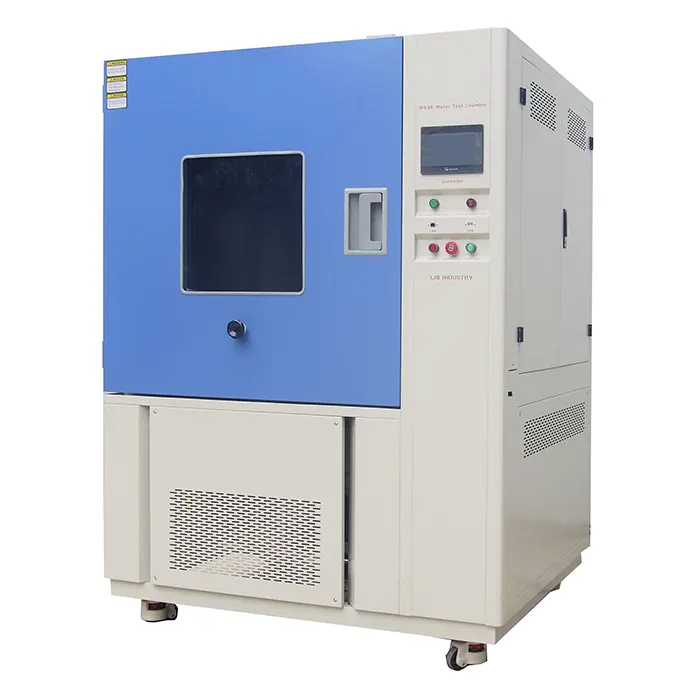

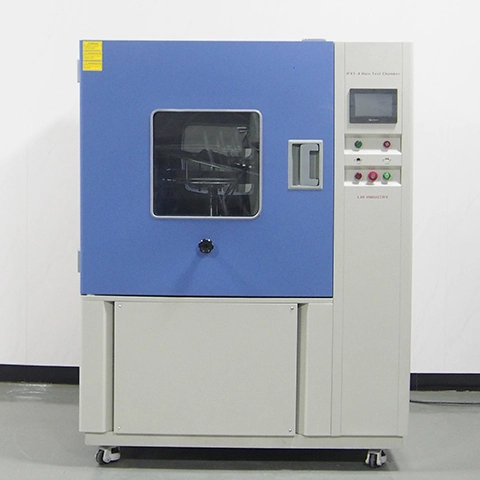

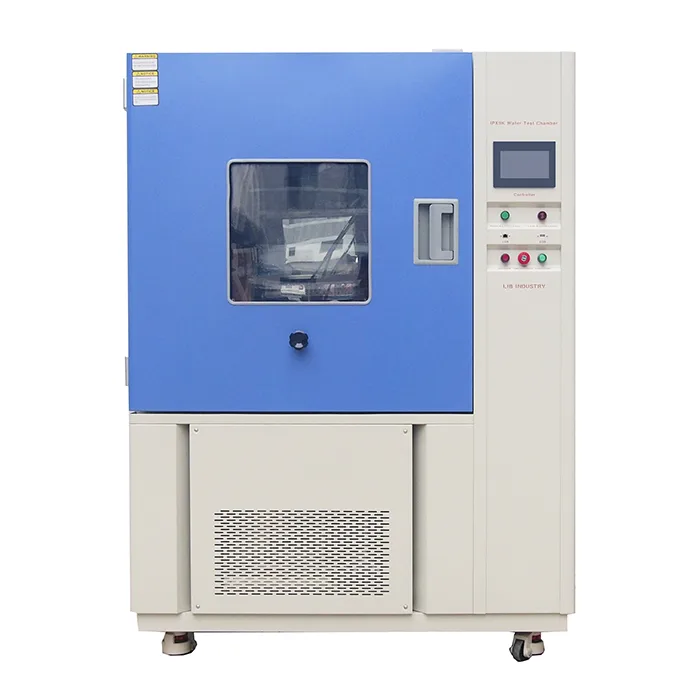

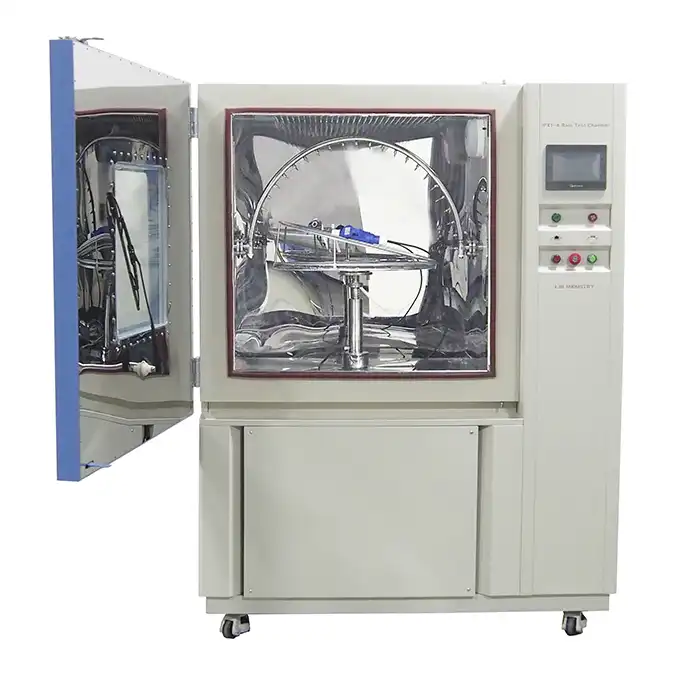

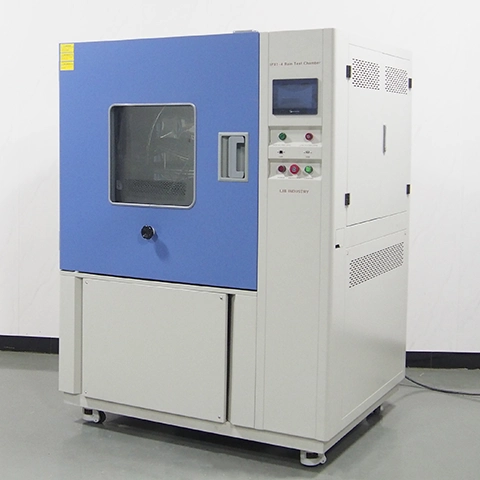

IP Rating Testing Machine
Name: IP rating testing machine
Model: R-800C
Capacity: 800L/1000L/1500L/2000L and more
Standard: IEC 60529, ISO20653
Drip Tray Size: 800*800
Oscillating Tube Radius： 600mm
IP Rating Testing Machine Manufacturer & Supplier
An IP rating testing machine is specifically designed to assess the degree of protection provided by an enclosure or product against the intrusion of solids and liquids. The IP rating is an internationally recognized standard (defined by the IEC 60529 standard) that classifies and rates the level of protection provided by electrical enclosures or products against environmental elements.
Technical Specifications
Model | R-800C | R-1200C |
Internal Dimensions (mm) | 900*950*950 | 1300*1350*1370 |
Overall Dimensions (mm) | 1180*1420*1920 | 1540*1820*2200 |
Useful Volume (L) | 810 | 2400 |
Oscillating Tube Radius | 400mm | 600mm |
Drip Tray Size | 600*600 | 1000*1000 |
Spraying Hole Diameter | φ0.4mm | |
Hole Spacing | 50 mm | |
Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable） | |
Turntable Rotation Speed | 1r/min (Adjustable speed) | |
Water Pressure Control | Flow meter | |
Controller | Programmable color LCD touch screen controller, Ethernet connection | |
Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Observation Window | Double layer insulating glass with wiper | |
Product Details
|
|
|

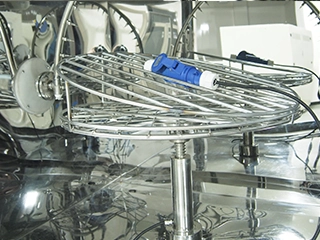

Turntable The turntable is made of 304 stainless steel Speed and angle can be adjusted Sample should be firmly fixed. | Build-in lighting The built-in dustproof LED lighting inside the workroom Makes it clear to observe the test specimen. | Drip Tray The drip tray is made of stainless steel Drip holes are evenly distributed |
|
|
Advantages
Key benefits of LIB industry's IP rating testing machine:
1. Product Reliability: Ensures products maintain functionality and durability by safeguarding against environmental elements like dust and water.
2. Safety Assurance: Validates that devices or enclosures meet specified standards for safe operation in different environments.
3. Quality Assurance: Provides a standardized method to verify the quality and resilience of products against ingress of solids and liquids.
Applications
LIB's IP rating testing machine caters to diverse industries including: Electrical components testing Lighting and luminaires Industrial enclosures and housings Automotive parts Outlets, switches and wiring accessories HVAC equipment Appliances and consumer electronics
FAQ
Q: What sizes of sample can be tested?
A: We offer chambers starting from 800 x 1000 x 1000 mm up to large walk-in sizes. Custom dimensions available.
Q: What safety measures are incorporated?
A: Safety features include emergency stop, door interlocks, overload protection.
Q: What after sales services do you offer?
A: Installation, commissioning, training, maintenance and calibration services.
Q: Is test data automated logging available?
A: Yes, data can be logged digitally via computerized controls.
