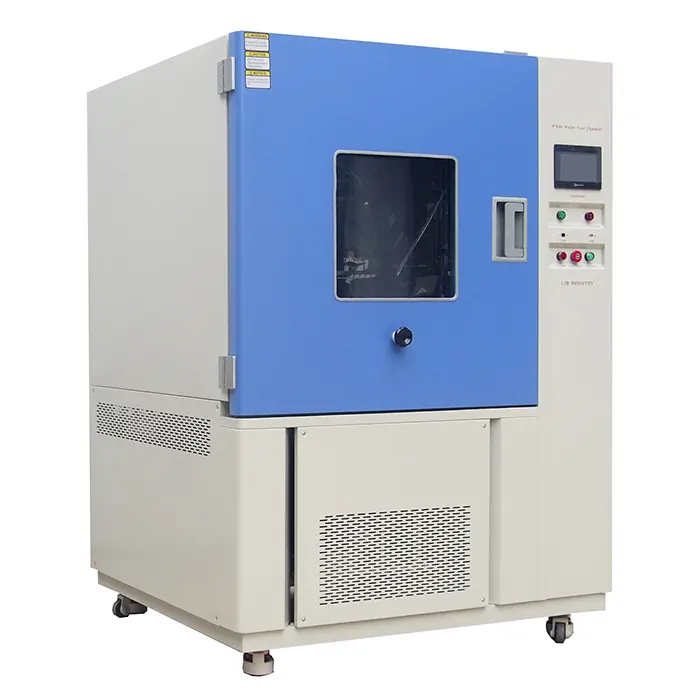

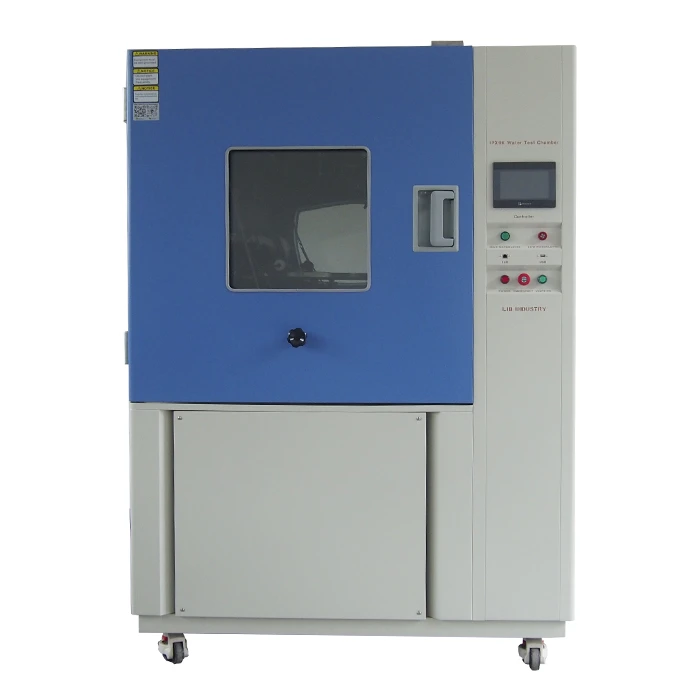

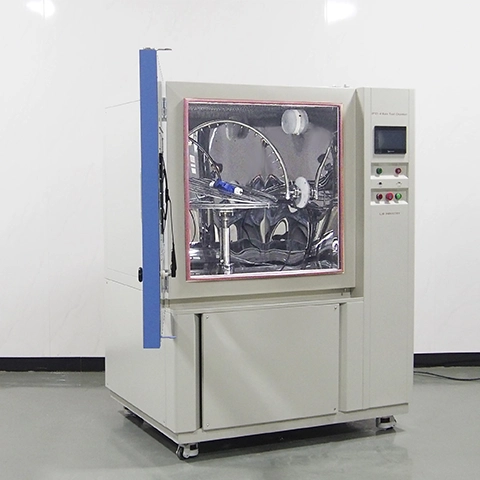

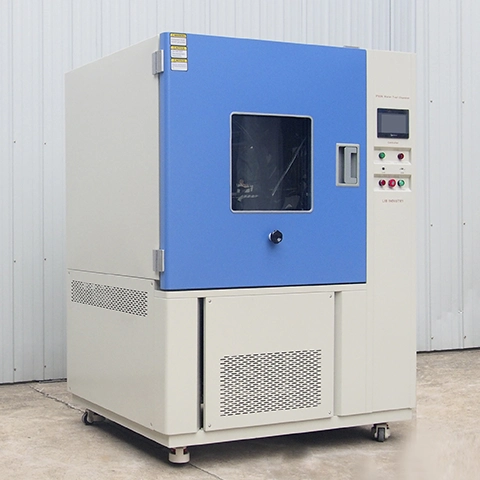

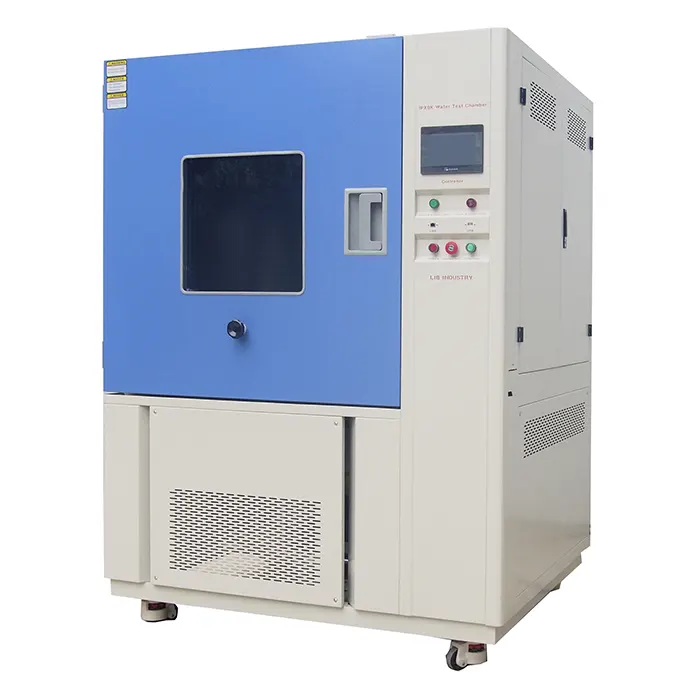

Rain Spray Test Chamber
Name: rain spray test chamber
Model: RD-1200C
Swing Angle of Oscillating Tube: 0 ~ ±180°
Standard: IEC 60529, ISO20653
Drip Tray Size: 800*800
Turntable: 1r/min Adjustable;
Rain Spray Test Chamber Manufacturer & Supplier
At LIB industry, we specialize in manufacturing and supplying rain spray test chamber that are essential for evaluating the ingress protection of enclosures against water. We offer both standard and customized solutions to meet specific testing requirements.
It complies with international standards such as IEC 60529 (IP code), ISO 20653, and MIL-STD-810. These standards define the requirements for testing the degree of protection against water ingress for various electrical and mechanical enclosures.
Technical Specifications
Model | R-800C | R-1200C |
Internal Dimensions (mm) | 900*950*950 | 1300*1350*1370 |
Overall Dimensions (mm) | 1180*1420*1920 | 1540*1820*2200 |
Useful Volume (L) | 810 | 2400 |
Oscillating Tube Radius | 400mm | 600mm |
Drip Tray Size | 600*600 | 1000*1000 |
Spraying Hole Diameter | φ0.4mm | |
Hole Spacing | 50 mm | |
Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable） | |
Turntable Rotation Speed | 1r/min (Adjustable speed) | |
Water Pressure Control | Flow meter | |
Controller | Programmable color LCD touch screen controller, Ethernet connection | |
Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Observation Window | Double layer insulating glass with wiper | |
Product Details
|
|
|

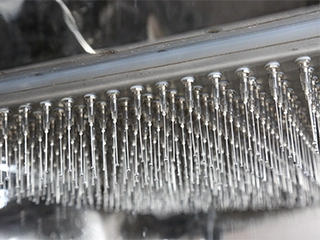

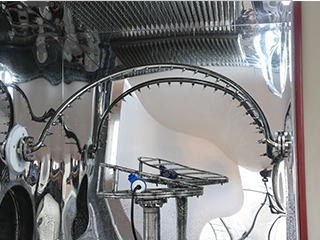

| Drip Tray The drip tray is made of stainless steel Drip holes are evenly distributed | Oscillating Tube Oscillating tube is made of stainless steel. Oscillating tube range can be reached to ±45°, ±60°, ±90°, ±180° | Water Re-circulation Water re-circulation system that reduced water use and a series of water pipes Automatic water supply |
|
|
Rain Spray Test Chamber Key Features
●IPX1 X2 water drip test
●IPX3 X4 water spray test
●Combined one chamber to achive water drip and spray test
●Water re-cycle system

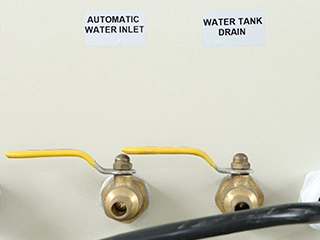

●Automatic water inlet system
●Standard and custom models
Application Areas
Our rain spray test chamber find applications across industries such as automotive, aerospace, outdoor electronics, and lighting. They are used to test a wide range of products, including vehicle components, outdoor electronic devices, LED fixtures, and outdoor enclosures.
FAQ
Q: Can the rain spray test chamber accommodate specific rain simulation requirements?
A: Yes, our chambers can be customized to simulate specific rain conditions, including intensity, angle, and duration, to meet specific testing standards.
Q: What is the lead time for ordering chambers?
A: 2 weeks, some models are in ready to ship. Contact us to get details.
