Air To Air Thermal Shock Chamber
Lowest Temperature:-20℃/-40℃/-60℃/-70℃;
Cooling Rate:10 ℃ / min （average）
Heating Rate:10 ℃ / min （average)
The temperature ramp rate is controllable at 5℃ / 10℃ / 15℃ per minute.
Volume:100L, 225L, 500L, 800, 1000L, 2000L, 3000L

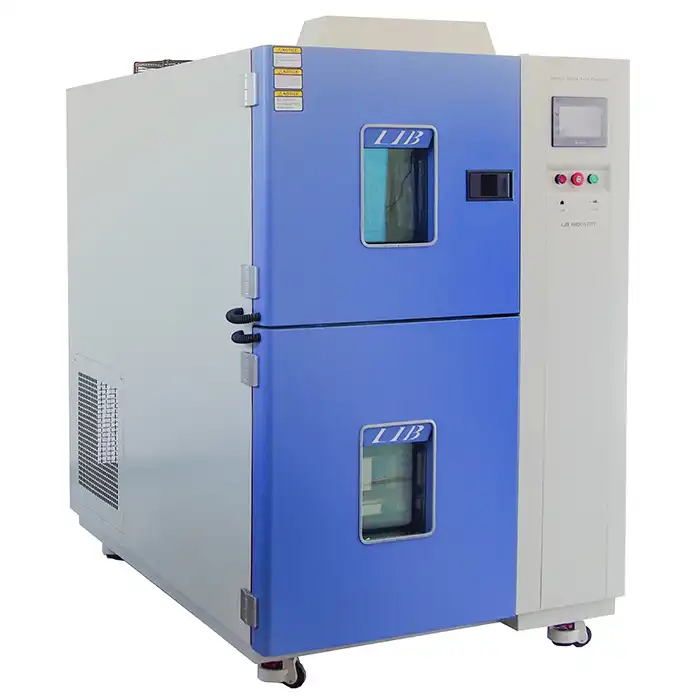

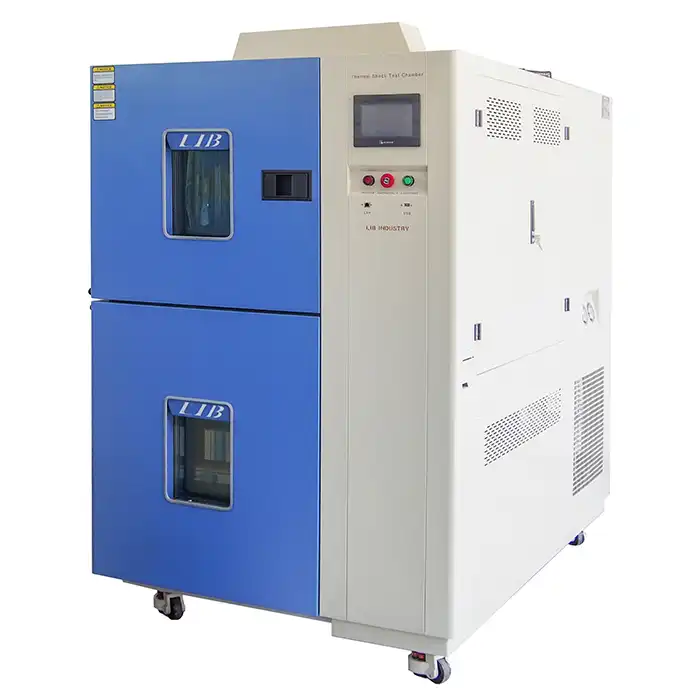

Air To Air Thermal Shock Chamber Manufacturer & Supplier
LIB Industry Air To Air Thermal Shock Chamber is used to simulate extreme temperature conditions for testing the performance and reliability of various products. It is commonly used in industries such as aerospace, automotive, electronics, and pharmaceutical.
The chamber equipped with a temperature control system that can rapidly and accurately change the temperature within a specified range.
Technical Specifications
Model | TS-162 | TS-340 | TS-500 | TS-1000 |
Internal Dimensions (mm) | 300*300*250 | 450*450*360 | 650*650*500 | 850*850*700 |
Overall Dimension (mm) | 1560*870*1545 | 1710*1020*1845 | 1910*1220*2265 | 2110*1420*2665 |
Interior Volume (mm) | 22L | 72L | 211L | 505L |
Loading Capacity | 20kg | 30kg | 50kg | 60kg |
Upper limit Temperature | +220℃ | |||
Heating Time | Ambient ~ + 200℃, within 30 minutes | |||
Lower limit Temperature | -75℃ | |||
Cooling time | Ambient ~ -70℃, within 30 minutes | |||
High Temperature Exposure Range | Ambient +20 ~ +200°C | |||
Low temperature Exposure Range | –65 ~ -5°C | |||
Temperature Fluctuation | ≤±0.5℃ | |||
Temperature Deviation | ≤±3 ℃ | |||
Temperature Recovery Time | Within 5 minutes | |||
Cooling System | Mechanical compression refrigeration system | |||
Controller | Programmable color LCD touch screen controller, Ethernet connection | |||
Safety Device | Over-temperature protection, Over-current protection; Refrigerant high-pressure protection; Earth leakage protection | |||
Exterior Material | Steel Plate with protective coating | |||
Interior Material | SUS304 stainless steel | |||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||
Standard Configuration | 2 shelves | |||
Product Details
|
|
|

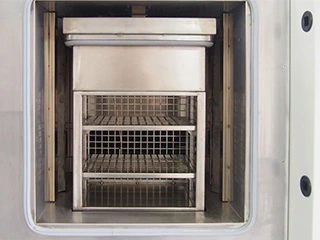

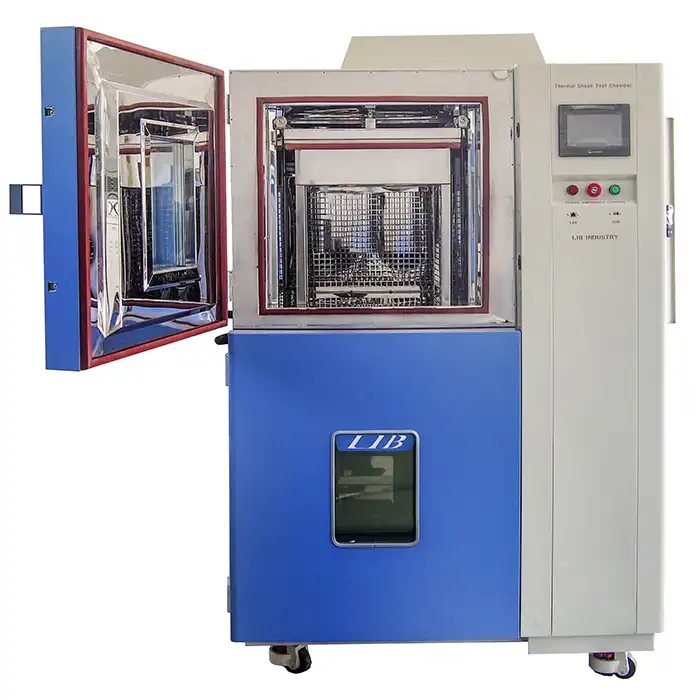

| Explosion-proof system Explosion-proof door and viewing window Equip with smoke detector and buzzer Water spray against fire | Basket A standard test hole on it The chain moves it quickly up and down Sample rack is removal | PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data |
Air To Air Thermal Shock Chamber Key Features
The Air To Air Thermal Shock Chamber is equipped with the following key functions:
1. Temperature Cycling: Mimics rapid temperature changes for assessing product performance under extreme conditions.
2. Humidity Control: Humdity system as option
3. Data Logging: Captures and records test data for comprehensive analysis and reporting.
4. Safety Features: Overheat protection, door alarms, and emergency shutdown options ensure user safety and equipment protection.
5. Remote Monitoring: Allows users to monitor tests remotely for added convenience.
Applications
The Air To Air Thermal Shock Chamber finds applications in:
●Electronics Testing
●Aerospace Research
●Pharmaceutical Stability Studies
●Automotive Component Testing
Custom Models
LIB Industry offers standard and customized models, allowing clients to customize chambers based on unique specifications. Tell us about your requirements, let us help you.
