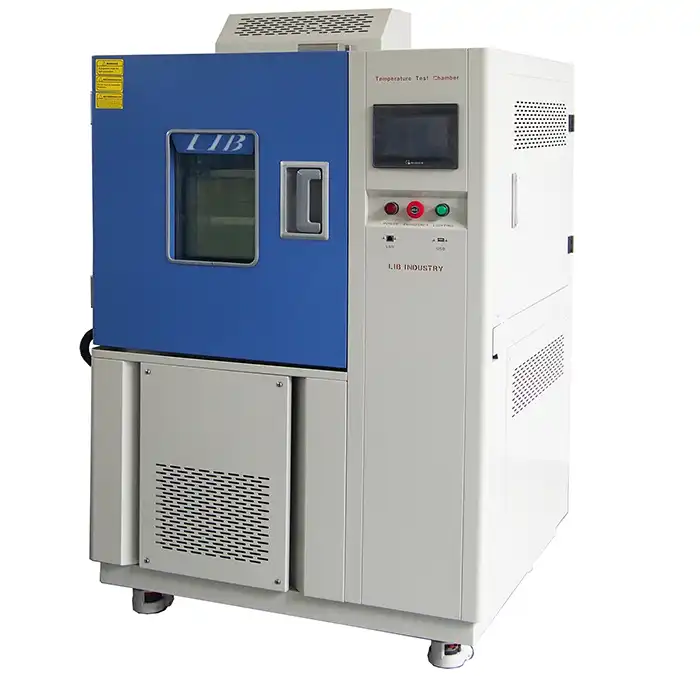

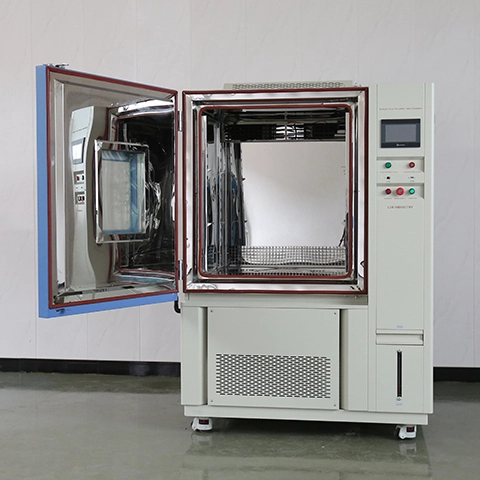

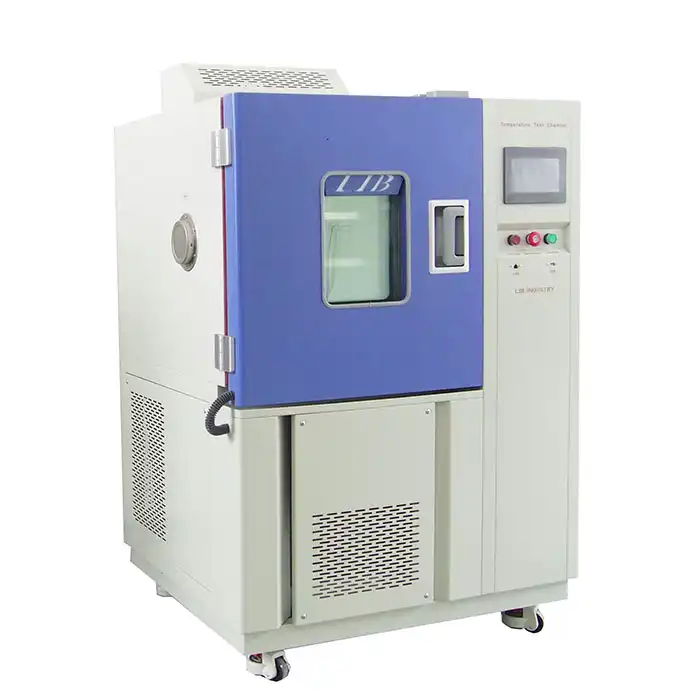

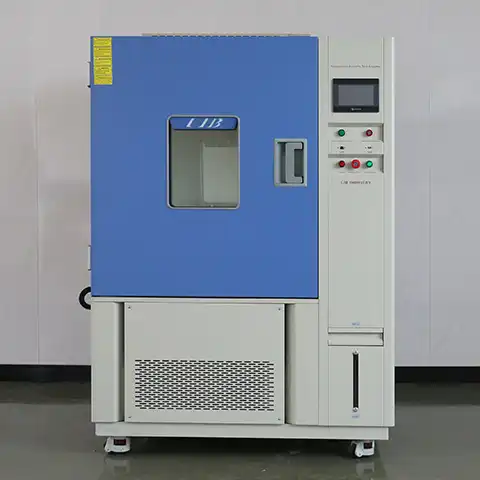

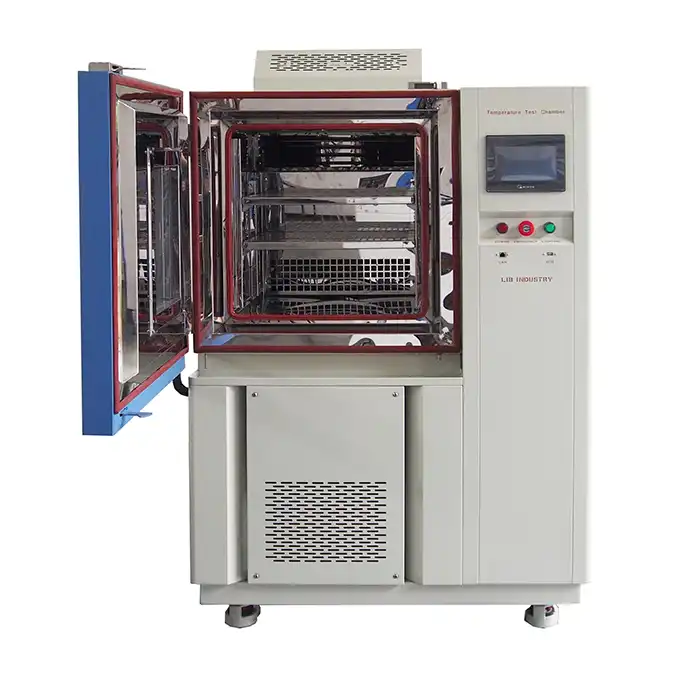

TR5-800 Environmental Stress Chamber
Lowest Temperature:-20℃/-40℃/-60℃/-70℃;
Cooling Rate:10 ℃ / min (average)
Heating Rate:10 ℃ / min (average)
Refrigeration Mode: Air-cooled or water-cooled
Touch-screen programmble controller, Ethernet access
Exterior Material: Steel Plate with protective coating
LIB TR5-800 Environmental Stress Chamber with temperature ranges from -70°C to 180°C, ±0.5°C temperature uniformity, and humidity control from 20% to 98% RH, it ensures precise simulation of various environmental conditions. The chamber's construction includes stainless steel and insulation for good performance.
Technical Specifications:
Model | TR5-800 |
Internal Dimension (mm) | 800*1000*1000 |
Overall Dimension (mm) | 1300*1540*2120 |
Interior Volume | 800L |
Heat load | 1000W |
Temperature Range | A : -20℃ ~ +150 ℃ B : -40℃ ~ +150 ℃ C: -70℃ ~ +150 ℃ |
Temperature Fluctuation | ± 0.5 ℃ |
Temperature Deviation | ± 2.0 ℃ |
Cooling Rate | 5 ℃ / min |
Heating Rate | 5 ℃ / min |
Cooling system | Mechanical compression refrigeration system |
Refrigerating unit | French TECUMSEH compressor |
Heating Element | Nichrome heater |
Controller | Programmable color LCD touch screen controller Ethernet connection, PC Link |
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
Air Circulation | Centrifugal wind fan |
Safety Device | Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves |
Product Details

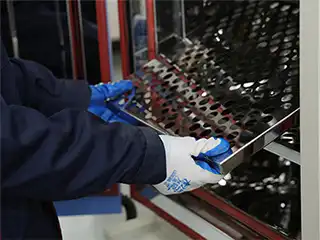

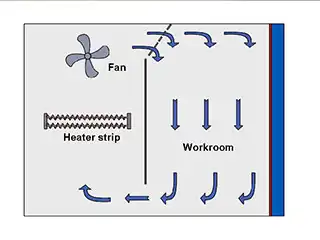

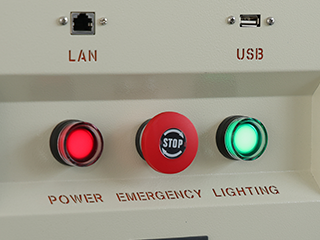

Security Settings Emergency stop button Earth leakage protection, phase sequence protection and multiple security protection | Sample shelf The height of the shelf is adjustable and can be removed Conducive to the air circulation | Air circulation The air is uniformly distributed through the air outlet Air circulates evenly throughout the workroom |
Application
1. Testing electronic components and devices for their thermal performance and reliability.
2. Assessing the thermal management capabilities of electronic systems.
3. Evaluating the impact of temperature on the performance of batteries and energy storage systems.
4. Testing the thermal resistance and insulation properties of building materials.
5. Assessing the impact of temperature on the performance of automotive components and systems.
6. Testing the thermal stability and reliability of pharmaceutical products and drugs.
How to Maintain TR5-800 Environmental Stress Chamber?
1. Regular cleaning: Clean the chamber regularly to remove any dust, dirt, or debris that may accumulate inside.
2. Check and replace filters: Inspect the filters regularly and replace them as needed.
3. Calibrate sensors: Periodically calibrate the temperature and humidity sensors to ensure accurate readings.
4. Inspect wiring and connections: Check the wiring and connections for any signs of damage or loose connections.
5. Monitor and adjust temperature and humidity: Regularly monitor the temperature and humidity levels inside the chamber using the built-in controls or external monitoring devices.
6. Follow manufacturer's guidelines: Always refer to the manufacturer's guidelines and recommendations for specific maintenance procedures and schedules.
