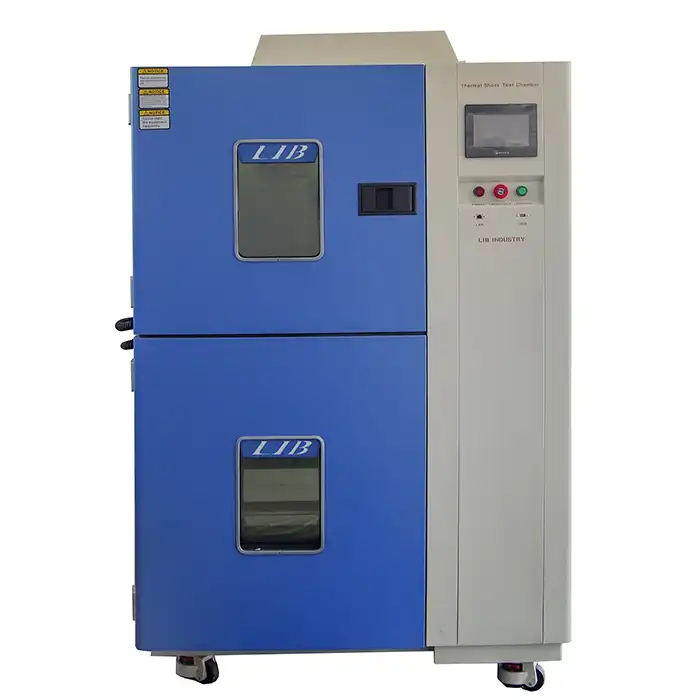

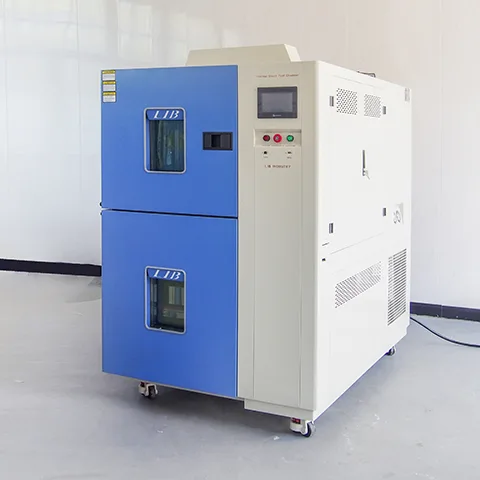

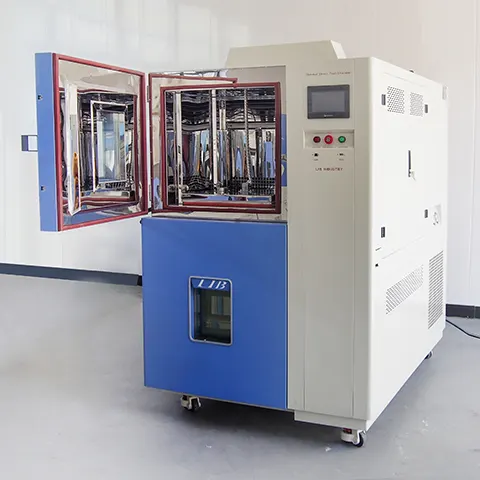

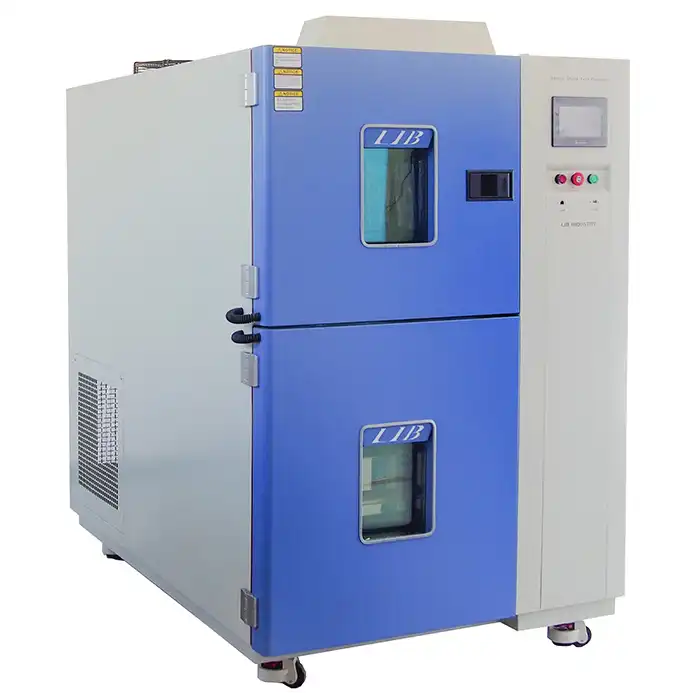

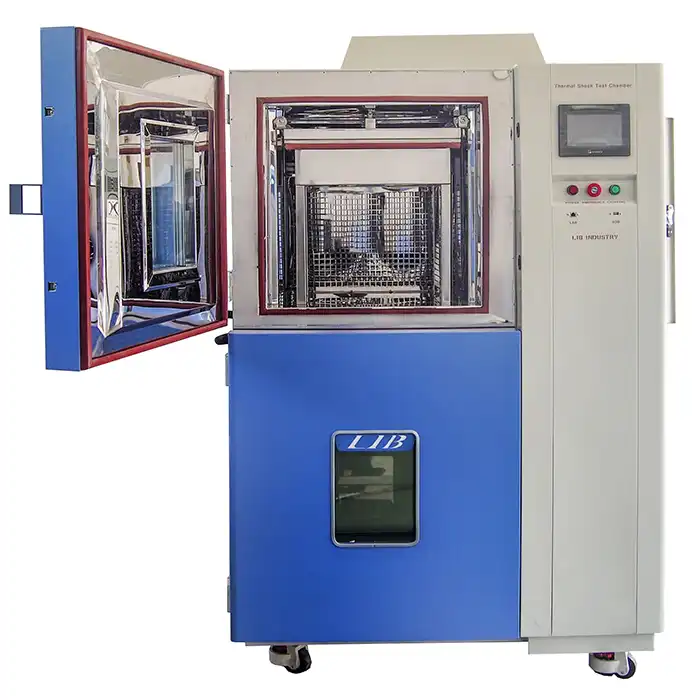

TS-162 Thermal Shock Tester
Lower limit Temperature:-75℃
Upper limit Temperature:+220℃
Temperature Range:-70℃～+220 ℃;
Temperature Recovery Time: Within 5 minutes
Refrigerant: Environmental refrigerant;
Touch-screen programmble controller, Ethernet access
TS-162 Thermal Shock Tester Manufacturer & Supplier
Our TS-162 Thermal Shock Tester operates on the principle of quickly transferring test samples between extreme temperature environments, inducing thermal stress. This allows for the assessment of material response to abrupt temperature changes.
The products to be tested is placed inside a test basket, which is then transferred between the hot and cold chambers. The temperature difference between the two chambers can range from -120°C to +250°C, depending on the specific requirements of the test.
Technical Specifications
Model | TS-162 |
Internal Dimensions (mm) | 300*300*250 |
Overall Dimension (mm) | 1560*870*1545 |
Interior Volume (mm) | 22L |
Loading Capacity | 20kg |
Upper limit Temperature | +220℃ |
Heating Time | Ambient ~ + 200℃, within 30 minutes |
Lower limit Temperature | -75℃ |
Cooling time | Ambient ~ -70℃, within 30 minutes |
High Temperature Exposure Range | Ambient +20 ~ +200°C |
Low temperature Exposure Range | –65 ~ -5°C |
Temperature Fluctuation | ≤±0.5℃ |
Temperature Deviation | ≤±3 ℃ |
Temperature Recovery Time | Within 5 minutes |
Cooling System | Mechanical compression refrigeration system |
Controller | Programmable color LCD touch screen controller, Ethernet connection |
Safety Device | Over-temperature protection, Over-current protection; Refrigerant high-pressure protection; Earth leakage protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Standard Configuration | 2 shelves |
Product Details
|
|
|

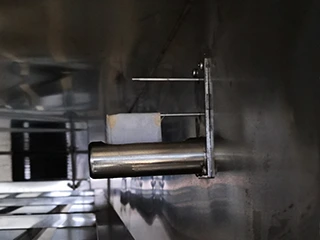

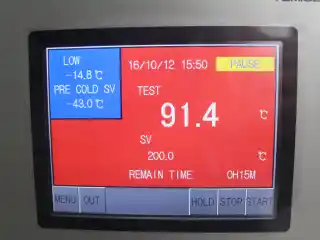

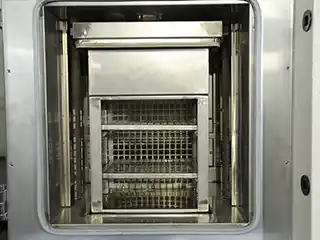

Basket Corrosion-resistant stainless steel Size and shape can be customized Holes can be punched on it to energize the test piece | Controller PID programmable color touch screen controller network connection computer. Language can be selected, English/French/Spanish/German/Russian | Sensor PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees. |
|
|
TS-162 Thermal Shock Tester Key Features
Rapid temperature changes accurately.
Volume avaiable 160L to 1000L
Oreheating room to +200℃, pre-cooling room to -120℃
Precise temperature control and transition times.
Application
The TS-162 Thermal Shock Tester finds applications across industries such as electronics, aerospace, automotive, and materials science. It is vital for assessing the durability of materials subjected to thermal shock test.
FAQ
Q: What is the transition time between extreme temperatures?
A: The transition time is typically less than 15 seconds.
Q: Can this equipment accommodate various sample sizes?
A: Yes, the TS-162 Thermal Shock Tester is adjustable to accommodate different sample sizes for comprehensive testing.
