TR5-500 Thermal Cycling Test Equipment

TR5-500 Thermal Cycling Test Equipment

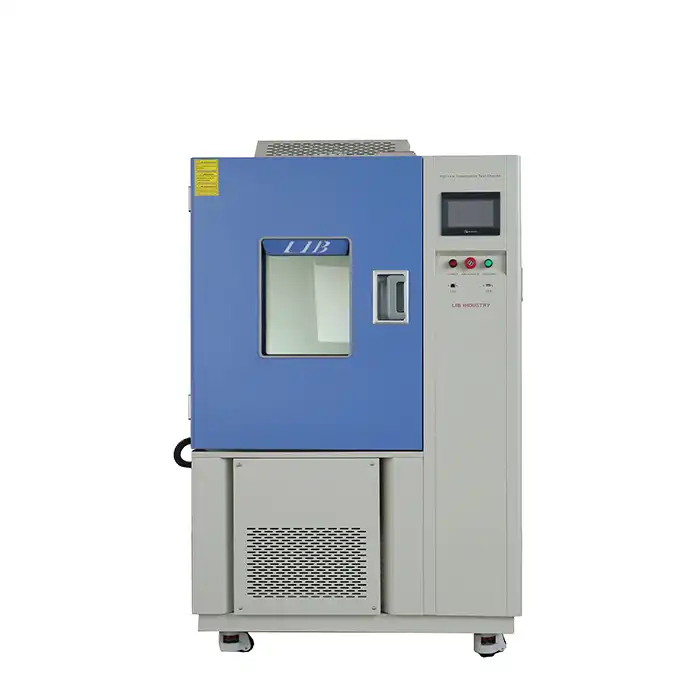

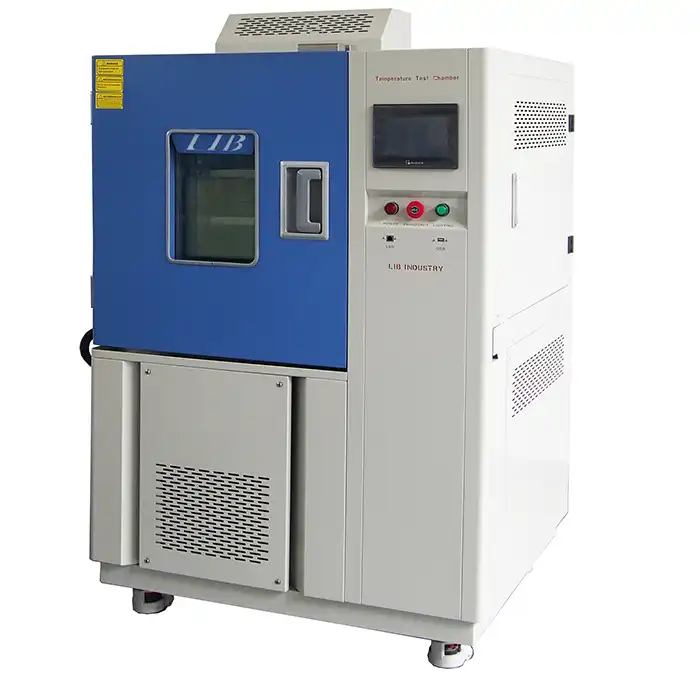

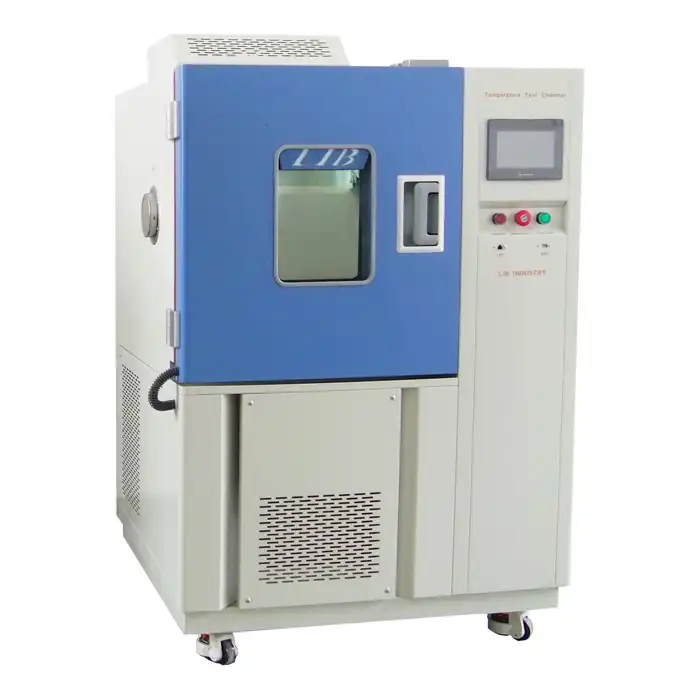

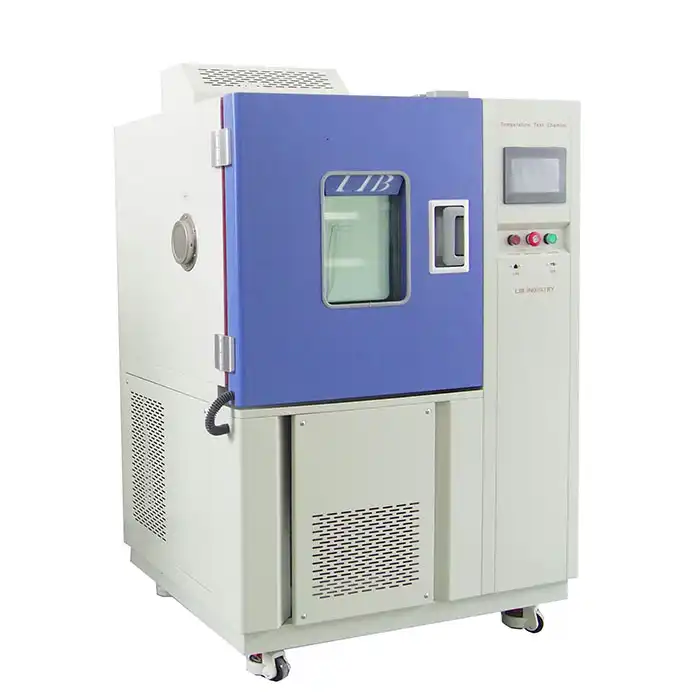

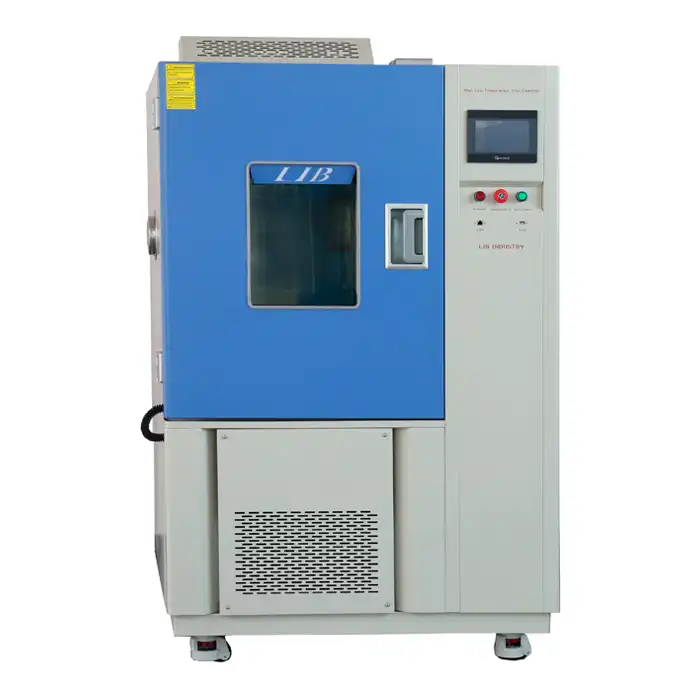

LIB Industry TR5-500 Thermal Cycling Test Equipment is designed for testing specimens under rapid temperature change

Model:TR5-500

Lowest Temperature:-20℃/-40℃/-60℃/-70℃;

Cooling Rate:10 ℃ / min (average)

Heating Rate:10 ℃ / min (average)

The temperature ramp rate is controllable at 5℃ / 10℃ / 15℃ per minute.

Volume:100L, 225L, 500L, 800, 1000L, 2000L, 3000L
Product Description

TR5-500 Thermal Cycling Test Equipment Manufacturer & Supplier

LIB Industry TR5-500 Thermal Cycling Test Equipment is used to simulate extreme temperature conditions for testing the performance and reliability of various products. It is commonly used in industries such as aerospace, automotive, electronics, and pharmaceutical.

The chamber equipped with a temperature control system that can rapidly and accurately change the temperature within a specified range. The temperature change rate can reach to 5 ℃ / min (10 ℃ / min).

Technical Specifications

ItemTR5-500
Internal Dimension (mm)700 × 800 × 900
Overall Dimension (mm)1200 × 1340 × 2020
Interior Volume500 L
Heat Load1000 W
Temperature RangeA: -20°C to +150°C; B: -40°C to +150°C; C: -70°C to +150°C
Temperature Fluctuation±0.5°C
Temperature Deviation±2.0°C
Cooling Rate5 / 10 / 15 / 20°C/min (customized)
Heating Rate5 / 10 / 15 / 20°C/min (customized)
Cooling SystemMechanical compression refrigeration, French TECUMSEH compressor
Heating ElementNichrome heater
ControllerProgrammable color LCD touch screen, Ethernet / PC link, USB data download
Temperature SensorPT100 Class A platinum resistance
Air CirculationCentrifugal fan
Safety DevicesOver-temperature, over-current, refrigerant high-pressure, earth-leakage protection
Interior MaterialSUS304 stainless steel
Exterior MaterialCoated steel plate
InsulationPolyurethane foam and insulation cotton, 100 mm layer
Observation WindowInterior lighting, double-layer thermally stable silicone rubber sealing
Standard Configuration1 cable port (Φ50 mm) with plug; 2 shelves
OptionsHumidity module; cable ports of 50 / 100 / 200 mm; explosion-proof package

Product Details




Explosion-proof system

Explosion-proof door and viewing window

Equip with smoke detector and buzzer

Water spray against fire

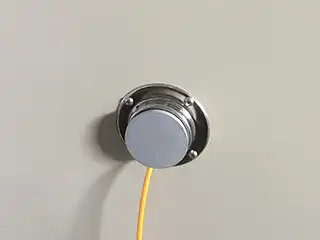

Cable hole

A standard test hole with plugs

50mm/100mm/200mm

Soft silicone plug seal; Metal enclosure closed

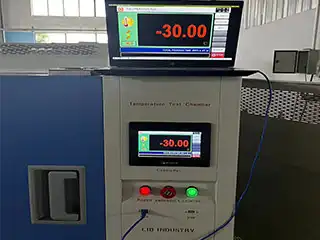

PC Link

Ethernet connect to PC for easy operation

Match to the local laboratory software

USB to download data

Key Features

The TR5-500 Thermal Cycling Test Equipment is equipped with the following key functions:

Programmable Temperature Cycling
Create repeatable high- and low-temperature profiles with programmable setpoints, dwell times and cycle counts to evaluate how products respond to repeated temperature changes.

Configurable Ramp Rates
Select 5, 10 or 15°C/min, or up to 20°C/min on request. Ramp rate depends on temperature range and specimen load, so please confirm your requirements before ordering.

Stable Temperature Control
Temperature fluctuation ±0.5°C and deviation ±2.0°C under specified conditions.

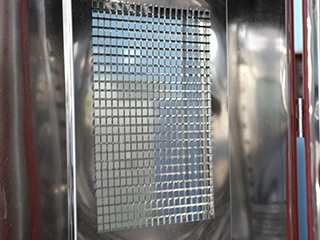

Uniform Air Circulation
A centrifugal fan and engineered air duct circulate air evenly through the workroom for consistent conditions across specimens.

Data Logging and Remote Monitoring
Record test data, export via USB, and connect to a PC over Ethernet for remote monitoring and operation.

Comprehensive Safety Protection
Over-temperature, over-current, refrigerant high-pressure and earth-leakage protection, plus door alarm and emergency stop.


FAQs on TR5-500 Thermal Cycling Test Equipment

1. How do I choose the right temperature change rate?
Select a rate that matches your test standard, temperature range and specimen requirements.

2. What is the difference between thermal cycling and thermal shock?

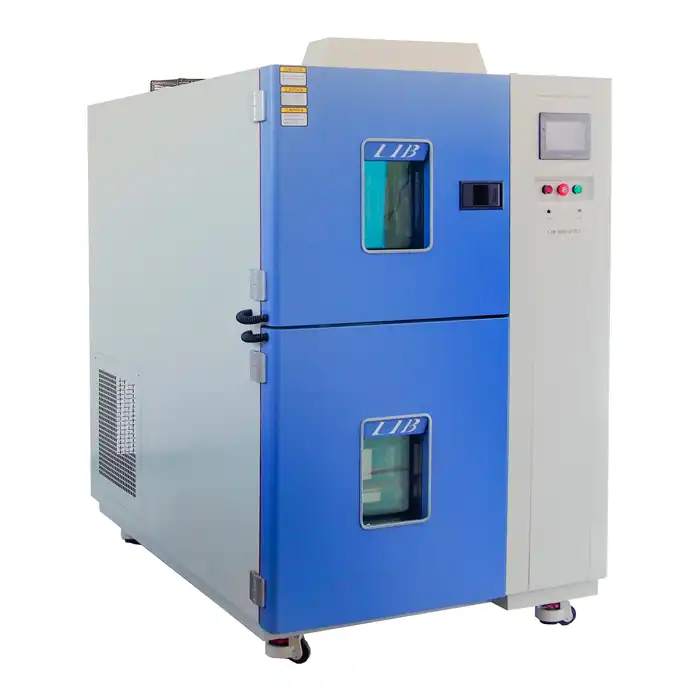

Thermal cycling changes temperature at a controlled rate inside one chamber. Thermal shock transfers specimens between hot and cold zones within seconds. The TR5-500 is a thermal cycling chamber.

3. Does sample load affect chamber performance?
Yes. Sample mass, material and arrangement can affect heating and cooling rates.

4. Can the chamber be customized?
Yes. LIB Industry offers customized sizes, temperature ranges and ramp rates based on your test requirements.

5. What certifications does LIB Industry hold?
CE and RoHS certifications, and ISO 9001 for quality management.

6. What are the delivery and after-sales support options?
We arrange delivery with setup and operation guidance. A 3-year warranty, lifetime technical support and international spare-parts support are available.

Contact LIB Industry for a tailored solution. Shipping in 7–15 days. Request a quote today!
