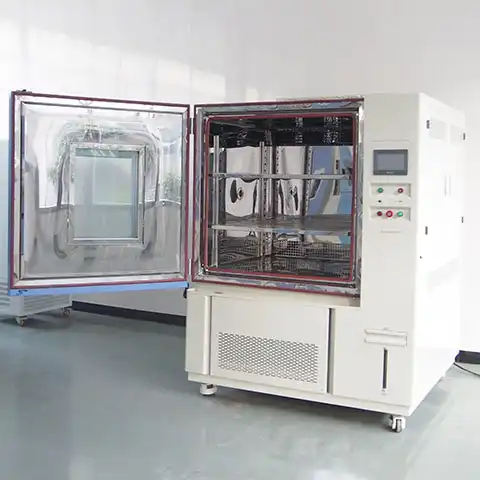

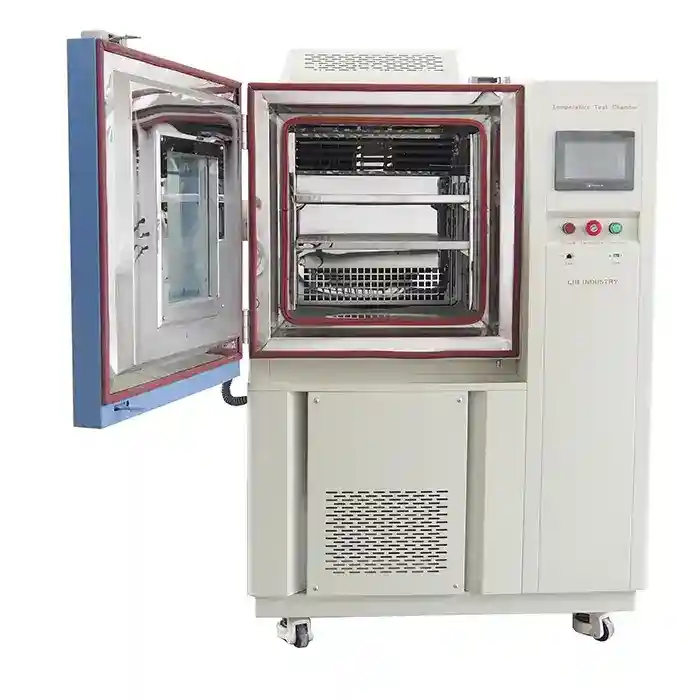

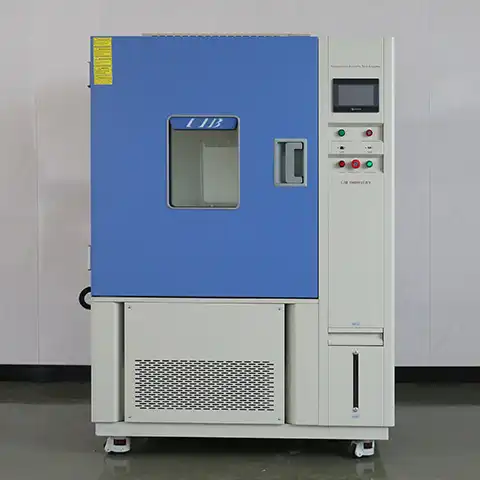

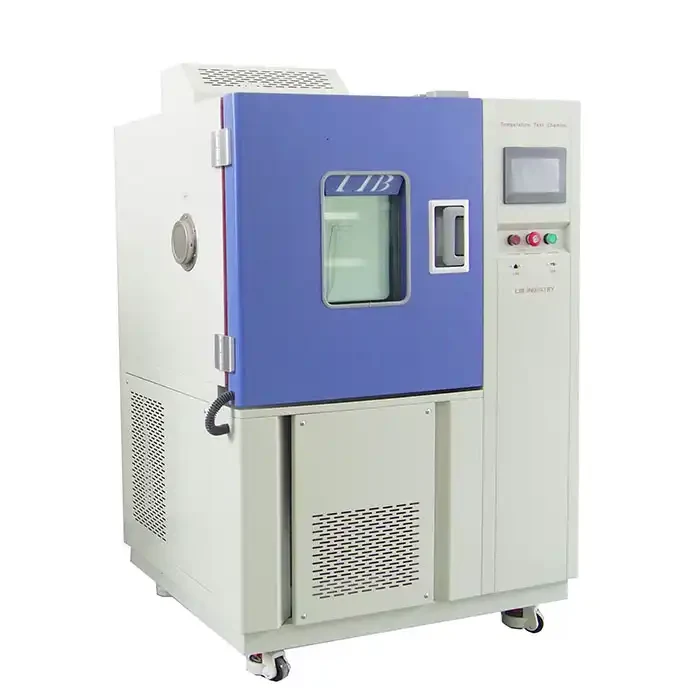

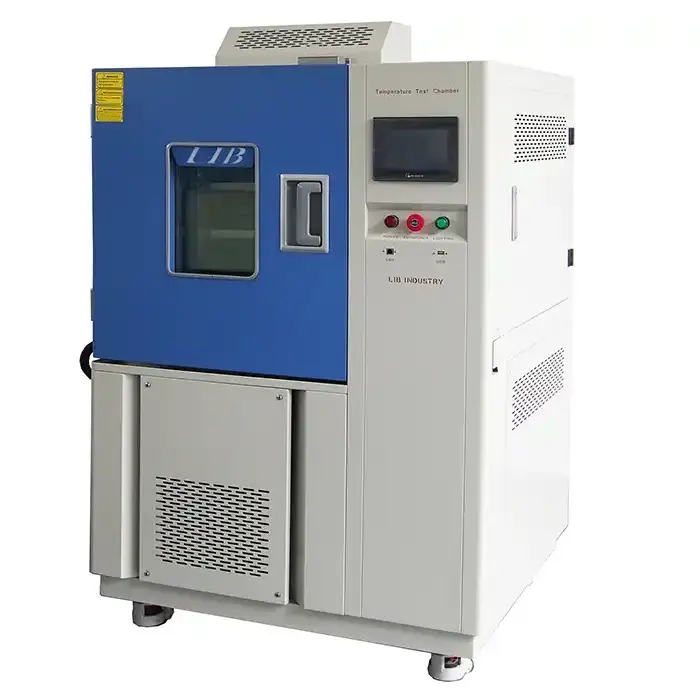

Thermal Test Chamber
Lowest Temperature:-20℃/-40℃/-60℃/-86℃;
Cooling Rate:10 ℃ / min （average）
Heating Rate:10 ℃ / min （average)
Touch-screen programmble controller,Ethernet access
Exterior Material:Steel Plate with protective coating
Interior Material:SUS304 stainless steel
Thermal Test Chamber Manufacturer & Supplier
LIB industry is professional thermal test chamber manufacturers and suppliers in China,to buy or wholesale from our factory. For quotation, contact us now.
LIB thermal test chamber is a controlled environment chamber that is used to simulate and test the effects of temperature on various materials, components, and products. It allows for precise control and manipulation of temperature conditions to evaluate the performance, durability, and reliability of the test subject.
The chamber replicates extreme temperature conditions to assess the performance, durability, and reliability of products across industries like automotive, electronics, pharmaceuticals, and aerospace.
Technical Specifications:
Model | TR5-100 | TR5-225 | TR5-500 | TR5-800 | TR5-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Cooling Rate | 5 ℃ / min | ||||
Heating Rate | 5 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller Ethernet connection, PC Link | ||||
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | ||||
Air Circulation | Centrifugal wind fan | ||||
Safety Device | Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | ||||
Technical Specifications:
|
|
|

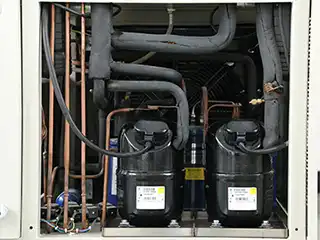

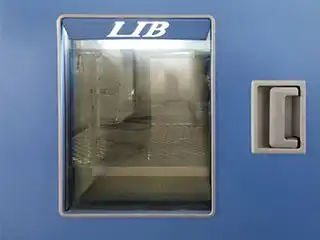

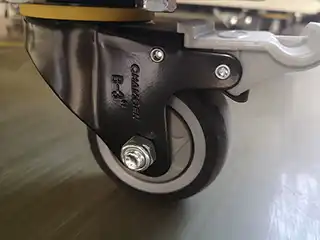

| Cooling system Mechanical compression refrigeration system French TECUMSEH compressor Environmentally friendly refrigerant | Castors Install 4 castors for ease moving, and with brakes function. Caster height adjustable | Viewing Window The conductive film is located on the interior glass to prevent window frosting Can clearly observe samples in testing |
|
|
Thermal Test Chamber Features:
●Low Types: -20℃/-40℃/-60℃/-70℃/-86℃
●5℃/Minute, 10℃/Minute Cooling Rate
●50L/80L/100/225L/500/1000/1500L
●Type: Benchtop, Floor Stand & Walk In.
Optimal test environments require thermal chambers configured for:
Device size
Temperature range
Transition speed
Device access
Sigma Systems' Thermal Test Chamber capabilities include:
High air flow promoting fast cycling, low gradients, and consistent test results
Wide temperature range from -20℃ ～ +150 ℃ or anywhere in between
The industry's smallest footprint for a given interior workspace
Cooling and heating rates up to 5 ℃ / min
Thermal shock in a single chamber and MIL-STD testing
The best thermal environment comes from specifications you control.
Customozed Models:
LIB offers customozed chambers, allowing cutomers to customize chambers to their sample size, sample weitght, lab space, special requirements and performance.
FAQ:
Q: Can the chamber simulate altitude conditions?
A: Yes, our comprehensive chambers can simulate altitude conditions, you can choose our altitude chamber.
Q: What is the warranty period of Thermal Test Chamber?
A: Our standard warranty covers 36 months.
