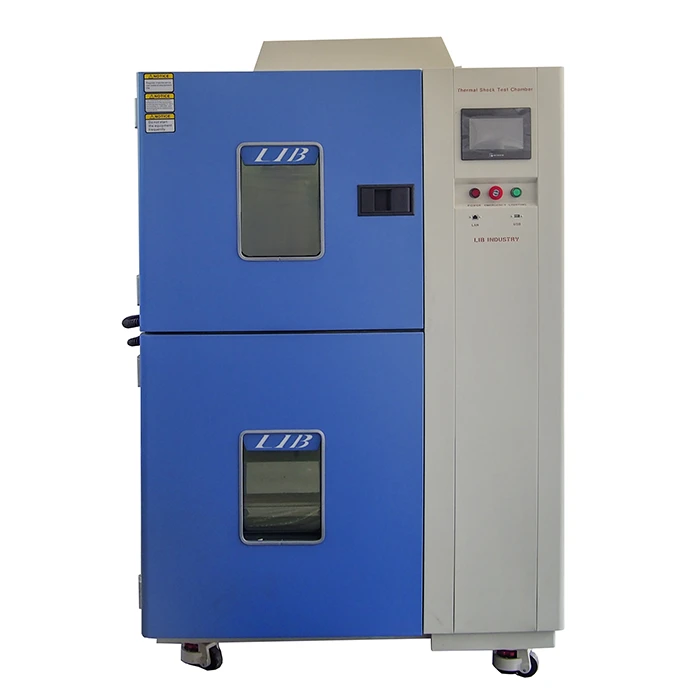

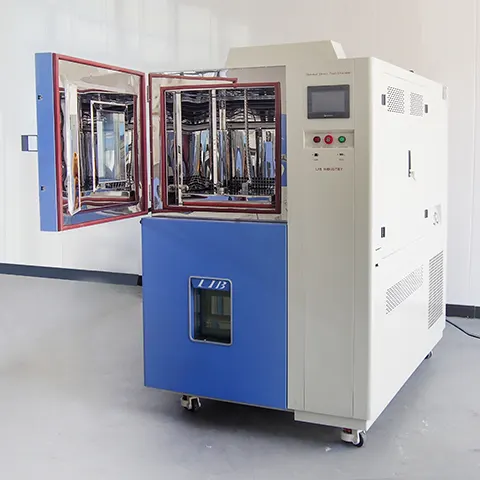

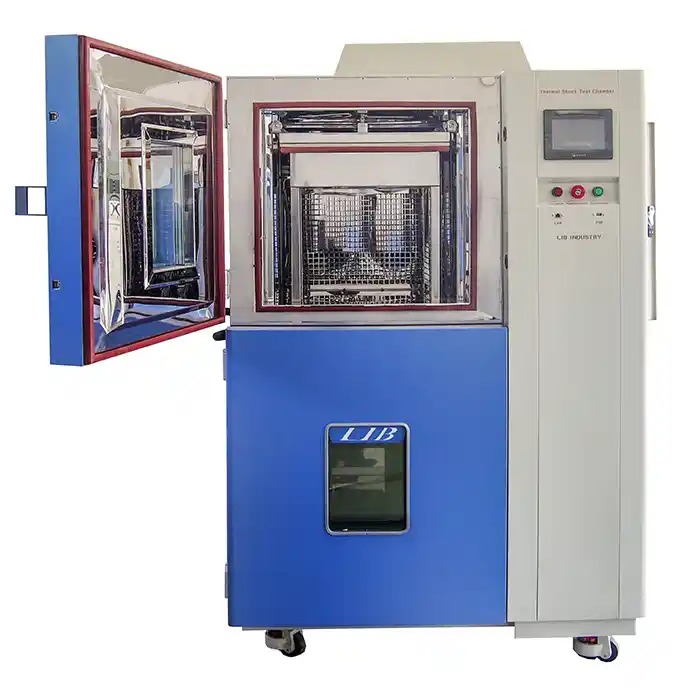

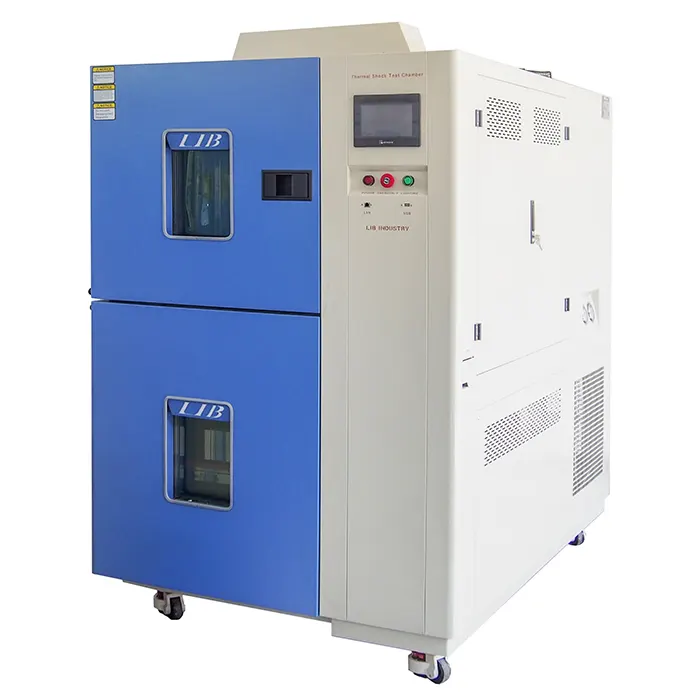

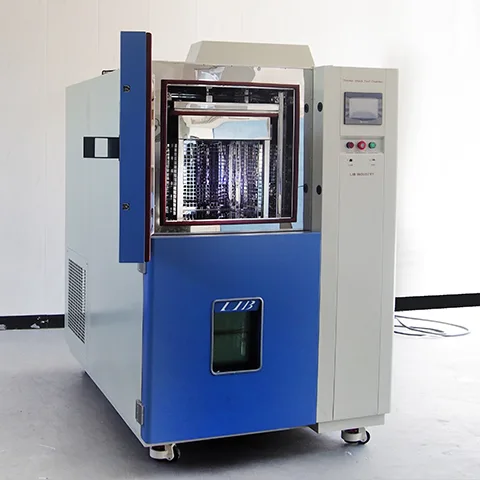

Thermal Shock Chamber

LIB thermal Shock chamber is designed to provide rapid transitions between hot and cold temperature zones.2-zone and 3-zone thermal shock chambers are available.
Lower limit Temperature:-75℃
Upper limit Temperature:+220℃
Temperature Range:-70℃～+220 ℃
The specimen automatic transferred from cold chamber to hot chamber by basket
Temperature Recovery Time:Within 5 minutes
Refrigerant: Environmental refrigerant

Send Inquiry

Product Description

Thermal Shock Chamber Manufacturer & Supplier

A thermal shock chamber is a crucial testing apparatus designed to subject materials and products to rapid temperature changes. At its core, it comprises three interconnected chambers: a hot chamber, a cold chamber, and a transfer mechanism facilitating swift transitions between extreme temperatures. This robust structure ensures precise control over temperature variations for comprehensive testing.

Specification

Model	TS-162	TS-340	TS-500	TS-1000
Internal Dimensions (mm)	300300250	450450360	650650500	850850700
Overall Dimension (mm)	15608701545	171010201845	191012202265	211014202665
Interior Volume (mm)	22L	72L	211L	505L
Loading Capacity	20kg	30kg	50kg	60kg
Upper limit Temperature	+220℃
Heating Time	Ambient ~ + 200℃, within 30 minutes
Lower limit Temperature	-75℃
Cooling time	Ambient ~ -70℃, within 30 minutes
High Temperature Exposure Range	Ambient +20 ~ +200°C
Low temperature Exposure Range	–65 ~ -5°C
Temperature Fluctuation	≤±0.5℃
Temperature Deviation	≤±3 ℃
Temperature Recovery Time	Within 5 minutes
Cooling System	Mechanical compression refrigeration system
Controller	Programmable color LCD touch screen controller, Ethernet connection
Safety Device	Over-temperature protection, Over-current protection; Refrigerant high-pressure protection; Earth leakage protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration	2 shelves

Product Details

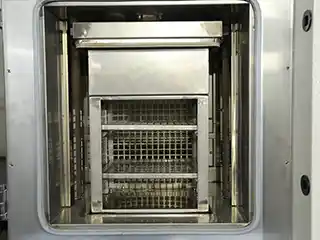

Basket

The specimen automatic transferred from cold chamber to hot chamber by basket. The basket slides vertically and smoothly through rail.

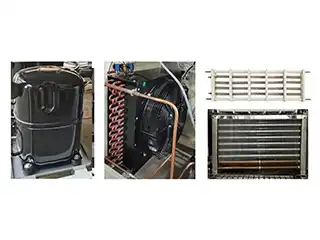

Cooling system

Mechanical compression refrigeration system

French TECUMSEH compressor

Environmentally friendly refrigerant

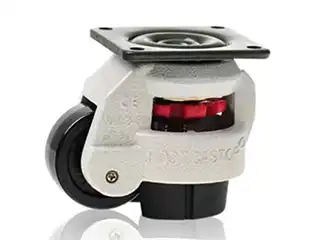

Castors

Install 4 castors for ease moving, and with brakes function.

Caster height adjustable.

Technical Specifications

Our thermal shock chambers comply with stringent industry standards, adhering to precise temperature transition rates, temperature control. They technical specifications that include temperature ranges from -70°C to 200°C, with rapid transition rates of up to 15°C per minute. These chambers provide ample space for test specimens, customizable shelf arrangements, and programmable control interfaces for precise testing protocols.

Key Features

Our thermal shock chambers excel in their precision, offering uniform temperature distribution and rapid transitions. Their advanced control systems ensure consistent and repeatable testing results. Moreover, these chambers feature robust construction, energy efficiency, and user-friendly interfaces for easy operation.

Application

These chambers find application in diverse industries, validating product reliability for electronic components, materials, and assemblies. They facilitate accelerated life testing, reliability studies, and quality assurance protocols crucial for product development and compliance.
