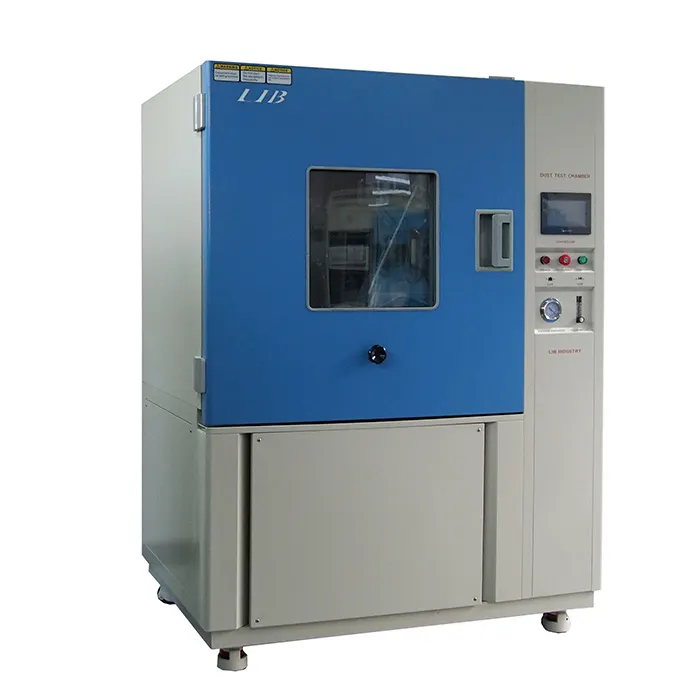

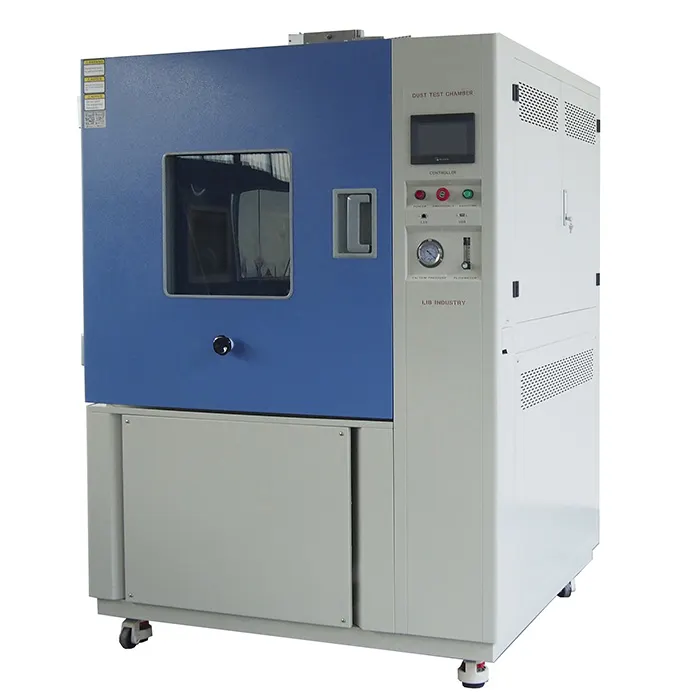

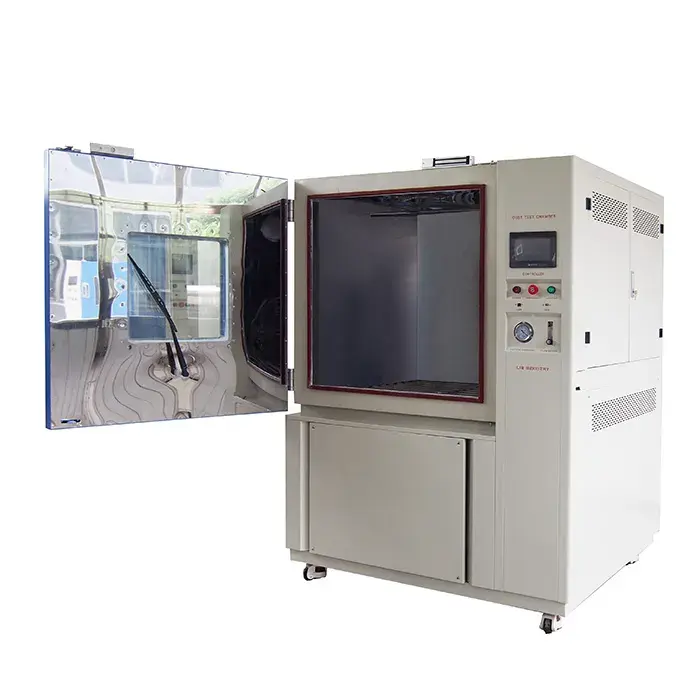

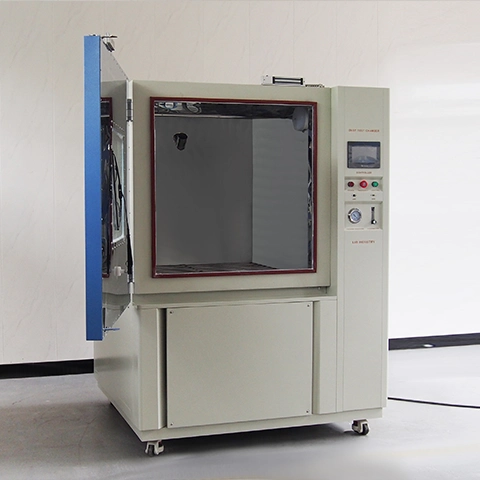

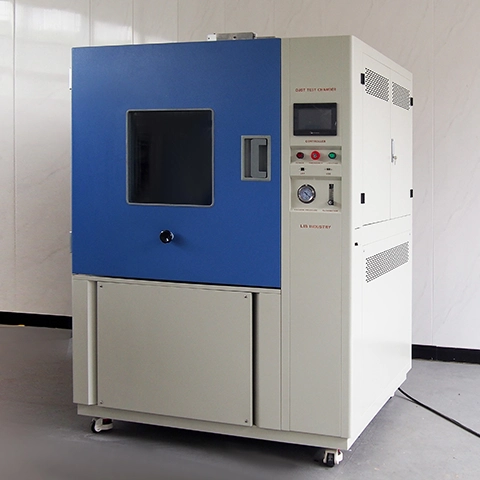

Sand And Dust Chamber
Name: sand and dust chamber
Model:DI-1500
Capacity:800L/1000L/1500L/2000L and more
Temperature Range:Ambient ~ +50℃
Humidity Range:< 30% RH
Specimen Power Outlet:Dust-proof socket 16A
Sand And Dust Chamber Manufacturer & Supplier
The LIB Sand and Dust Test Chamber provides a controlled method for combined sand and dust testing to evaluate product reliability and durability. By integrating sandstorm and dust storm simulation capabilities, the LIB Chamber delivers efficient and repeatable testing to industry standards.
Built to meet IEC 60068 specifications, the sand and dust chamber allows you to:
● Generate precise dust concentrations from 100 to 4000 mg/m3
● Simulate sandstorm conditions with adjustable sand
●Maintain stable temperature during testing
● Distribute sand and dust evenly throughout the chamber
● Program automation test sequences
● Monitor conditions in real-time
Technical Parameter
Model | DI-800 | DI-1000 | DI-1500 | DI-2000 |
Internal Dimension (mm) | 800*1000*1000 | 1000*1000*1000 | 1000*1500*1000 | 1000*2000*1000 |
Overall Dimension (mm) | 1040*1450*1960 | 1330*1450*1960 | 1330*1950*1990 | 1330*2450*1990 |
Useful Volume (L) | 800 | 1000 | 1500 | 2000 |
Temperature Range | Ambient ~ +50℃ | |||
Humidity Range | < 30% RH | |||
Normal Wire Diameter | 50um | |||
Nominal Width of a Gap Between wires | 75um | |||
Fight Time | 0 ~ 99H59M | |||
Blowing Time | 0 ~ 99H59M | |||
Specimen Power Outlet | Dust-proof socket 16A | |||
Vacuum System | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube | |||
Controller | Programmable color LCD touch screen controller, Ethernet connection | |||
Door Lock | Electromagnetic lock | |||
Safety Device | Over-temperature Protection; Over-current Protection; Earth Leakage Protection；Phase Sequence Protection | |||
Exterior Material | A3 Steel Plate with protective coating | |||
Interior Material | SUS304 stainless steel | |||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||
Standard Configuration | Sample shelf, dust wiper, talcum powder(5kgs) | |||
Product Details
|
|
|

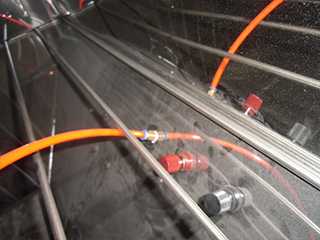

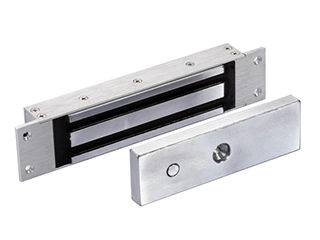

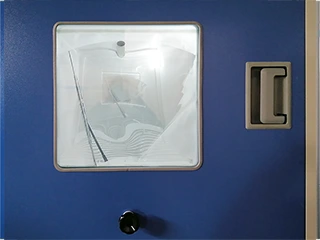

| Internal Power Supply The workroom is equipped with a single-phase 16A internal power interface. Supply electricity to test specimen inside of the workroom | Electromagnetic Lock Electromagnetic lock to strong lock the door Unlocking is operated on the controller for safety and prevent malfunction | Viewing Window Double-layer tempered glass, specially designed seal, with good impact resistance and prevention of sand and dust leakage. |
|
|
Standard Chamber Sizes
LIB offers standardized sand and dust chamber models:
● Reach-in Chamber (1m x 1m x 1m)
● Walk-in Chamber (2m x 2m x 2m)
● Large Chamber (3m x 3m x 3m) - expandable
Custom sizes are available to meet your specific test requirements.
Working Principle
The LIB Sand and Dust Test Chamber works by:
1. The test sample is mounted securely inside the chamber
2. Test parameters like sand flux, dust density are set
3. Temperature levels are controlled
4. The sand and dust systems activate based on programmed schedules
5. Integrated sensors provide real-time feedback for closed-loop control
6. Multi-stage filtration contains sand and dust from recirculated air
This allows combined sand and dust testing automation for standardized results.
Applications include combined testing of:
●Outdoor electronics and enclosures
● Aerospace and military equipment
● Vehicle and heavy machinery
● Telecom equipment
● Infrastructure materials
● Building weatherization products
● Coatings, paints, and more
LIB Support and Warranty
We provide complete guidance:
● Installation and on-site/virtual training
●Global technical support
● Preventative maintenance
● Calibration services
● 3-year long warranty and long life service
