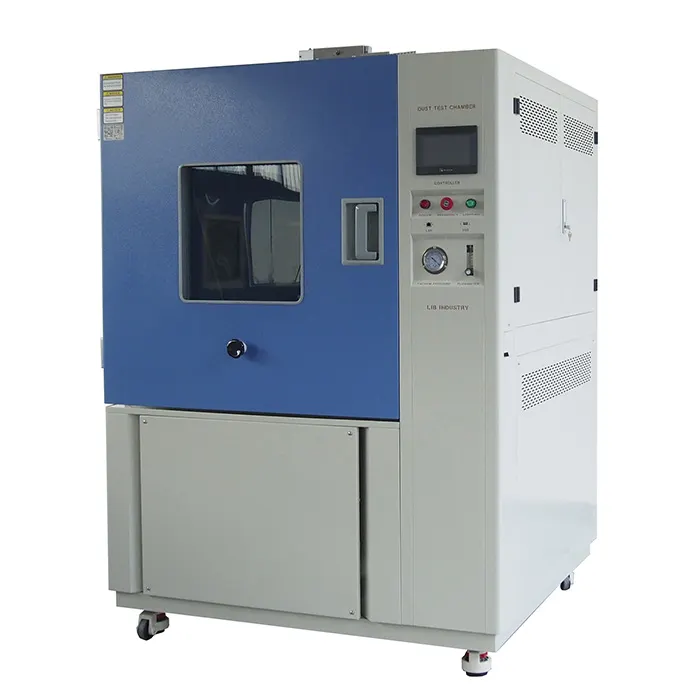

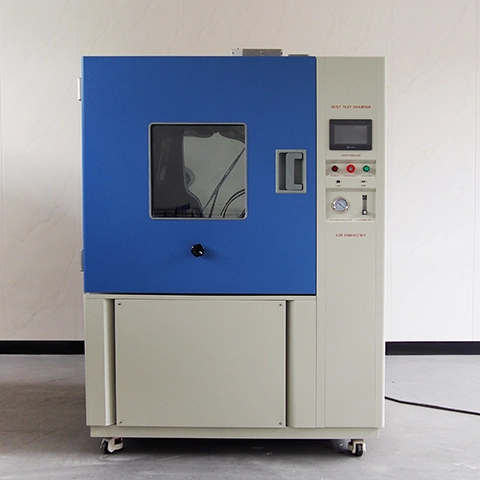

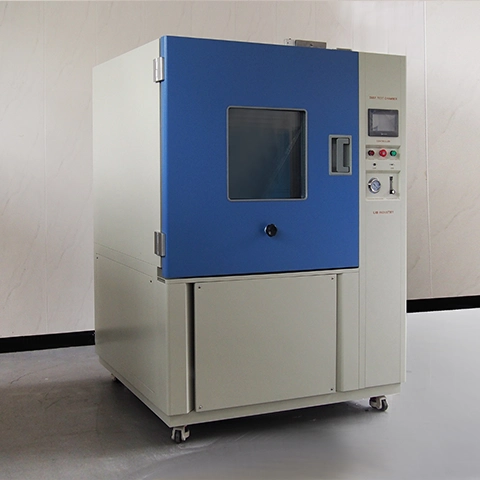

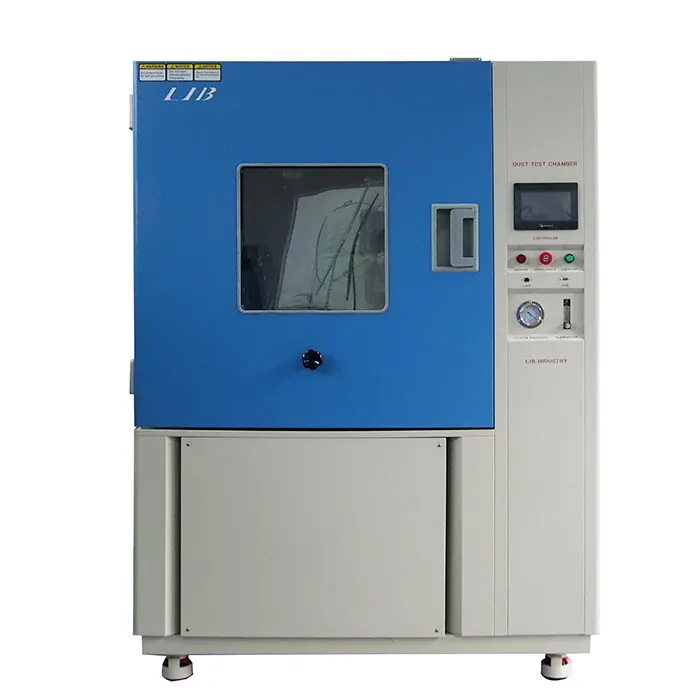

Dust IP Test Chamber
Temperature Range:Ambient ~ +50℃
Humidity Range:< 30% RH
Capacity:800L/1000L/1500L/2000L and more
Blowing Time:0 ~ 99H59M
Specimen Power Outlet:Dust-proof socket 16A
Vacuum System:pressure gauge, air filter, pressure regulator, connecting tube
Dust IP Test Chamber Manufacturer & Supplier
LIB industry's Dust IP Test Chamber provides a controlled method for testing product durability against dust and water ingress per IEC 60529 IP standards. By combining dust and water testing capabilities in one chamber, our system delivers efficient and reliable IP rating validation.
Built to simulate diverse real-world conditions, the LIB Dust IP Chamber allows you to:
Conduct IP5X to IP6X dust resistance testing
Program and monitor dust tests
Conform to IEC 60529,and other standards
Technical Parameters
Model | DI-800 | DI-1000 | DI-1500 | DI-2000 |
Internal Dimension (mm) | 800*1000*1000 | 1000*1000*1000 | 1000*1500*1000 | 1000*2000*1000 |
Overall Dimension (mm) | 1040*1450*1960 | 1330*1450*1960 | 1330*1950*1990 | 1330*2450*1990 |
Useful Volume (L) | 800 | 1000 | 1500 | 2000 |
Temperature Range | Ambient ~ +50℃ | |||
Humidity Range | < 30% RH | |||
Normal Wire Diameter | 50um | |||
Nominal Width of a Gap Between wires | 75um | |||
Fight Time | 0 ~ 99H59M | |||
Blowing Time | 0 ~ 99H59M | |||
Specimen Power Outlet | Dust-proof socket 16A | |||
Vacuum System | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube | |||
Controller | Programmable color LCD touch screen controller, Ethernet connection | |||
Door Lock | Electromagnetic lock | |||
Safety Device | Over-temperature Protection; Over-current Protection; Earth Leakage Protection；Phase Sequence Protection | |||
Exterior Material | A3 Steel Plate with protective coating | |||
Interior Material | SUS304 stainless steel | |||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||

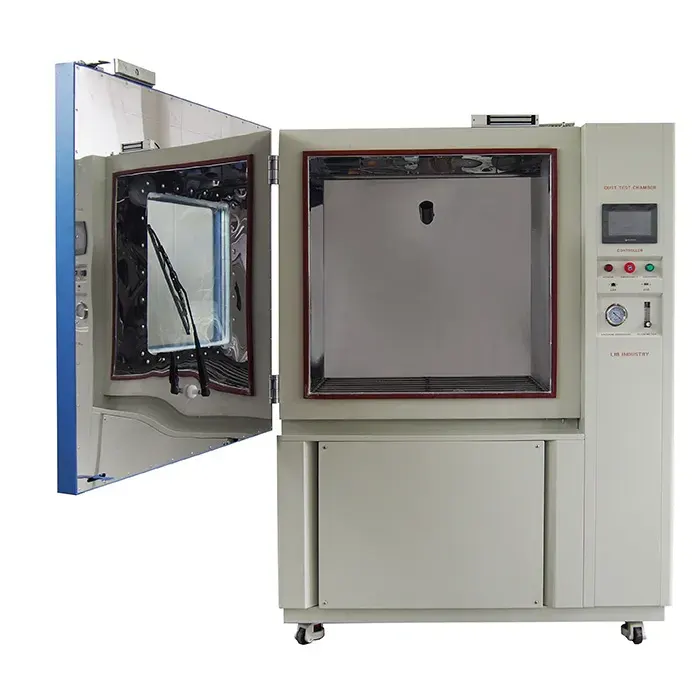

Standard Configuration | Sample shelf, dust wiper, talcum powder(5kgs) | |||
Product Details
|
|
|

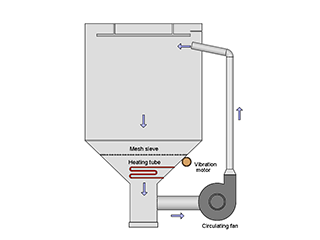

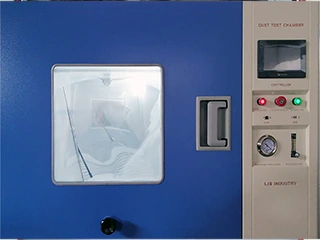

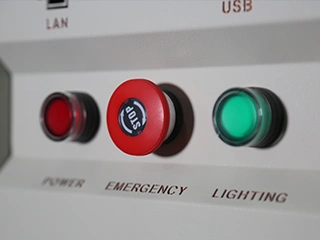

| Dust Circulation System Test chamber with vertical circulating airflow vertical dust circulation system. Airflow can smoothly blow dust into the working room | Viewing Window Double-layer tempered glass, specially designed seal, with good impact resistance and prevention of sand and dust leakage. | Security Settings Emergency stop button Earth leakage protection, phase sequence protection and multiple security protection |
|
|
Integrated Dust Testing System
To perform IP5X to IP6X dust resistance testing, the LIB Dust IP Test Chamber includes:
●Automated dust injection system with adjustable concentration
●Programmable temperature control
●Vertical airflow design for uniform dust distribution
●Real-time monitoring of dust density
Benefits and Applications
The LIB sand and dust ip test chamber provides:
Combined dust and water testing capabilities
Repeatable test procedures for formal IP rating verification
Simulation of diverse real-world conditions
Intuitive control and real-time monitoring
Automated multi-step test sequencing
Alarm notifications in case of test sample failure
Conforms to IEC 60529, EN 60529 and related IP standards
LIB Support and Warranty
We provide dust IP test chamber complete guidance and support:
● On-site installation and training
●Technical support
●Maintenance and equipment calibration
● Software updates
●36 months warranty
