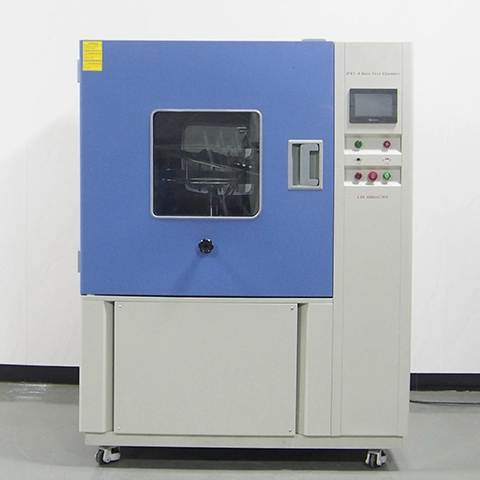

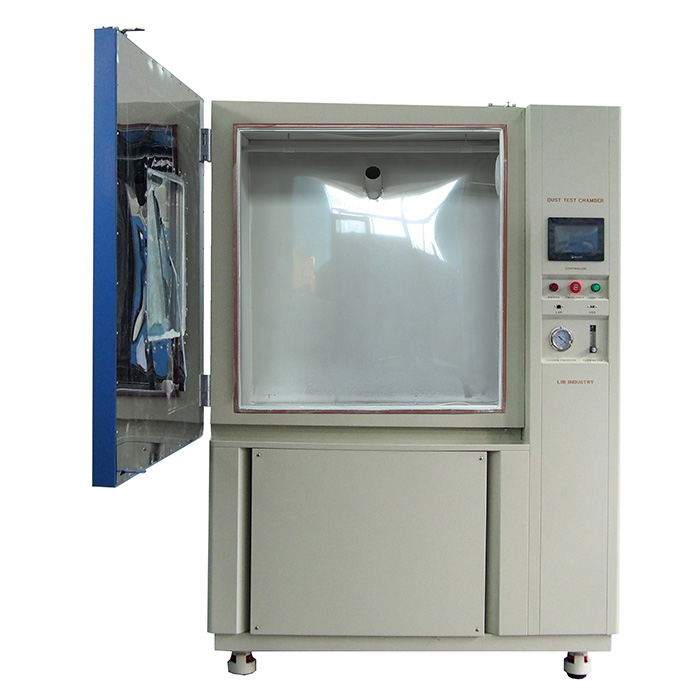

IP5X Dust Test Chamber

IP5X Dust Test Chamber Manufacturer & Supplier

LIB Industry IP5X Dust Test Chamber provides realistic sand ingress testing for verifying enclosure protection and component reliability. Customized test conditions ensure products meet specifications for harsh sandy environments.

It features a compact stainless steel construction resistant to abrasion from repeated sand testing. The standard chamber provides a 1 cubic meter test volume to accommodate various product sizes.Temperature is controllable from ambient to +80°C . The touchscreen PLC interface enables fully automated test sequences.

Technical Parameter

IP5X Test Equipment

Key Features & Technical Highlights

• Full Ingress Protection Compliance: Engineered for accurate IP5X and IP6X dust ingress testing according to IEC 60529, ISO 20653, and IEC 60068-2-68 standards.

• Integrated Vacuum System for IP6X Testing: Equipped with a built-in vacuum pump, air filter, pressure regulator, and differential pressure gauge for seamless negative-pressure testing.

• Talcum Powder Circulation and Heating: The integrated bottom funnel, vibration motor, and heating band keep talcum powder dry, fluid, and flowing smoothly without clogging.

• 304 Stainless Steel Mirror Chamber: The abrasion-resistant SUS304 interior provides high impact resistance and reliable sealing to minimize dust leakage and extend equipment service life.

• Programmable PLC Touchscreen: Enables automatic scheduling of dust blowing, suspension, and vacuum durations from 0 to 99 hours and 59 minutes for fully automated operation.

Product Details

Compliance with Standards

IP5X Dust Test Chamber meets test methods in the following standards:

● IEC 60068-2-68 Environmental Testing - Dust and Sand

● IEC 60529 Degrees of Protection Provided by Enclosures (IP Code)

The chamber evaluates IP ratings up to IP6X for sand ingress protection.

IP5X Dust Test Chamber Features:

1. Realistic Sand Testing: Matches field conditions

2. Fully Automated Operation: Programmable test profiles

3. Rugged Construction: Durable stainless steel chamber

4. Compact Footprint: Provides 1m3 test volume

5. Reusable Sand: Integrated dust collection system

6. Temperature Cycling: Ambient to +80°C

7. Safety Features: Emergency stop button & interlocks

8. Cost Effective: Affordable solution for production testing

9. IP Rating Determination: Evaluates sand ingress protection

FAQ

1. What is the normal lead time of IP5X Dust Test Chamber?

Standard lead time is 2 weeks. Some models are in ready to ship.

2. What after-sales support is included?

36 month warranty and long life service.

3: Can this chamber perform both IP5X and IP6X tests?

Yes. The chamber is equipped with a complete vacuum system and differential pressure controls, making it suitable for both IP5X dust-protected and IP6X dust-tight enclosure testing.

4: How is the talcum powder kept dry during long-term storage or high humidity?

The chamber features an integrated heating system around the powder collection funnel to reduce moisture and help keep the talcum powder dry and free-flowing for consistent testing

Request a Custom Quote

Need a Customized Chamber Size or Specific Test Setup? Contact our engineering team today to receive CAD drawings, custom specifications, or a formal quote within 2 hours.
