portable thermal chamber

LIB Industry portable thermal chamber achieves high performance to fulfill your temperature and humidity testing needs.
Lowest Temperature:-20℃/-40℃/-60℃/-86℃;
Temperature Range:-70℃～+150 ℃;
Humidity Range:10% ~ 98% RH;
Cooling Type:Air cooled
Refrigerant:Environmental refrigerant
Stand as option
Temperature and Humidity System
Product Description

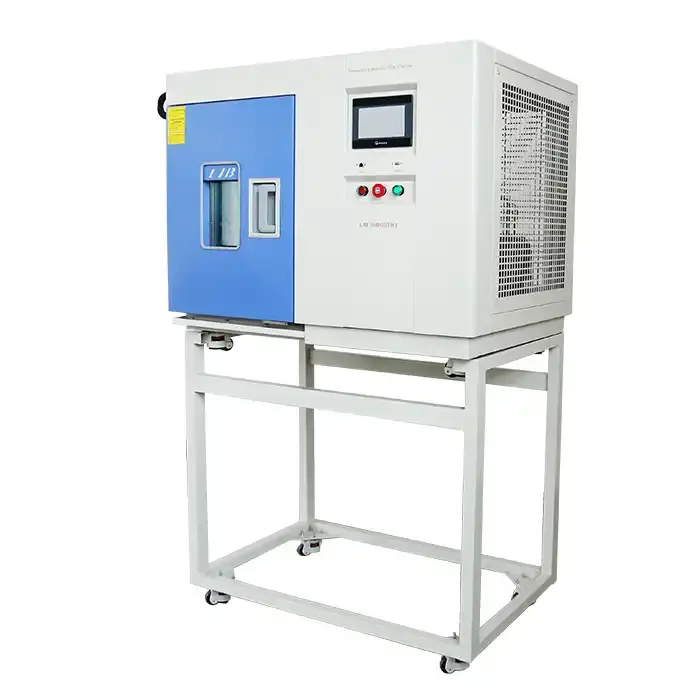

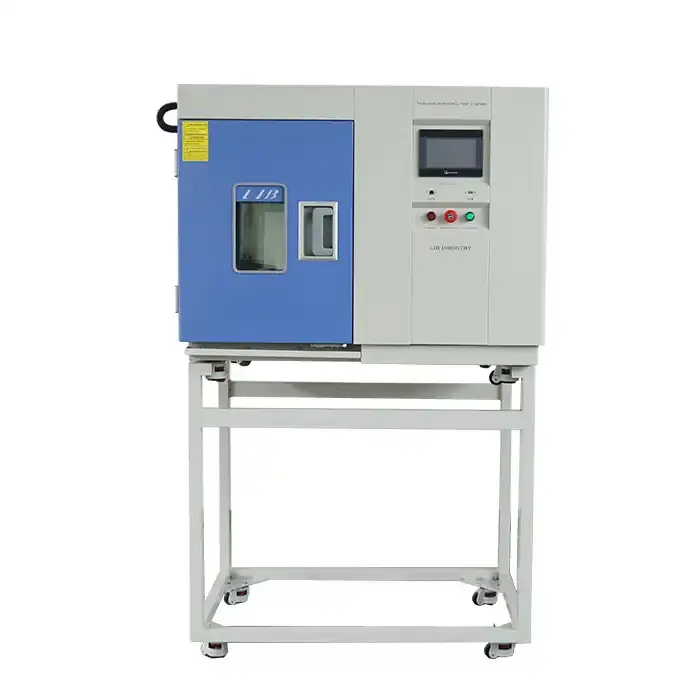

LIB Industry's Portable Thermal Chamber

A portable thermal chamber is a device used in various industries and research settings to test the effects of temperature on products, materials, components, or devices. It's essentially a controlled environment chamber designed to subject objects to different temperature conditions.


These portable thermal chamber typically have the capability to both heat and cool, allowing for precise control over a wide range of temperatures. They can simulate extreme temperature conditions that the object might encounter during its normal operation or in various environments.

Technical Specifications:

Model

TH-50

TH-80

Internal Dimension (mm)

320*350*450

400*400*500

Overall Dimension (mm)

820*1160*950

900*1210*1000

Interior Volume

50L

80L

Heat load

1000W

Temperature Range

A : -20℃ ～ +150 ℃   B : -40℃ ～ +150 ℃   C: -70℃ ～ +150 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Humidity Range

20% ~ 98% RH

Humidity Deviation

± 2.5% RH

Cooling Rate

1 ℃ / min

Heating Rate

3 ℃ / min

Cooling system

Mechanical compression refrigeration system

Controller

Programmable color LCD touch screen controller

Ethernet connection

Safety Device

Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection;

Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection

Exterior Material

Steel Plate with protective coating

Interior Material

SUS304 stainless steel

Thermal Insulation

Polyurethane foam and insulation cotton

Observation Window

Interior lighting, double-layer thermo stability silicone rubber sealing

Standard Configuration

1 Cable hole (Φ 50,) with plug; 2 shelves


Product Details:

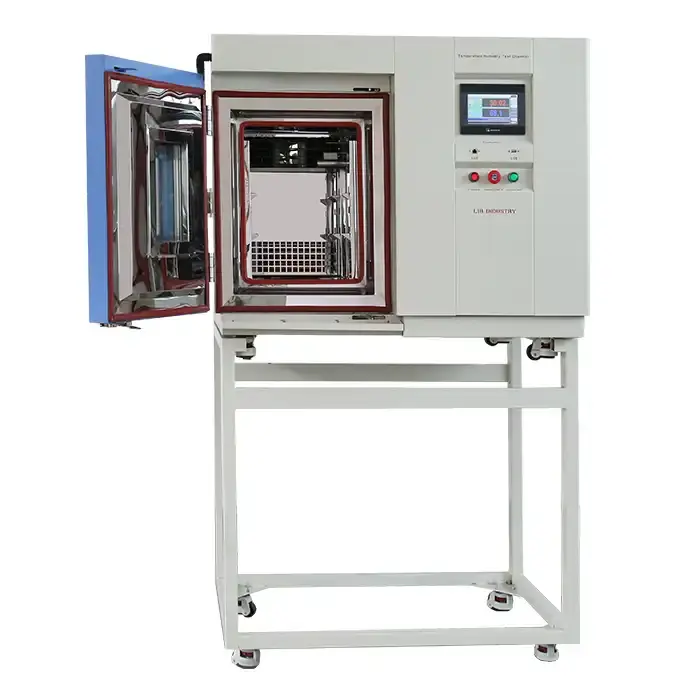

Workroom

The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion

Cable hole

A standard test hole with plugs

The standard inner hole diameter is 50mm/100mm/200mm

Connect to a computer

PID programmable color touch screen controller

Network connection computer

Remote control



Product Advantages:

◇Space Efficiency: They're compact and designed to fit on a workbench, making them ideal for smaller laboratories or testing facilities.

◇Cost-Effective: Compared to larger chambers, they are usually more affordable to purchase, operate, and maintain.

◇Wide Range of Applications: portable thermal chamber is suitable for various applications, such as testing electronic components, materials, pharmaceuticals, and more.

◇Rapid Testing: Enables fast and controlled thermal cycling for accelerated testing of products' thermal resistance and reliability.

Portable Thermal Chamber Applications:

  • Electronics Testing: Assessing components' behavior under different temperature conditions, such as semiconductors or circuit boards.

  • Material Testing: Evaluating the thermal properties of various materials for industries like construction, aerospace, and automotive.

  • Product Development: Assessing the performance and durability of products under extreme temperature conditions before market release.

  • Quality Control: Verifying the reliability and performance of manufactured goods in controlled thermal environments.

FAQ:

  1. What temperature ranges can portable thermal chamber achieve?

    • The low temperature is -20℃/-40℃/-60℃/-86℃， humidity is 20% to 98%RH.

  2. What the cooling rate of this thermal chamber?

    • Standatd temperature change rate is 1℃/min, can reach to 5℃/min or 10℃/min.

  3. Are thermal chamber user-friendly?

    • Yes, user-friendly interfaces for programming and monitoring temperature profiles.

  4. Can these chambers simulate extreme temperature conditions?

    • Yes, they are designed to create extreme temperature conditions to test the resilience and performance of products or materials.
