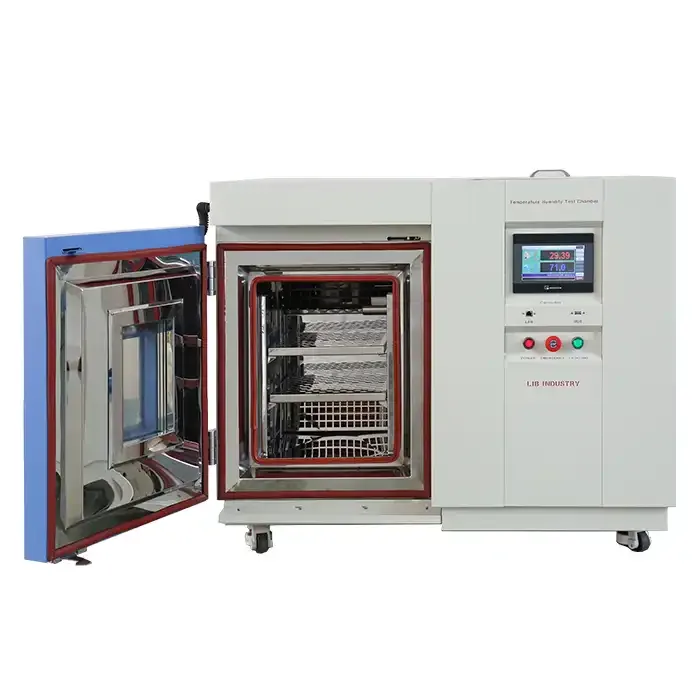

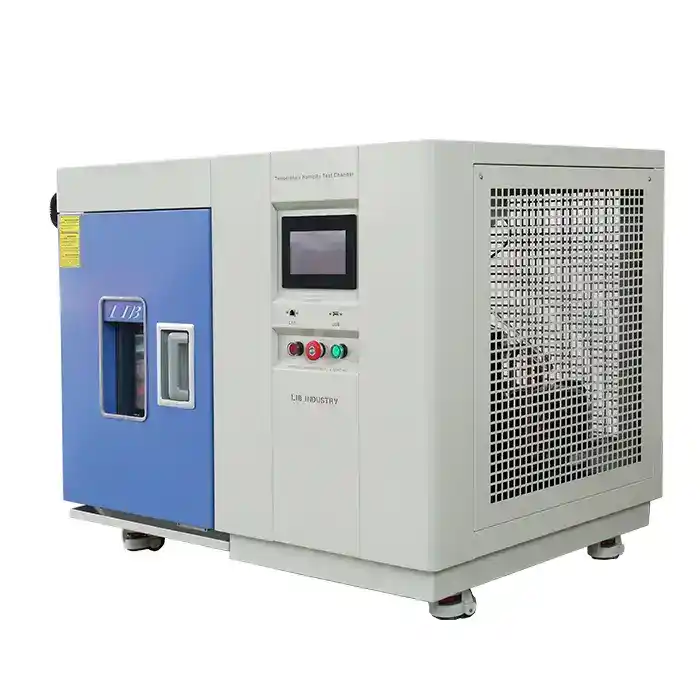

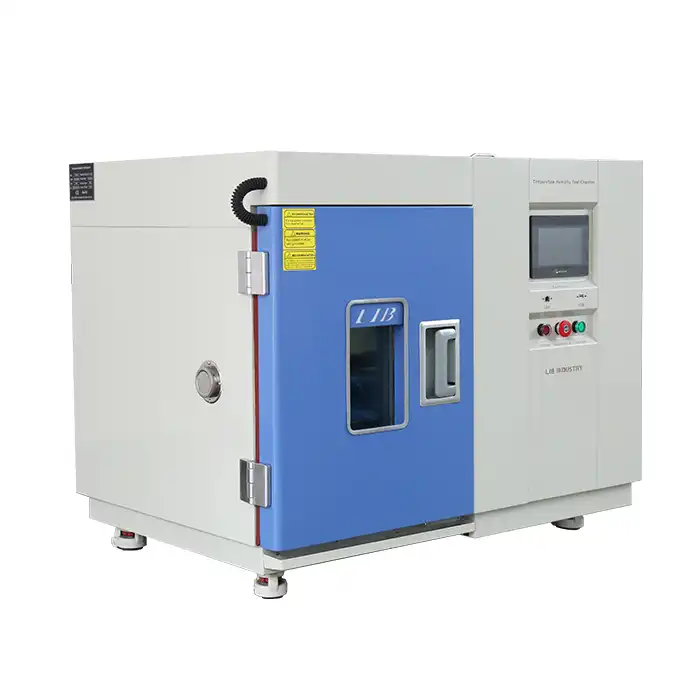

Mini Temperature Chamber

This Mini Stability Chamber is designed with special features that allow it to provide small footprint and maximize workspace.
Model: TH-80
Temperature Range:-70℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Safety options for testing lithium-ion batteries
  Built-in lighting for observing the test
Water Purification and Recirculation System
Product Description

Mini Temperature Chamber Manufacturer & Supplier

The Mini Temperature Chamber by LIB Industry represents a pinnacle in environmental testing equipment, designed meticulously to cater to the needs of various industries requiring precise temperature control in a confined space. Compact yet powerful, this chamber allows for controlled testing environments within a small footprint, offering reliability and versatility for a wide array of applications.

When it comes to precision environmental testing, LIB Industry stands at the forefront, offering an extensive lineup of over 170 specialized chambers, including our hot selling mini stability chamber.

Technical Specifications:

Model

TH-50

TH-80

Internal Dimension (mm)

320*350*450

400*400*500

Overall Dimension (mm)

820*1160*950

900*1210*1000

Interior Volume

50L

80L

Heat load

1000W

Temperature Range

A : -20℃ ～ +150 ℃  B : -40℃ ～ +150 ℃  C: -70℃ ～ +150 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Humidity Range

20% ~ 98% RH

Humidity Deviation

± 2.5% RH

Cooling Rate

1 ℃ / min

Heating Rate

3 ℃ / min

Cooling system

Mechanical compression refrigeration system

Controller

Programmable color LCD touch screen controller

Ethernet connection

Safety Device

Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection;

Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection

Exterior Material

Steel Plate with protective coating

Interior Material

SUS304 stainless steel

Thermal Insulation

Polyurethane foam and insulation cotton

Observation Window

Interior lighting, double-layer thermo stability silicone rubber sealing

Standard Configuration

1 Cable hole (Φ 50,) with plug; 2 shelves

Product Details:




Stand

Stainless steel shelf with rust resistant coating

With casters for easy movement

Height can be customized

Cable hole

The standard inner hole diameter is 50mm/100mm/200mm

Soft silicone plug seal; Metal enclosure closed

PC Link

Ethernet connect to PC for easy operation

Match to the local laboratory software

USB to download data



Product Advantages:

  1. Precision Control: The Mini Temperature Chamber maintains unparalleled temperature and humidity control, ensuring consistent and accurate testing conditions.

  2. Space-Efficient Design: Despite its compact size, it offers ample interior space for various test samples.

  3. Rapid Temperature Change: Swift heating and cooling rates enable quick transitions between temperature settings.

  4. Reliability: Rigorous quality checks and adherence to international standards guarantee reliability and durability.

  5. User-Friendly Interface: Intuitive controls and a user-friendly interface facilitate easy operation.

Mini Temperature Chamber Applications:

Besides its primary function, this chamber can also be utilized for accelerated aging tests, stability analysis, and thermal cycling evaluations for various products and materials.

  • Electronics: Tests components and devices under various thermal conditions.

  • Material Testing: Evaluates thermal properties of materials in aerospace, automotive, and construction.

  • Product Development: Assesses reliability in extreme temperature environments pre-market.

  • Quality Control: Verifies consistency in controlled thermal conditions.

Comprehensive Support and Certifications:

LIB Industry offers comprehensive support services, including OEM options for customization, quick delivery, and meticulous packaging to ensure product integrity upon arrival. Moreover, our mini temperature chamber comes with CE certifications and test reports, providing assurance of compliance with international standards.

hot tags: Mini Temperature Chamber,manufacturers,suppliers,factory,Customized,LIB industry,Buy,Discount,price,pricelist.
