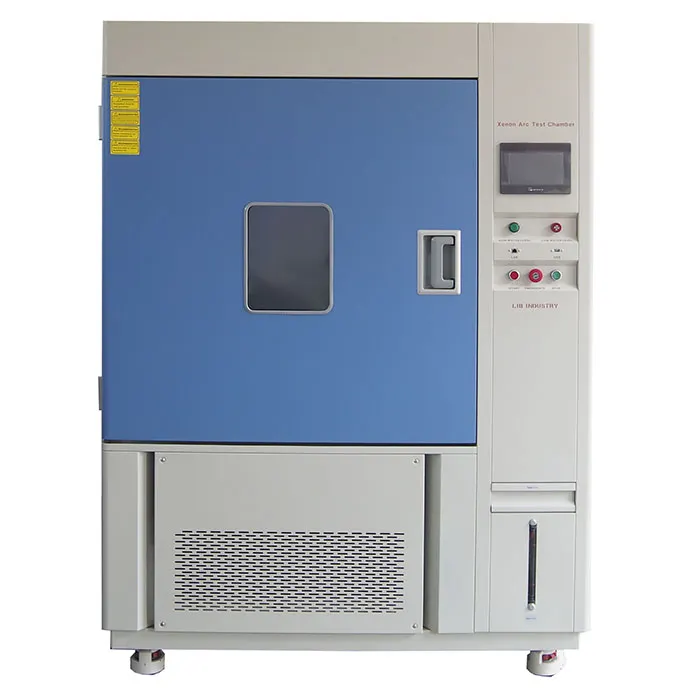

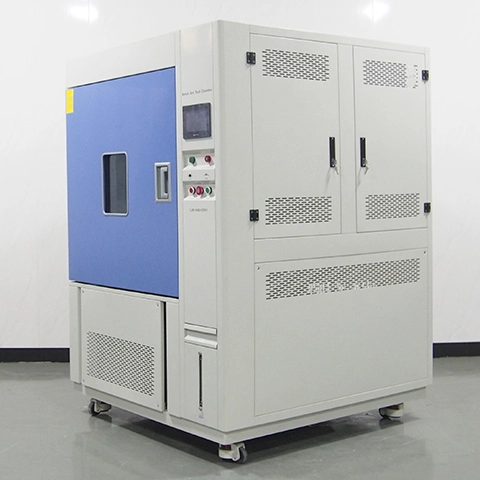

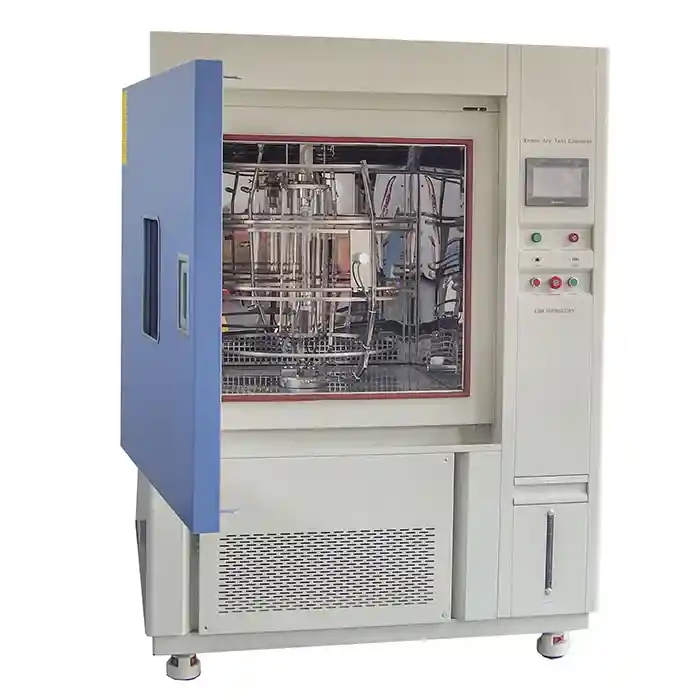

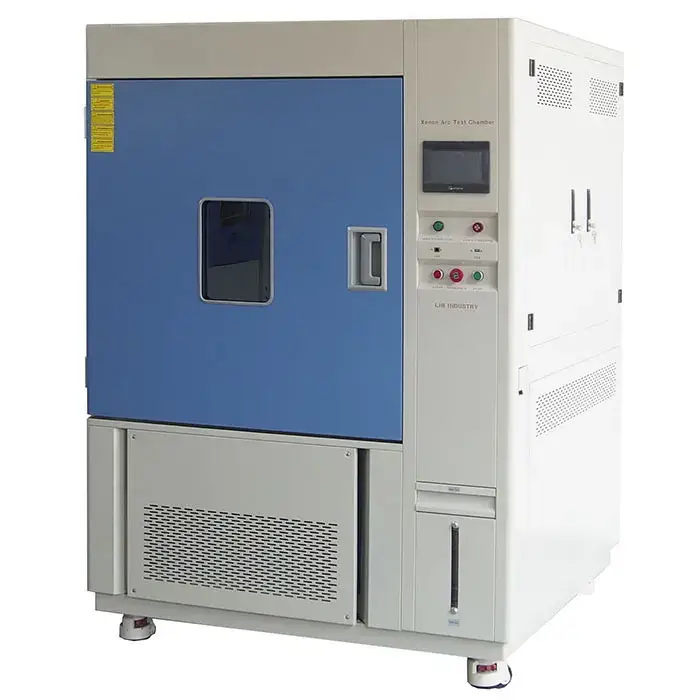

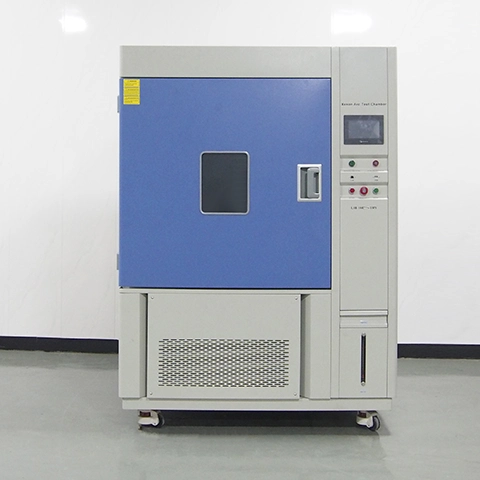

Xenon Aging Test Chamber
Irradiance Range:35~150 W/㎡
Bandwidth Measurement:300nm~400nm (340nm or 420nm)
Cooling System: Mechanical compression refrigeration system
Exterior Material: Steel plate with protective coating
Interior Material:SUS304 stainless steel
Thermal Insulation: Polyurethane foam and insulation cotton
Xenon Aging Test Chamber Manufacturer & Supplier
LIB industry's xenon aging test chamber is designed to replicate and evaluate the effects of xenon light exposure on materials and products, ensuring comprehensive assessment of their durability and performance under accelerated aging conditions.
It adheres to international standards such as ASTM G155, ISO 4892, and ASTM D2565, defining the requirements for testing the effects of xenon light exposure on materials.
Technical Specifications
Model | XL-S-750 |
Internal Dimension (mm) | 950*950*850 mm |
Overall Dimension (mm) | 1400*1400*1950 mm |
Specimen Holder Size(mm) | 95*200 |
Specimen Capacity | 42pcs |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp |
Irradiance Range | 35~150 W/㎡ |
Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
Chamber Temperature Range | Ambient ～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 50% ~ 98% RH |
Humidity Deviation | ± 5% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Water supply system | Automatic water supply, Water purification system |
Radiometer | UV Radiometer, Tolerance: ±5% |
Cooling System | Mechanical compression refrigeration system |
Humidification System | External isolation, stainless steel surface evaporation humidifier |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Product Details
|
|
|

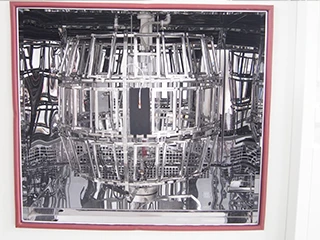

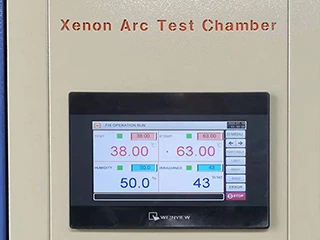

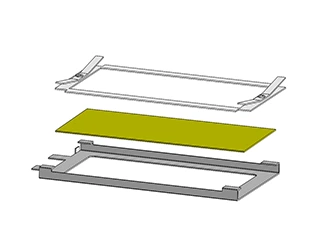

| Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion | Specimen Holder 304 stainless steel Total can mount 42 pieces of specimen. Special specimen holder can be customized | Controller PID programmable color touch screen controller English/French/Spanish/German/Russian |
|
|
Xenon Aging Test Chamber Features
Our Xenon Aging Test Chamber offer precise control of xenon light exposure, temperature, and humidity for accurate simulation of aging conditions, uniform irradiance distribution for consistent testing results, water spray system for testing with water exposure, user-friendly interface for easy operation and monitoring, compliance with international standards for reliable testing, and comprehensive testing capabilities for evaluating material durability.
Application
Xenon aging test chamber finds applications across industries such as automotive, textiles, coatings, plastics, and outdoor equipment. They are used to test a wide range of products, including automotive components, textiles, coatings, plastic materials, and outdoor equipment, to ensure their long-term performance under light exposure.
FAQ
Q: Can the chambers accommodate specific light wavelength requirements?
A: Yes, our chambers can be customized to control the light wavelength for specific testing needs.
Q: What is the lead time for ordering chambers?
A: 2 weeks, we provide door to door service.
